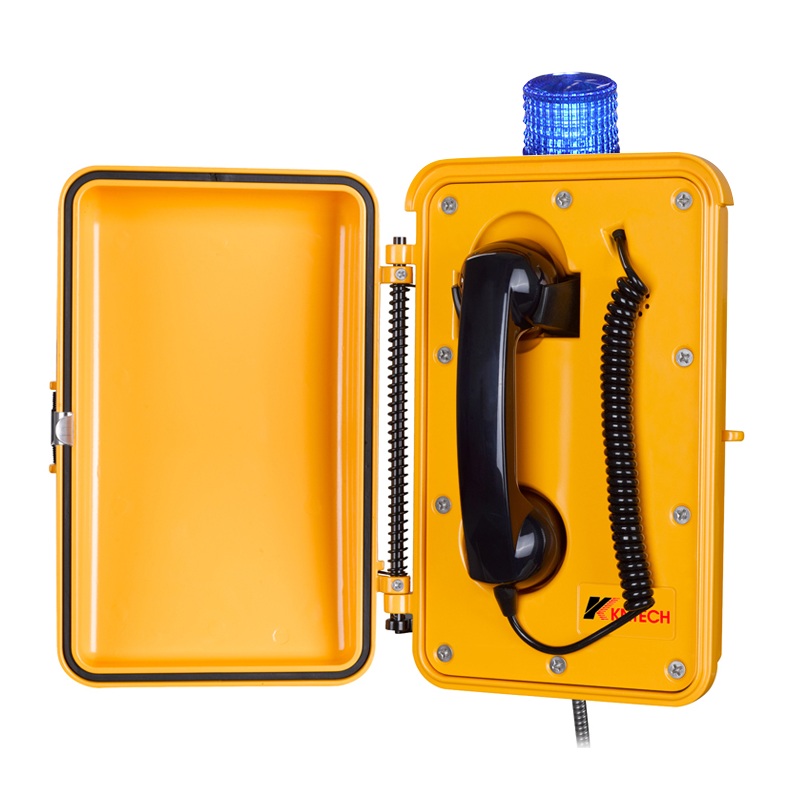

Weatherproof Telephone

Weatherproof Telephone

model:KNSP-01T3J
size:320*205*120mm
material:Aluminum alloy

Weatherproof-telephone-KNSP-01T3J-Analogue2
Weatherproof-telephone-VoIP-KNSP-01T3J

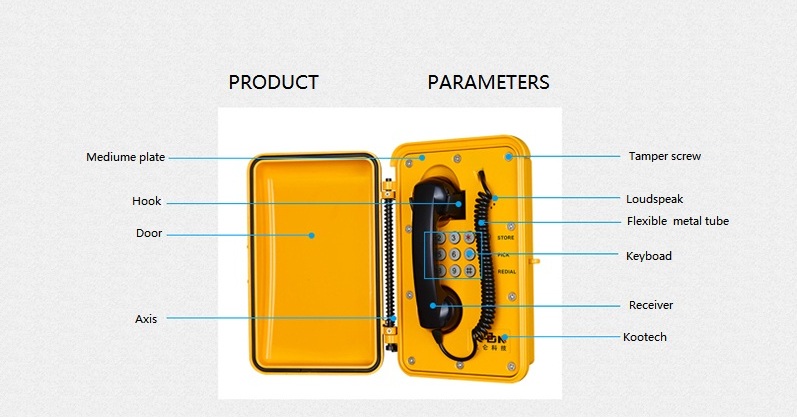

weather telephone description

Weatherproof telephone KNSP-01

The weatherproof telephone adopts a metal weatherproof shell to minimize environmental damage to the phone. The sturdy shell can prevent damage to the phone. The airtightness is good, and the waterproof level reaches IP66. It can be used normally in outdoor weather.

The weatherproof telephone is an emergency phone that specifically addresses the harsh environment of outdoor industry.
The Most Professional telephone Manufacture in Asia! weatherproof telephone for tunnel purpose made of aluminium alloy material by die casting. The telephone is rugged and durable. Special sealing design can ensure complete waterproof grade up to IP66. weatherproof , dustproof and moisture-resistant. The weatherproof  telephone widely used in tunnel and outdoor. Most metro and high-speed rail project need install IP66 telephone for emergency communication.  Also expressway and power plant need weatherproof  phones. marine need moisture-resistant telephones. The weatherproof  telephone widely used in tunnel and outdoor. Most metro and high-speed rail project need install IP66 telephone for emergency communication. The weatherproof telephone uses aluminum alloy as the raw material for the weatherproof enclosure, and the exterior is strong and has an explosion proof effect. It is available in both VoIP and analog versions and is customizable.

Why use an weatherproof telephone?

In addition to normal office telephone, home phone ;The outdoors, industrial plants, tunnels, construction site, harsh environment, also need to use the special requirements of a number of telephone communication. The weatherproof telephone is designed for outdoor by KNTECH. An outer metal casting, sealing, waterproof rating to IP66. Using this telephone, to meet the communication requirements for outdoor, and not easily damaged, long life, good stability.

Why use the KNTECH'S weatherproof telephone ?

KNTECH, is an industrial practitioners 20 years of professional telephone communications companies, we have first-class R & D and service team. Each weatherproof telephone have been waterproof tested and obtain international certificates. We have our own factories, we can provide cheap, quality assurance, after-sale protection of weatherproof telephone for you. You can buy with confidence.

 DESCRIPTION ITEM

1. Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware, easy Installation.

2. Waterproof rating IP66 dust proof.

3. Full keypad with memory, 10 button programmable speed-dial telephone.

4. Door cover: orient automatically and good self - closing, convenient for use.

5. Weather resistant to IP66 standard, service temperature range from -30 degree to +75 degree.

6. Magnetic reed hook-switch.

7. Lightening protection to ITU-T recommendation K.21.

8. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.

9. Handset with industrial strong curly cord .

10. Silicon keypad keep waterproof and dusty proof.

11. Phone integrity wiring to enable the telephone system to check if the telephone unit is still

Operational.(if PABX have this available we can provide this function).

12. Optional 7 minute time out to release the line if the handset is left off hook. This function

upon buyer’s requirement).

13. Powder coated in UV stabilized polyester finish.

14. The housing covered with a layer of reflective label for easy identification at night.Optional

15. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.

Weatherproof telephone enclosure

We offer industrial grade outdoor weatherproof telephones with a rugged, weatherproof telephone enclosure. We offer a weatherproof telephone enclosure that screws the weatherproof telephone in a weatherproof phone case with a solid outer casing. The housing uses a spring door that automatically closes the phone enclosure. The weatherproof phone enclosure, which closes the phone case and is placed outdoors, minimizes damage to the phone.
Made of metal and sturdy
The spring door is automatically closed and is not easily opened by outside interference.
With RJ45 interface

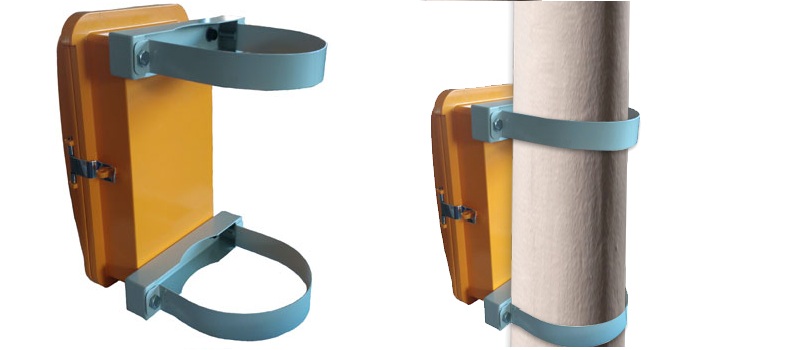

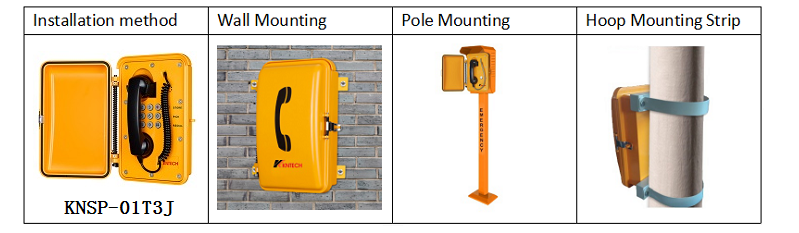

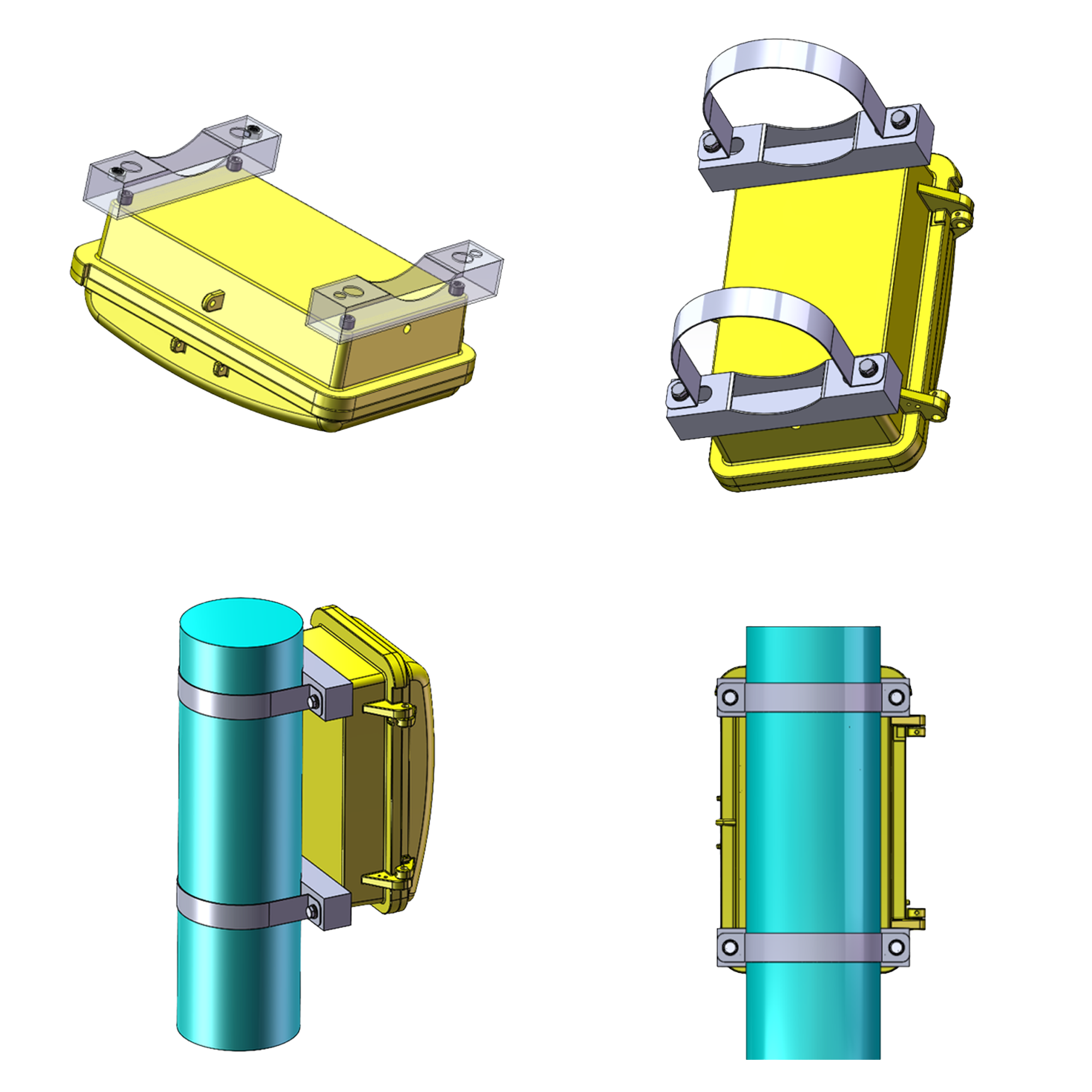

 INSTALLATION

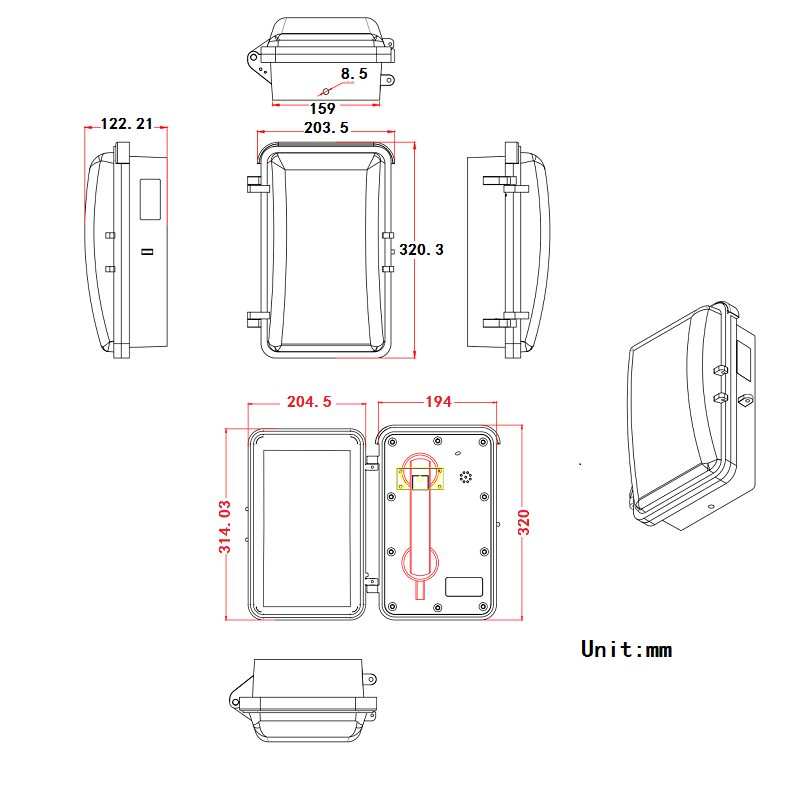

weatherproof telephone sizehow to install the weatherproof telephone

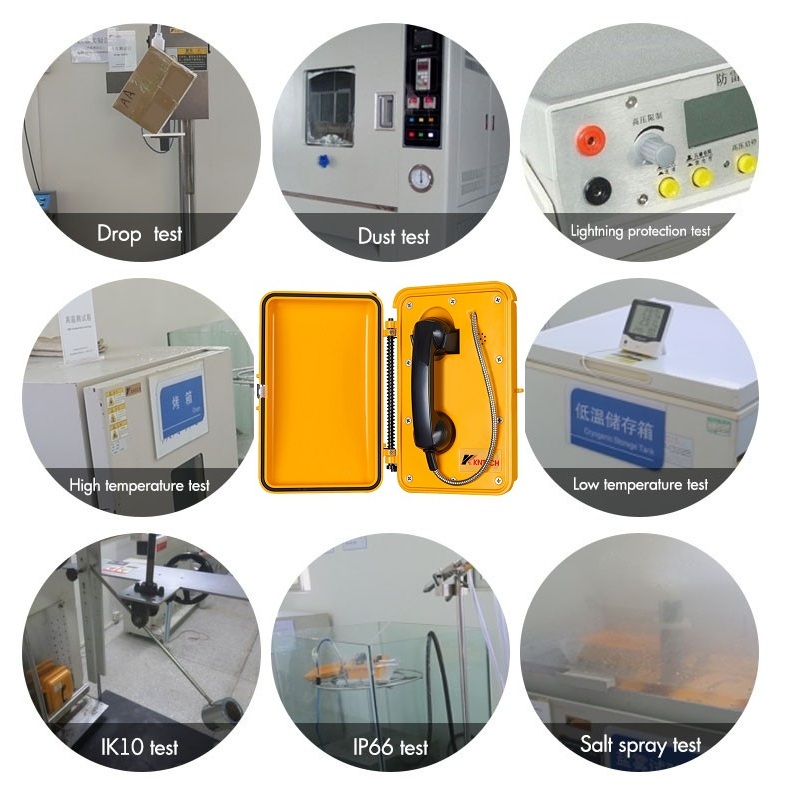

Rigorous Testing Quality Assurance
the test about the weatherproof telephone

 CERTIFICATION

RCM: AS/NZS CISPR 32       Australian communications:AS/CA S004

Australian Equipment-safety: AS/NZS 60950.1:2015

EMC: EN50121(Railway application-Electromagnetic Compatibility)

weatherproof telephone certificate

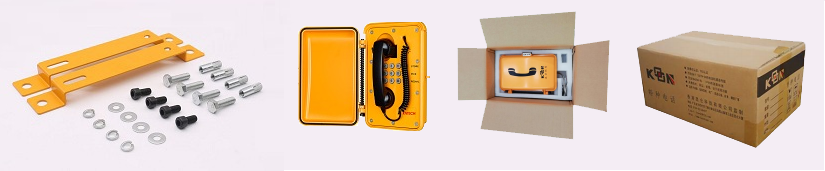

 PACKAGING


weatherproof telephone accessories

Unit size:320 *205*120mm   Unit: N.W:5.3KG

1pcs packing box size: 439 *277 *191mm Unit: N.W:5.3KG    Unit G.W:7KG

6pcs in 1 outer Carton box: size: 730*390*340mm  N.W:31.8KG  G.W:34KG







Product Specification

 SPECIFICATION - Analogue(Model NO.SP0010012)

1. PSTN analogue telephone                                          2. DTMF dialing

3. MTBF:100000hours                                                    4. MTTR: 2 hours

5. Connection: RJ11 screw terminal pair cable               6. Sound level of ringing:over 70dB(A).

7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM

8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.

9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected

10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)

11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%

12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

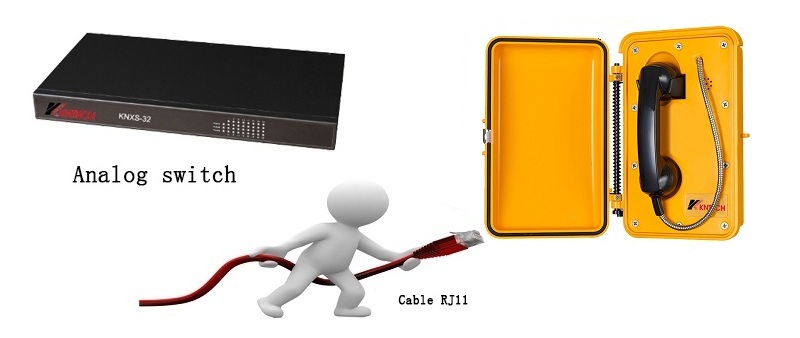

analogue telephone connect

 SPECIFICATION - VoIP(Model NO.SP0010032)

1. VoIP SIP2.0 telephone                                              2. DTMF dialing

3. MTBF100000hours                                                   4. MTTR: 2 hours

5. Auxiliary Contacts:1 Aux Output, dry contact            6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC

7. Contact Ratings. Load: Resistive load                      8. Echo cancellation code:G.167/G.168

9. Rated carry current:1A                                             10. Max.switching current:1A

11. Max.switching voltage:125 VAC,60VDC                 12. Audio Codes:G.711, G.722, G.729

13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP

14. Free dial (maximum length of each number is 16 digits)

15. Communication: Full duplex 2-way hands-free communication

16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)

17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better

18. Power:Power over Ethernet, IEEE802.3af, Class 0  Local power, 12VDc,Idle 2W, Max 10W

19. Programming:Non-volatile flash memory programming and configuration through Web GUI

20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED

21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)

voip telephone connect


Telephone System

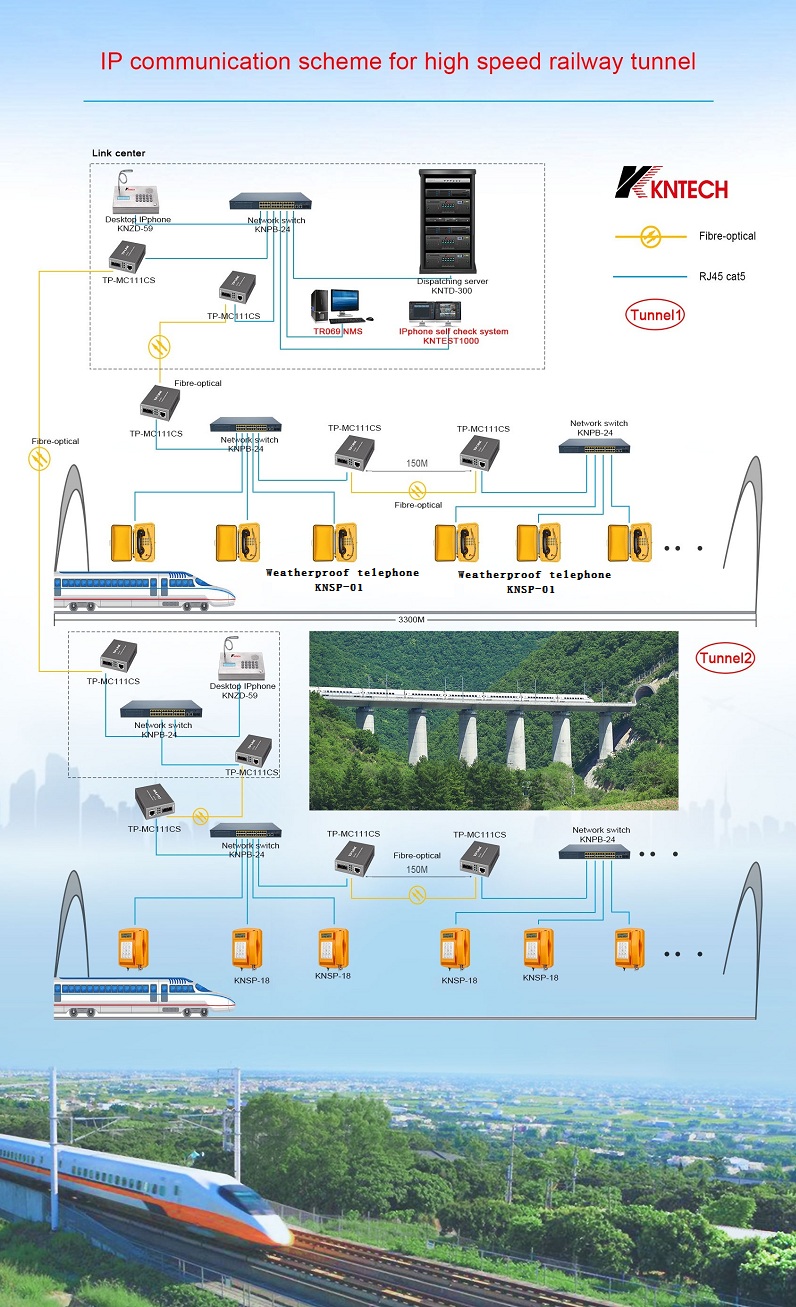

Weatherproof telephone on the hight speed railway tunnel

the weatherproof telephone on the highway speed railway tunnel system

Product Application

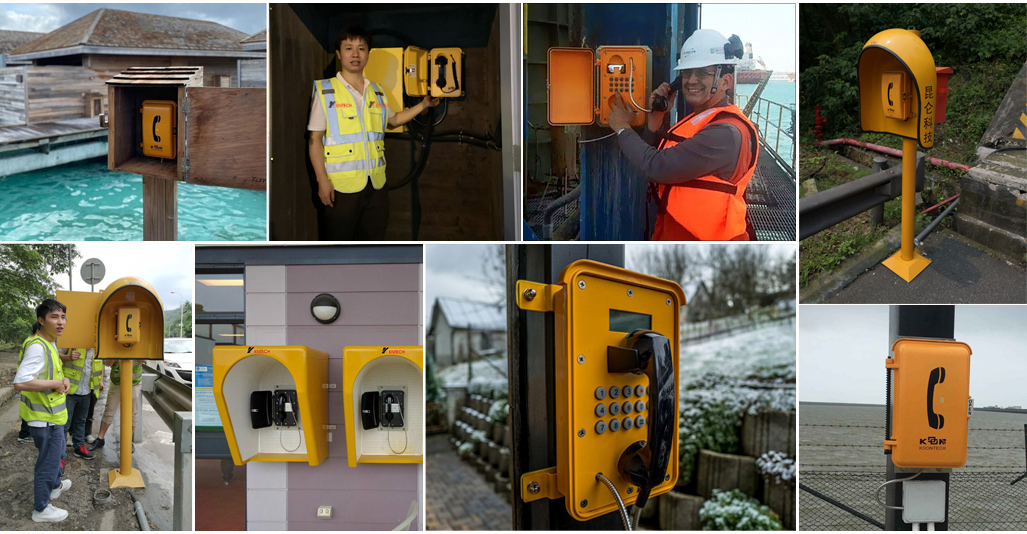

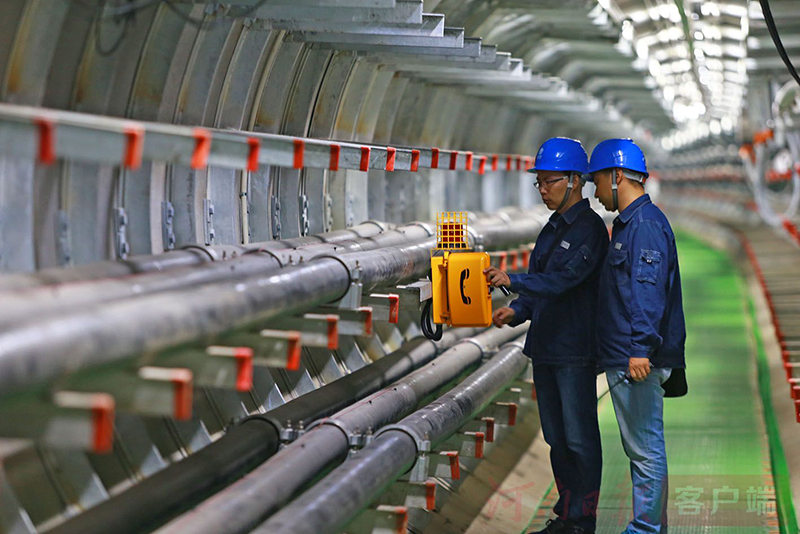

Weatherproof telephone in the actual scene graph

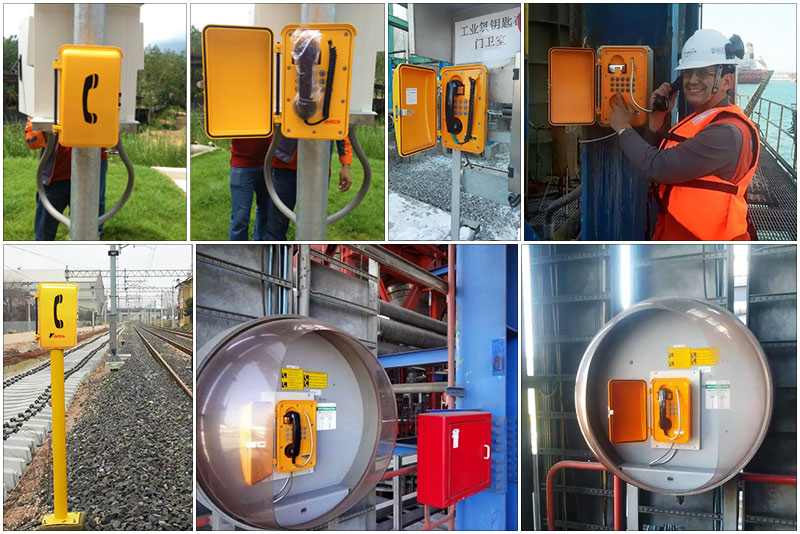

weatherproof telephone in outdoor weatherproof telephone different outdoor scenes  weatherproof telephone in outdoor weatherproof telephone in the production line weatherproof telephone in the production line

weatherproof telephone in the production line weatherproof telephone in the production line

Product Detailed Pictures

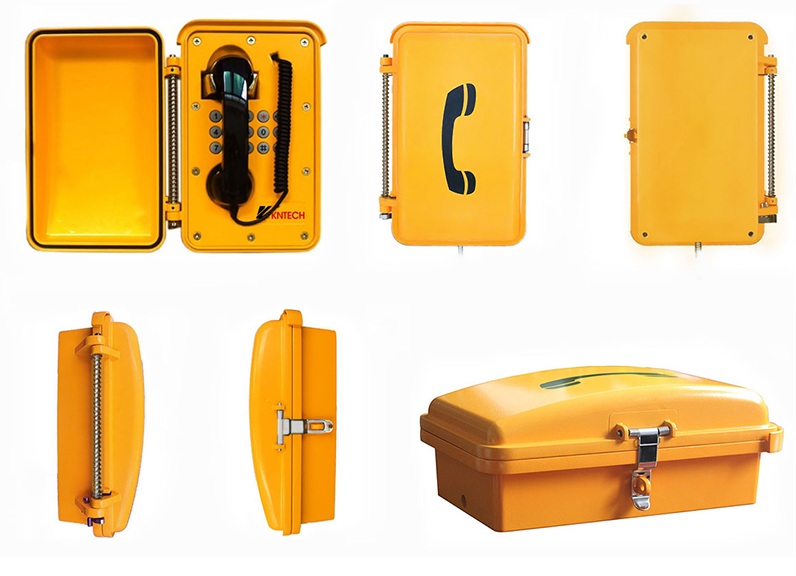

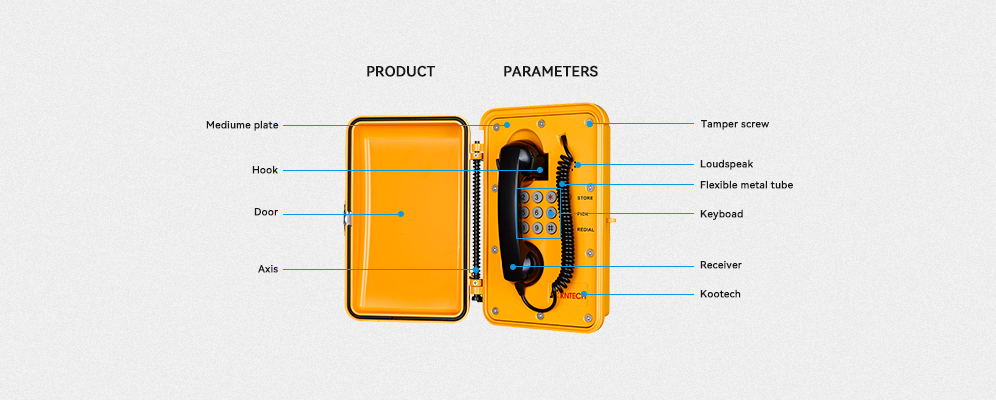

weatherproof telephone Multi-angle view, front view, side view, top view

weatherproof telephone multi angle diagram

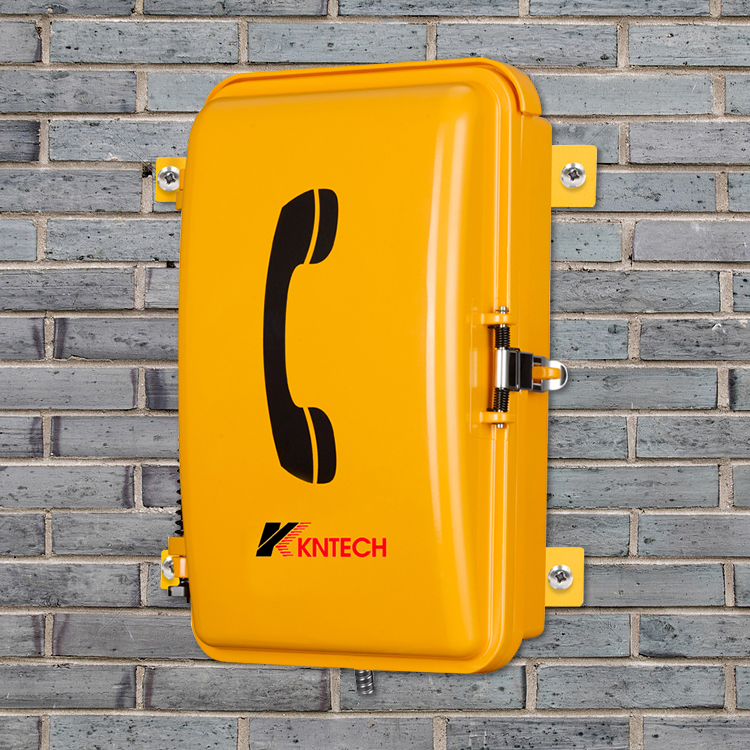

weatherproof telephone wall installation



Product Video

Weatherproof telephone, waterproof level up to ip67


Please Email US
marketing@koontech.com

This product model:KNSP-01T3J

*
*
*
*


Durant-July 21, 2018-India

The weatherproof phone is of good quality and is placed outdoors as a very good choice for engineering communications.
