Outdoor emergency phone

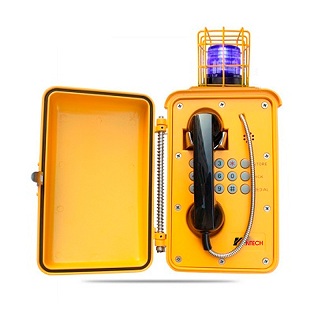

Outdoor emergency phone

model：KNSP-01-D8DZ1
size：320X205X120mm
material：Robust aluminium allay die-cast body

outdoor-emergency-phone-analogue2
outdoor-emergency-phone-voip2

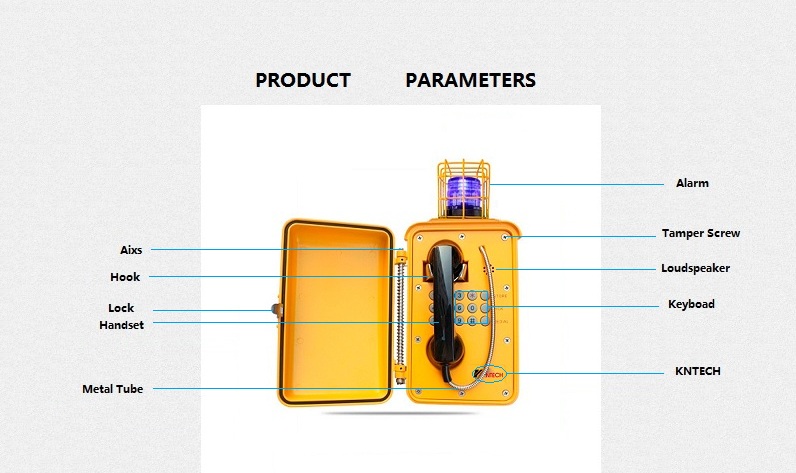

outdoor emergency phone description
Outdoor emergency phone


The outdoor emergency telephone is a weatherproof emergency industrial telephone that is suitable for use in an open-air swimming pool  emergency telephone or in an industrial room as an emergency communication telephone.
The outdoor emergency phone enclosure is made of metal material and is a heavy duty industrial phone. The outdoor emergency phones can be placed outdoors as a telephone booth after the telephone door is closed with the column. Outdoor emergency phone, with strong weather resistance, waterproof, weatherproof features, often used outdoors, roadside, poolside as a sos telephone. you also can use the outdoor phone box to protect the telephone

What are the characteristics of outdoor emergency phone?

Usually in scenic areas, large industrial areas, parks, school playgrounds, etc., we all need to install some emergency phone to ensure personal safety. In order to ensure that the phone is installed outdoors and can be used normally, it is usually necessary to have several features:
1. Easy to install
2. The call quality is good
3. Waterproof level reaches ip66 or above
4. Against bad weather;weatherproof
5. Has a distinct sos logo
6. The appearance is firm, anti-destructive and wear-resistant.

What is the best cell phone for emergency use only?

With the rapid development of mobile communications, the best emergency phone is a smart phone, which can quickly and easily make emergency calls 911, 999, 112 and so on. Of course, there are some special circumstances. For example, in outdoor parks, many times these areas are not covered by mobile networks. We need to install some outdoor emergency phones with columns to help tourists seek help. In nuclear power plants, oil and other chemical industries, we need intrinsically safe phones as emergency phones. In some remote places, we need to set up a fixed emergency intercom help visitors quickly get in touch with the duty officer and ask for help.

What are blue light emergency phones?

The blue light emergency phones are emergency phones or posts with blue warning lights and are usually placed on the university campus for protection and warning. Usually the blue light flashes when a call comes in, or when a call is made using the phone. We also offer a complete set of blue light system.

   DESCRIPTION ITEM NO.

1. Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware, easy Installation.

2. Waterproof rating IP66 dust proof.

3. Full keypad with memory, 3 button programmable telephone ,support hotline dialing, support scroll dialing.

4.Magnetic reed hook-switch.

5. Lightening protection to ITU-T recommendation K.21.

6. Heavy Duty handset with hearing Aid compatible (HAC) receiver, Noise canceling microphone.

7. Handset with industrial strong curly cord .

8. Silicon keypad keep waterproof and dusty proof.

9. Door cover: orient automatically and good self - closing, convenient for use.

10. Temperature range from -40 degree to +70 degree.

11.Support echo cancellation.

12. Support Remote software upgrade, configuration and monitoring.

13. Optional 7 minute time-limited call.( This function upon buyer’s requirement).

14. Powder coated in UV stabilized polyester finish.

15. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.

   INSTALLATION

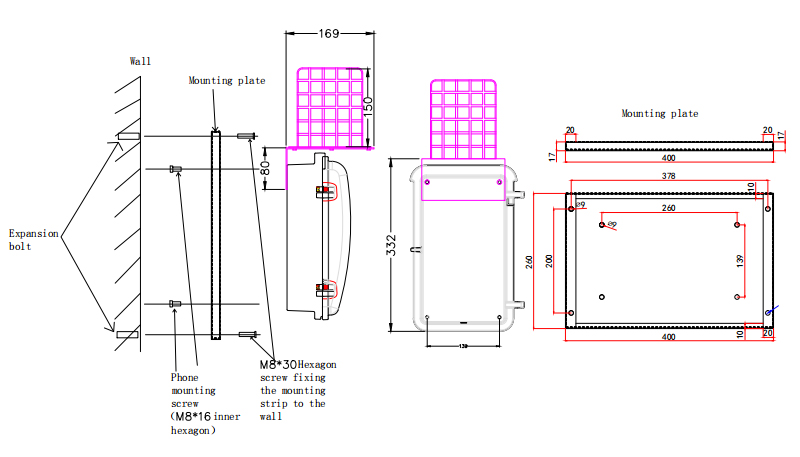

outdoor emergency phone installed size
   CERTIFICATION
    RCM: AS/NZS CISPR 32 Australian communications:AS/CA S004
    Australian Equipment-safety: AS/NZS 60950.1:2015
    EMC: EN50121(Railway application-Electromagnetic Compatibility)
outdoor emergency phone certification
   PACKNG

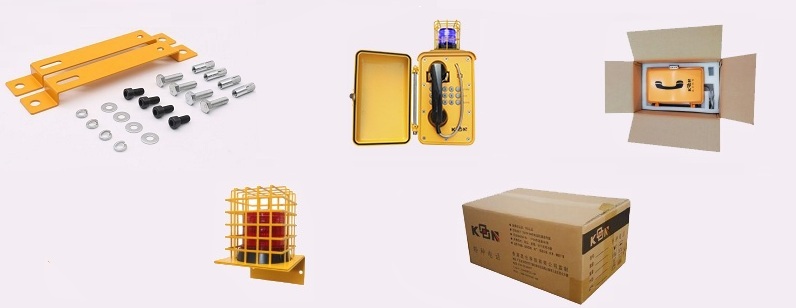

outdoor emergency phone packing
Unit size:320 *205*120mm Unit: N.W:4.86KG
Alarm lampshade and Alarm Lamp：1.36KG
1pcs packing box size: 570 *270 *175mm Unit N.W:8.2KG
6pcs in 1 outer Carton box: size: 730*390*340mm N.W:31.8KG G.W:34KG


==>>>> Product Specification

 SPECIFICATION - Analogue(Model NO.SP0010012)

 1. PSTN analogue telephone        2. DTMF dialing

 3. MTBF:100000hours             4. MTTR: 2 hours

 5. Connection: RJ11 screw terminal pair cable

 6. Applicable for various types of SPC exchange PABX and dispatching exchange system with

 feeding voltage of 33-60V.

 7. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95%

 Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

 8. Sound level of ringing:over 70dB(A).

 9. Standard frequency:low frequency group:697. 770. 852. 941Hz,

 high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%

 10. Call transmission index:(5KM)SLR<12,RLR<-1,STMR>10, output impedance is 600 Ohm.

 maximum distance: 7KM

 11. Super strong function is available for dialing 12 groups of numbers stored in the memory

 (maximum length of each number is 16 digits)

 12. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request)

 SPECIFICATION - VoIP

VoIP SIP2.0 telephone DTMF dialing               Audio Codes:G.711, G.722, G.729,G723,G.726

MTBF:100000hours MTTR: 2 hours                  Network:10/100 BaseTX Ethernet, RJ45

Free dial (maximum length of each number is 32 digits)  connectors, Cat5e or better

Communication: Full duplex 2-way                 IP Protocols:IPv4, TCP, UDP, RTP, DHCP, SIP

Call Control Signaling:VOIP SIP Info(DTMF), RFC       1 x LAN Power over Ethernet(PoE,802.3af)

2833(DTMF)                               1 x LAN(IEEE 802.1x), Network Access

Power : Power over Ethernet, IEEE802.3af, Class 0     Control(IEEE 802.1x),STP(IEEE 802.1d)

Local power, AC110~220V or 12VDc,Idle 2W, Max 20W     RSTP(IEEE 802.1d-2004)

Auxiliary Contacts: (option)                   Programming:Non-volatile flash memory

1 Aux Output, dry contact                     programming and configuration through Web GUI

Dry contact Load parameter                    Management and Operation:DHCP and static IP,

Rated load:0.3 A at 125 VAC; 1 A at 30 VDC         remote automatic software upgrade, centralized

Rated carry current:1A                       monitoring

Max.switching voltage:125 VAC,60VDC              Echo cancellation code: ITU-T G.167/G.168

Max.switching current:1A
==>>>>Telephone System

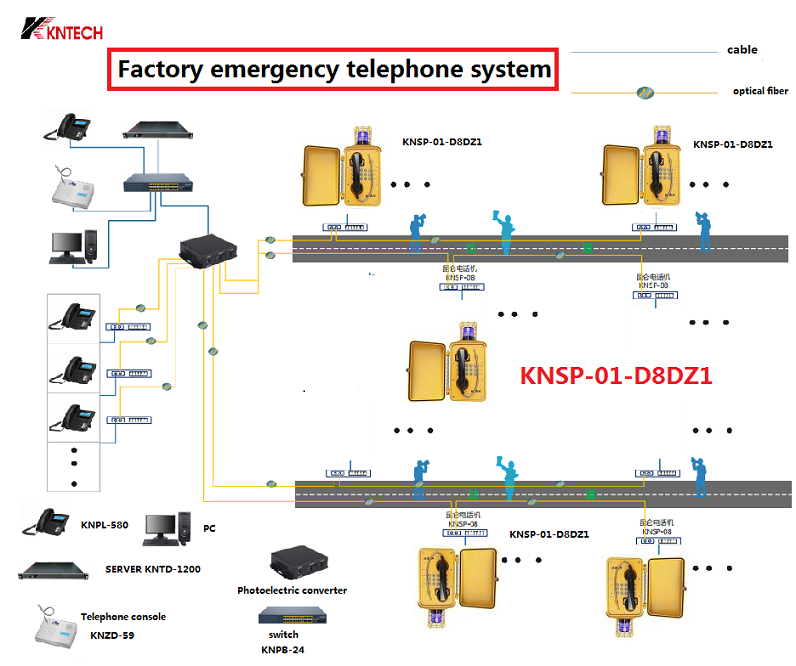

Outdoor emergency phone use in the factory telephone system

outdoor emergency phone use in the factory telephone system
==>>>>Product Application

Outdoor emergency phone application

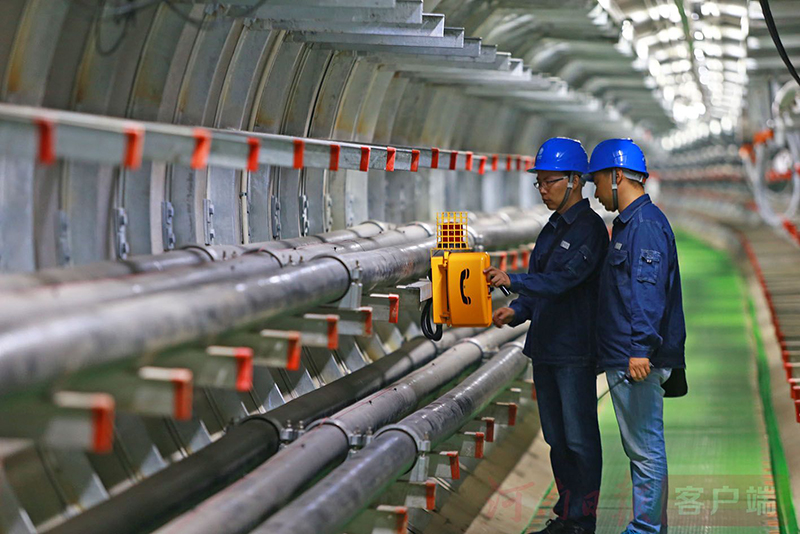

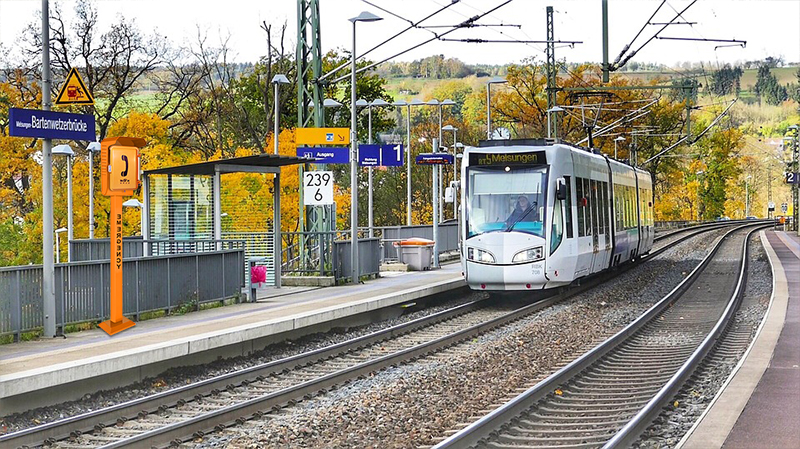

outdoor emergency phone on outdoor railway

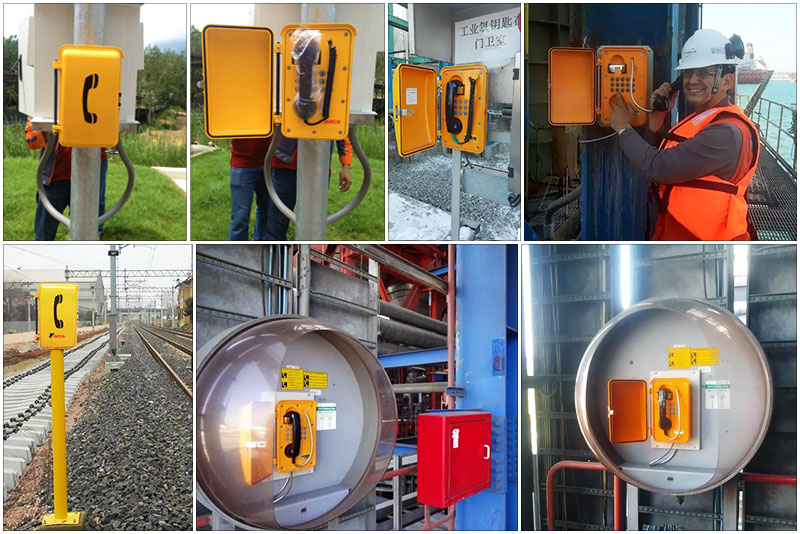

outdoor emergency phone on application place

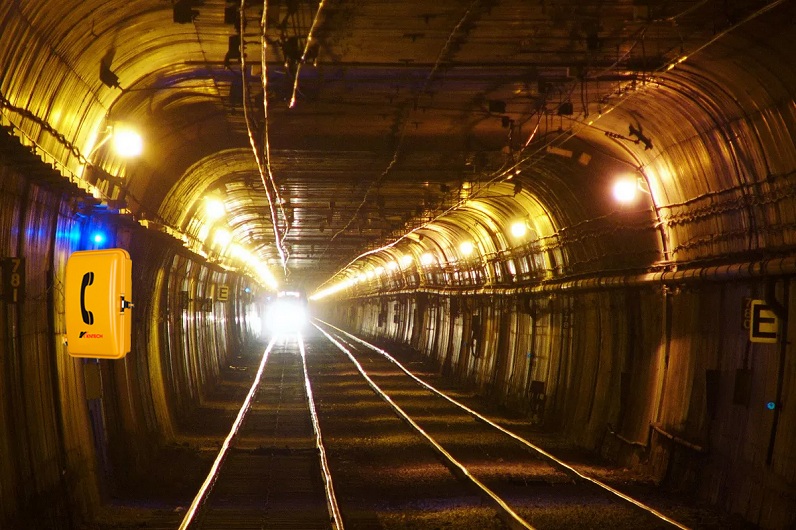

outdoor emergency phone in the tunnel
outdoor emergency phone on outdoor railway
==>>>>Product Detailed Pictures

More detailed of outdoor emergency phone

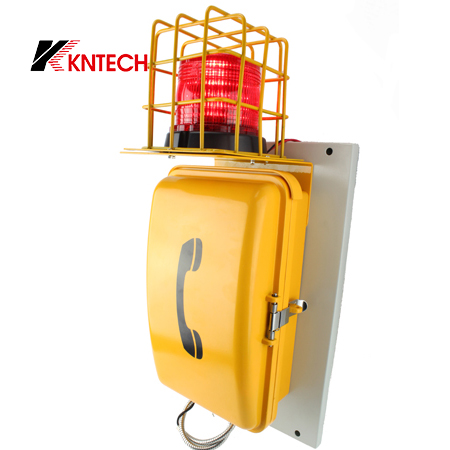

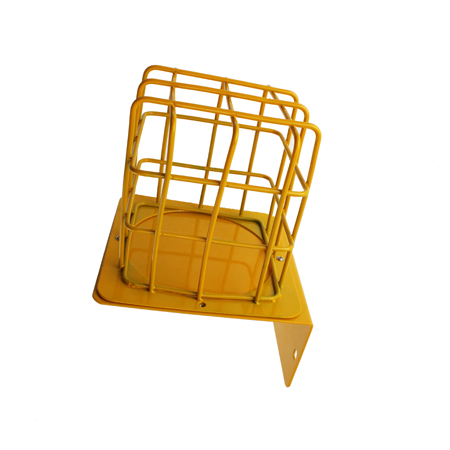

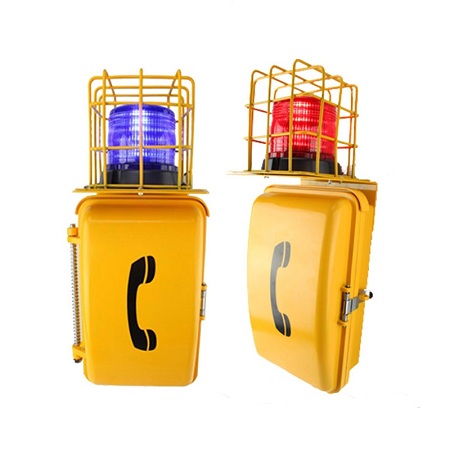

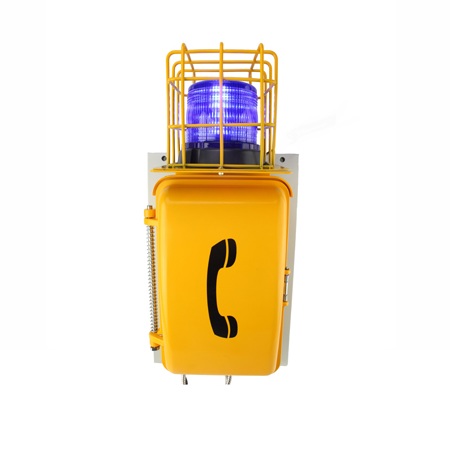

the red outdoor emergency phone the blue outdoor emergency phone both of outdoor emergency phone outdoor emergency phone lampshade
