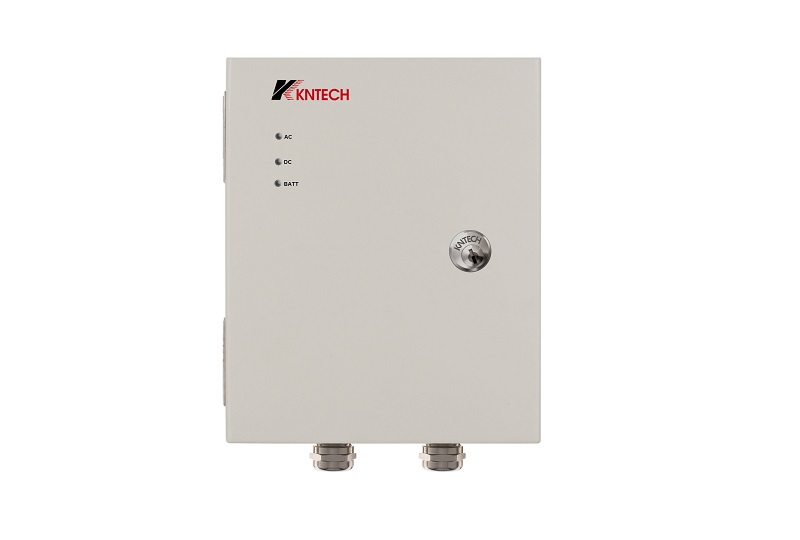

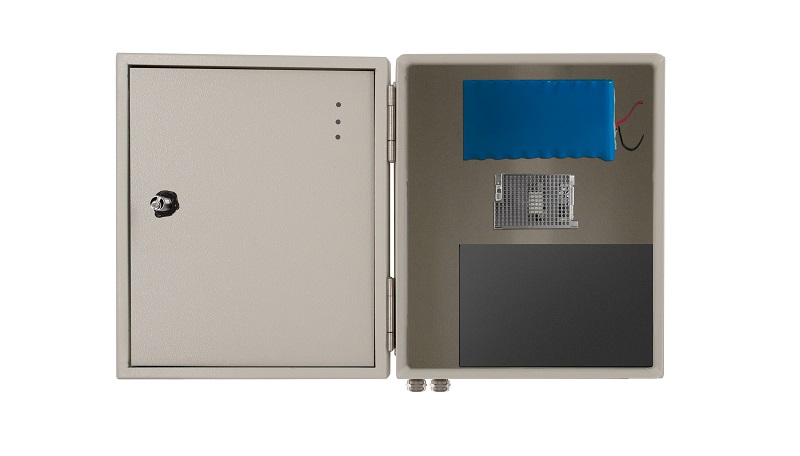

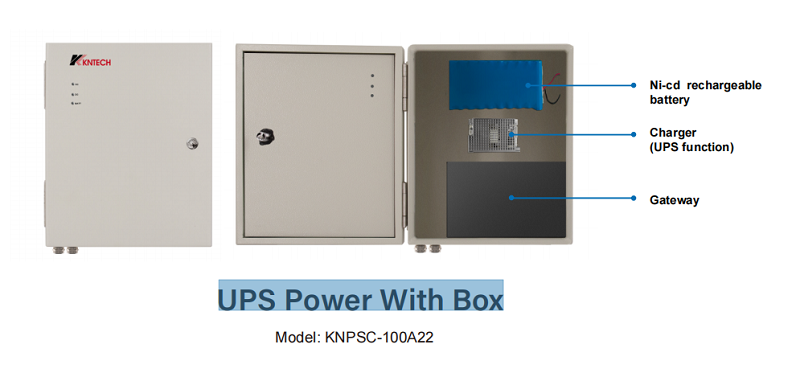

KNPSC-100A22 is secured inside the Metallic Enclosure, providing maximum protection to the power suppland the back-up batterv. With a window for inspection on the indicator LED. to monitor the condition of the poweisupply system.
KNPSC-100A22 is also a multi-purpose voice gatewav that provides seamless connectivity from analootelephony, fax or Stored program control exchange PBX to lP voice gateway. lt provides 8FXS voice interfacehas good voice/fax processing capability, high stability, for operators, enterprises, residential users, companiesto provide eficient and high-guality lP voice services. Using the standard SIP protocol, it is compatible with mostP PBX. softswitch and SIP-based call center platforms.
Power Output : Max 100W.
Universal AC Input (AC 100~240V).
Fully lnput and Output Protections
LED Indicator for AC Power On, Normal DCOutput and Battery Charging!
Support FXS 8 port for RJ11
Caller ID: DTMF/FSK to display standard
Support for IPv4 and IPv6
Support G. 711, G. 729, G. 723, G. 726, Amr, etc.
Network interface: 1* Wan, 2 * LAN, 10/100Mbps, RJ45 Ethernet interface
Built-in Charger for Backup Battery.
ProtocoI SIP V2.0(UDP/TCP)RFC3261SDPRTP(RFC2833)RFC3262.3263,3264,3265.3515,2976,3311,RTP/RTCP
Protection : short circuit/overload/overvoltage/Battery low-voltageprotection/battery reverse polarity protection by Fuse
Led status indication.
