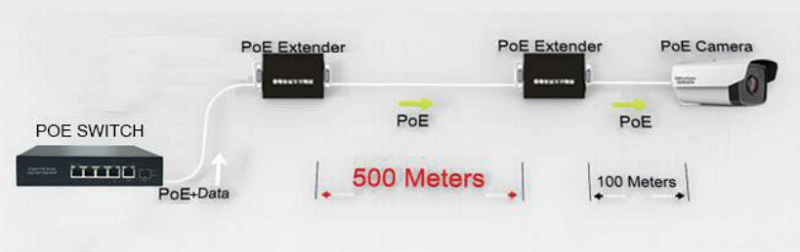

EA512P-TP network transmitter is a high-speed network transmission device, which can carry outlong-distance transmission through any 2-wire cable, such as elevator accompanying cable,twisted pair, coaxial cable, etc, and the POE transmission distance is 500 meters (75-5 coaxiacable) , the maximum physical layer rate can reach 240Mbps. Network signal and coaxial signacan be transmitted on one cable at the same time;
lt can support remote power supply-power supply and signal co-cable transmission, which isconvenient for construction and saves cost.
Support one-to-one and one-to-multi-point data transmission.
* Support POE over Coaxial/TP
* High power POE (up to 30W, compliant with IEEE 802.3af/at standard)*Support multicast function
* Transparent transmission, no need for software adjustment, no need to change the upper layersoftware

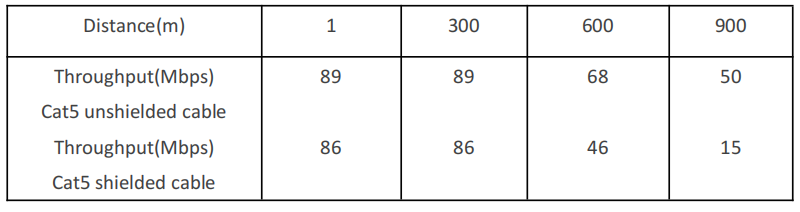

* Built-in ESD protection circuit, which can effectively prevent electrostatic damage* Transmission distance up to 500 meters (75-5 coaxial line)* The maximum physical layer rate is 240Mbps
* Low power consumption, strong anti-interference ability

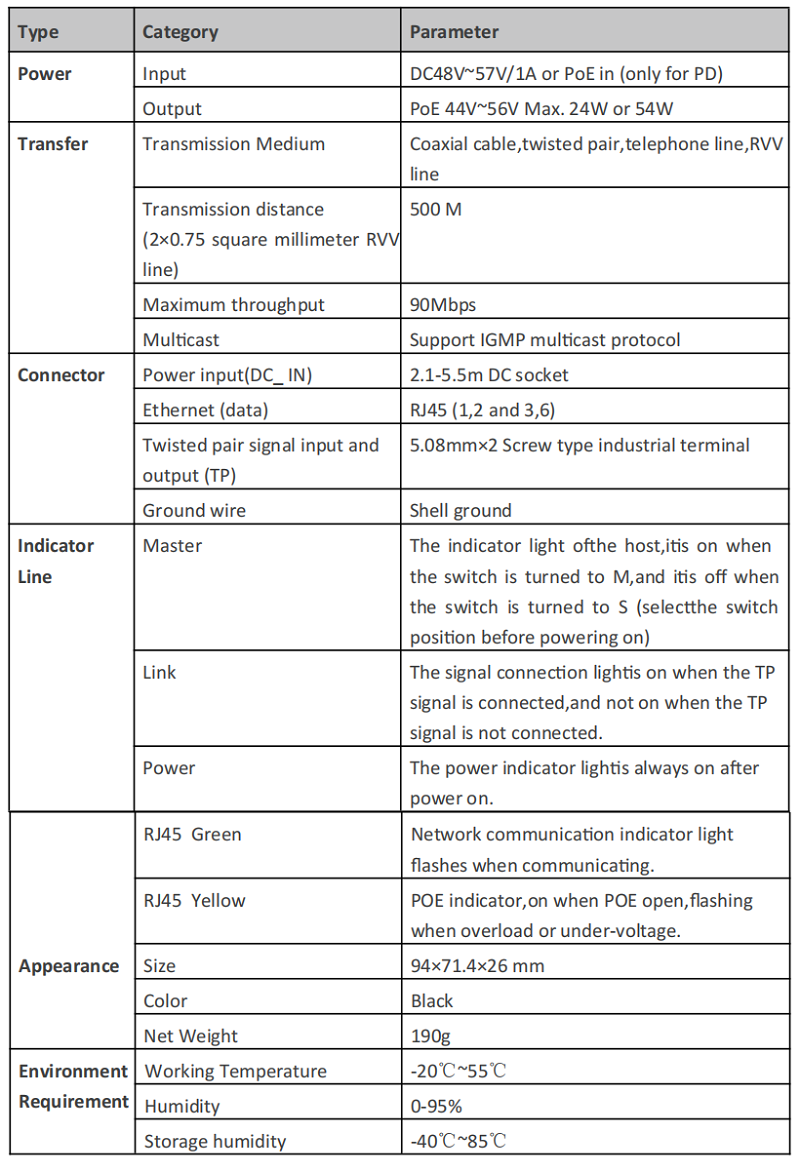

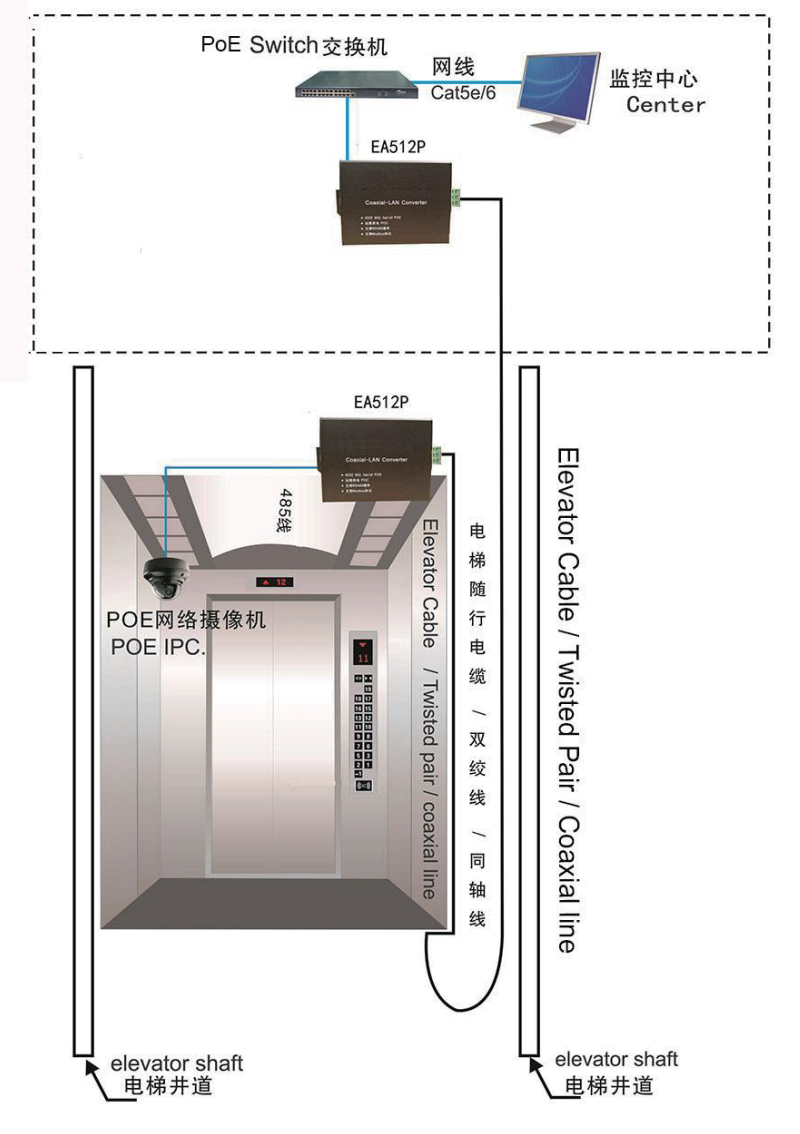

1.Elevator network video surveillance.
2.Elevator swipe card control management system(elevator control).
3.Elevator network coverage.
4.Product equipment monitoring and management.
5.Industrial control.

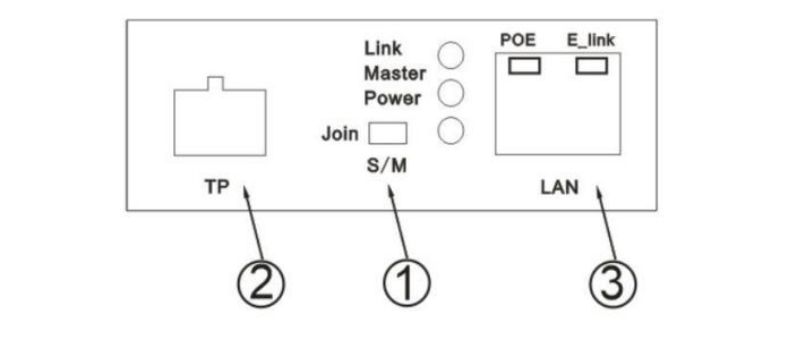

As shown in the sequence number above:
(1)Master-slave selection: Before powering on, please set the transmitter as the master or slavethrough the DIP switch,That is, switch to M for master, and S for slave.
It only needs to provide power input for the master, and the power for the slave is provided bythe master.
This product needs to be used in pairs. Generally, the receiving end (local end) is set as the master, and the sending end(remote) is set as the slave.
2) Transmission line connection: TP terminal is a two-position industrial terminal block, bolt type joint, polarized access, facing the terminal left positive and right negative.
3) Network cable connection: The local network port is connected to the back-end equipment,such as computers,switches, and video recorders. Remote network port and front end connect to equipment, such ascameras, switches or other network terminals.
lf the connected device is a non-POE device, an external powersupply is required.
Warning: Please do not supply power to the master and slave at the same time.
