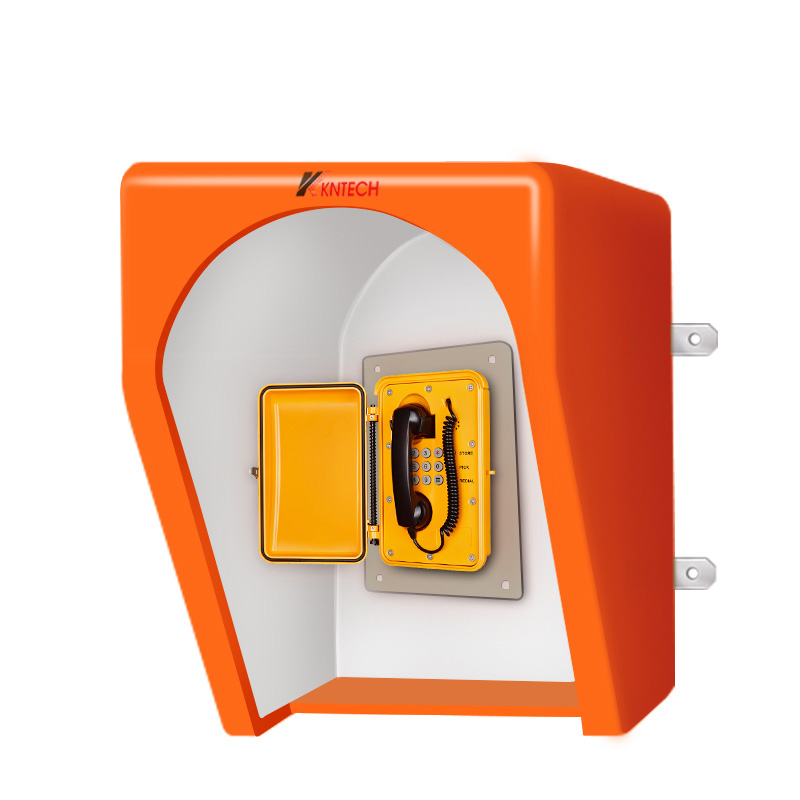

Industrial Acoustic Hood

Industrial Acoustic Hood

model:RF-13
size:950 x 700 x 610mm
material:

Industrial acoustic hood3

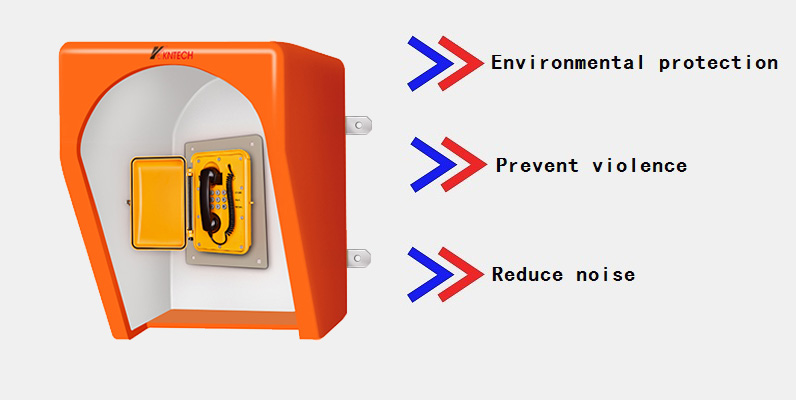

industrial acoustic phone description
Telephone Roof RF-13
     Pavilion, telephone hood, anti-noise gloriette, public phone booth, public telephone pavilion, anti-voice phone pavilion, telephone booth.

Main features:
1. Designed for use in noisy areas and harsh environments
2. Extremely robust
3. Good acoustic qualities and highly visible
4. High visibility yellow paint finish
5. 23dB noise reduction or more
6. Telephone mounting panel 200mm deep shelf
7. Popular in noisy factories such as newspaper print rooms.
8. Include telephone mounting bracket
industrial acoustic phone description

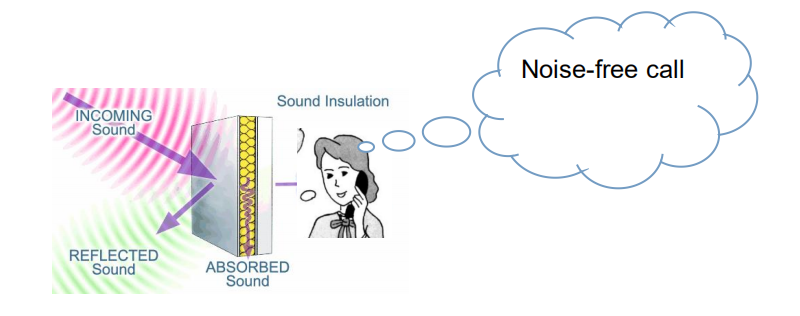

Noise Reduction:
For external or internal use, the RF-13 is designed to attain a high level of noise reduction up to 23dB.Manufactured using general-purpose resin material fire regulation, the RF-13 is extremely robust and weatherproof. Inside the hood's shell is a perforated polypropylene lining that houses non-hygroscopic acoustic insulation.

Fitted to the inner back wall is a Metal plate; beneath this plate is a detachable GRP shelf with easy cable entry. 4 layers of different sound insulation cotton and other materials, so that your sound insulation effect is very good, so that there is no noise interference when you call.

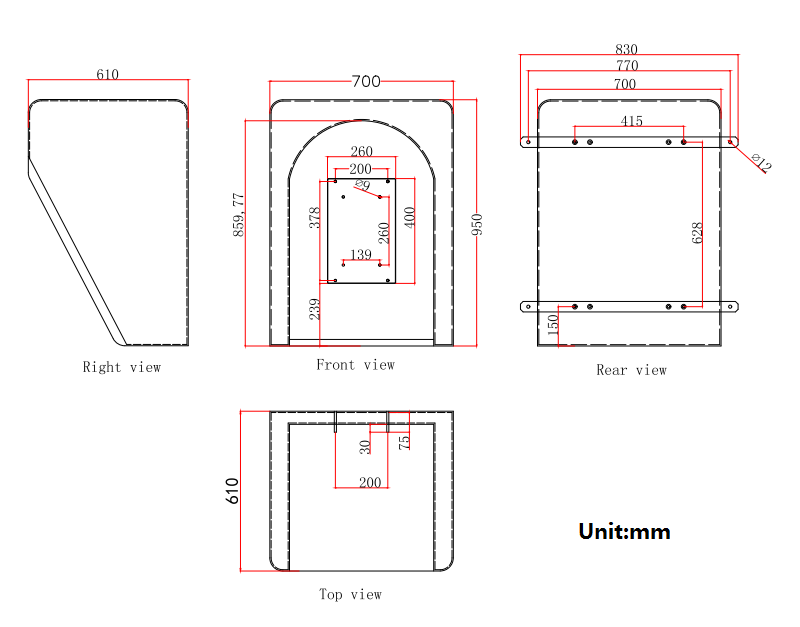

Telephone layout:

industrial acoustic hood

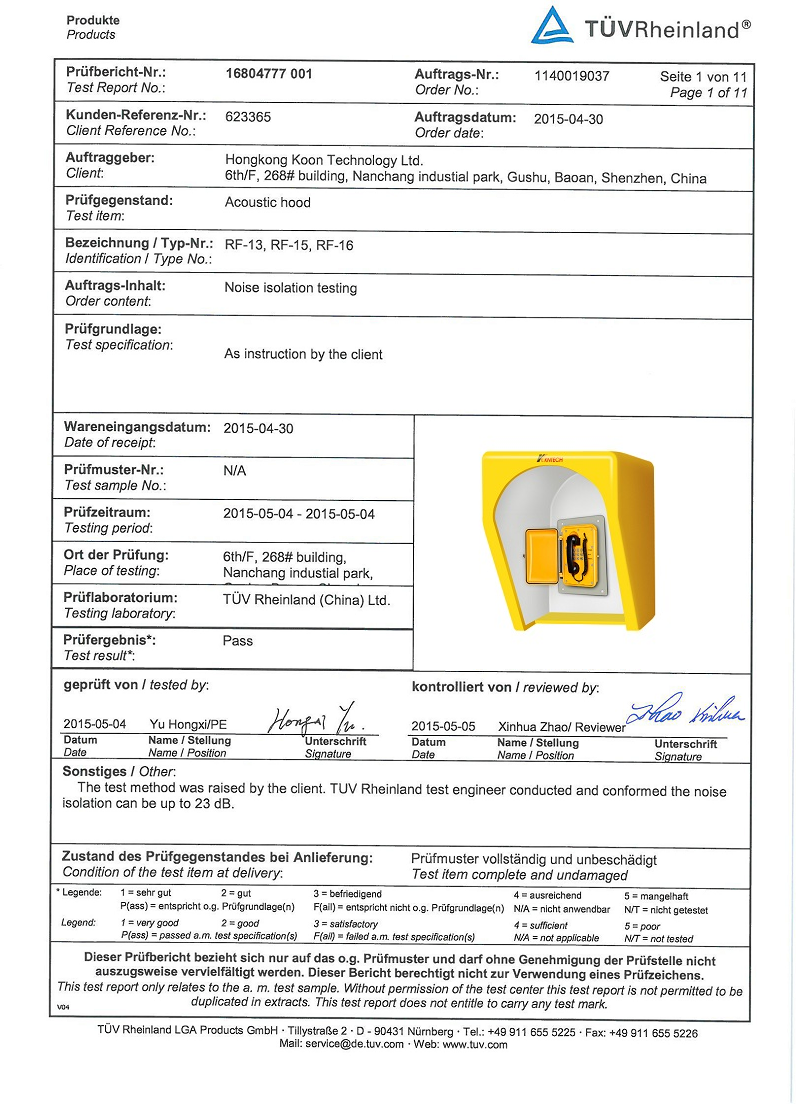

CERTIFICATION
Telephone Roof
     EMC:EN50121(Railway application-Electromafnetic Compatibility)
     EN55022:emissions
     En55024:immunity
     FCC
     ITU-T Recommendations K21



Product Specification

Specifications:
Color: Yellow Body material in GRP(Glass reinforced plastic)
Dimensions: H950mm W700mm D610mm
Weight -Approx 43Kg
Insulation Liner -White Perforated Polypropylene 3mm thickness
Boxed Dimensions -82 x 74 x 105cm
Boxed Weight -Approx 45kg Convert weight according to air freight volume:106kg

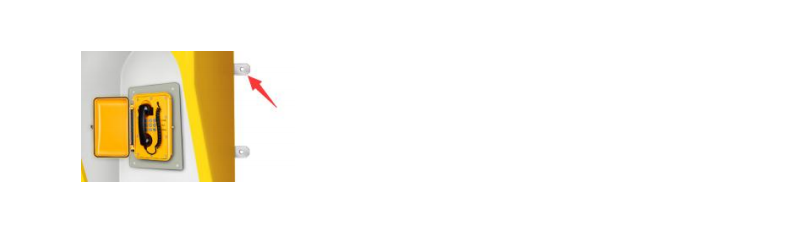

Standard accessory included: Cold rolled steel back mounting bracket x 2


Optional accessory:
stainless steel SUS304 back mounting bracket
stainless steel SUS316 back mounting bracket
industrial acoustic phone description
Optional accessory for mounting telephone:
Outdoor grade cold rolled steel mounting plate for telephone
Outdoor grade stainless steel SUS304 mounting plate for telephone
Outdoor grade stainless steel SUS316 mounting plate for telephone
industrial acoustic phone description

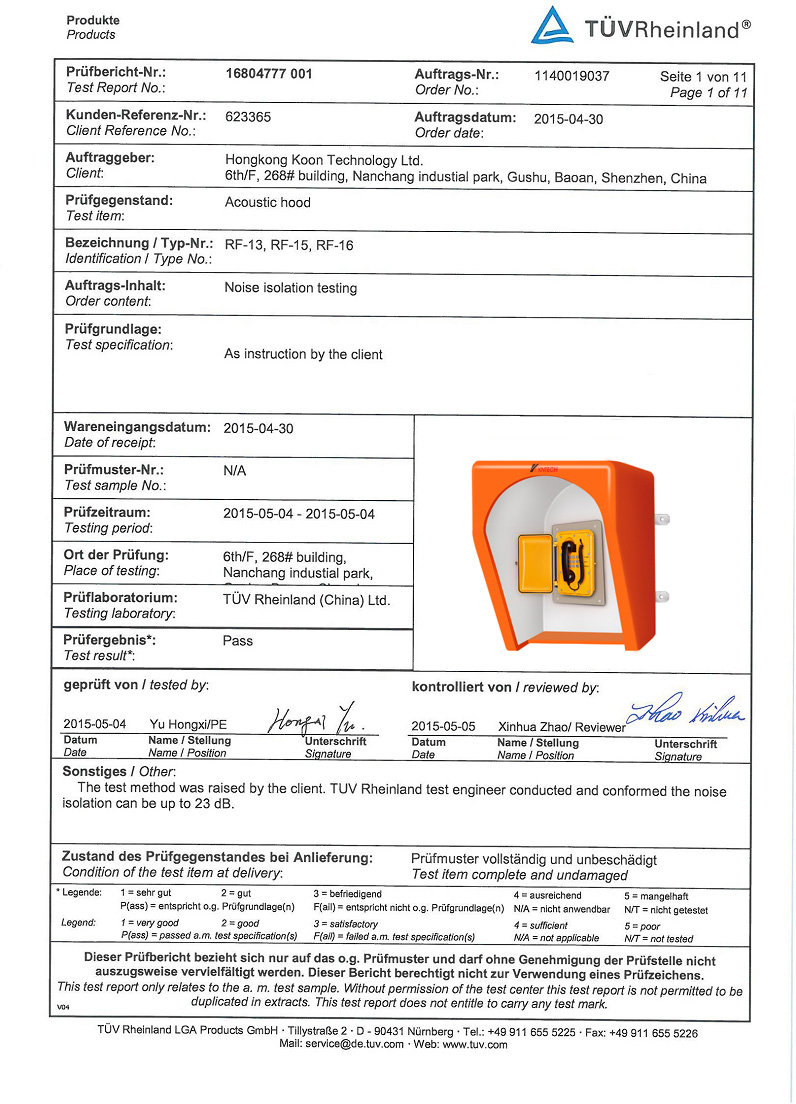

industrial acoustic hood phone certificate

Telephone System

Industrial acoustic hood in Paga system

the acoustic hood in paga system

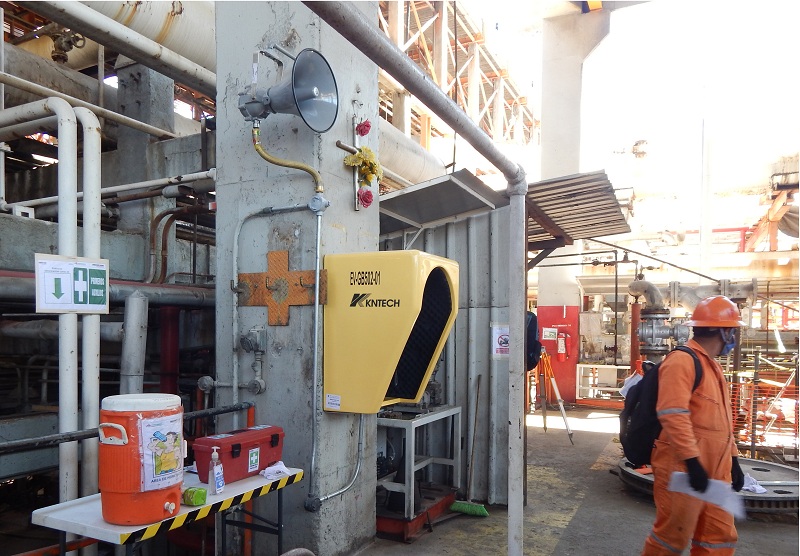

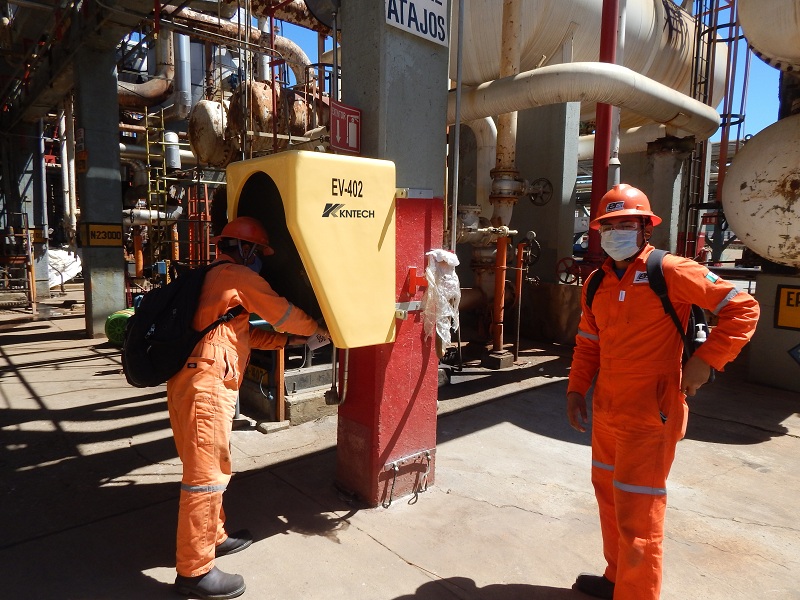

Product Application

acoustic hood telephone acoustic hood telephone

Telephone Roof Telephone Roof Telephone Roof Telephone Roof
