Desktop intercom is an important part of the intercom communication system. Using voip or analog communication protocol, you can directly dial any voip phone or broadcast. The built-in software intercom system can easily set up desktop intercom.

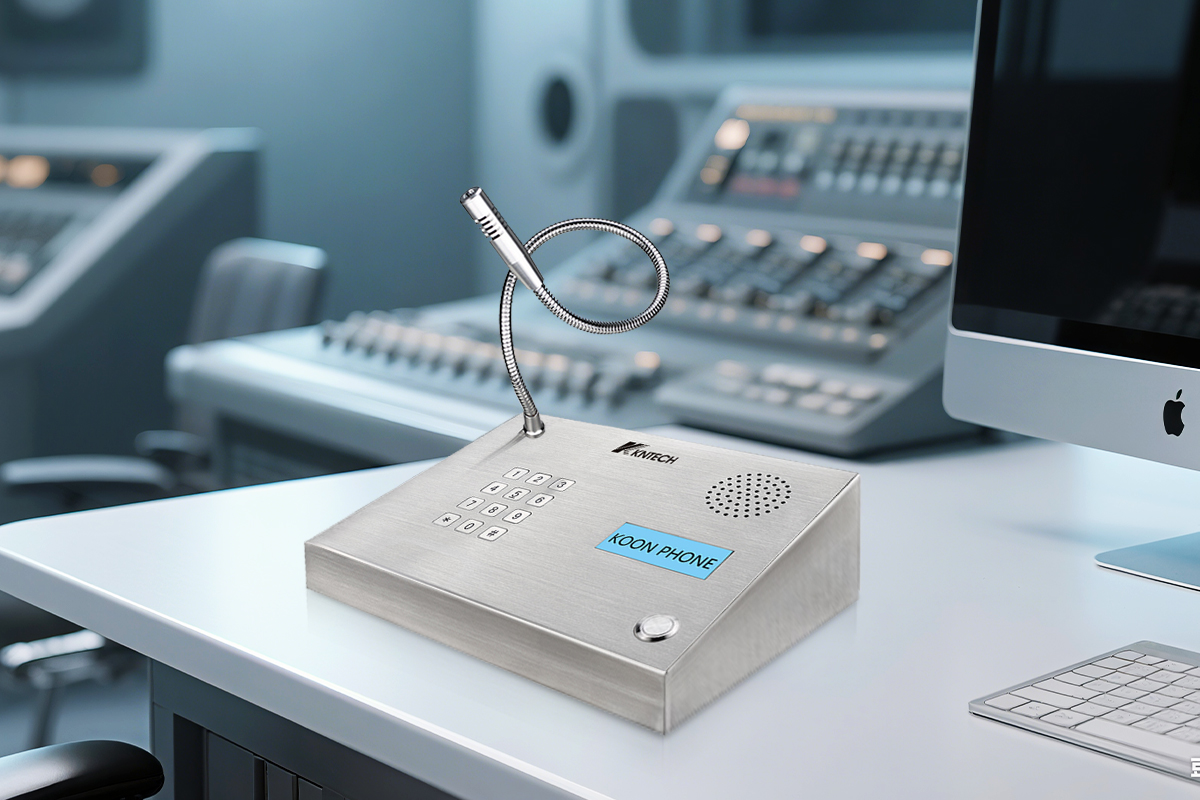

Cast made of stainless steel, one-touch call, or direct dialing, with gooseneck microphone and LCD display. The call is stable and clear, with good quality and anti-vandalism. Very suitable for control rooms.
Product introduction:
1. Strong compatibility of the system extended,support standard SIP 2.0 (RFC3261) and related RFC agreement;
2. Support one bottom call the dispatcher station,host, specify the terminal;
3. Support digital keyboard;
4. Support three shortcuts keypad;
5. Provides alarm, monitor, intercom, broadcast function;
6. full-duplex talk functions;
7. Use advanced echo elimination technology;
8. Application: show Caller id, Contacts.
9. Speakers and microphone sensitivity adjustable;
10. Optional G. 729, G. 723, G. 711, G. 722, G. 726 and many ways of voice coding ;
11. System provides the recording and query the recording files at any time ;
12. Setting via a WEB interface;
13. Online software upgrade;
14. Support power 1 w;

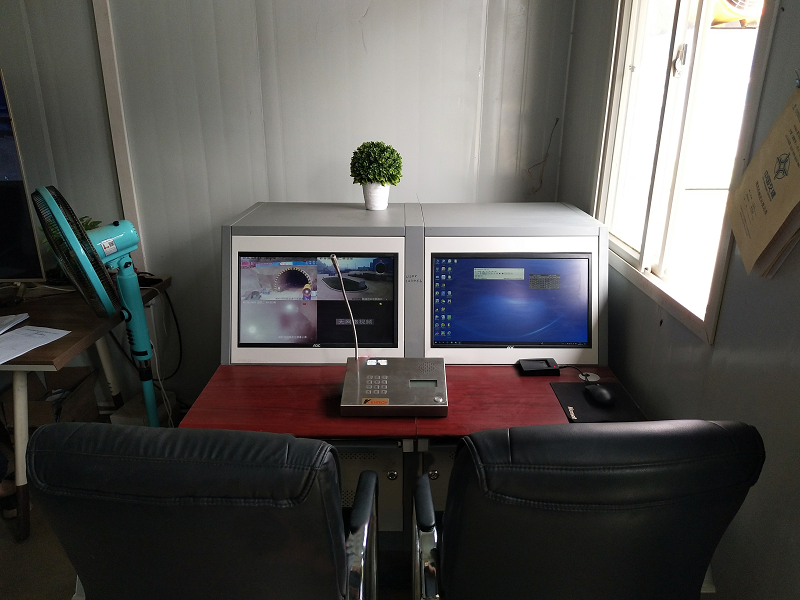

INSTALLATION
.jpg)
KNDDT-1-AV21
Operator console center
NMS-X1 SNMP
Unified network management system
KNZD-60M
Video Intercom System
.jpg)
KNSP-01
Weatherproof telephone
| Communication protocol | SIP 2.0(RFC-3261) | |
| Master Chip | Broadcom 1190 | |
| Keypad | Design | Stainless steel |
| Number | Full digital keypad, 3 shortcut (customizable) ,one hands-free button | |
| Display | Screen | 1 pcs |
| Voice | Hands-free microphone | 1 pcs |
| Amplifier | 3W | |
| Speaker | 3W | |
| Onboard power amplifier bypass jump line | Support | |
| Volume control | Adjustable | |
| Full duplex hands-free | Support (AEC) | |
| Head phone jack | Support | |
| Handset jack | Support | |
| Voice stream | Support protocol | RTP |
| C-Codec | G.729, G.723, G.711, G.722,G.726 | |
| Connection | Power supply | 5V -15(+-15%)/1A DC or PoE |
| PoE( IPGB-1verion not support) | PoE 802.3af(Class1)48V | |
| LAN | 10/100BASE-TX s Auto-MDIX, RJ-45 | |
| WAN | 10/100BASE-TX s Auto-MDIX, RJ-45 | |
| Recommend cable | Cat5e or higher | |
| LCD | Support (optional) | |
| RS232 | Aluminum cover ,aluminum bottom case | |
| Shell Material | aluminium alloy for the surface cover and the back shell | |
| Working temperature | Zero to fifty-five degrees | |
