Weatherproof IP telephone KNSP-01 WiFi
1. Robust aluminium alloy die-cast body, vandal & tamper-resistant hardware, easy installation.
2. Waterproof rating IP66 dust proof. 3. Full keypad with memory,
3 button programmable telephone, support free dialing, support scroll dialing.
4. Magnetic reed hook-switch, DC12V powered.
5. DC input over-voltage over-current protection and RJ 45 surge protection.
6. Heavy duty handset with hearing aid compatible (HAC) receiver, noise canceling microphone.
7. Handset with industrial strong curly cord.
8. Silicon keypad keep waterproof and dusty proof.
9. Door cover: orient automatically and good self - closing, convenient for use.
10. Temperature range from -40 degree to +70 degree.
11. Support echo cancellation.
12. Support remote software upgrade, configuration and monitoring.
13. With LED light on the top as ringing indicator optional.
14. Optional 7 minute time-limited call. (This function upon buyer's requirement).

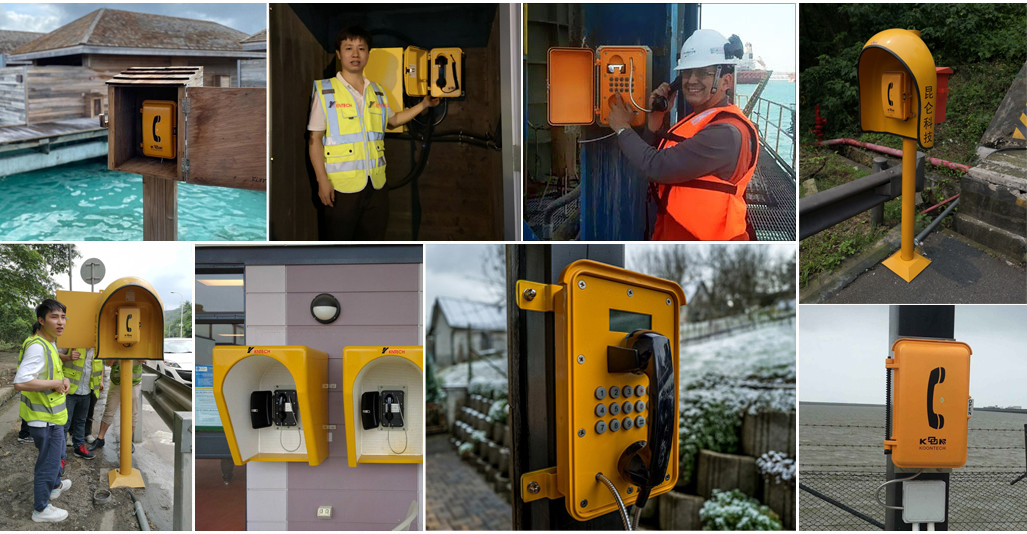

15. Powder coated in UV stabilized polyester finish. 16. Application: Tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge etc.
Australian communications:AS/CA S004
Australian Equipment-safety: AS/NZS 60950.1:2015
RCM: AS/NZS CISPR 32
EMC:EN55032, EN55024,EN61000-3-2
Unit size: 320*205*120mm Unit N.W:4.86KG
1pcs packing box size: 430*280*200mm Unit G.W:6.5KG
4pcs in 1outer carton box: size: 580*460*460mm G.W.: 25KG
SPECIFICATION - VoIP(Model NO.SP0010032)
1. VoIP SIP2.0 telephone 2. DTMF dialing
3. MTBF100000hours 4. MTTR: 2 hours
5. Auxiliary Contacts:1 Aux Output, dry contact 6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
7. Contact Ratings. Load: Resistive load 8. Echo cancellation code:G.167/G.168
9. Rated carry current:1A 10. Max.switching current:1A
11. Max.switching voltage:125 VAC,60VDC 12. Audio Codes:G.711, G.722, G.729
13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
14. Free dial (maximum length of each number is 16 digits)
15. Communication: Full duplex 2-way hands-free communication
16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W
19. Programming:Non-volatile flash memory programming and configuration through Web GUI
20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)
Ethernet port: 2 (one of which is used for an external network port transformer)
Working frequency: 2.4G,
Working frequency: 802.11b/g/n: 2.4GHz-2.483GHz (China)
