the ip phone for office design

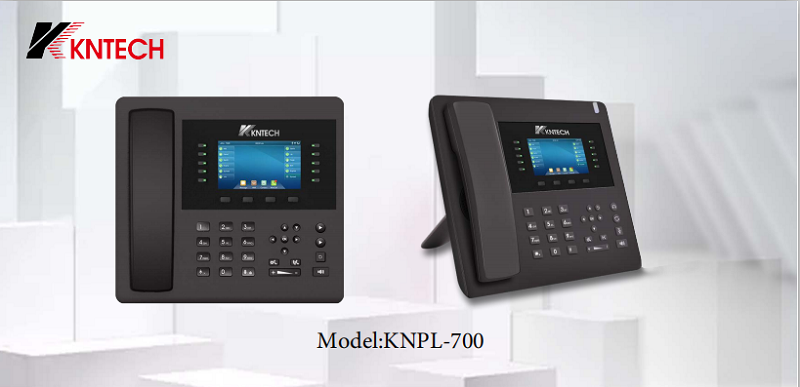

Ip phone for office KNPL-700

What is the best office phone?

The office phone we designed uses the most advanced ip communication technology to make office phone communication more abundant and diversified. Now, with the current economic development, the functional requirements of office phones have become more colorful, and traditional analog phones are no longer suitable for today's office needs. We use ip technology as the communication technology for the phone. We design the IP phone for the office, use the high-definition display, and support 6-way sip lines. The office phone can be registered to different sip servers, and the department of the call can be judged according to different sip lines. The office phone has the functions of Bluetooth, WiFi, SMS, fax, etc. in the media function, and supports multi-person conference function.Office phone, the call is completely free, easy to install, easy to maintain, and operability, it is a very good choice for office calls.

The 6 line enterprice-class ip phone for office

The KNPL-700 is a high-end business IP phone for users who need flexibility and advanced features to easily handle busy and complex work needs at work. The KNPL-700's upgraded color display has 10 DSS buttons for setting up BLF/speed dialing, multicasting, and more. KNPL-700 is also equipped with high-definition voice, built-in Bluetooth, support WIFI link, support EHS, 100M dual network port PoE, can be connected with Ip camera 1 video access control. The KNPL-700 with high-end features can greatly improve the efficiency of corporate communications.

The Voip Telephone Special Function

the function about the ip phone for office
1.HD Audio,handset and speakerphone with support for wide-band audio.
2.6 line keys with up to 6 SIP accounts,8MPK extension keys with dual-color LED with 2 Left/Right keys.
3.Dual LCD screens with digital BLE keys.
4.Swappable face plates to allow for easy logo customization
5.Dual sitched auto-sensing 10/100Mbps Megabytes Ethernet ports with integrated POE.

VOIP telephone size

ip phone size

4.3 Inchs Colorful screen

The surface design is very elegant,with touhch screen and high resolution screen.
With the intelligent user interface it could be breakthrough surface and experiment.

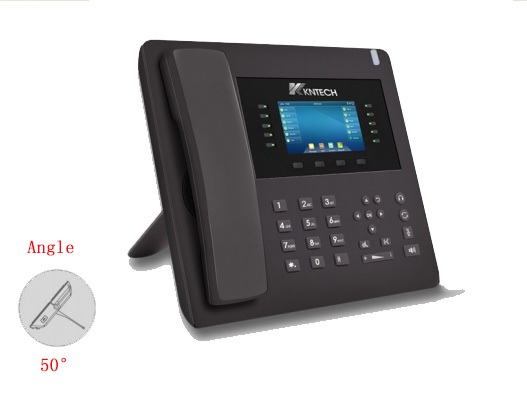

the color screen about the office ip phone

Function Schedual

*6 SIP Line tripartite conference
*HD sound quality.(handset and speaker)
*4.3-inches colorful screen
*Megabytes Double Network Port,POE is optional funtion
*Inner Bluetooth function
*Surport EHS earphone
*Surport mainstream ip/pbx/softswitch/IMS Platform/3CX,Asterisk,Broadsoft,Elastix,Avaya.

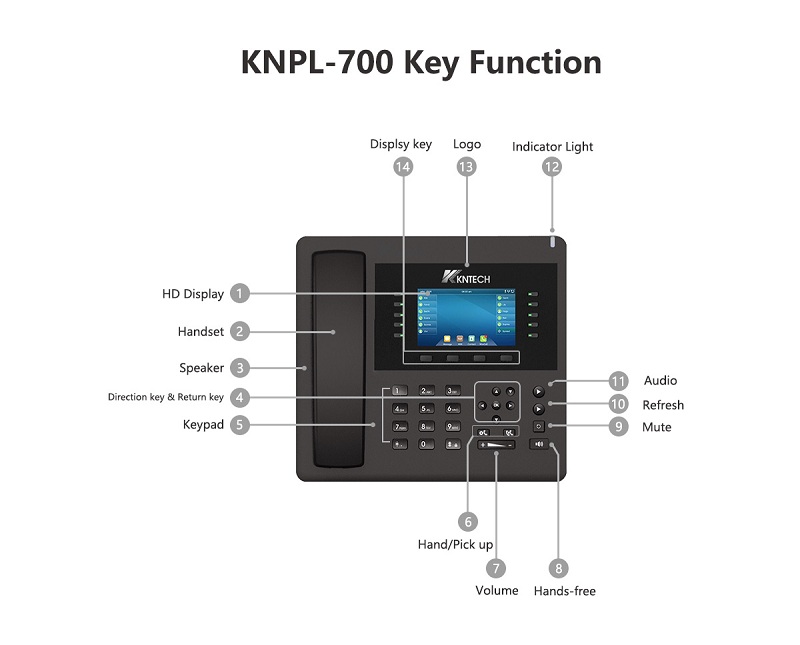

The ip office phone key function

the ip office phone key function
1.HD Display: HD display. Clear images and support multi-window multi-person video conferencing.
2.Handset: Magnetic handle, hang up and the phone hangs up.
3.Speaker: Speaker, power up to 8w.
4.Direction key and return key: functional button
5.Keypad: available for dialing and text input
6.Hand/Pick up
7.Volume: used for volume adjustment
9.Mute: Main menu
10.Refresh: Used for data refresh.
12.Indicator light
14.KNTECH: HONGKONG KOON TECHNOLOGY LTD logo, using laser engraving technology, engraved on the phone panel, not easy to fade and destroy.



Unit size: 230*167*85mm Unit: N.W: 0.65KG
1pcs packing box size: 240*177 *95mm N.W: 0.65KG G.W: 0.93KG
12pcs in 1 outer Carton box: size: 480*354*175mm N.W: 8.4KG G.W: 9.6

==>>>> Product Specification
Network Interfaces Dual switched auto-sensing 10/100 Mbps Megabytes Ethernet ports with integrated PoE.
Graphic Display 7.2 inch.
HD Audio Yes,HD handset and speakerphone with support for wideband audio.
DSS Key 10 DSS key on 7.2 inch screen.
Voice Codecs and Capabilities Support for G7.29A/B, G.711μ/ a-law, G.726, G723, i n-band and out-of-band DTMF (i n audio, RFC2833), SIP INFO).
Feature Keys 6line keys with up to 6SIP accounts,,8MPK extension keys with dual-color LED with 2Left/Right keys, 4XML programmable context sensitive softkeys,5navigation/menu keys,11dedicated, for: MESSAGE (with LED indication), phonebook,transfer,conference,hold,handset,mute,send/redial,speakerphone,vol+,vol-
Base stand Base support
Telephone Feature Hold, transfer, forward, call park, call pickup, downloadable phonebook(XML,LDAP, up to 2000 items), call waiting, call log(up to 2000 records), off-hook auto dial, auto answer, flexible dial plan,hot-desking, personalized music ringtones and music.on hold, server redundancy and fa l-over
QoS Layer 2 QoS (802.10, 802. 1P) and Layer 3 (ToS, Dferv, MPLS) QoS
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese,Korean, Japanese etc.
Security User and administrator level passwords, MD5 and MD5-sess based authentication, TLS, 802.1x media access control, secure boot
Upgrade/Provisioning Firmware upgrade via FTP/TFTP / HTTP / HTTPS/TR-069, mass provisioning.
Temperature and Humidity Operation: 0°C to 40°C, Storage: -10Cto 60°C Humidity: 10% to 90% Non-condensing
Power & Green Energy Efficiency Universal power adapter included - Input:100-240V ; Output: +12V, 1.5A ; IntegratedPower-over- Ethernet(802.3af), Max power consumption 3.5W(power adapter) or 4W(PoE)
Package Content Unit weight: 950g ; Package weight: 1460g Dimension: 234mm x 213mm x 82.2mm
800 characteristic 10 DSS keys two colorful screen
Compliance CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301489-1; EN 301489-17;EN 300328; EN 301893; EN 62311RCM AS/NZS CISPR32; AS/NZS 61000.3.2; AS/NZS 61000.3.3;AS/NZS 4268; AS/NZS 60950.1; AS/CA S004;12V power adapter

==>>>>Telephone System
snmp unified network management system KNTECH

you can view the business phone system

==>>>>Product Application

  ip telephone in desktop ip telephone in desktop

ip telephone in desktop

==>>>>Product Detailed Pictures

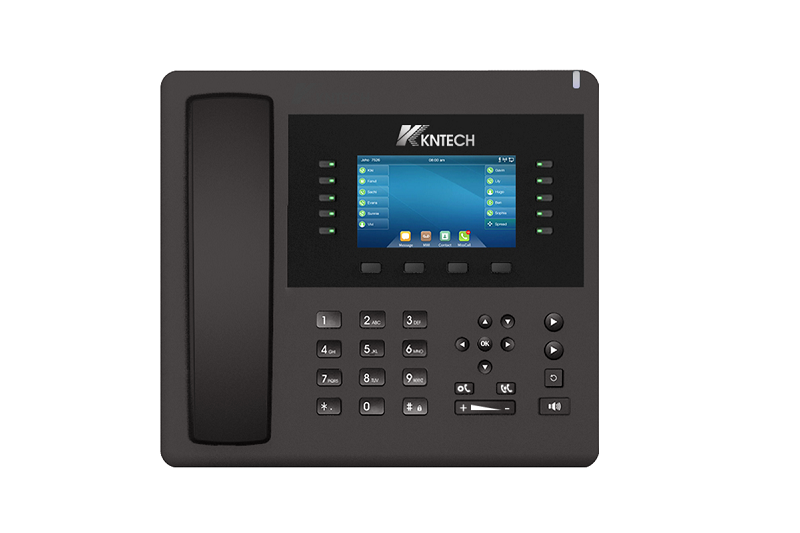

the ip phone side viewthe ip phone front view
the ip phone side view
the ip phone side view

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNPL-700
