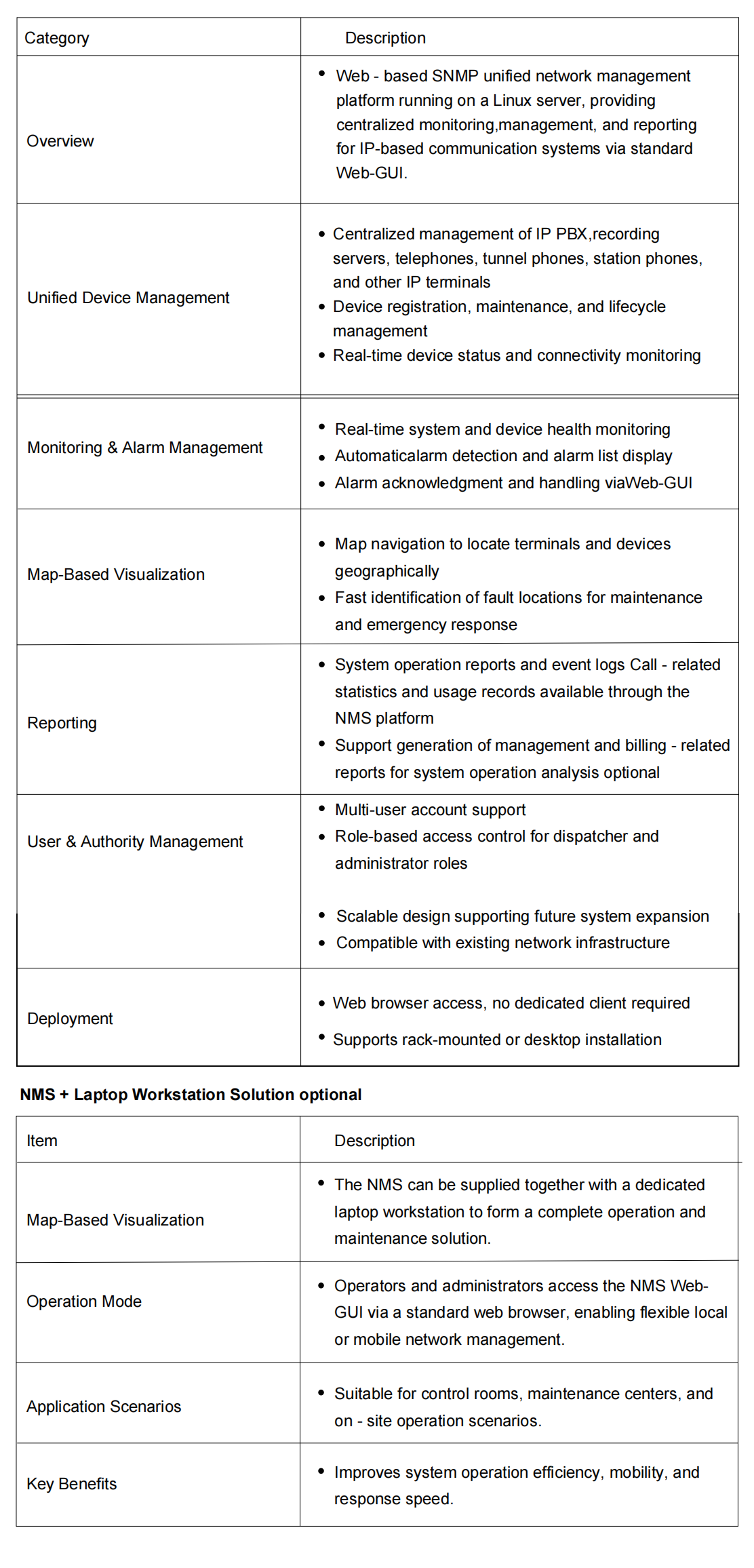

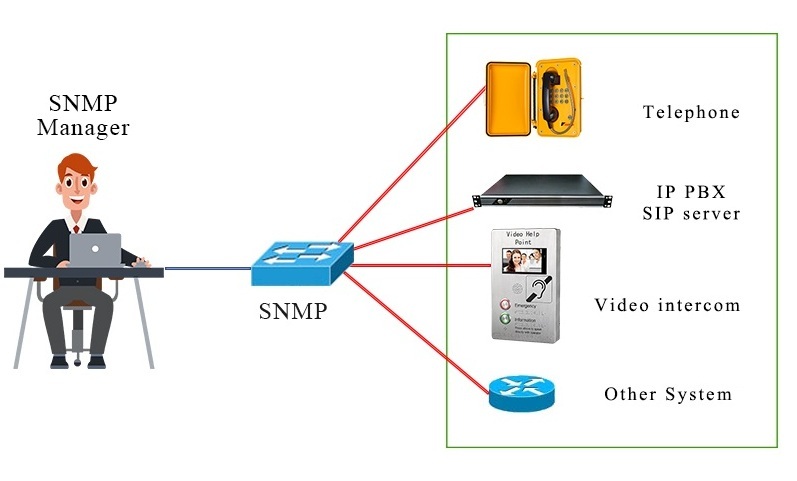

The NMS server software is based on the BS structure. The installation and operation environment is a Linux server. It is accessed through the web browser WEB-GUI. The system performs network management on all devices in the system based on the SNMP protocol. The management objects include IP PBX, Recorder, office telephone, subway station telephone and tunnel telephone, etc., all telephones registered to the system.
The management content includes: map navigation to quickly locate the location of each phone terminal, real-time view of the health status of each managed object, and any alarms in the terminal or IP PBX and RECORDER are reported immediately.
Software Model number: S- NMS-X1-0.0.4-13
Description: Network Management System software
License SKU: KNNMS-X1-SNMP-0.0.4-13
Description: KNNMS-X1 Network Management system license
Licence SKU for management authority 28 account number
For dispatcher Agent: KNNMS-X1-SNMP-0.0.4-13-AG28
For management Admin: KNNMS-X1-SNMP-0.0.4-13-AD28

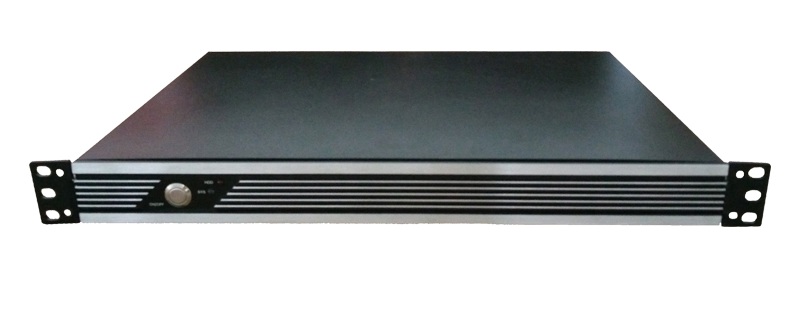

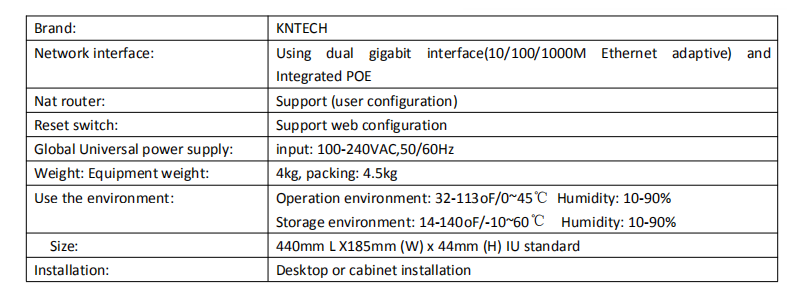

Server hardware
Hardware SKU:KNSERBER-HW1
Interface:
Trunking gateway:Interface to trunking radio system.
VoIP gateway:Interface to other telephone system.
SIP protocol:Interface to other PA system.
SIP protocol:Interface to other SCADA system.
.jpg)
KNDDT-1-AV21
Operator console center
KNTD-300
Voip Telephone Server
NMS-X1
Multimedia storage server
KNZD-30-2IPIL
Emergency Intercom

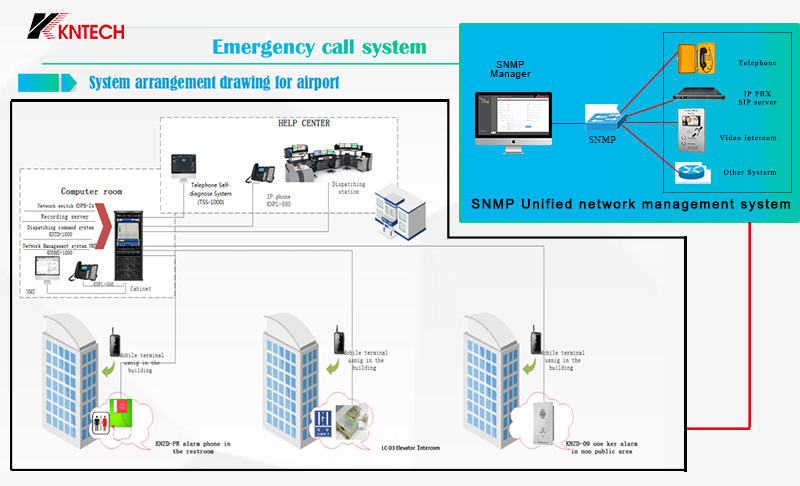

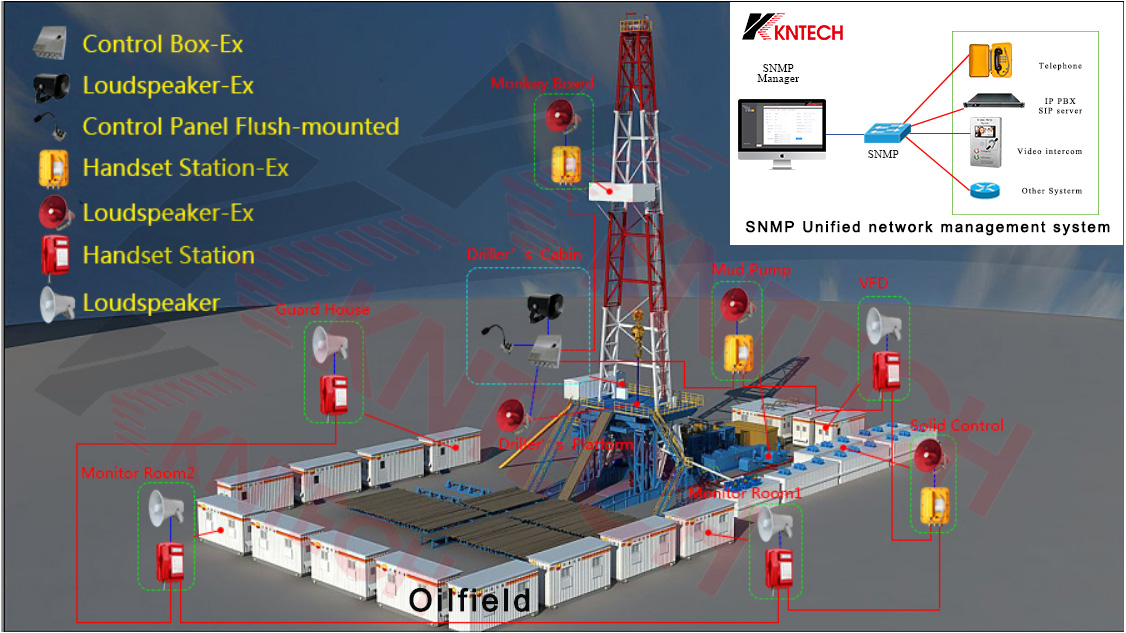

The SNMP unified network management system is mainly used in large telephone dispatching systems. The system can be used in subways, stations, industrial construction sites, using the system to manage a class of terminals in batches, or to manage a single terminal..

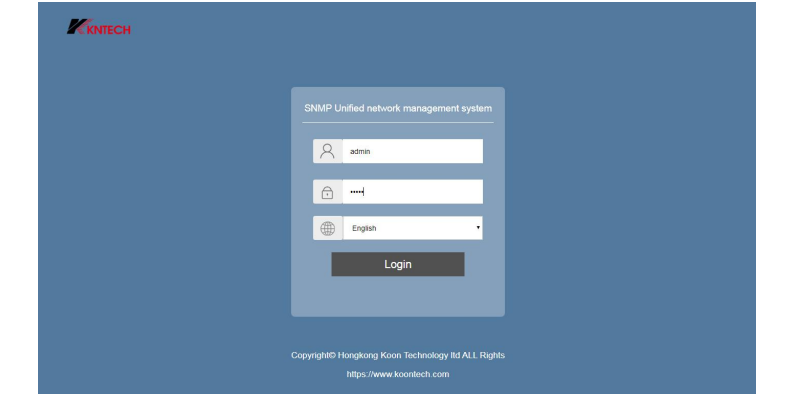

Browser log-in WEB-GUI
Map Navigation for dispatcher:Agent
Map navigation to quickly locate the location of each phone terminal

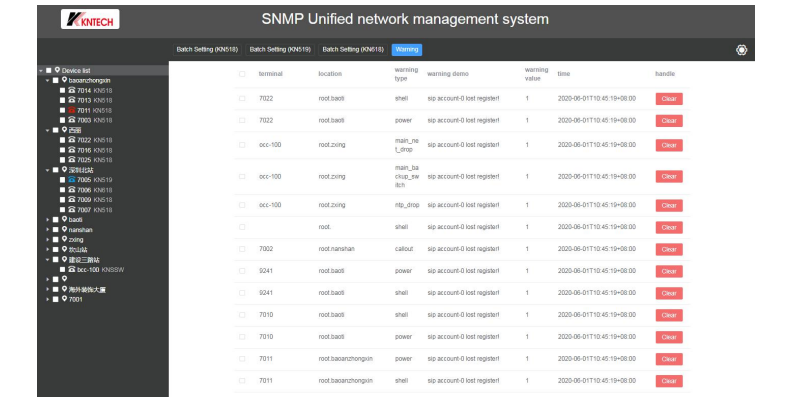

Alarms report and system management:Adming
Real time monitor and healthy detect and alarms report list
