Outdoor Telephone Booth

Outdoor Telephone Booth

model:RF-14-SC5
size:
material:

Telephone-Booth-RF-14-SC5

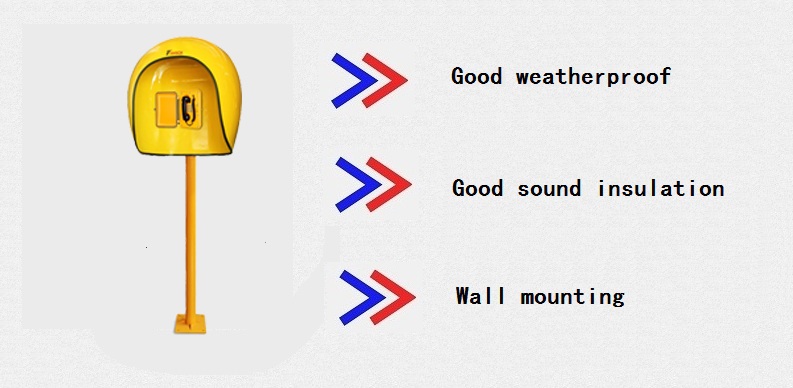

outdoor telephone hood describe

Main features:
     Suitable for industrial premises or commercial locations
     Designed to fit above all types of wall mounted phones
     Alternatively small phones can be mounted directly onto the back wall of the hood
     Manufactured in glass reinforced plastic
     Suitable for outdoor installs
     Dims 790mm x 740mm x 560mm
     Colours:Grey, yellow


Introduction:
     The telephone hood is both suitable for commercial locations where appearances are important or industrial premises to brighten up the working environment. It is applied in offshore and onshore petrochemical industry, energy industry, energy companies and so on. The acoustic hood has been designed to fit above all types of wall mounted phones.
     Smaller wall mounted phones, or intercoms can be fixed into the 650mm high by420mm wide flat area in the back of the hood.
     The thermo set composite moulding is manufactured using the latest RTM MIT process, giving the RF-14 considerable strength and resistance to impact. It is suitable for internal or external locations including use as a Marine Telephone
  Hood. Recent re-styling has also included moulded-in handset graphics to the sides and a discrete flat area to the front which allows the fixing of screen printed graphics.

Telephone layout:

outdoor telephone hood big sizeoutdoor telephone hood small size



Product Specification

Specifications:
Colour: Grey
Dimensions: H790mm W740mm D560mm
Weight -Approx9Kg
Boxed Dimensions -840 x 790 x 610mm
Boxed Weight -Approx 13kg

Tags:


Telephone System

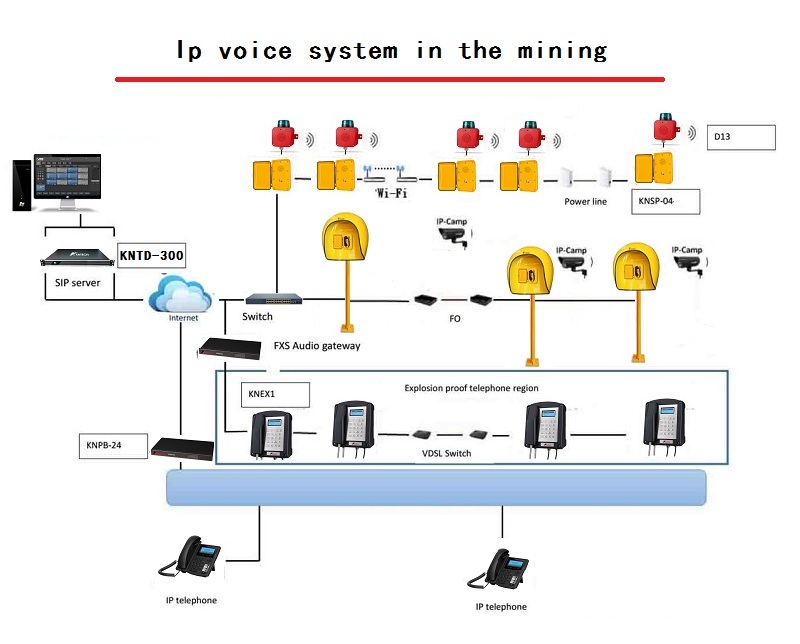

Outdoor telephone hood on mining telephone system

the telephone system use the outdoor telephone booth

Product Application

Telephone hood use outstation

outdoor telephone booth application
the yellow outdoor telephone booth
the telephone hood in outdoorthe telephone hood in outdoor

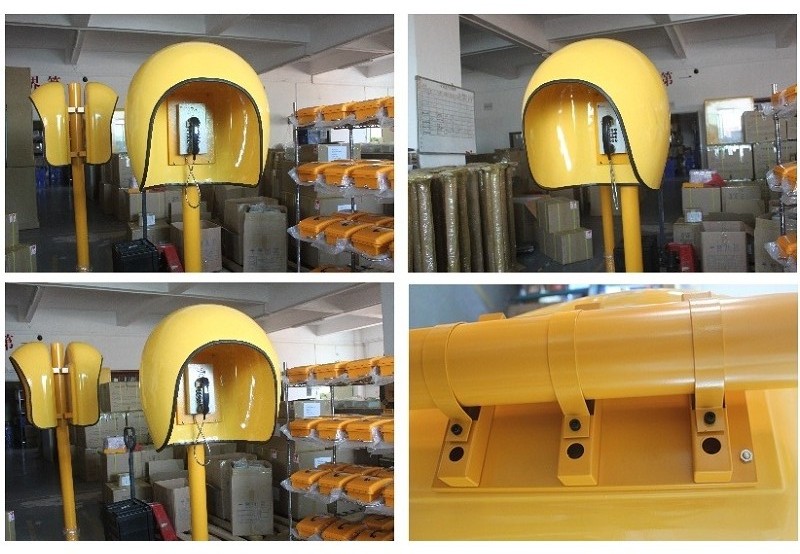

Product Detailed Pictures

More detail about yellow outdoor telephone hood

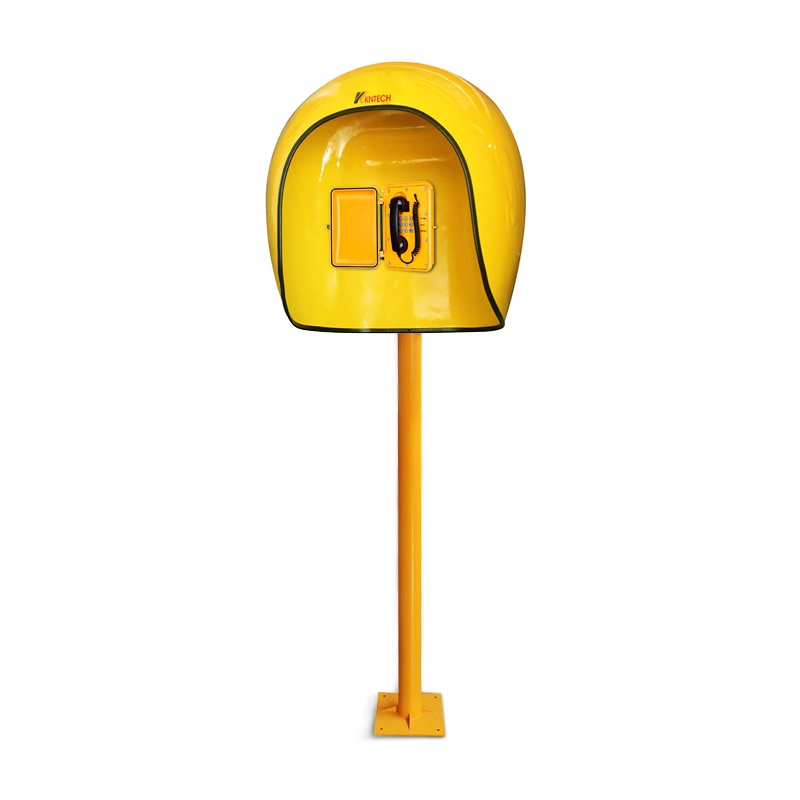

outdoor telephone booth


Product Video


Please Email US
marketing@koontech.com

This product model:RF-14-SC5

*
*
*
*
