Multimedia Storage Server

model：KNREC-SV8
size：44.4*68.4*8.73cm
material：

Storage-Server-SV8

Multimedia storage server.The basic functions of Multimedia storage server include playback notification, digital reception, interactive voice response and Multimedia conference. A multimedia server is a device by which a user translates data into information and sends it into the hands of those who need it.

Features
Specification
System

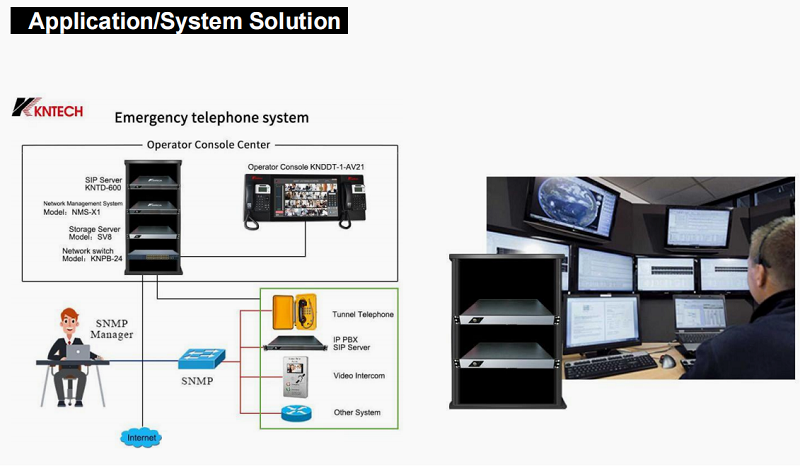

Application
Detailed Pictures
Video
Email US

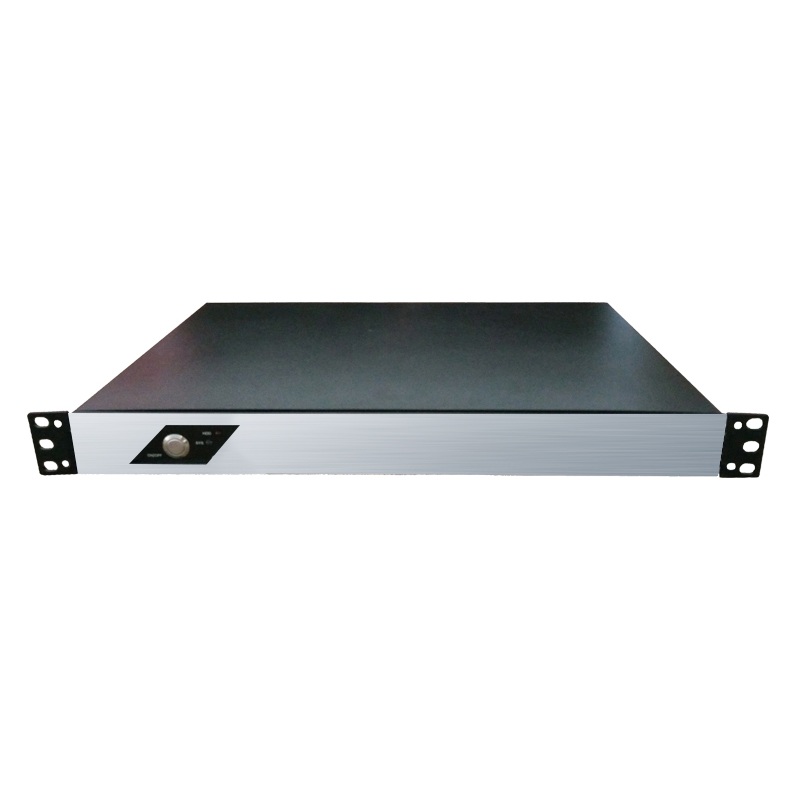

Multimedia Storage server KNREC-SV8

The multimedia storage system is a set of ftp server base on IP network-based platform supporting voice, video, SMS, message and other multi-service storage. It can realize the storage, query, download .we also have the sip server for the voip telephone.

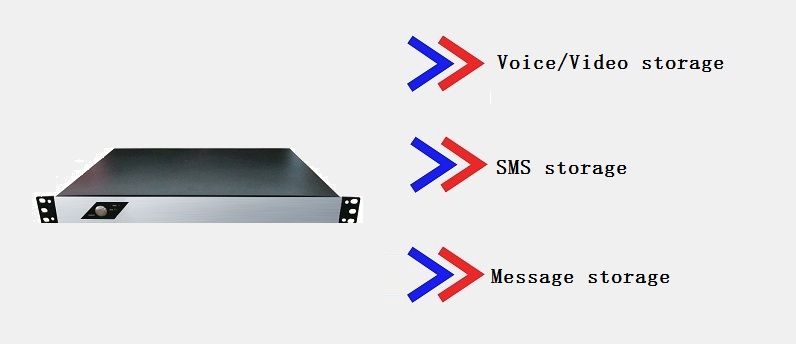

Product Features

1、Voice storage: Record all calls to the SV8 server or select recording, retrieve, query, download.

2、Video storage: You can record all the videos of the multimedia cluster scheduling server or select the video to retrieve, query, download.

3、SMS storage: It can store the SMS of the multimedia cluster scheduling server, and retrieve, query, download .

4、Message storage: The message of the multimedia cluster scheduling server can be stored, and the files can be retrieved, queried, downloaded, played.

LAN port	1X10/100 Mbps
Voice format	Audio file: wav, Video file: MP4
Bandwidth requirement for video and voice data	2M per each Video Channel communication
DTMF	RFC2833，SIP INFO
Auto archive method for storage server	Video file from Phone station Audio file from IP PBX
RAID level for storage server	Main and standby redundancy switch upon request
Recording expansion	USB or 2.5 inch SATA hard drive
Power supply	AC100-240V 50/60HZ

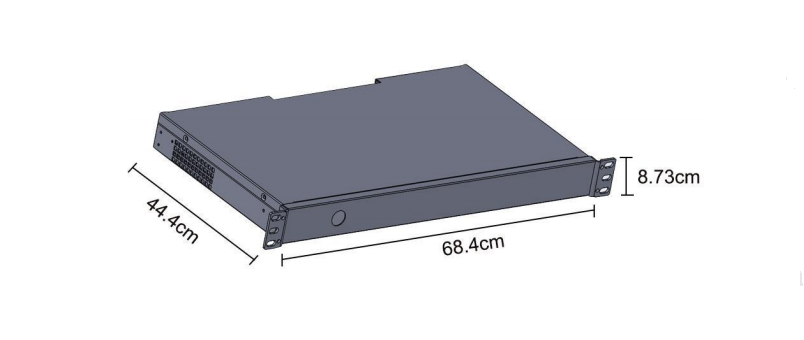

Size (length X width X height)	Height: 8.73 cm (3.44 in) x Width: 44.40 cm (17.49 in) x D: 68.40 cm (26.92 in)
Weight	Approximately 4.5kg
Surroundings	Operating temperature: -20°C-65°C, -4°F-149°F; storage temperature: -40°C-70°C or -40°F-158°F; humidity: 10-90% (no condensation)
Installation	Desktop, rack-mounted

You May Like:

KNDDT-1-AV21

Operator console center

KNTD-300

Voip Telephone Server

NMS-X1

SNMP Unified network management system

KNZD-30-2IPIL

Emergency Intercom

Product Specification

Advantage

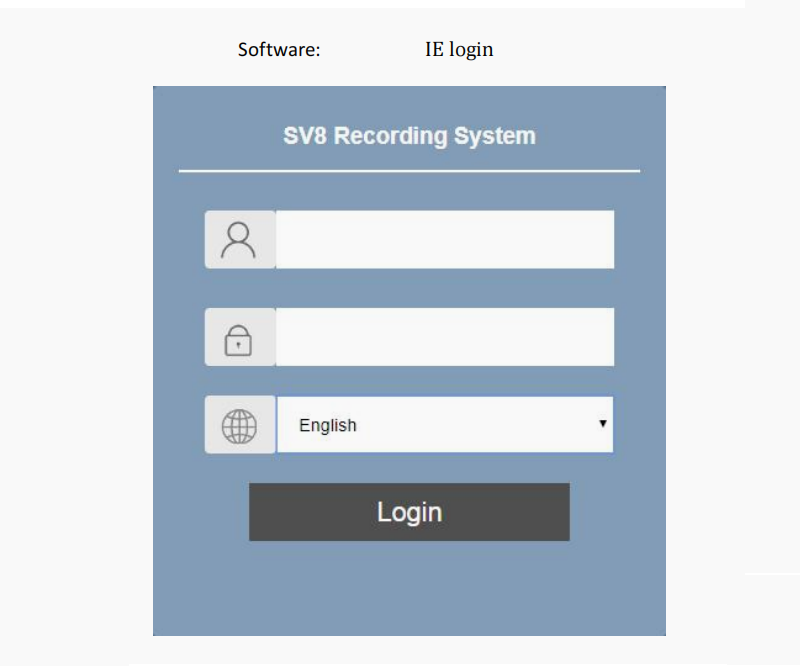

* Remote WEB interface login access and management

* 30/60/180 days of rolling storage, when the space is full, the latest files will be stored on a first in,first out basis.

* Self-space management, an alarm will be issued when the space is 80% full

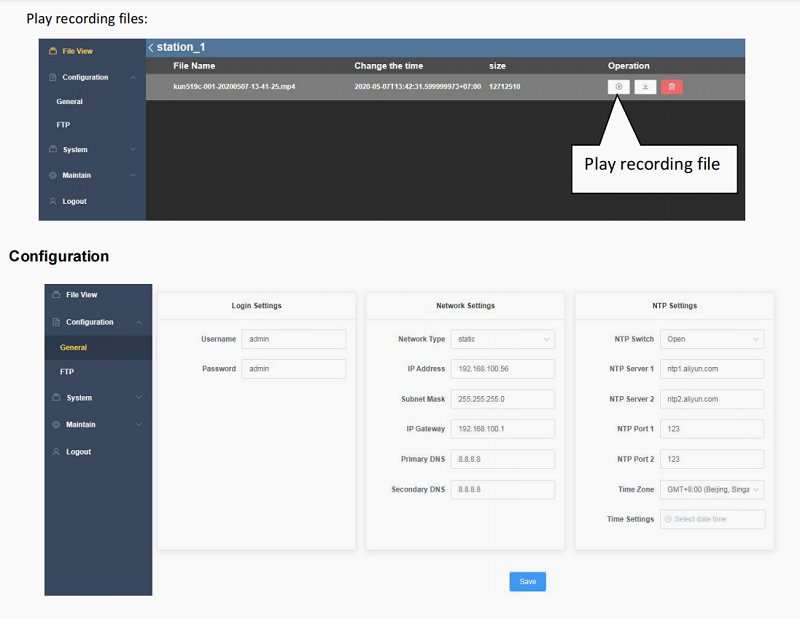

* Recording media files remotely play, download, delete, view, search, batch file management

* Two SV8 with redundancy and interlinked with each other

* Friendly GUI interface design, simple operation, convenient and quick training

KNREC-SV8-2T	KNREC-SV8-12T	KNREC-SV8-22T	KNREC-SV8-32T
KNREC-SV8-4T	KNREC-SV8-14T	KNREC-SV8-24T	KNREC-SV8-34T
KNREC-SV8-6T	KNREC-SV8-16T	KNREC-SV8-26T	KNREC-SV8-36T
KNREC-SV8-8T	KNREC-SV8-18T	KNREC-SV8-28T	KNREC-SV8-38T
KNREC-SV8-10T	KNREC-SV8-20T	KNREC-SV8-30T	KNREC-SV8-40T
