Mining Telephone

Mining Telephone

model：KNSP-11
size：320*205*73mm
material：Robust aluminium alloy die-cast body

Mining-telephone-Analogue-[KNSP-11]
Mining-telephone-VoIP-[KNSP-11]
KNTECH provide underground communication system and export minging telephones for over 15 years. The mining telephone widely used in coal mines and coppermine. The mining telphone as mining equipment must be a safty and heavy duty telephone for mining factory.

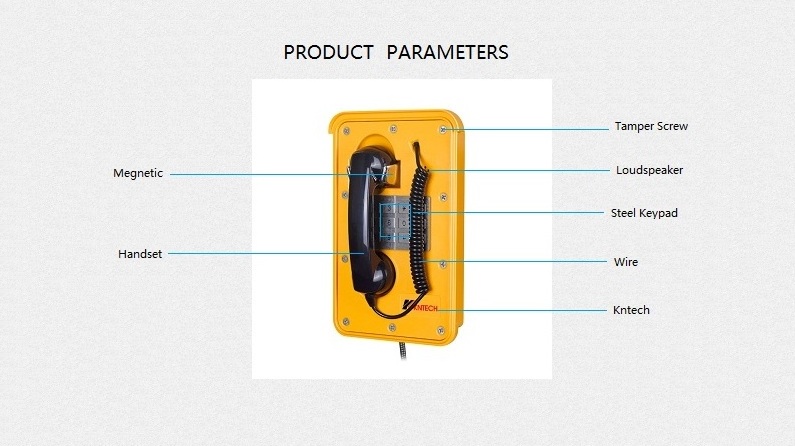

mining telephone detail view

Mining Telephone KNSP-11

        KNTECH  provide  underground communication  system  and export minging telephones for over 15 years. The mining telephone widely used  in coal mines and coppermine.  The mining telphone as mining equipment must be a safty and heavy duty telephone  for mining factory. mining system include PBX and switch and telephone stations.  KNSP-11 are widely used as underground mining equipment with 2 years warranty.
   Main features :

1. Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware, easy Installation.
2. Waterproof rating IP66 dust proof.
3. Full keypad with memory, 3 button programmable telephone, support free dial.
4.Magnetic reed hook-switch.
5. Lightening protection to ITU-T recommendation K.21.
6. Heavy Duty handset with hearing Aid compatible(HAC) receiver, Noise canceling microphone.
7. Handset with industrial strong curly cord .
8. Metal keypad keep waterproof and dusty proof.
9. Temperature range from -40 degree to +70 degree.
10.Support echo cancellation.
11.Remote software upgrade, configuration and monitoring.
12. Optional 7 minute time-limited call.( This function upon buyer’s requirement).
13. Powder coated in UV stabilized polyester finish.
14. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.

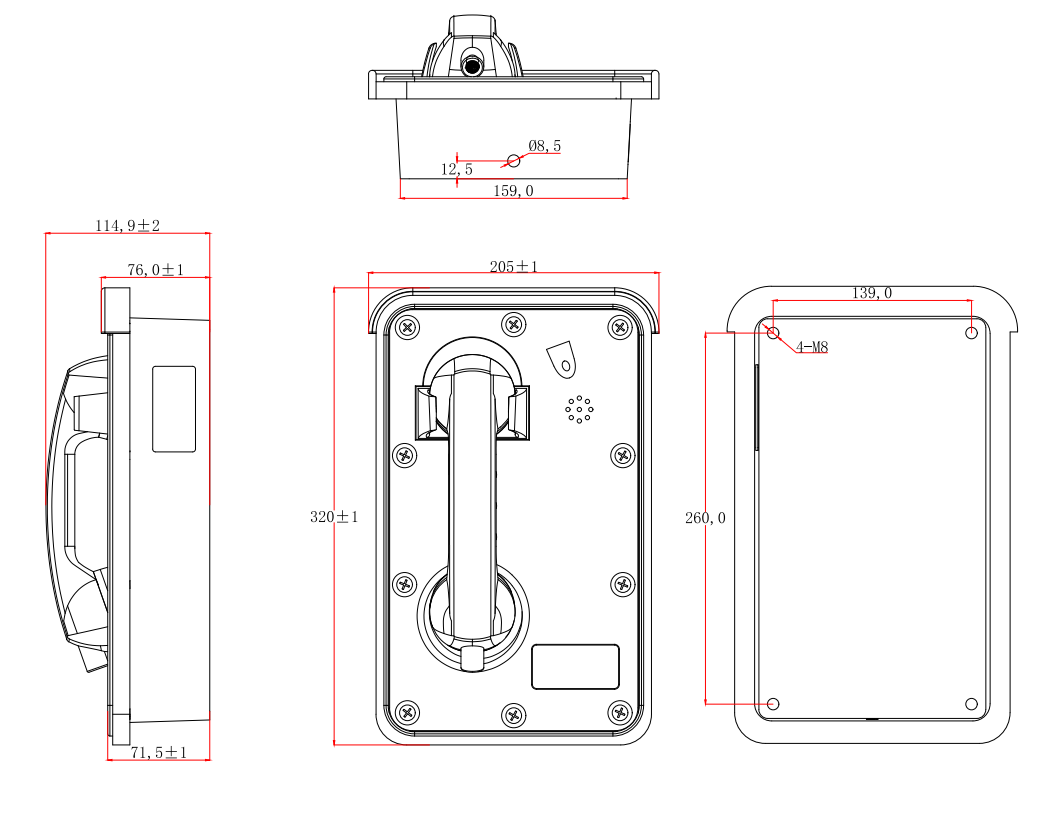

   INSTALLATION
  mining telephone knsp-11
   CERTIFICATION
  RCM: AS/NZS CISPR 32 Australian communications:AS/CA S004
      Australian Equipment-safety: AS/NZS 60950.1:2015
      EMC: EN50121(Railway application-Electromagnetic Compatibility)
mining telephone certificate

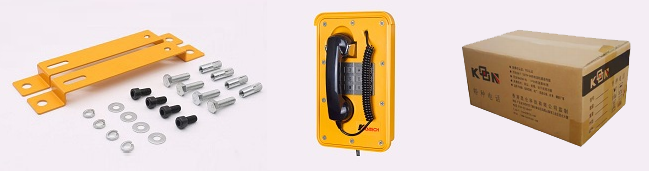

   PACKING


Mining telephone
     Unit size:320 *205*120mm Unit: N.W:3.4KG 1pcs
     packing box size: 439 *277 *191mm Unit N.W:4.5KG
     6pcs in 1 outer Carton box: size: 730*390*340mm N.W:29KG

You May Like:

KNSP-01

Weatherproof telephone

NMS-X1 SNMP

Unified network management system

KNZD-14

Hotline telephone

KNEX5

Ex telephone



Product Specification

   SPECIFICATION

VoIP SIP2.0 telephone                    DTMF dialing                    Audio Codes:G.711, G.723, G726,G.729
MTBF:100000hours                        MTTR: 2 hours                  Network:10/100 BaseTX Ethernet, RJ45
Hot-line (maximum length of each number is 16 digits)            connectors, Cat5e or better
Communication: Full duplex 2-way handset                             IP Protocols:IPv4, TCP, UDP, RTP , DHCP, SIP
communication                                                                         1 x LAN Protocols:Power over
Call Control Signaling:VOIP SIP Info(DTMF), RFC                  Ethernet(PoE,802.3af)
2833(DTMF)                                                                             1 x WLAN(IEEE 802.3af), Network Access
Power:Power over Ethernet, IEEE802.3af, Class 0                  Control(IEEE 802.1x),STP(IEEE 802.1d)
Local power, 12VDc,Idle 2W, Max 10W                                    RSTP(IEEE 802.1d-2004)
Auxiliary Contacts: (option)                                                       Programming:Non-volatile flash memory
1 Aux Output, dry contact                                                         programming and configuration through Web GUI
Contact Ratings. Load: Resistive load                                      Management and Operation:DHCP and static IP
Rated load:0.3 A at 125 VAC; 1 A at 30 VDC                           remote automatic software upgrade, centralized
Rated carry current:1A                                                              monitoring.
Max.switching voltage:125 VAC,60VDC                                   Echo cancellation code:G.167/G.168
Max.switching current:1A

   Order information:

Model number Power Supply Item Number
KNSP-11-IP-Y_AD DC12V 1A SP0110052
KNSP-11 -IP-Y_P POE SP0110022
KNSP-11 -IP-Y_ADP DC12V 1A +POE SP0110192
*AD---Adapter UL (Input : AC110~240V , Output : DC12V 1A)
*P---POE

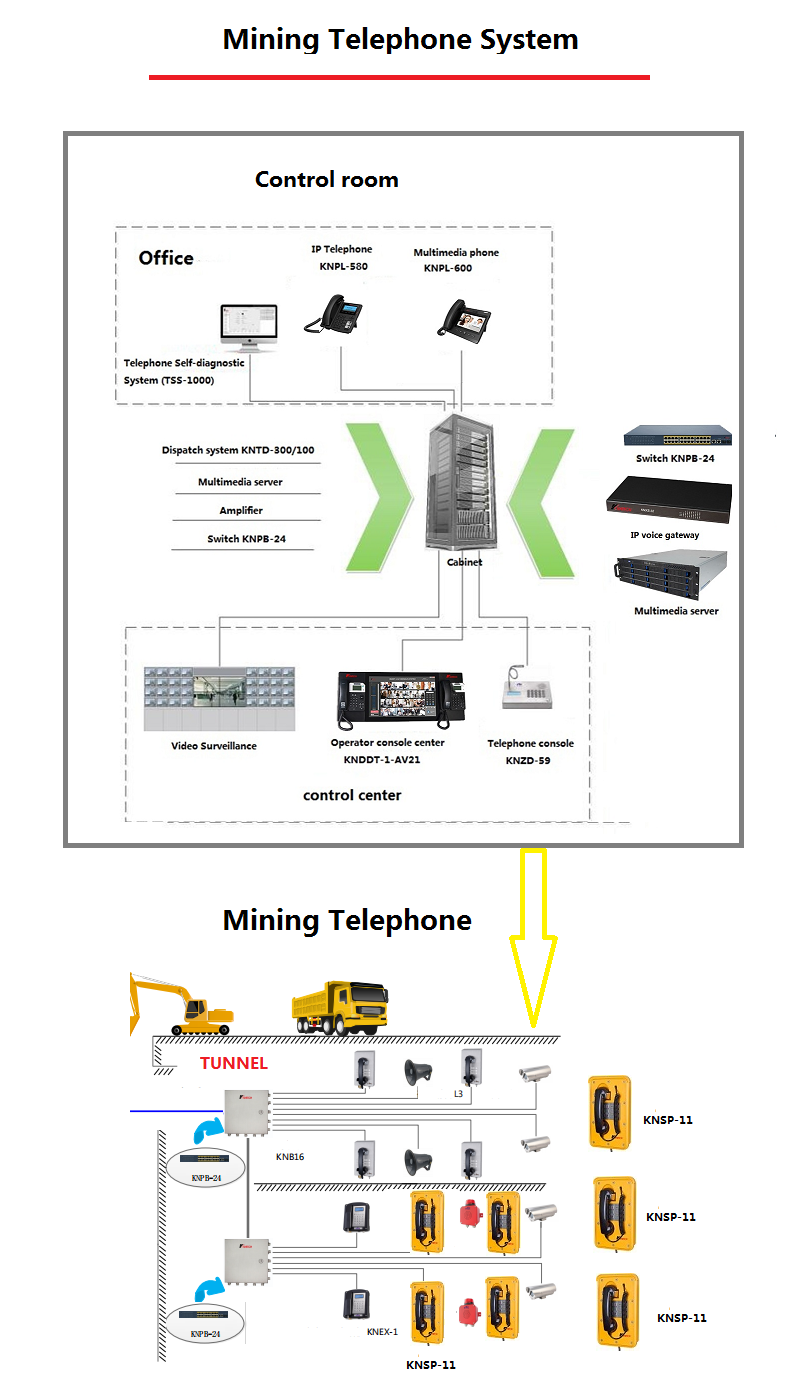

Telephone System

mining telephone system

Product Application

   Applications:
          As Public telephone for indoor or outdoor, Taxi or bus stands or station, Highway call box.Railway, metro, ATM machines side,  Tunnel, Port, Dock, Mines, Generation facilities...A good ideal telephone for use in wet or corrosive atmospheres.

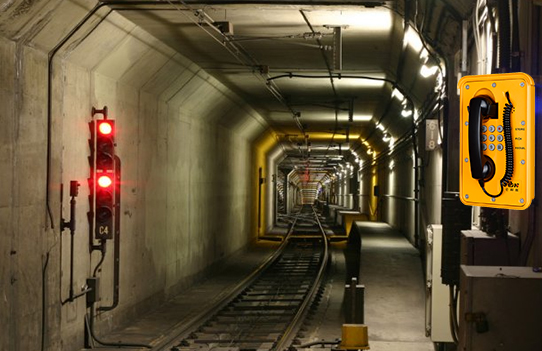

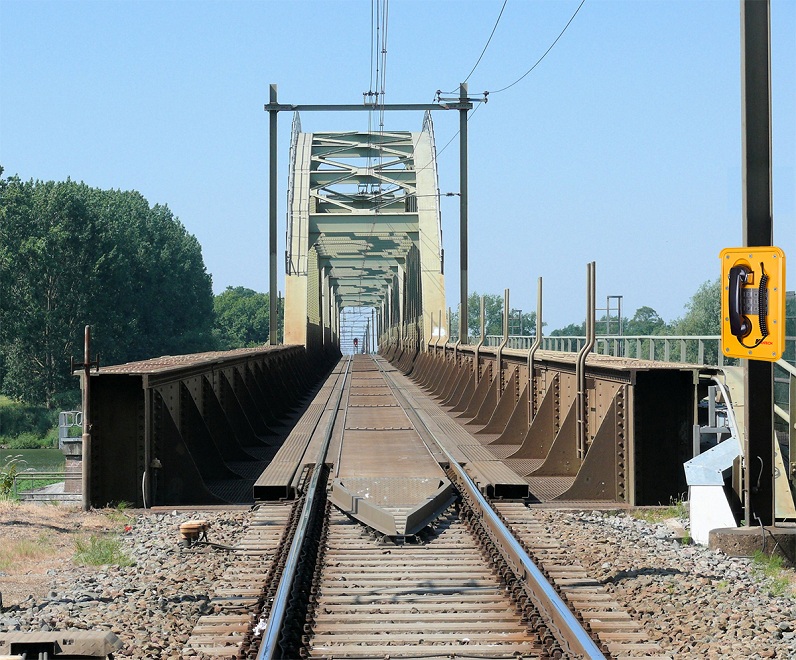

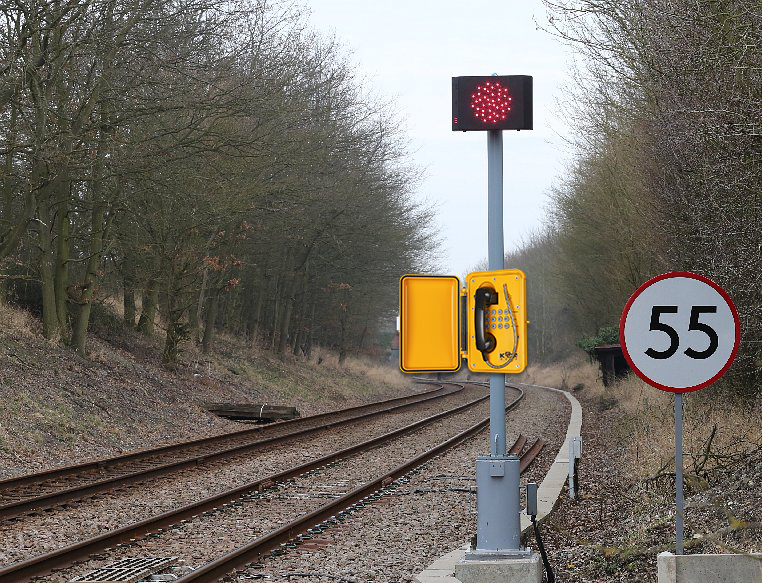

Mining telephone Mining telephone Mining telephone
weatherproof telephone in the production line weatherproof telephone in the production line
weatherproof telephone in the production line weatherproof telephone in the production line
Product Detailed Pictures

Mining telephone Mining telephone
