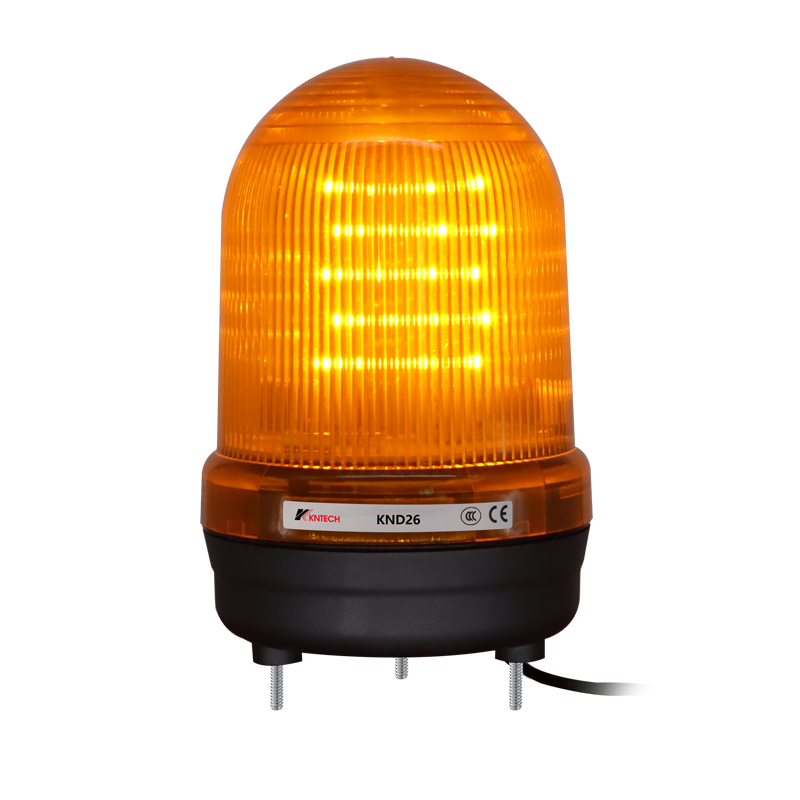

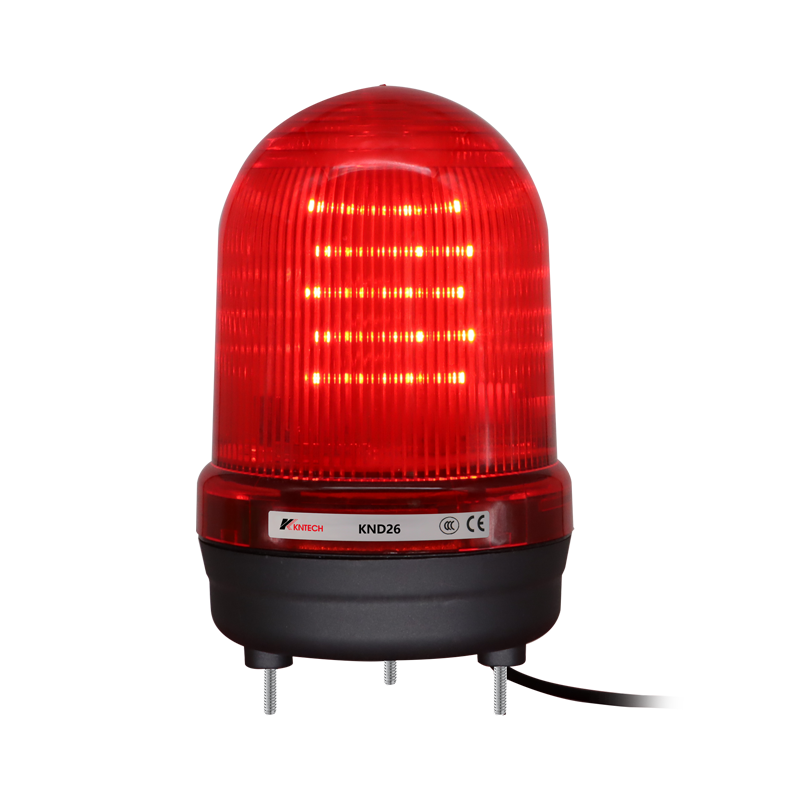

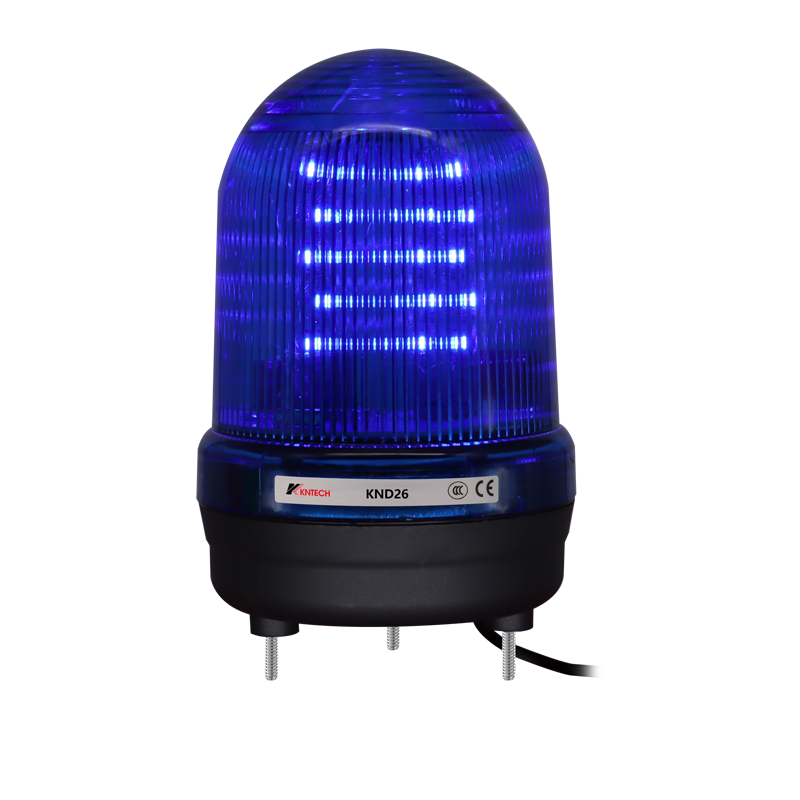

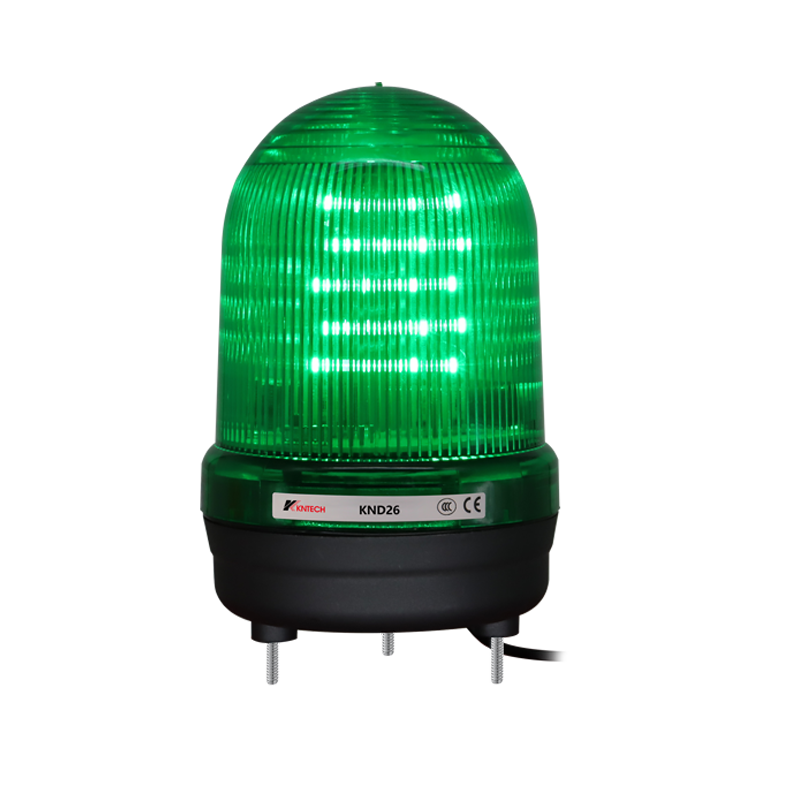

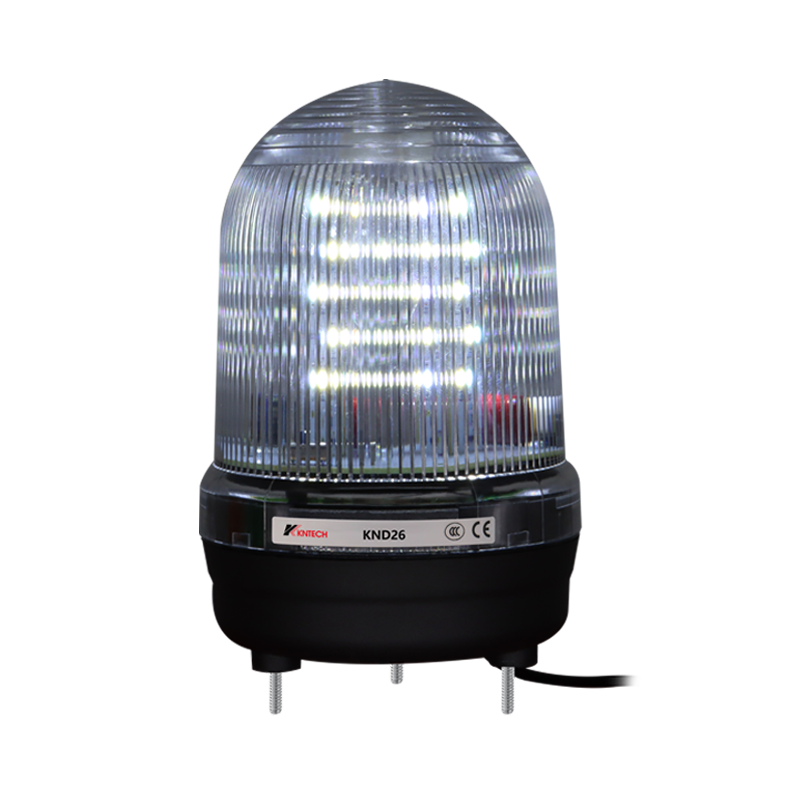

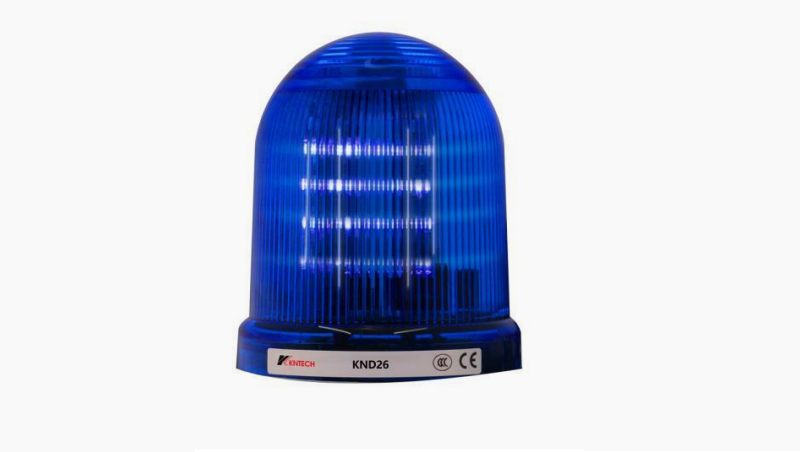

KND26 LED beacon with 72pcs high brightness LED lamp and intelligent IC control function,shade with focus function,more flash brightness,better quality,running stabler.Used in electrical power, telecommunications, machine tools, shipbuilding, printing, mining machinery and other equipment for indication signal,notice the signal,accident signal.
Power Consumption : 15W-23W

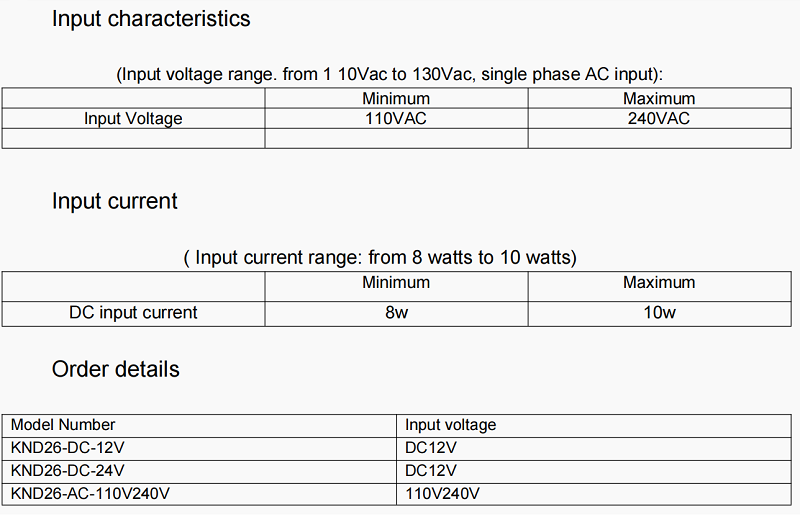

Voltage:AC110V-240V/DC12V/DC24V
Operating Temperature:- 3 0 C- 6 0 C

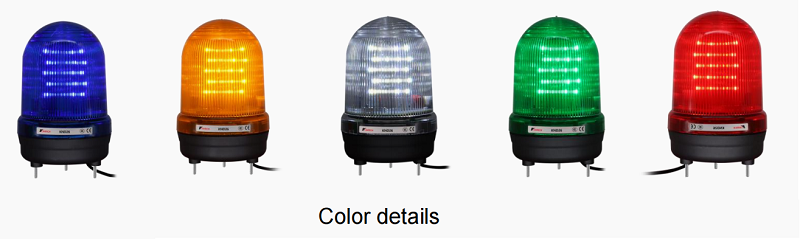

Color Optional:Blue, Lamp Beads:Φ5 straw hat lamp LED
Operating Mode: Strobe
Material: Import highly transparent Carbonate Material

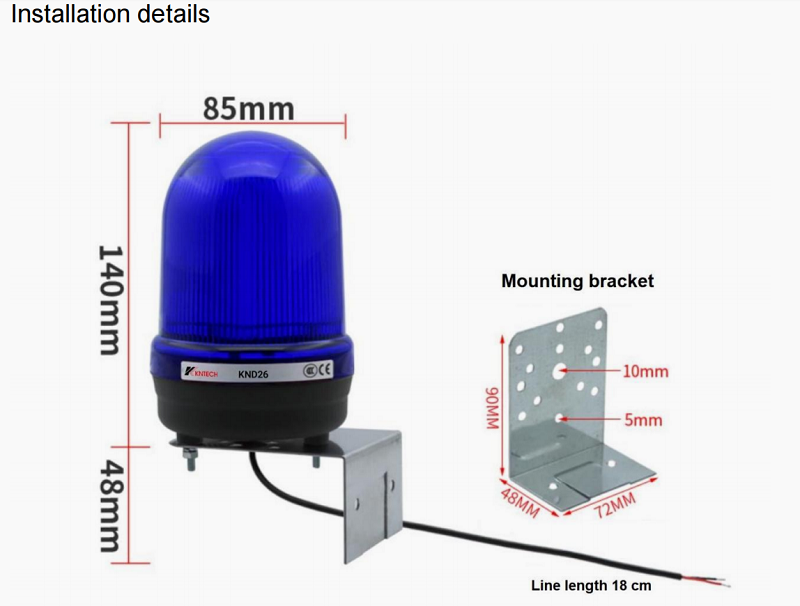

Fix type: Screw type + Magnetic
IP rating :IP66
Packing (package)
1.) Packing: red neutral packing
2.) Quantity: 30 pieces/piece
3.) Outer box size: 57.5*35.3* 37.5CM
4.) Weight: 8.5KG

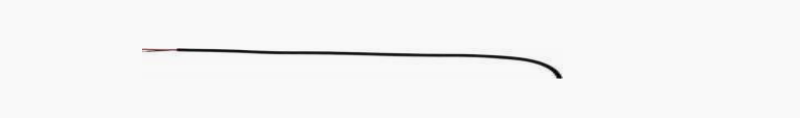

The power cord (Enclosure) :
Material requirements: cable
Material requirements: cable
Cable: 0.5 square meters/length 200mm
Cable: 0.5 square meter/200mm long Power cable
(Enclosure):
Material requirements: cable
Material requirements: cable
Cable: 0.5 square meters/length 200mm
Cable: 0.5 square meter/200mm long
The shell (Enclosure) :
Material requirements :PC
Material requirements: PC

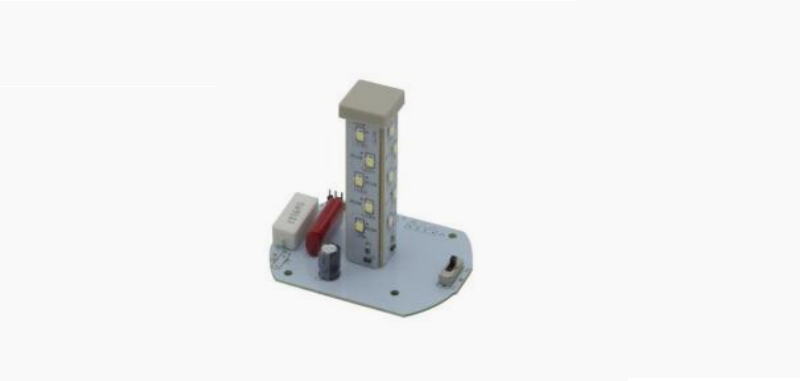

LED lamp bead (Enclosure) :
Lamp bead type: 20 (3528)
Lamp type: 20particle (3528)
Lamp bead color: pure blue
Lamp color: pure blue

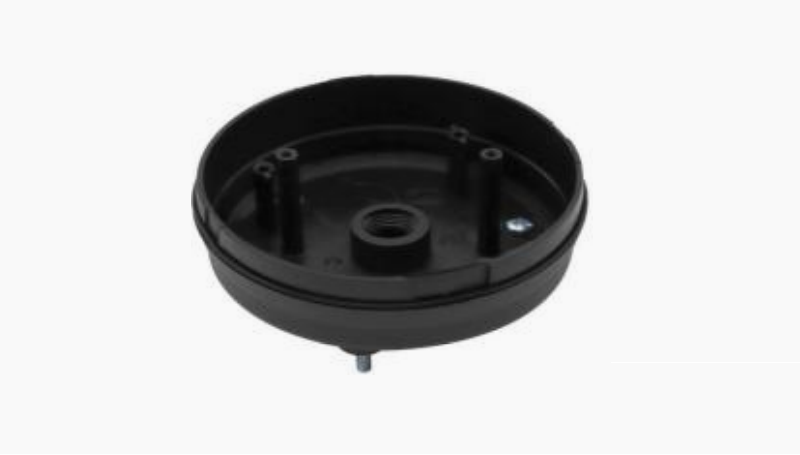

The base (Enclosure) :
Material requirement: ABS
Material requirements: (ABS)
3.1 Operating Temperature:
-25℃~ +65℃, full load, normal operation (Full load Normal operation).
-25℃~ +65℃, Full load Normal operation.
3.2 Storage Temperature: -20℃to85℃, with package.
3.3 Working humidity (Relative Humidity):
5%(0℃)～90%(40℃), 72 hours, full load, normal work
5%(0℃)～90%(40℃)RH,72Hrs,Full load Normal operating.
3.4 Altitude work requirements (Altitude):
When working: less than or equal to 2000 meters Operating:≤2000 meters
In storage: less than or equal to 2000 meters Non-operating: ≤2000meters
3.5 Dropping (Packed):
PC shell, ABS base, internal screws, LED SMD lamp beads.
PC case, ABS base, internal screws, LED SMD lamp beads.
Height: 76cm
wooden board
Lights are normal, no case cracked.
lamplight is normal, no shell rupture
1. Packing method: red neutral packing
2. Quantity: 30pcs/piece
3. Outer box size: 57.5*35.3*37.5 CM
4. Weight: 8.5KG
