This specification describes the DC power input, input current and environment in detail.
INPUT CHARACTERISTICS

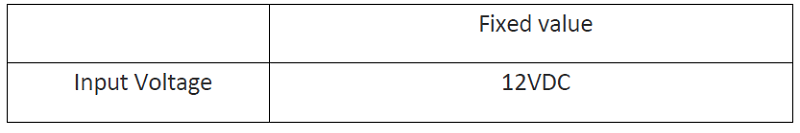

Input voltage range: 12Vdc, single-phase DC input :

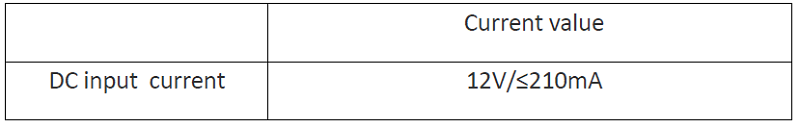

Input Current:
Input current range: ≤210mA)
ENVIRONMENTAL REQUIREMET:
3.1 Operating Temperature: -25℃~ +65℃,Full load Normal operation.
3.2 Storage Temperature: -20℃ to 85℃,With package.
3.3 Relative Humidity: 5%(0℃)～90%(40℃)RH,72Hrs,Full load Normal operating.
3.4 Altitude Requirement：
Operating: ≤2000 meters
Non-operating: ≤2000meters
3.5 Dropping test (Packed):
Package: PC shell, ABS base, internal lamp board, SMD lamp bead.
Test Height: 76cm
Test Results: lamplight is normal, no shell rupture
MECHANICAL REQUIREMENT:
Enclosure Material: PC

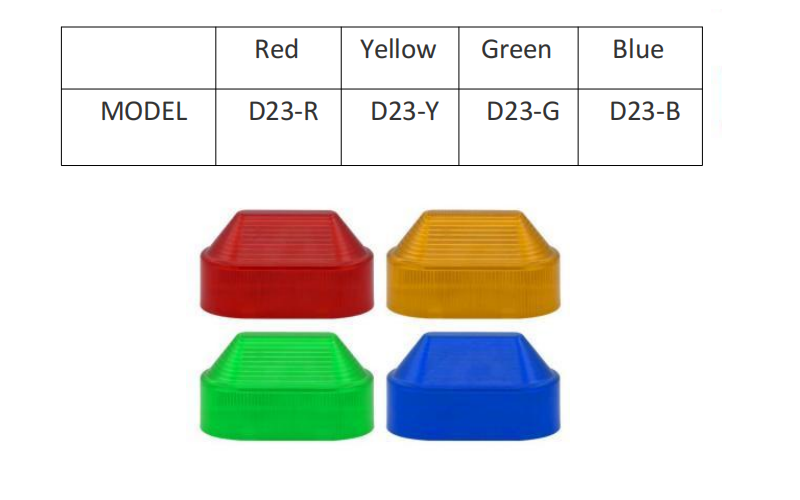

Color optional: Red, Yellow, Green, Blue

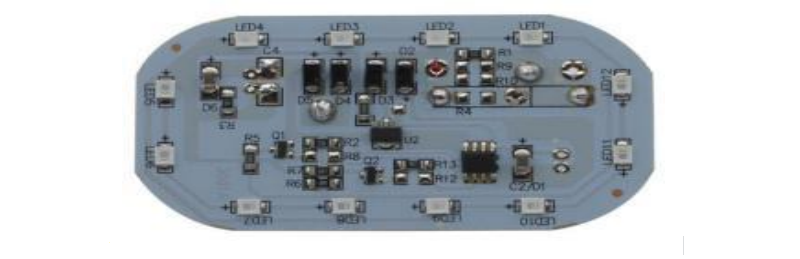

Circuit Board:
*Material :FR-4
*LED SMD lamp beads 12 solid colors
*Circuit Module: Control circuit, light emitting diode, light emitting circuit, voltage stabilizing circuit.

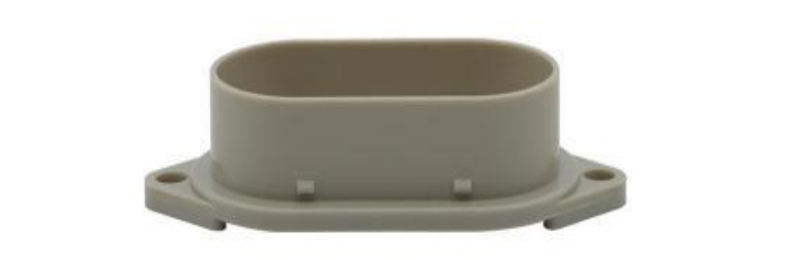

Pedestal Material ： ABS
Package
100 PCS in a carton: Outer carton size: 49*30.5*29.5 CM Weight: 9KG

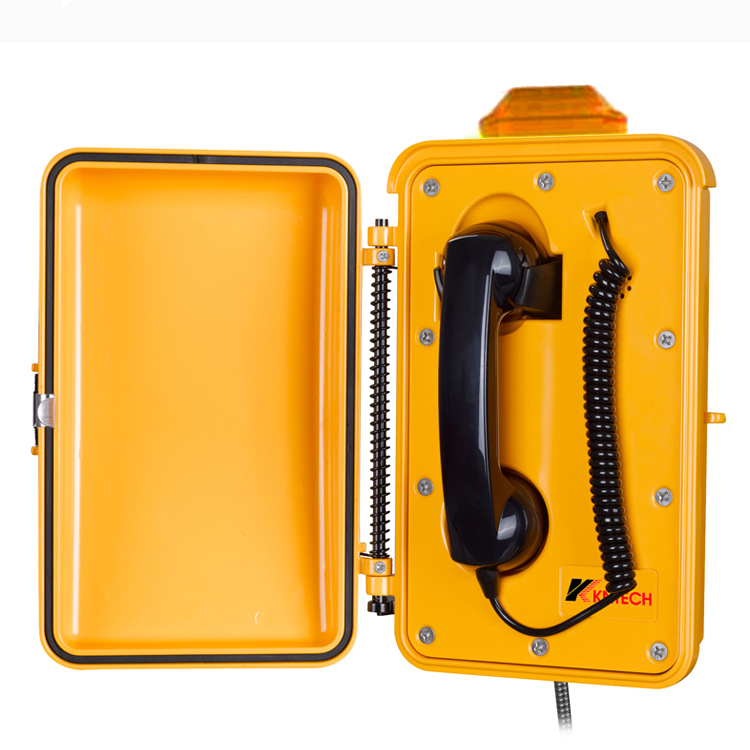

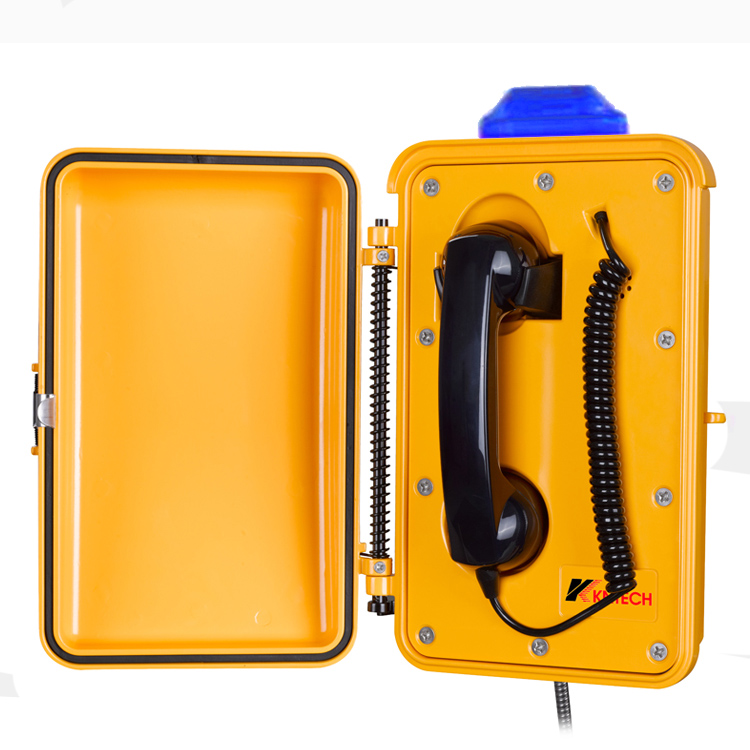

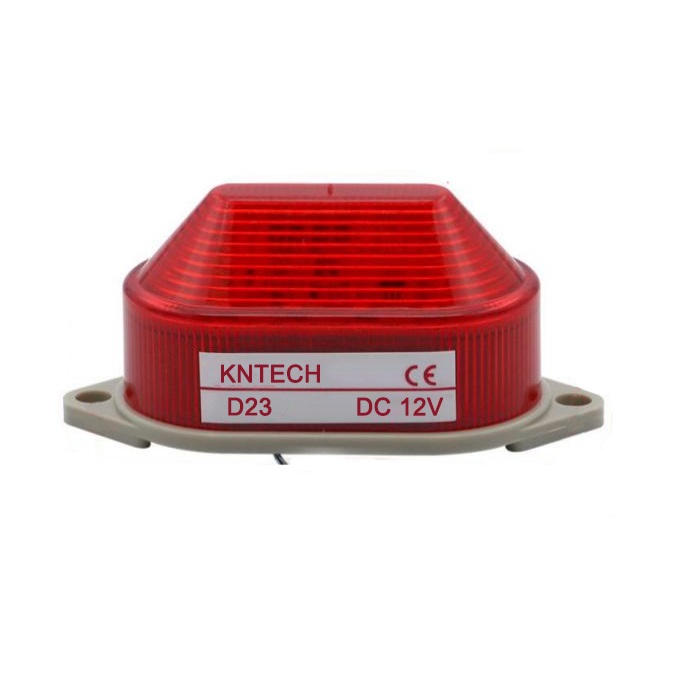

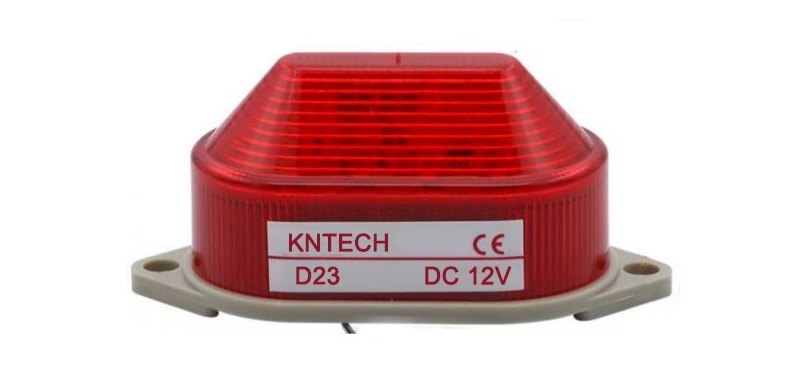

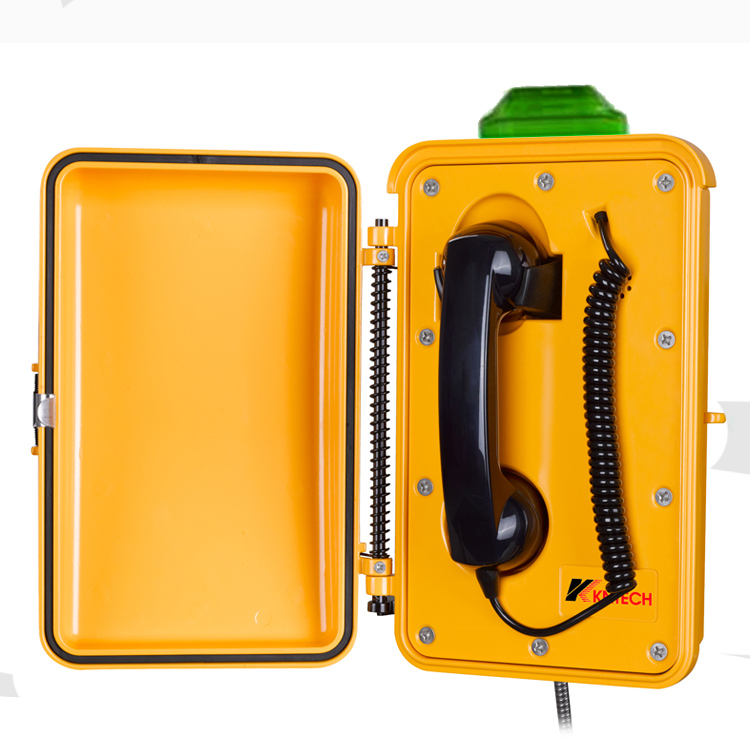

KNTECH Incoming Call Indicator D23 is installed on the waterproof phone, and the cable connects seamlessly inside the phone. The waterproof level of KNTECH Incoming Call Indicator D23 and the waterproof phone can be up to IP66!
