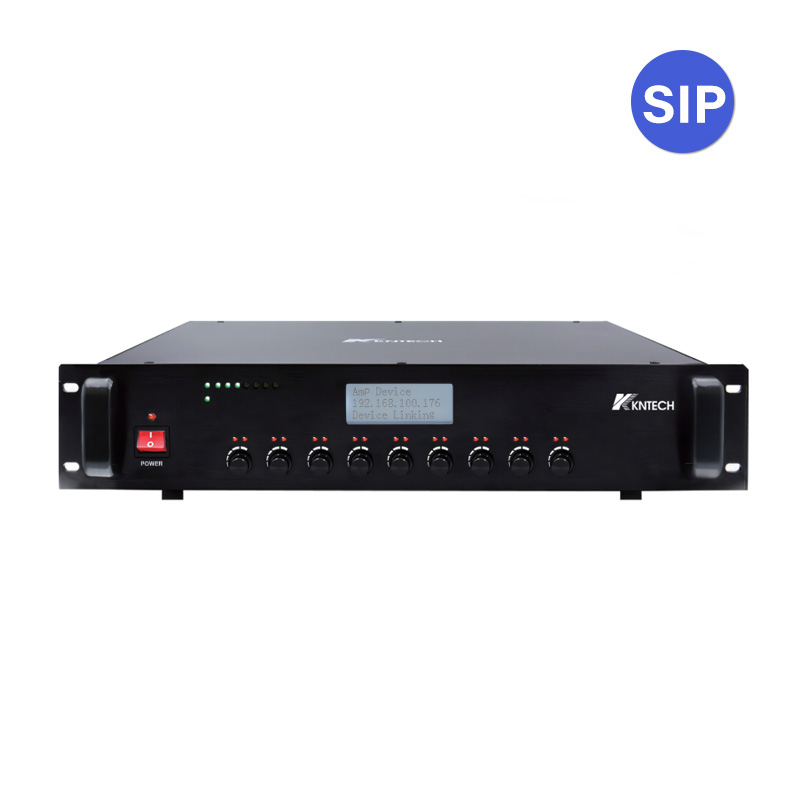

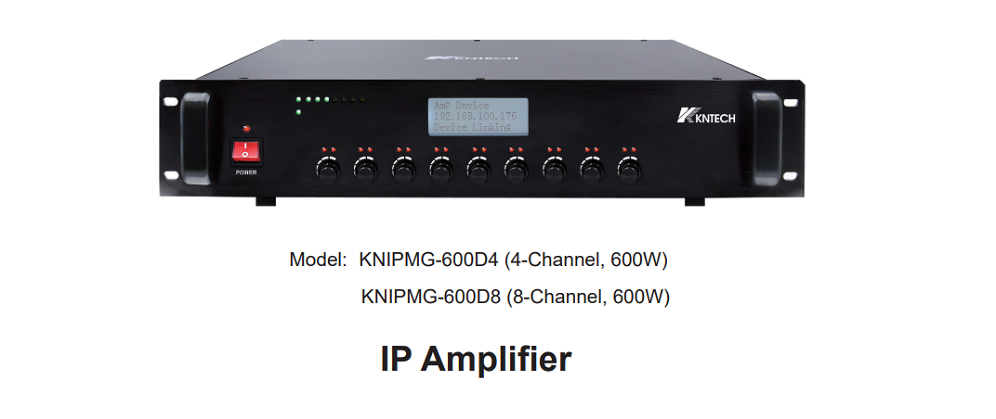

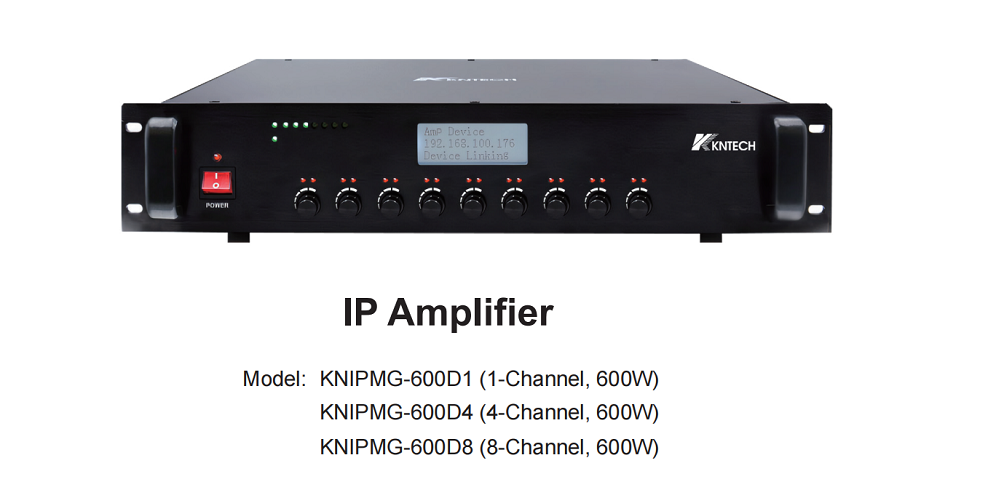

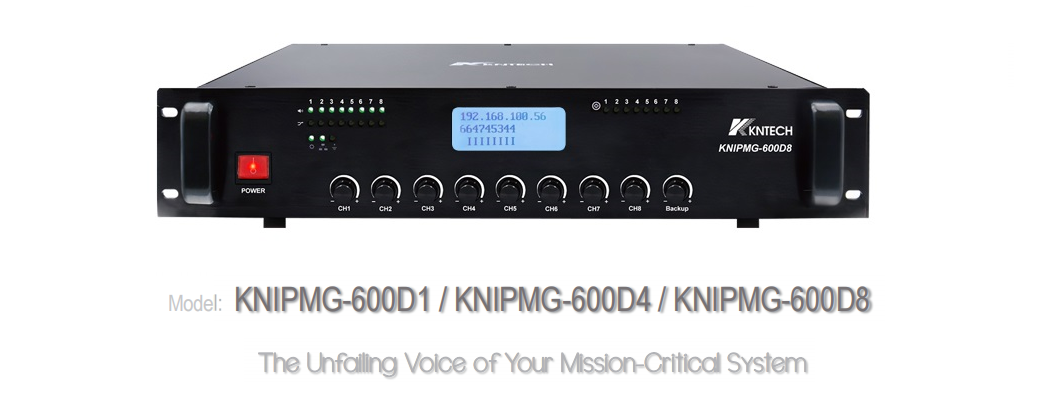

IP Amplifier 4or8CH
The cornerstone of the Public Address (PA) System implementation is represented by this state-of-the-art IP power amplifier. Output power across channels is dynamically allocated based on connected speaker requirements, with performance being optimised within the amplifier's total power budget. Connection to the central exchange is established via standard Ethernet infrastructure (CAT5/CAT6) or fibre optic cabling, through which reliable digital signal transmission is ensured.
Class D amplification technology has been selected for its exceptional efficiency, significantly reduced power consumption, and extended operationallifespan — factors considered critical for infrastructure deployments in various markets’ demanding environments. This network-based solution has been specifically engineered for challenging settings such as tunnels, transportation hubs, industrial facilities, educational institutions, healthcare environments and underground transit systems where acoustic conditions are challenging and system reliability is paramount.
Powerful 4/8-channel Class D amplifier with 600W total output
Function & Feature
Flexible power distribution - freely assignable output per channel
High-fidelity performance - distortion factor <0.5% at rated power
Versatile operation - supports 70V or 100V with direct drive capability, with output matching transformer protection
Galvanically insulated outputs for enhanced safety, interference prevention, and compliance with impedance requirements
Powerful 4/8-channel Class D amplifier with 600W total output
Flexible power distribution - freely assignable output per channel
High-fidelity performance - distortion factor <0.5% at rated power
Versatile operation - supports 70V or 100V with direct drive capability, with output matching transformer protection
Galvanically insulated outputs for enhanced safety, interference prevention, and compliance with impedance requirements
Adaptable to multiple redundancy architectures (N+1, 2N, etc.)
Built-in spare amplifier channel for automatic failover
Dual network connectivity via redundant Ethernet ports
AB redundant speaker line support for uninterrupted service
Dual power supply inputs with redundant power suppliers
Analog audio lifeline input for automatic failover in network failure scenarios, ensuring continued operation duringcritical events.
Self-diagnostic capabilities with integrated monitoring functions:
Short circuit detection
Temperature monitoring
Voltage failure alerts
Continuous performance monitoring
Integrated loudspeaker loop monitoring for immediate fault detection using 22kHz pilot tone technology

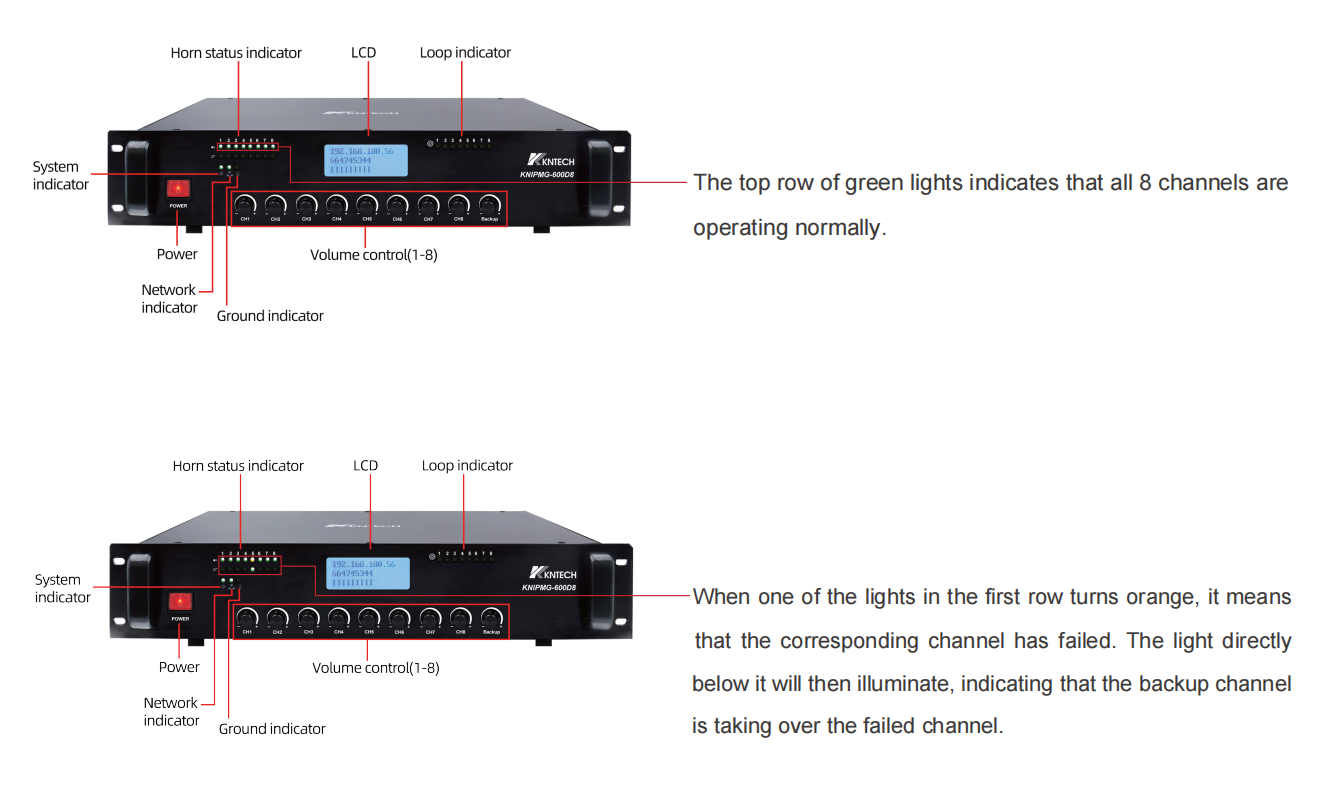

User-friendly front panel interface with LED status indicators and function keys
Web-based management portal for remote configuration, monitoring, and scheduled announcement programming with time synchronization capability

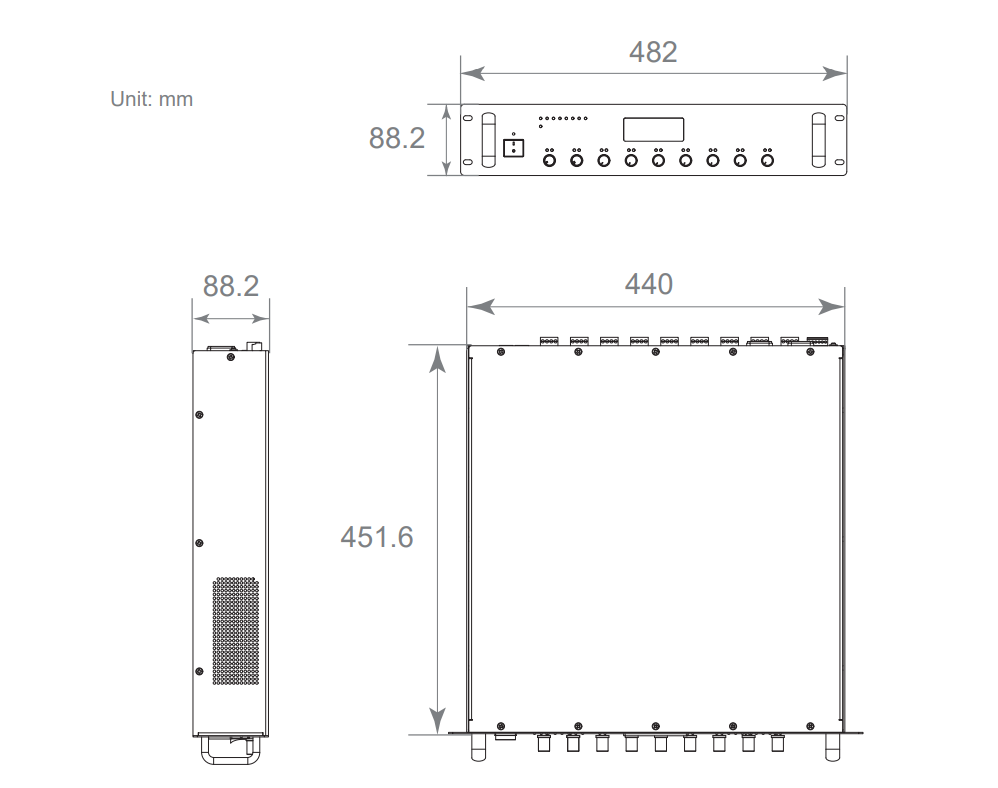

Compact 2U rack-mountable design for efficient space utilization

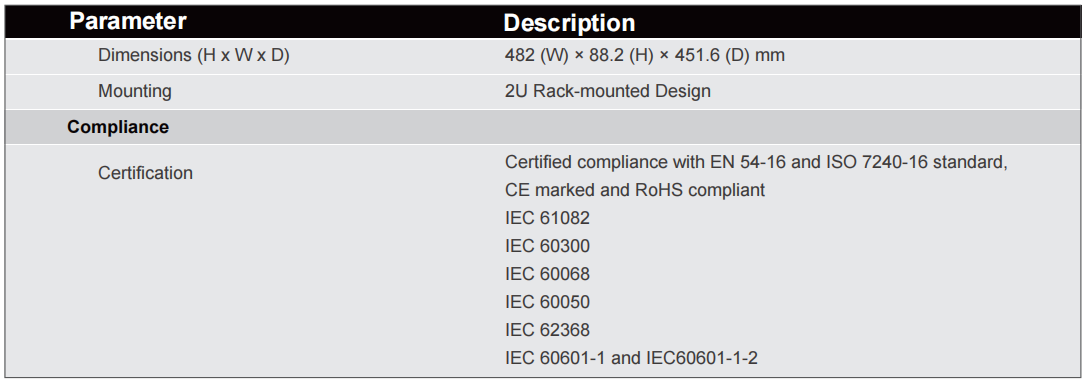

Certified compliance with EN 54-16 and lS0 7240-16 standard
CE marked and RoHS compliant for regulatory peace of mind
Industry-leading redundancy features ensure maximum system uptime with 24x7 round-the-clock operation capability
Intelligent power management optimizes performance for connected speaker loads
Comprehensive monitoring capabilities reduce maintenance costs, with visual and aural monitoring of output levels
for each broadcast zone
Seamless integration with existing infrastructure, including automatic power sequencing for system protection
Future-proof design with advanced lP connectivity, supporting various protocols (RTP, UDP, TCP/P, FTP) for modernnetwork environments
Flexible collocation :
Independent amplifier channels; integrated standby channels can be enabled
automatically in the event of channel failure;
Primary and standby redundancy:
when the IP amplifier plays audio sources, the standby channel can replace any damaged audio channel at any time, whichever fault occurs first.
When the damaged audio channel is restored, the alternate channel can replace another damaged channel.

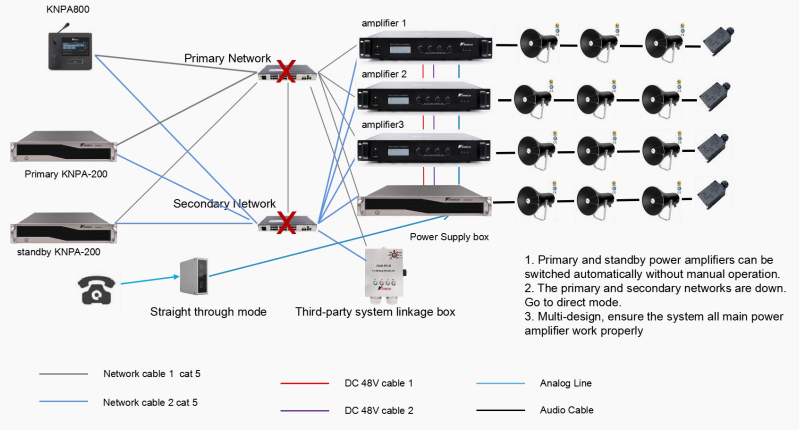

1. Primary and standby redundancy:
when the IP amplifier plays audio sources, the standby channel can replace any damaged audio channel at any time, whichever fault occurs first.
When the damaged audio channel is restored, the alternate channel can replace another damaged channel

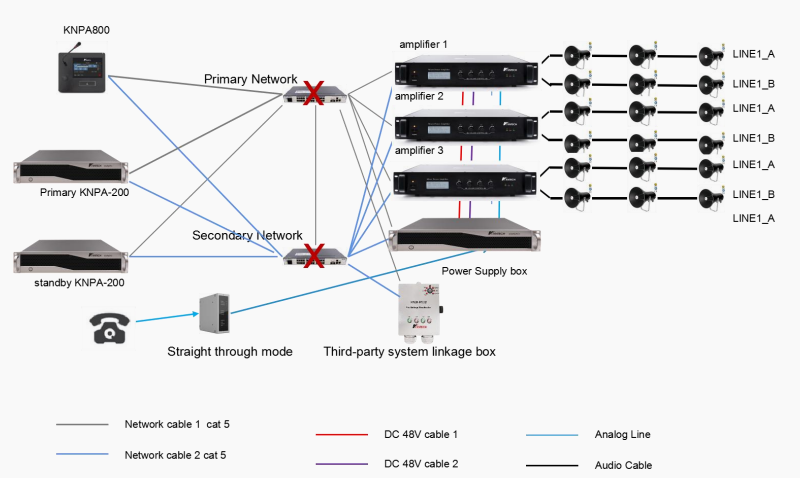

2. The dispatcher and the main and backup IP power amplifiers are automatically connected to the A/B host, and when the A host fails, it will automatically switch to the B host.
3. Integrated loudspeaker loop monitoring.
