Video Help Point

Video Help Point

material:Stainless steel

Video Help Point is an SOS Help Point set up in public places such as Metro , railway station, airport and community. SOS Video Help Point is mainly used in public places. In case of accidents, we need to ask relevant staff for Help. People with disabilities, pregnant women, children and others in need can seek help through video help point.
video help point

Video help point KNZD-60M

Video help point, using stainless steel metal casing, explosion-proof, anti-destructive, waterproof to ip66. The video help point, the internal use of Freescale chip, high-speed processing of video streams, stable quality. The video help point has two channels of video streaming during the call, all for video intercom, and supports video upload to the storage server.we also have the help point only voice only call

Unit main features
      1.VOIP Telephone BI-Directional Video telephone Scratch resistant, HD Screen
      2.SIP supports 5 SIP servers SIP 2.0 Support TR069
      3.7" digital TFT-LCD of 1024 x 600 pixels with Visual angle adjustable display screen
      4.sensor camera with 5Mega pixels 2xLAN, PoE, USB
      5.TWO group of speed dial for emergency call. Protection: About IP65
      6.Speaker: 8 ohm 1.5W, loudness 85dB(A) to 65dB(A) MIC’s working distance 80cm
      7.Ring: >95dB. Coverage 1.5m radius
      8.The call button is flash when ring, lighting during a call, off when standby.
      9.With induction loop coverage 1M radius. Metal body
      10Braille words for disable.
      11.HD voice with high quality headset/HD voice in speakerphone mode
Camera Specification
      1.Array size::2592 x 1944                                2.Lens size: 1/4”
      3.Lens chief ray angle: 24                               4.Input clock frequency: 6~27 MHz
      5.Maximum Image transfer rate:                     6.QSXGA (2592 X 1944): 15fps
      7.720P                                                             8.Sensitivity: 600 mV/lux-sec
      9.Shutter: rolling shutter/frame exposure       10.Maximum exposure interval: 1964 xTROW
      11.Pixel size: 1.4 um X 1.4 um                       12.Dark Current: 8 mV/s @ 60℃ junction temperature
      13.Image area:3673.6 um X 2738.4 um         14.viewing angle: 187°
      EN55022: emissions   EN55024: immunity
      Ingress Protection: GB4208-93 IP66 FCC
      ITU-T Recommendations K21
      EMC: EN50121(Railway application-Electromagnetic Compatibility)
video help point certificate
video intercom packing

You May Like:


Video intercom Telephone


Unified network management system


Jail telephone


Weatherproof telephone

==>>>> Product Specification

      VoIP SIP2.0 telephone        DTMF dialing
      MTBF:100000hours             MTTR: 2 hours
      Hotline (maximum length of each number is 16 digits)
      Communication: Full duplex 2-way hands-free communication
      Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
      Power:Power over Ethernet, IEEE802.3af, Class 0  Local power, 12VDC,Idle 2W, Max 10W
      Auxiliary Contacts:1 Aux Output, dry contact
      Contact Ratings. Load: Resistive load
      Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
      Rated carry current:1A
      Max.switching voltage:125 VAC,60VDC
      Max.switching current:1A
      Audio Codes:G.711, G.722, G.729
      Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
      IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
      LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)
      Programming:Non-volatile flash memory programming and configuration through Web GUI
      Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
      Echo cancellation code:G.167/G.168

==>>>>Telephone System

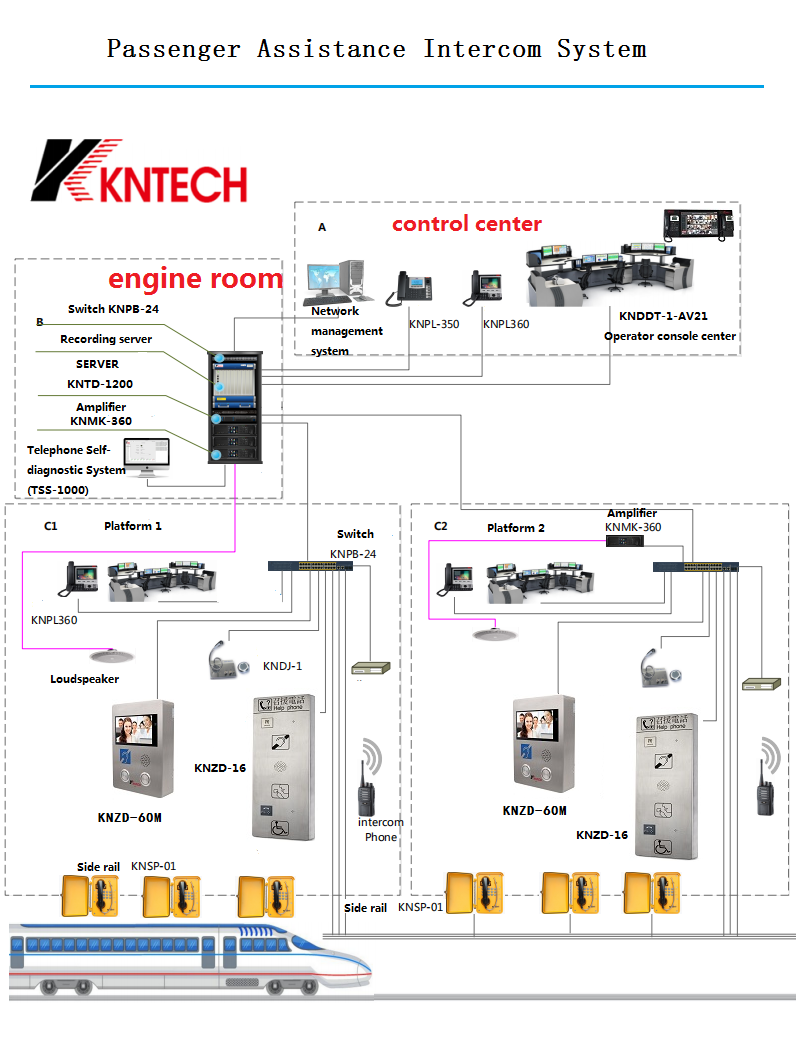

Video help point system

video help point system

==>>>>Product Application

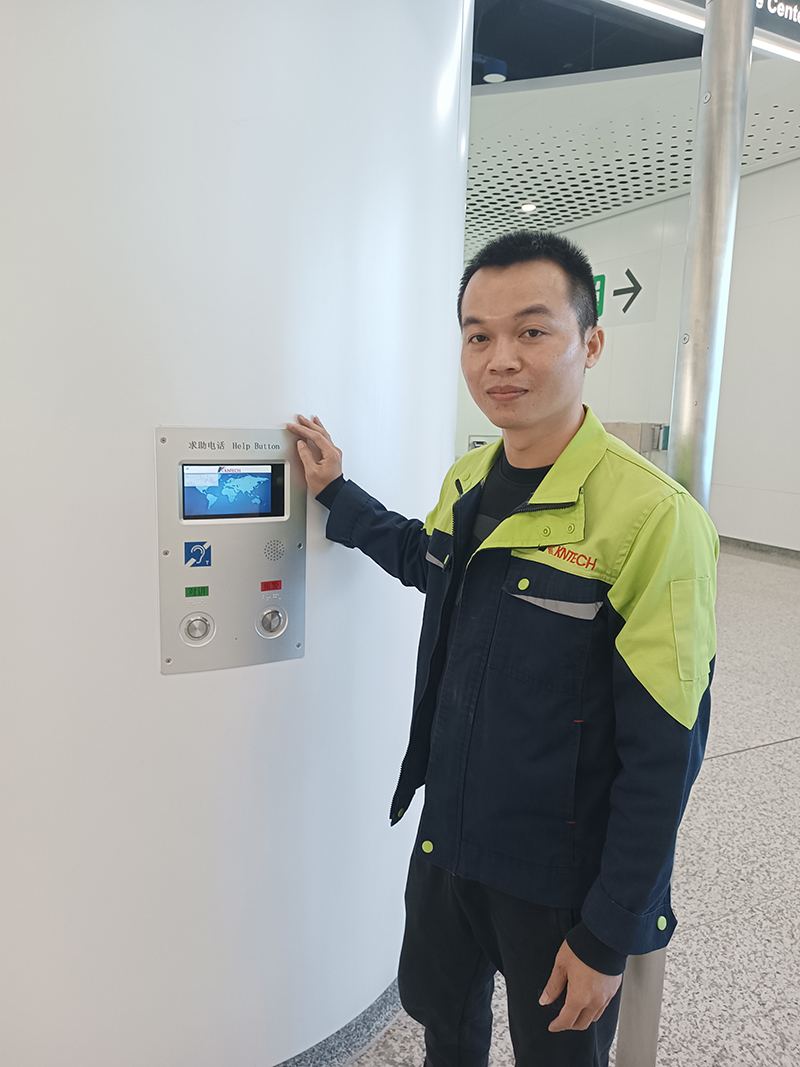

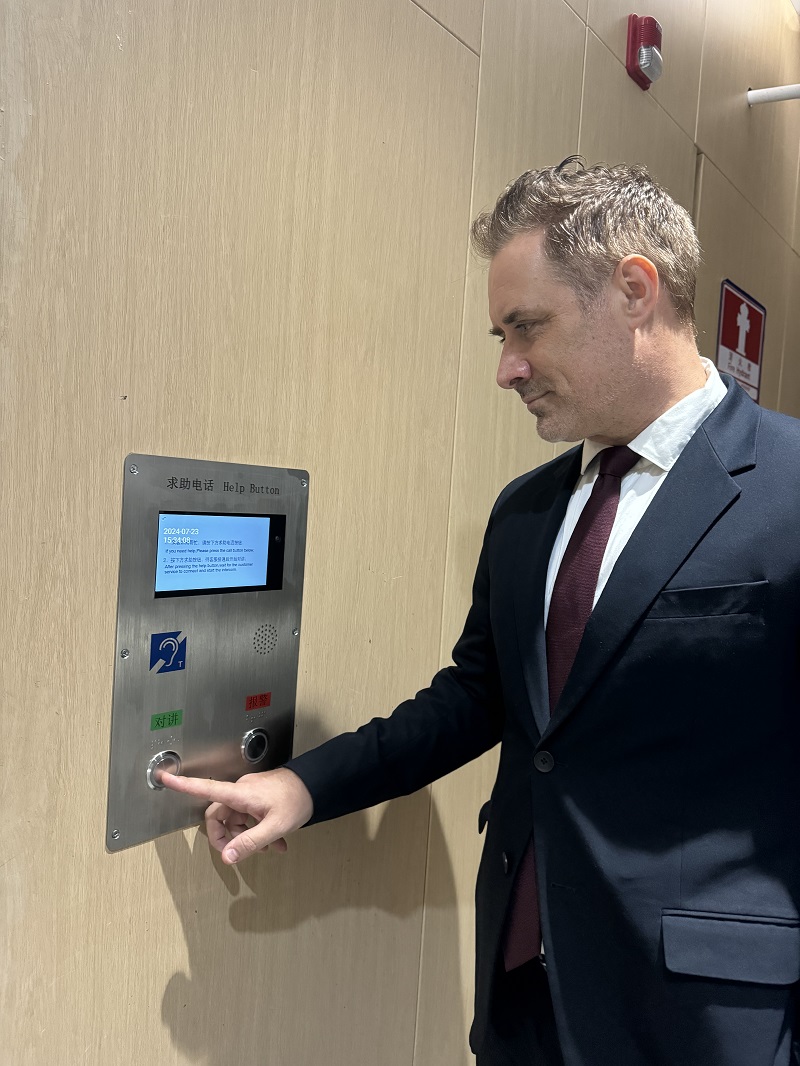

video help point subway video help point subway video help point subway
video help point subway

==>>>>Product Detailed Pictures

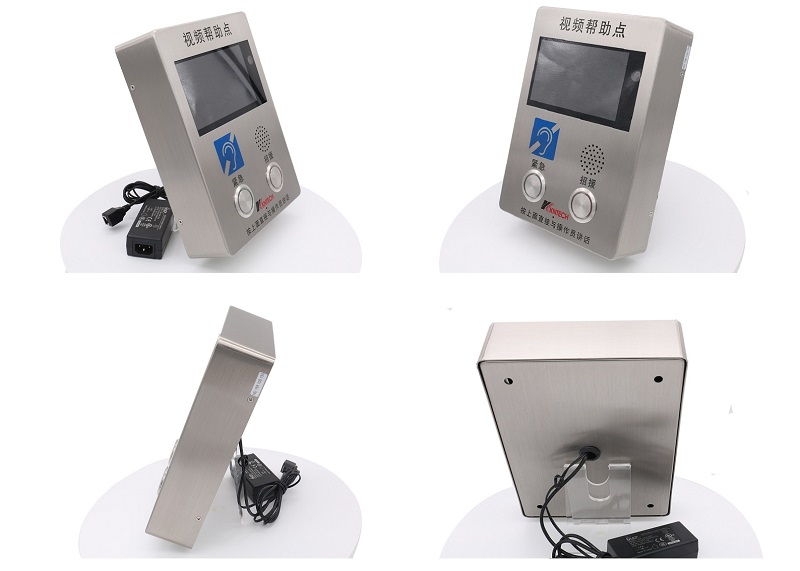

More detail about video help point

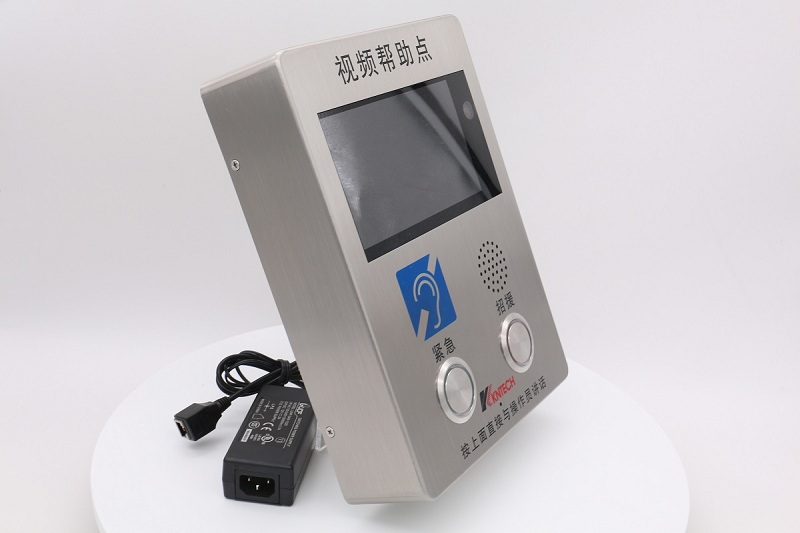

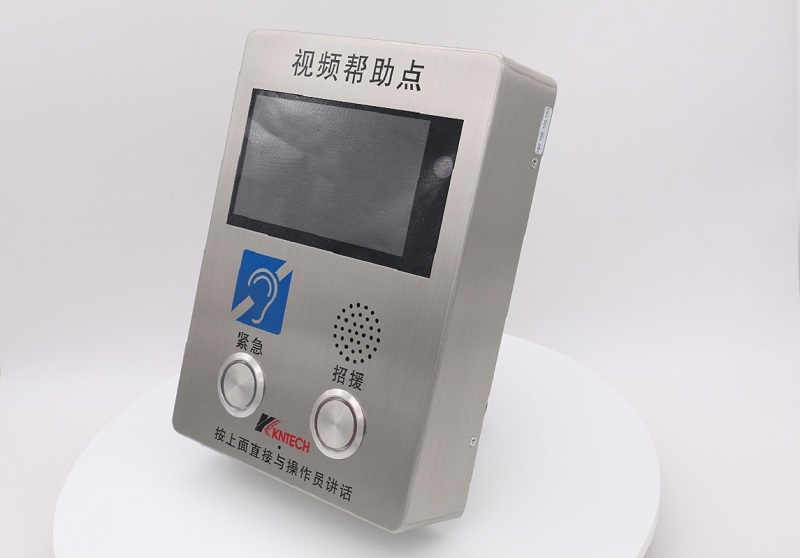

video help point left viewvideo help point right view

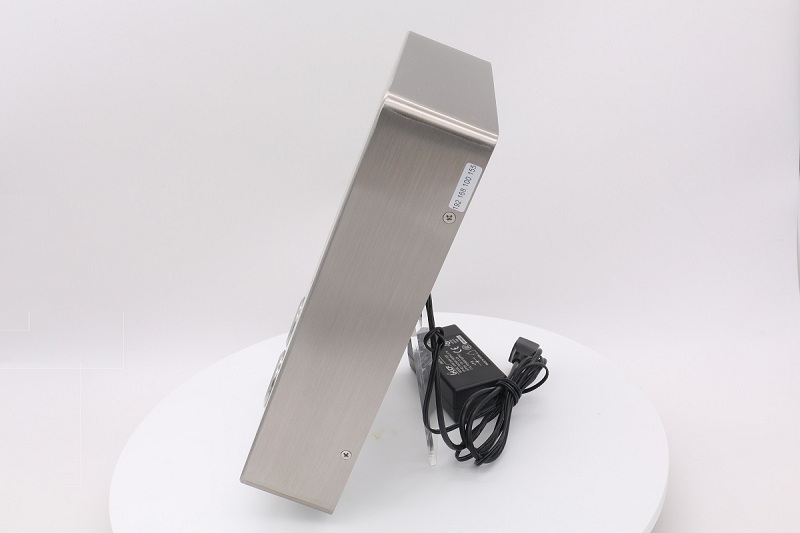

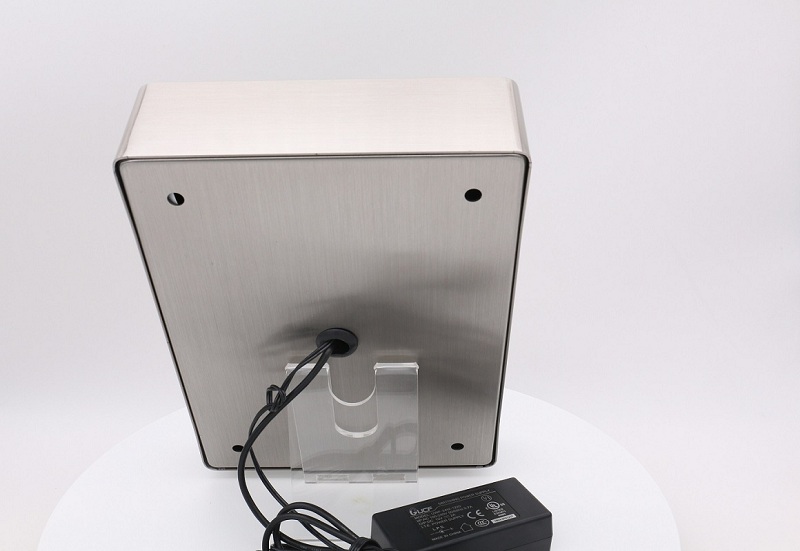

video help point back viewvideo help point side view

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNZD-60M
