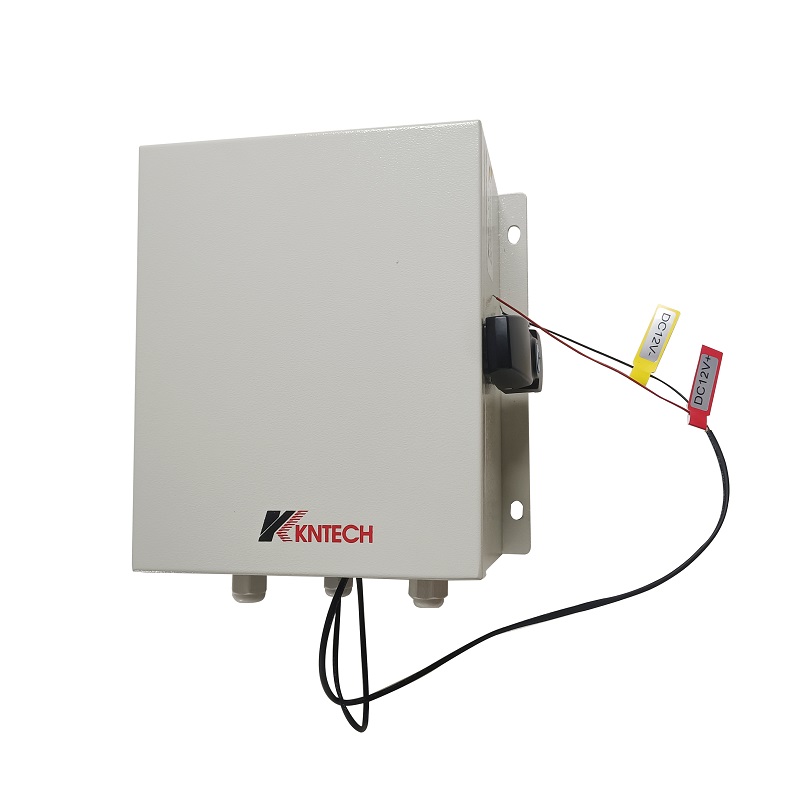

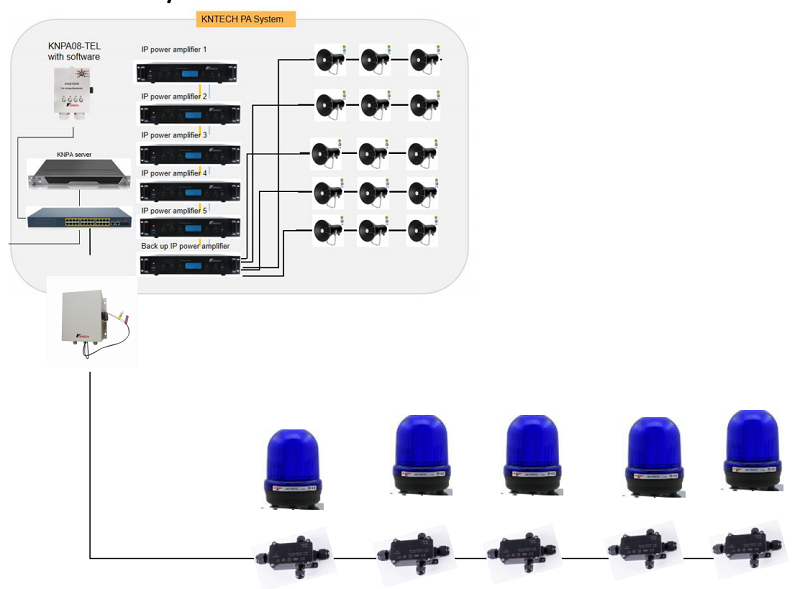

There is a connector box connection between the network switch and alarm flash light. All the beacon feeding power from IPIOBOX-1. no need local power feed.
The alarm light flashes when the speaker is broadcasting.
When the speaker is on standby, the alarm light is standby too.
Each alarm light no need local power supply. Each light centralized power feeding.
Each alarm light requires a terminal box for wire connection.
Connector terminal box in waterproof grade IP66
Flash light IP66.

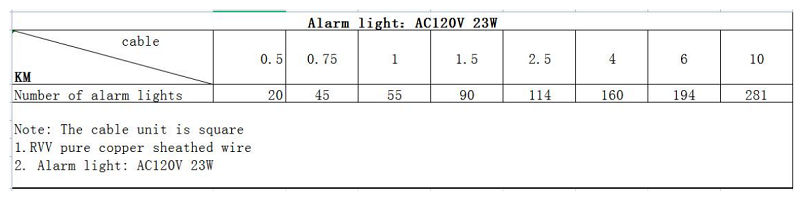

Audio signal cable 100V standard 2-core speaker wire
AC110 or 220V
With a SIP board inside the box, register to the PA server, and in the same group of the amplifier
zone to trigger the lights when receive the broadcast signal
