Product Name:

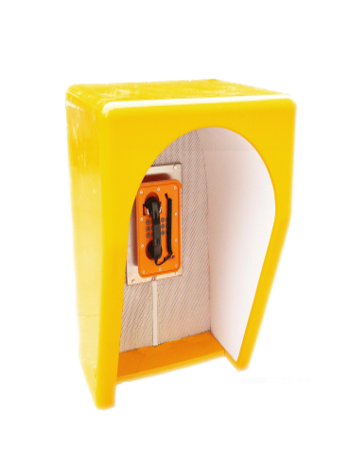

Koontech Telephone Roof
Product model:
Koontech RF-13
size:
material:
PDF:
introduction:

Main features:
Designed for use in noisy areas and harsh environments
Extremely robust
Good acoustic qualities and highly visible
High visibility yellow paint finish
23dB noise reduction
Telephone mounting panel 200mm deep shelf

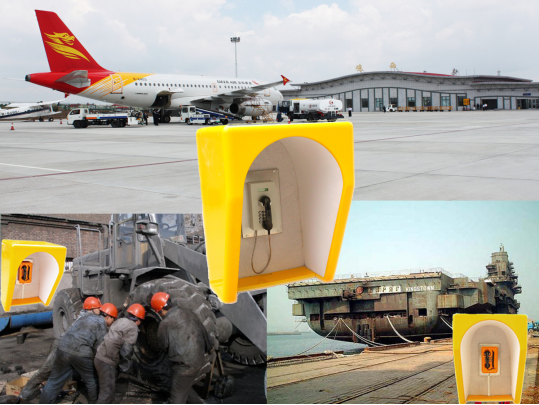

Popular in noisy factories such as newspaper print rooms.

Noise Reduction:
For external or internal use, the RF-13 is designed to attain a high level of noise reduction up to 23dB. Manufactured using general-purpose resin material to BS476 Class 1 fire regulation, the RF-13 is extremely robust and weatherproof. Inside the hood's outer shell is a perforated polypropylene lining that houses 50mm non-hygroscopic acoustic insulation.

Fitted to the inner back wall is a stainless steel apparatus plate; beneath this plate is a detachable GRP shelf with easy cable entry.


Telephone layout:

Specifications:
Color: Yellow Body material in GRP(Glass reinforced plastic)
Dimensions: H940mm W700mm D620mm
Weight -Approx 23Kg
Outer Shell & Shelf -General Purpose Resin continuous filament mat -Fire Resistance to BS476 Part 7 Class 1 Surface Spread of Flame
Acoustic Insulation -50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
Insulation Liner -White Perforated Polypropylene 3mm thickness
Boxed Dimensions -980 x 800 x 680mm
Boxed Weight -Approx 26kg
Certification:



EMC: EN50121 (Railway application- Electromagnetic Compatibility)
EN55022: emissions   EN55024: immunity
FCC
ITU-T Recommendations K21

 Factory photo:
