Fiber Transceiver

Fiber Transceiver

model:A2
size:
material:

Fiber Transceiver

Fiber Transceiver Overvie

STC-911S20 10/100/1000Mbps Adaptive Gigabit Ethernet fiber converter using switching technology for media conversion,which meets the standards of IEEE802.3、IEEE802.3u、IEEE802.3z、IEEE802.3ab,It can conduct mutual conversion between 10Base-T/100Base-TX/1000Base-T twisted pair electrical signal and 1000Base-SX/LX optical signals.
It extends the transmission distance of a network from 100m over copper wires to 120Km。This fiber converter supports transmission in dual-fiber multi-mode、dual-fiber single-mode and single-fiber single-mode fibers.

Fiber Transceiver Feature

Supporting mutual signal conversion between 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX;
Supporting full-duplex and half-duplex transmission modes and capable of automatic negotiation
Supporting automatic cross of twisted pair ports, for the convenience of system debugging and installation;
Supporting the transmission of extra-long packets over VLAN;
Supporting Quality of Service (QoS) and ensuring transmission of VoIP packets;
Supporting multiple types of fiber ports such as dual-fiber multi-mode、dual-fiber single-mode and single-fiber single-mode, to satisfy the extended requirements of users.
 Support ZTE ZTE SFP-GE-S10K optical module docking

Application

10/100/1000Mbps Gigabit Optical Ethernet network with long-distance transmission




==>>>> Product Specification
Parameters Specifications
Access mode 10/100/1000Mbps Gigabit Ethernet
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Wavelength 1310nm
Transmission distance Dual-fiber single-mode: 10/20KM(120Km);Category-5 twisted pairs: 100m
Port One RJ45 port: Connected to STP/UTP category-5 twisted pairs;One fiber port: 1000M LC
Conversion mode Medium conversion
Delay no more than 10μs
Bit error rate no more than 1/1000000000
MTBF 100,000 hours
Power DC 12V
Power consumption 2.5W
Operating temperature -20~70°C
Operating humidity 5%~90%
Storage Temperature Temperature -40℃ to+70℃
Storage humidity 5%~90% (non-condensing)
Dimensions 93mm(L)*70mm(W)*25mm(H)/ long*wide*high

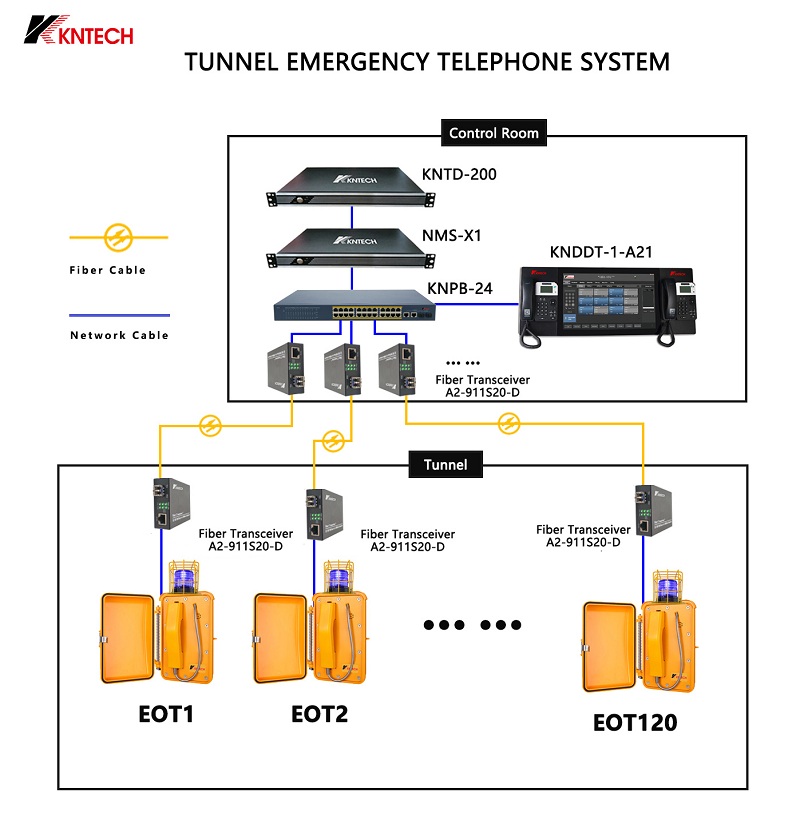

==>>>>Telephone System
the fiber transeiver use

==>>>>Product Application

==>>>>Product Detailed Pictures

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:A2

*
*
*
*
