Explosion proof horn

Explosion proof horn

model:KNLB-EX8(8W)
size:412*254*277MM
material:

Explosion-proof-hron
Explosion-proof horn, this is an industrial-grade loudspeaker weighing 5.7kg, the shell metal material is cast. The size of the explosion-proof horn is: 413 * 254 * 277mm, the large horn is specially made for industry.

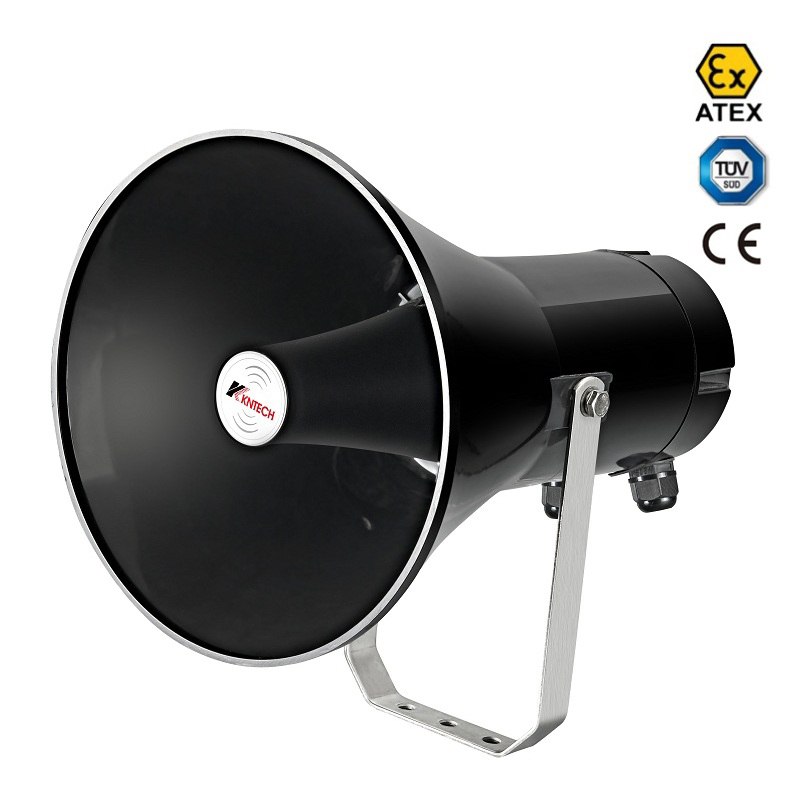

explosion proof horn view

Explosion proof horn 8w

Explosion-proof horns are strictly forbidden to be disassembled with electricity in flammable and explosive places, which may cause fire. When we do not install the explosion-proof horn, do not damage the explosion-proof surface and keep it clean.

The horn feature


1.Explosion proof speaker design and certified by TUK ATEX standard.

2. Robust aluminium alloy die-cast body, Vandal & tamper-resistant easy Installation.
3. Waterproof rating IP66 dust proof.
4. service temperature range from -50 degree to +60 degree.
5. The speaker wiring connections are enclosed in a dust-moisture-proof design.
6. 360° lossless broadcast
7. Transformer coupled
8. For use public address and paging application
9. Powder coated in UV stabilized polyester finish.
10. Application: marine, ship,offshore, mine, Tunnel, metro, speedway, , power plant, bridge etc.

The explosion proof horn atex type and marking

the atex for explosion proof horn

Frequency Response @ /1W/1m

the freq for the explosion proof horn

The size ahout it

the size about the explosion proof horn

Packing

Unit size: 260(Ø)*412(L)mm
Unit G W: 5.7kg
1 pcs in a inside box. Box size: 470x310x310 cm G.W: 9KG
4 pcs in a CTN box. CTN box size: 480x 630x630 cm G.W:38.1KG




==>>>> Product Specification

Type Description

The appearance of the speakers mold is the same, the difference built-in transformer or not


Model Resistance horn AC Impedance 8Ω Constant pressure Horn 70V/100V AC Impedance 8Ω + transformer Power Handling SOUND PRESSURE LEVEL Iw/m at 1000Hz (dB) Power TAPS
1 KNLB-EX8 YES

8W
105

2
KNLB-EX15 YES

15W
105

3
KNLB-EX30 YES

30W
108

4
KNLB-EX50 YES

50W
110

5
KNLB-EX50Y YES
YES
8-50W adjustable
110
8w/15w/30w/50w

Specification for all the speakers

1 DIMENSION 260(Ø)*412(L)mm
2 Material Aluminum
3 RATED FREQUENCY RANGE 300Hz ~ 8000Hz
4 TOTAL HARMONIC DISTORTION 5% Max at lKHz 1W
5 AC IMPEDANCEB
IMPEDANCEB
8 ±15% ohm
6.4 ±7% ohm
6 SPEAKER WEIGHT 4.9kg ± 10%
7 MATERIAL&FINISH Hom: ivory, others dark brown ;Bracket: Zinc plated steel t3.0
8 WORKING ENVIRONMENT Temp -50°C~ +60°C, Humidity 45% 〜85%,

==>>>>Telephone System

==>>>>Product Application
explosion proof horn outdoor explosion proof horn oil

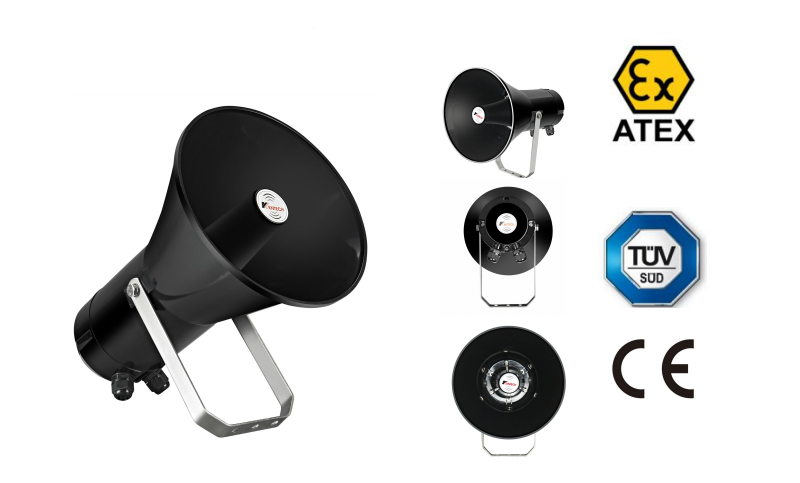

==>>>>Product Detailed Pictures

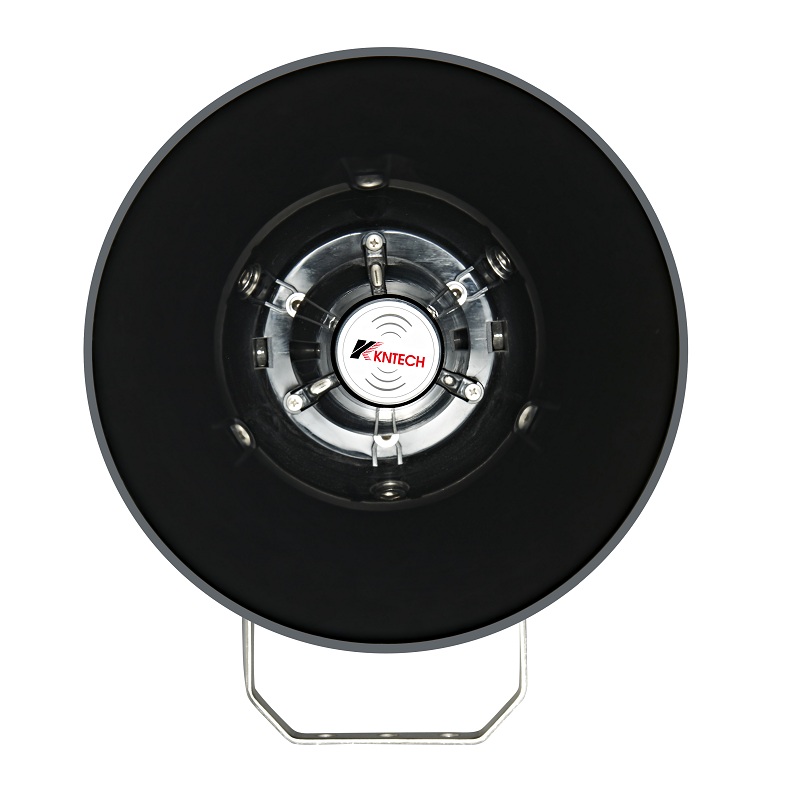

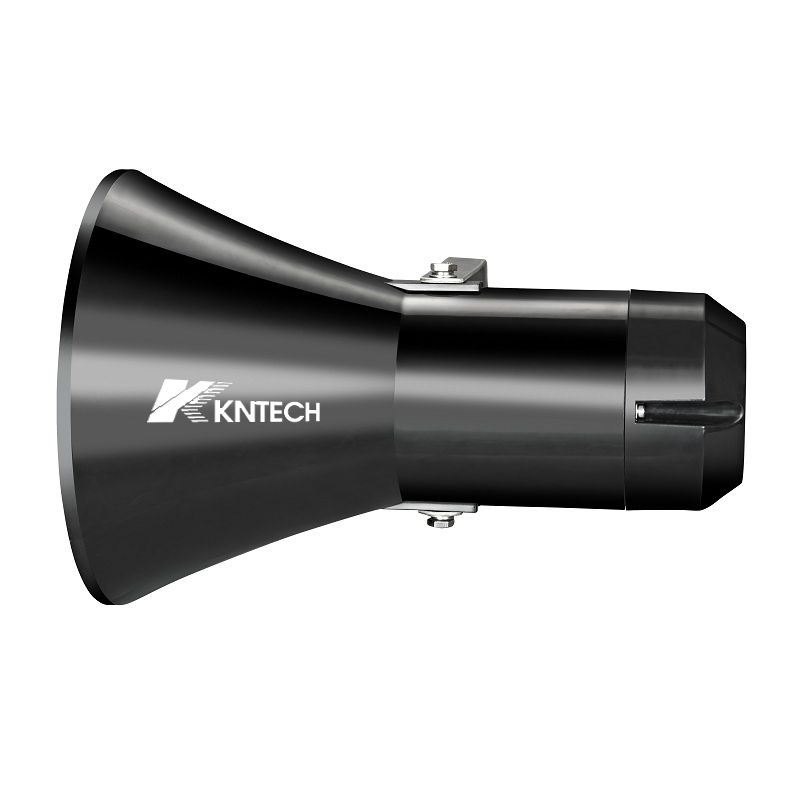

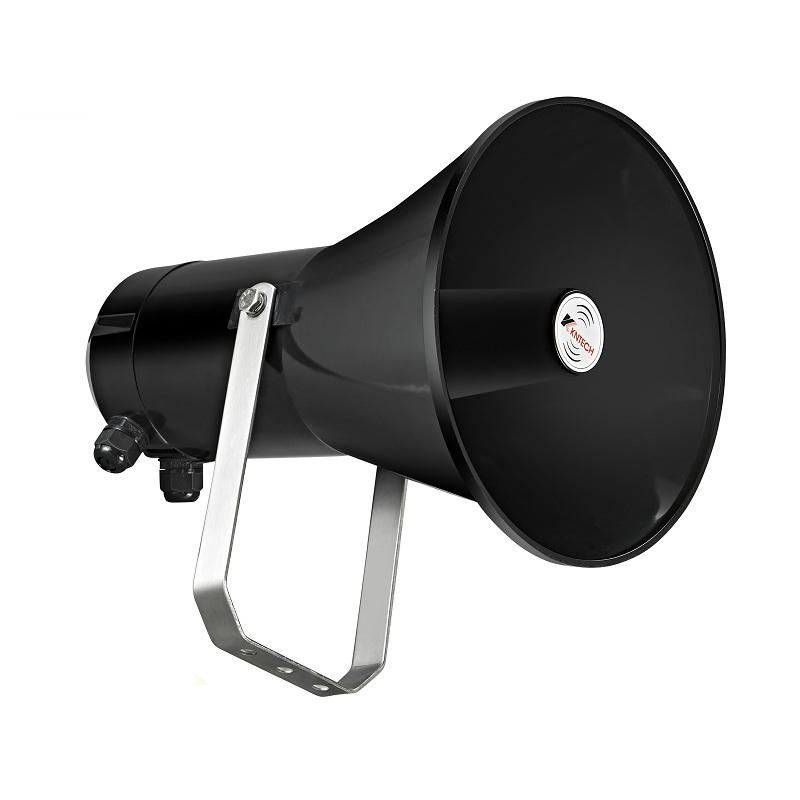

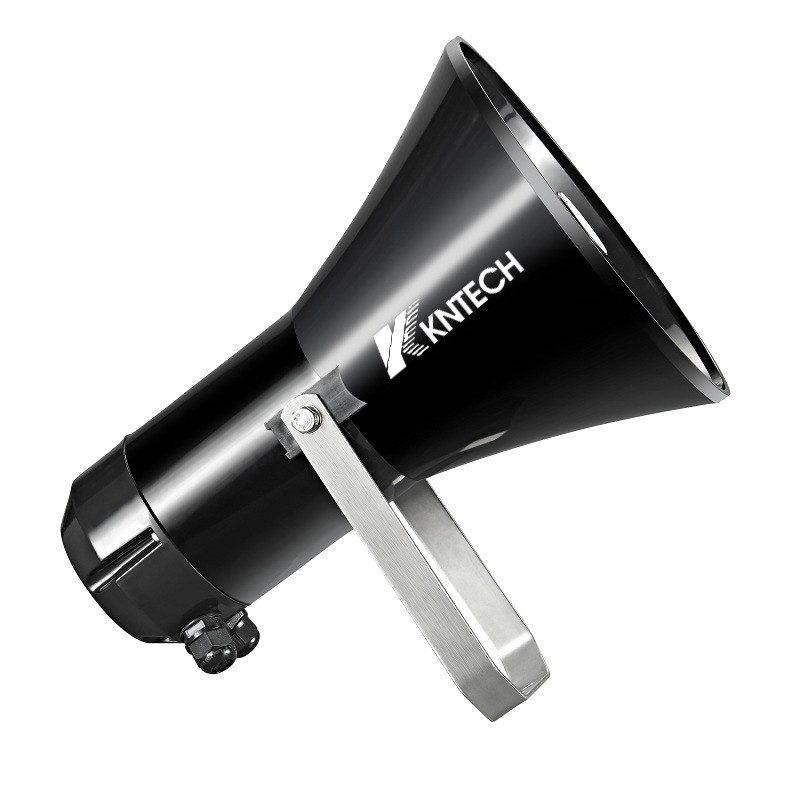

explosion proof horn view explosion proof horn side view explosion proof horn front view

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNLB-EX8(8W)

*
*
*
*
