Emergency Outstation Telephone

model：KNSP-20
size：320*205*120mm
material：

Emergency-Outstation-Telephone-voip2

The emergency outstation telephone is a fire alarm telephone for industrial use with an alarm sound horn.The emergency outstation telephone uses metal materials to make the outer casing, which has the characteristics of flame retardant, explosion-proof and anti-corrosion.

Features
Specification
System
Application

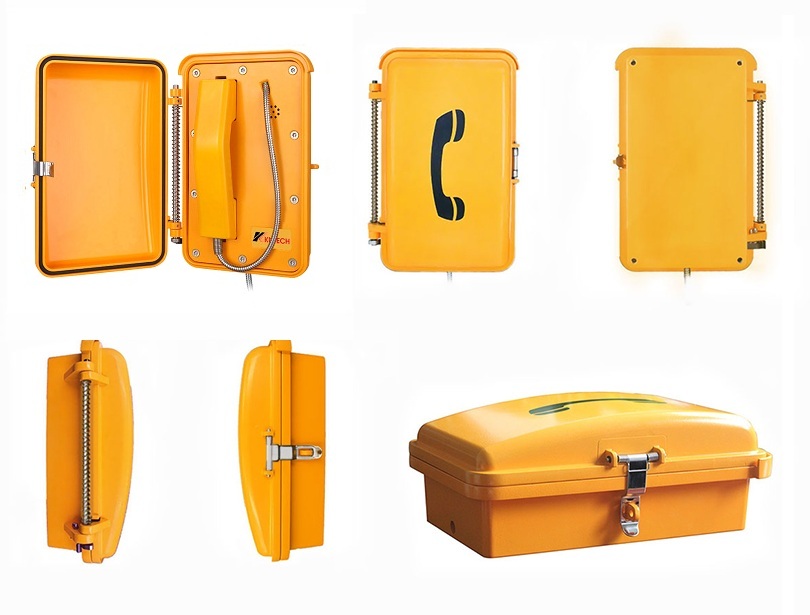

Detailed Pictures
Video
Email US

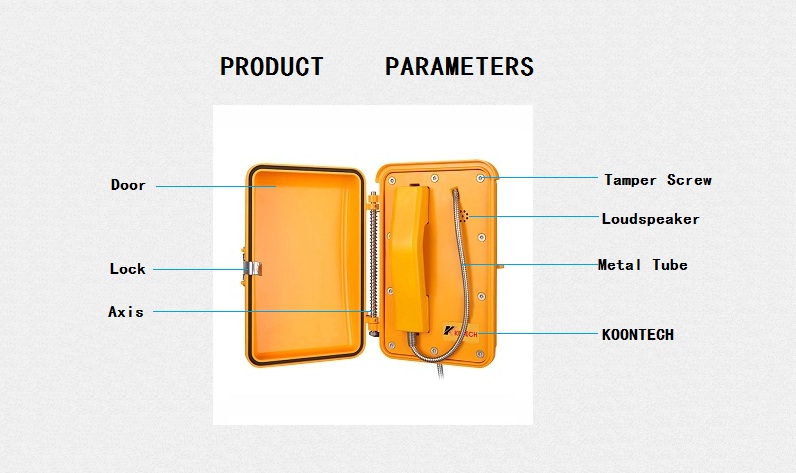

emergency outstation telephone description

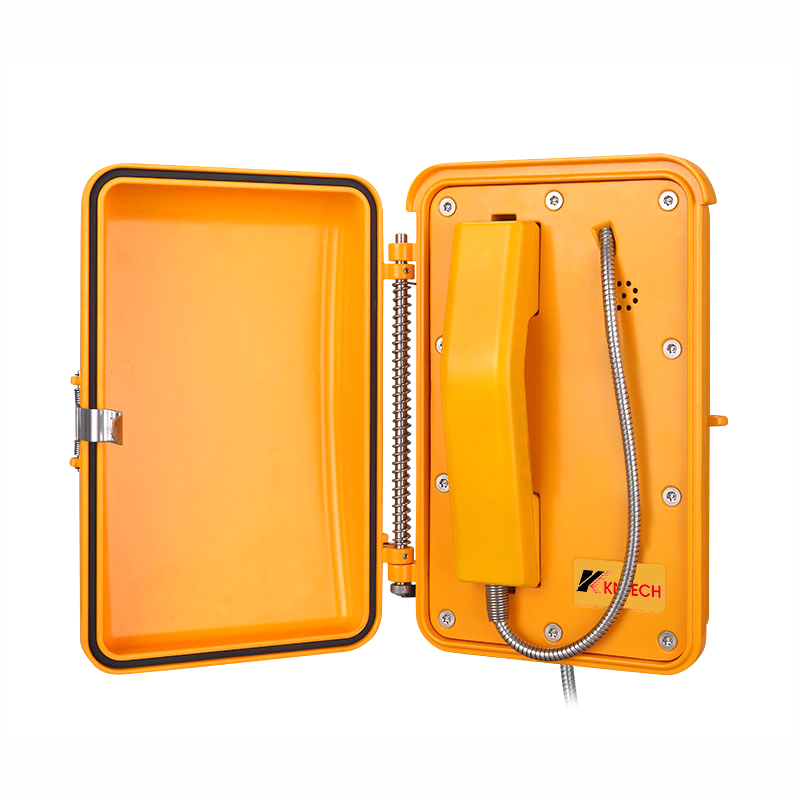

Emergency outstation telephone KNSP-20

The emergency outstation telephone is a fire alarm telephone for industrial use with an alarm sound horn. The emergency outdoor telephone is installed in the industry as a voice intercom system, and has the characteristics of alarm, waterproof and anti-destruction. We can provide a complete fire alarm system and integrate the entire system with ip pbx server integration.

DESCRIPTION ITEM NO.

1. Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware, easy Installation.

2. Waterproof rating IP66 dust proof.

3. Full keypad with memory, 1 button programmable telephone, support free dial.

4. Magnetic reed hook-switch.

5. Lightening protection to ITU-T recommendation K.21.

6. Heavy Duty handset with hearing Aid compatible(HAC) receiver, Noise canceling microphone.

7. Handset with industrial strong armored cord .

8. Silicon keypad keep with 0-9 * # ON/OFF, REDIAL, S speed dial function.

9. Door cover: orient automatically and good self - closing, convenient for use.

10.Temperature range from -40 degree to +70 degree.

11.Support echo cancellation.

12.Remote software upgrade, configuration and monitoring.

13. Optional 7 minute time-limited call.( This function upon buyer’s requirement).

14. Powder coated in UV stabilized polyester finish.

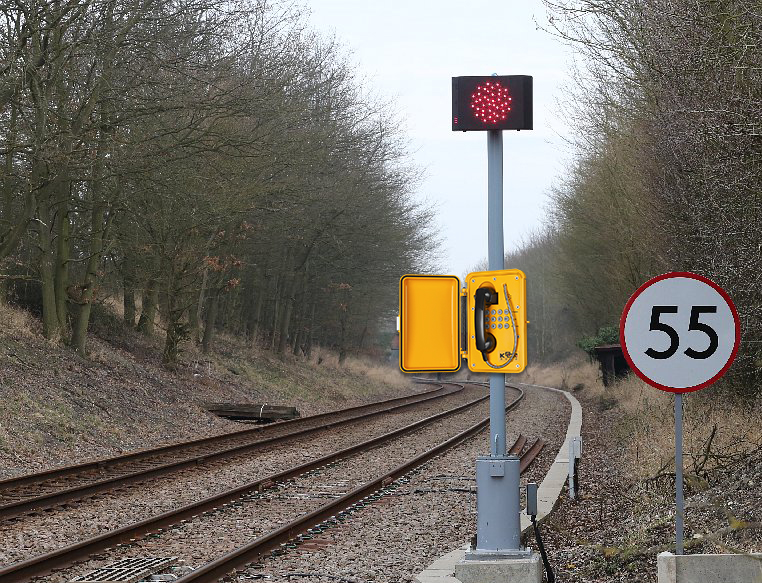

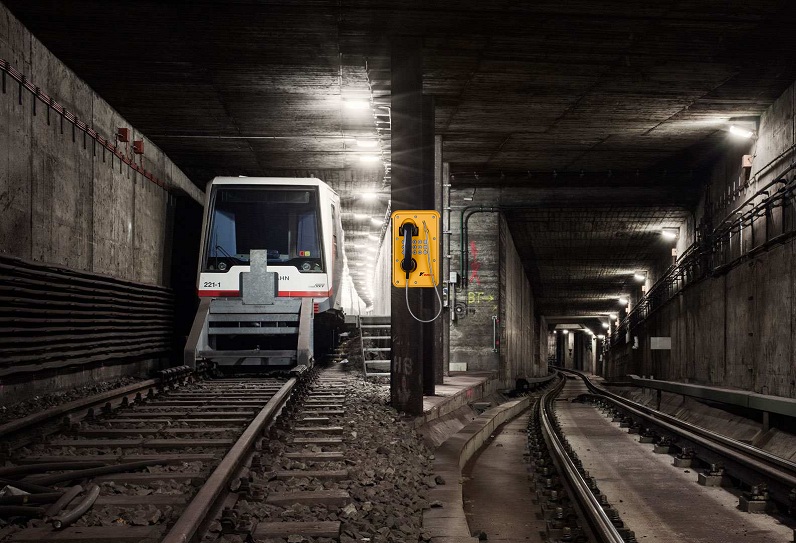

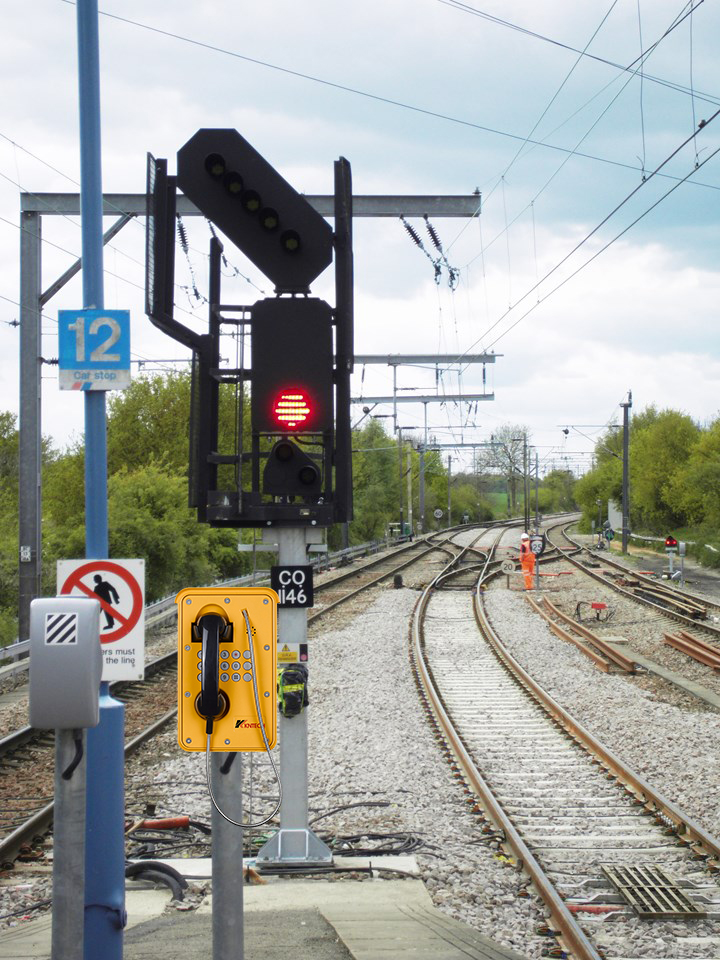

15. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.

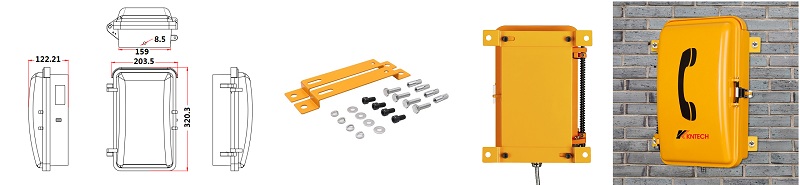

INSTALLATION

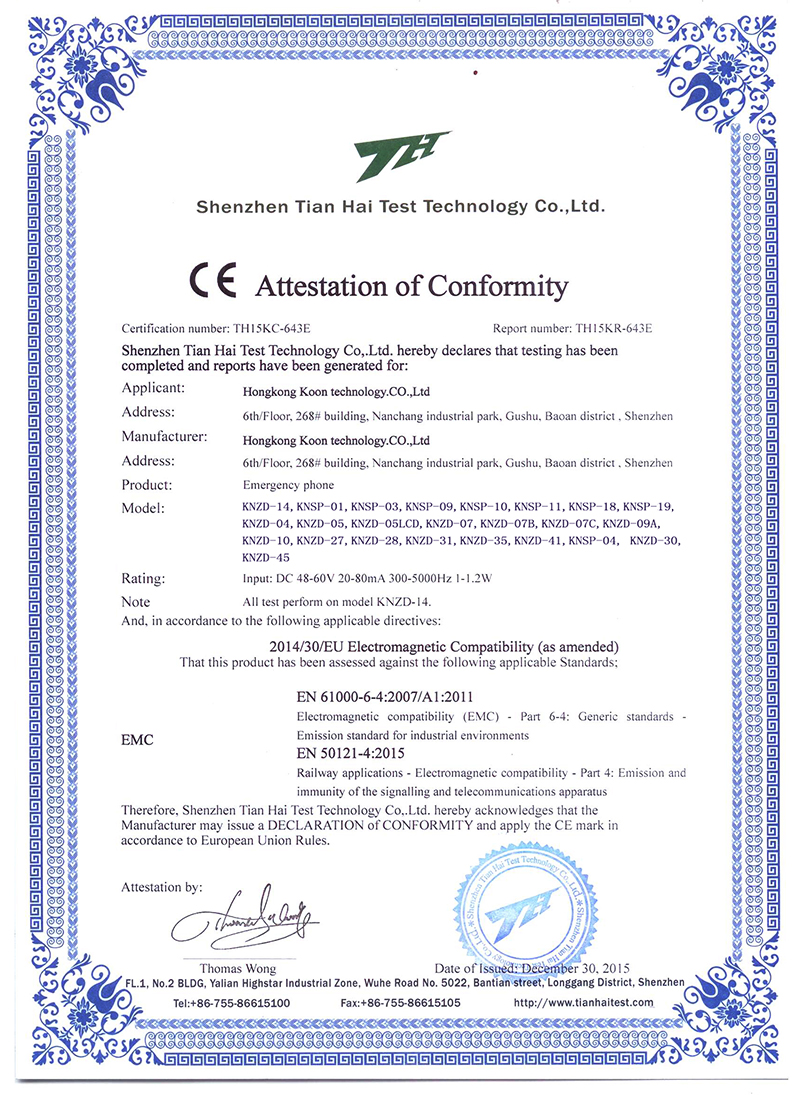

CERTIFICATION

RCM: AS/NZS CISPR 32 Australian communications:AS/CA S004

Australian Equipment-safety: AS/NZS 60950.1:2015

EMC: EN50121(Railway application-Electromagnetic Compatibility)

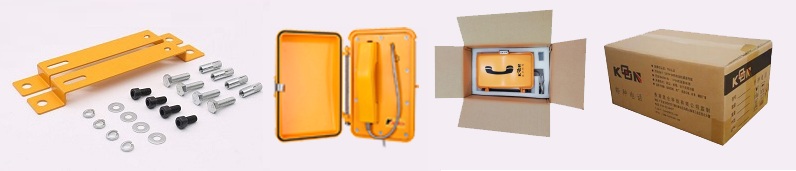

PACKNG

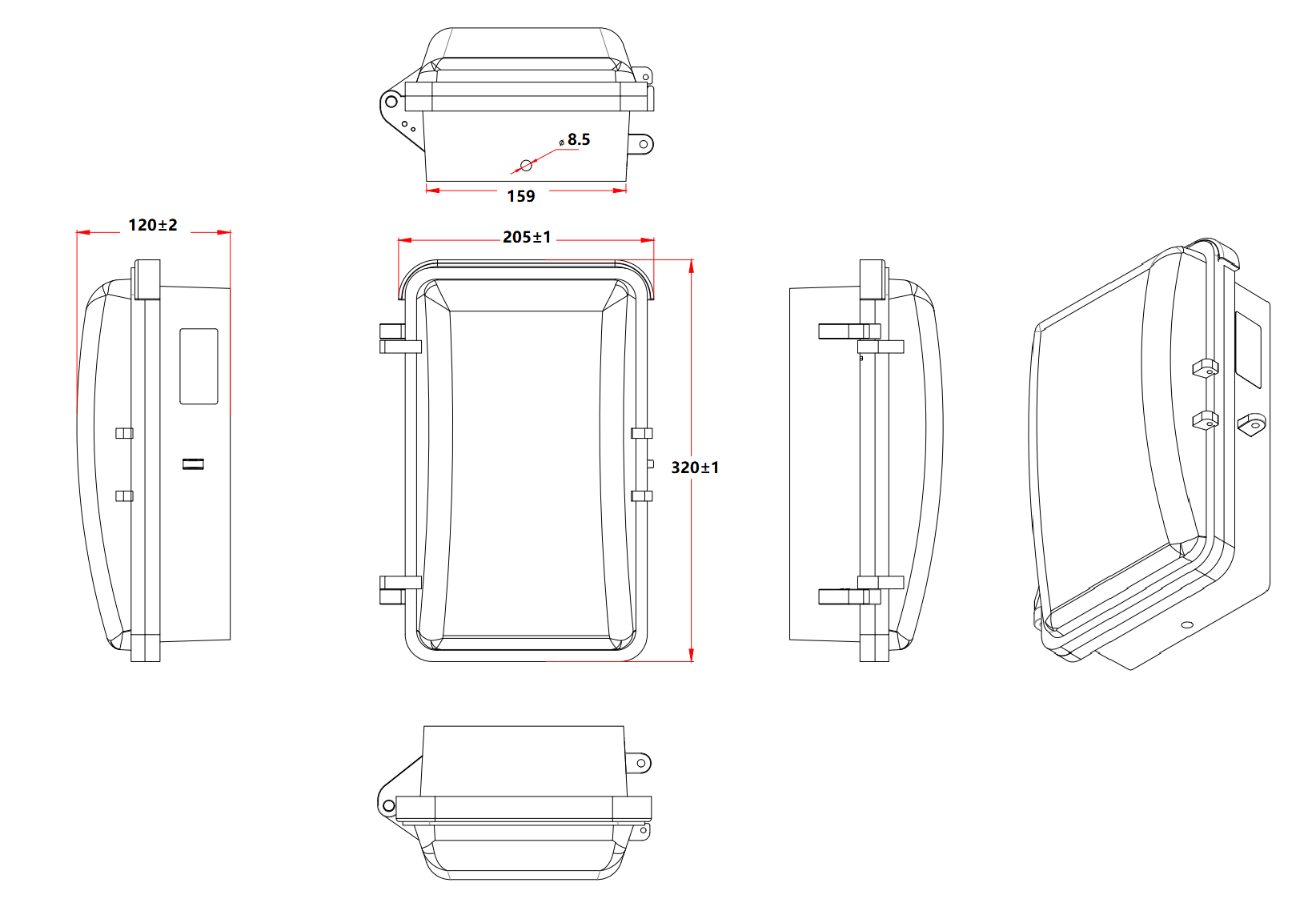

Unit size:320*205*120mm Unit: N.W:4.9KG

1pcs packing box size: 439 *277 *191mm Unit N.W:6KG

6pcs in 1 outer Carton box: size: 730*390*340mm N.W:37.5KG

You May Like:

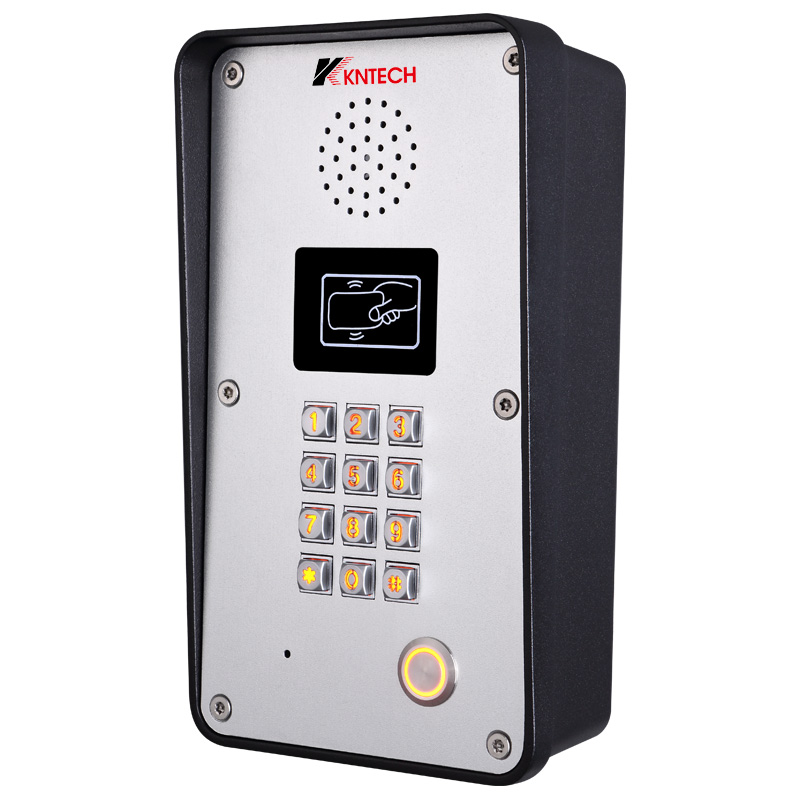

KNZD-51

Access Control

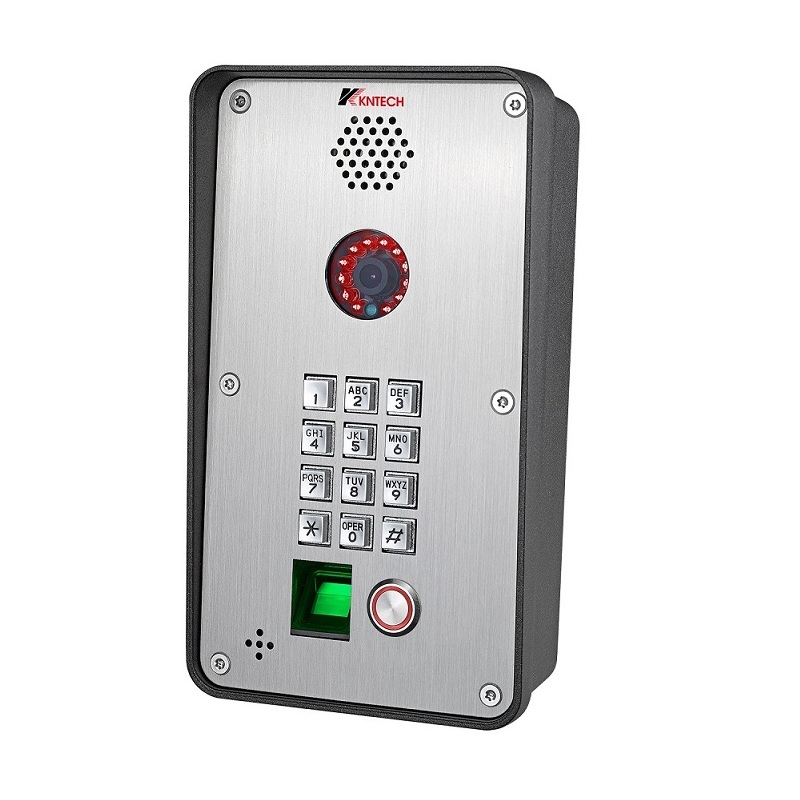

KNZD-58

Fingerprint Video Intercom

KNZD-60M

Door Intercom System

KNZD-30-2IPIL

Emergency Handsfree Telephone

==>>>> Product Specification

SPECIFICATION

VoIP SIP2.0 telephone DTMF dialing Audio Codes:G.711, G.723,G.726, G.729
MTBF:100000hours MTTR: 2 hours Network:10/100 BaseTX Ethernet, RJ45
Free dial (maximum length of each number is 16 digits) connectors, Cat5e or better
Communication: Full duplex 2-way handset IP Protocols:IPv4, TCP, UDP , RTP, DHCP, SIP
communication 1 x LAN Protocols:Power over
Call Control Signaling:VOIP SIP Info(DTMF), RFC Ethernet(PoE,802.3af),
2833(DTMF) 1x LAN(IEEE 802.3af), Network Access
Power:Power over Ethernet, IEEE802.3af, Class 0 Control(IEEE 802.1x),STP(IEEE 802.1d),
Local power, 12VDc,Idle 2W, Max 10W RSTP(IEEE 802.1d-2004)
Auxiliary Contacts: (option) Programming:Non-volatile flash memory
1 Aux Output, dry contac programming and configuration through Web GUI
Contact Ratings. Load: Resistive load Management and Operation:DHCP and static IP,
Rated load:0.3 A at 125 VAC; 1 A at 30 VDC remote automatic software upgrade, centralized
Rated carry current:1A monitoring.
Max.switching voltage:125 VAC,60VDC Echo cancellation code:G.167/G.168
Max.switching current:1A

Order information:

Model number	Power Supply	Item Number
KNSP-19-IP-Y_AD	DC12V 1A	SP0190042
KNSP-19 -IP-Y_P	POE	SP0190012
KNSP-19 -IP-Y_ADP	DC12V 1A +POE	SP0190182

*AD---Adapter UL (Input : AC110~240V , Output : DC12V 1A)

*P---POE

==>>>>Telephone System

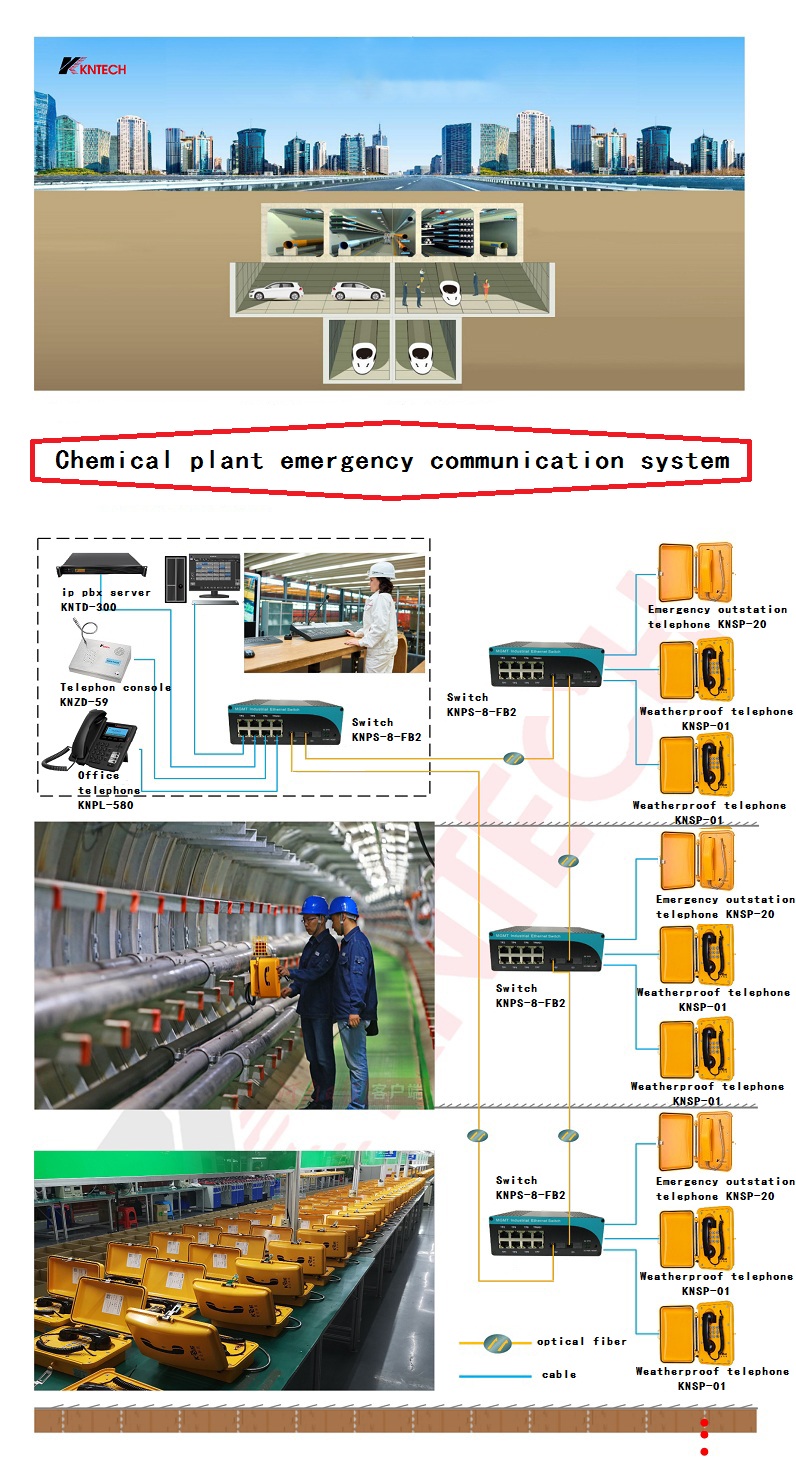

Emergency outstation telephone use in the emergency telephone system

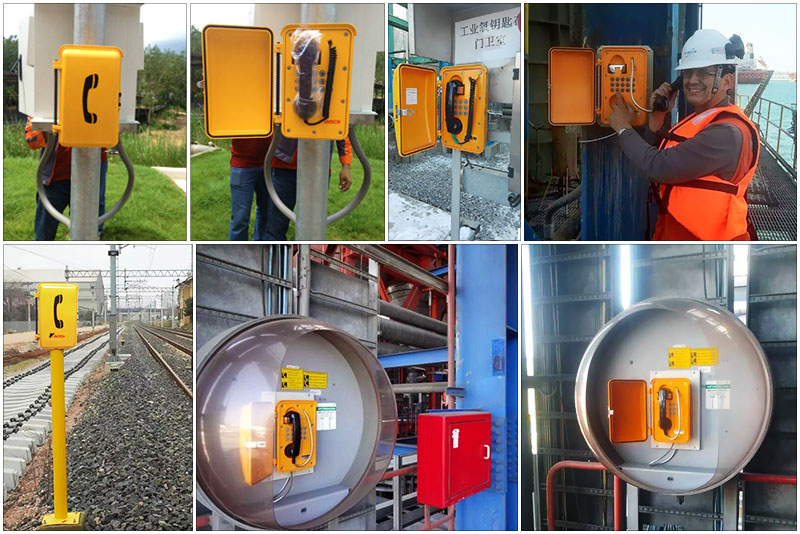

The emergency outstation telephone is used in the outdoor of the chemical plant as a communication device for emergency communication and alarm functions, and is usually placed on the roadside by wall-mounted or with a column.
