Elevator-phone-voip1User-Manual-ZD-Series-IP

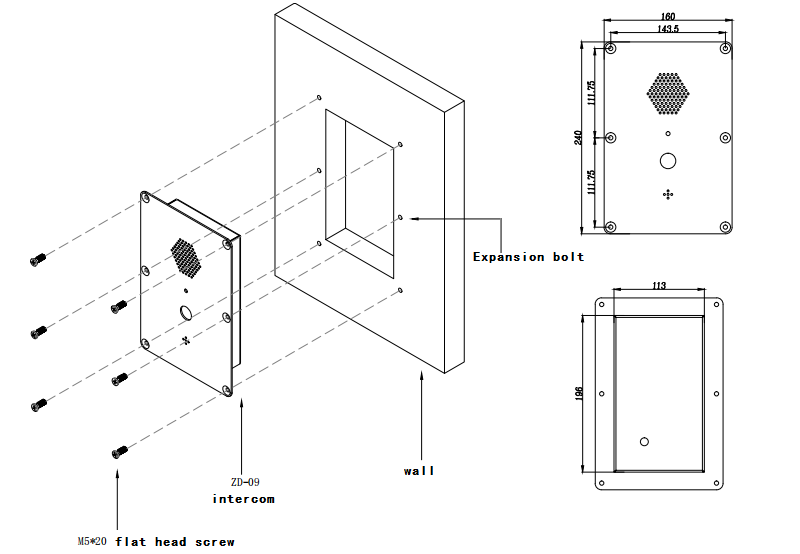

Our elevator phone adopts embedded installation method. You only need to put the phone into the installation hole and use screws to install it. The exterior is made of metal, and electrophoretic technology can be used so that the casing is not easily dirty and corrosion-resistant.
Very simple, our voip elevator phone uses a functional web interface.
1. Use a network cable to connect the elevator intercom to the switch.
2. Use pc to log in to the default address of the elevator phone in the browser. The instruction manual of the two-way radio is written.
3. Login account and password admin admin
4. Configure the elevator phone according to your needs.
For more details, please click.https://www.koontech.com/ShowSolution72.html
Features:
* Industrial standard design
* Supper good sound clarity during conversation
*Support standard Session Initiation Protocol(SIP), RFC 3261 *Remote software upgrade, configuration and mornitoring
*POE: 15W/12V without induction loop
*POE+: 30W/12V without induction loop
*POE++:60W/12V with induction loop
*DC12V 5A(12V 60W):60W/12V with induction loop
*IP66 vandal resistant marine grade stainless steel faceplate
*LED indicator
*Echo cancellation

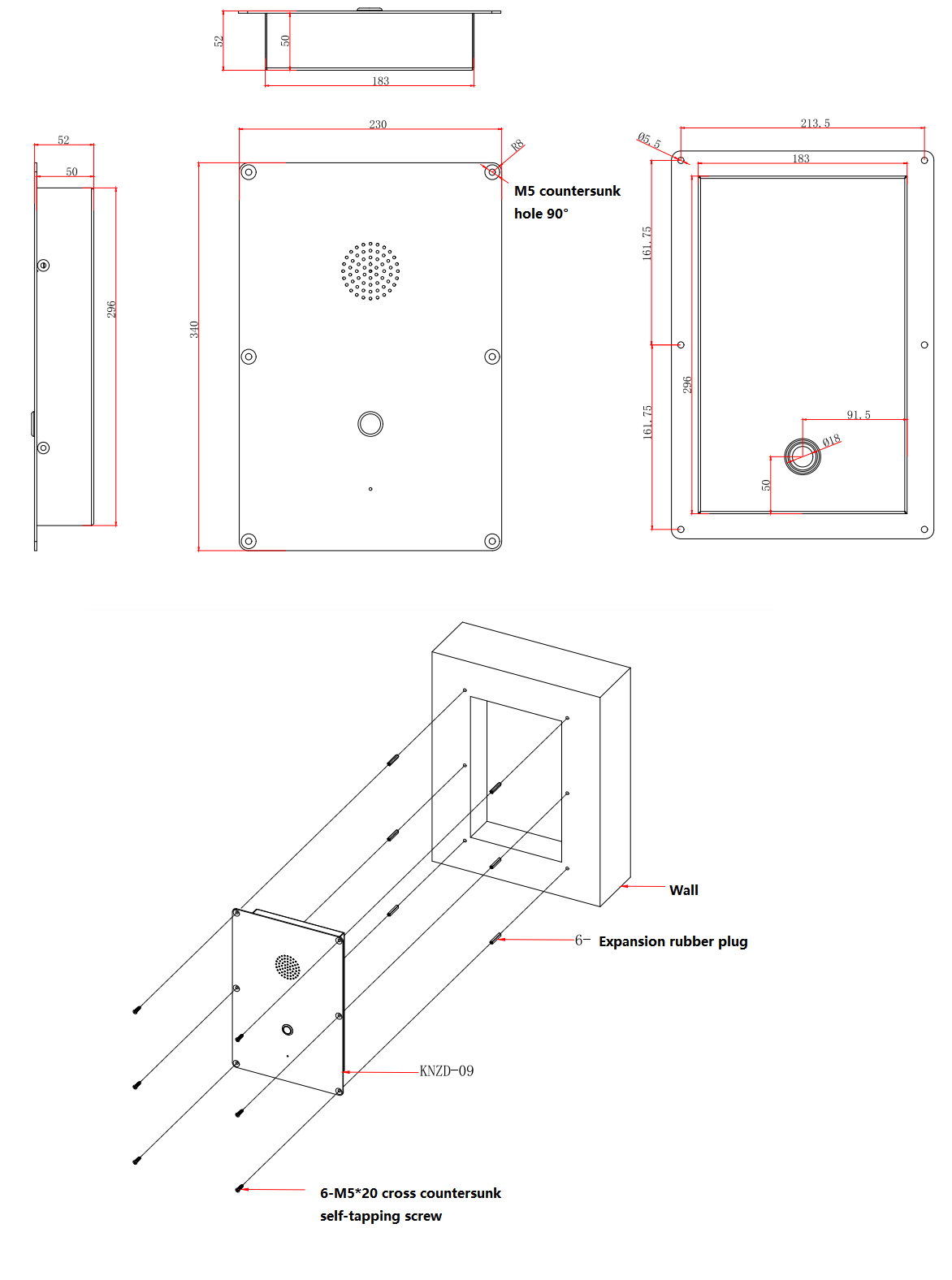

Standard size:
CERTIFICATION
EN55022: emissions EN55024: immunity
Ingress Protection: GB4208-93 IP66 FCC ITU-T Recommendations K21
EMC: EN50121(Railway application-Electromagnetic Compatibility)
PACKAGING
Unit size:160*240*42mm Unit: N.W:1.2KG
1pcs packing box size: 325*235*175mm Unit N.W:1.2KG Unit G.W:1.5KG
12pcs in 1 outer Carton box: size: 730*390*340mm N.W:14.4KG G.W:35KG
| Model | KNZD-009-IPIL |
| Construction | Stainless steel 304 |
| Dimensions(W* H*D) | 230*340*50mm |
| Weight | 1.8kg |
| Operating Temperature | -40°F to +158°F/ -40℃ to +70℃ |
| Relative Humidity | Up to 95% non-condensing |
| Protection | IP56, vandal-resistant and water-resistant design |
| Communication | Full duplex 2-way hands-free communication |
| Call Control Signaling | VOIP SIP Info(DTMF), RFC 2833(DTMF) |
| Audio Codes | G.711, G.722, G.729 |
| Power | Power over Ethernet, IEEE802.3af, Class 0 Local power,12VDc,Idle 2W, Max 10W |
| Auxiliary Contacts | 1 Aux Output, dry contact Contact Ratings Load: Resistive load Rated load:0.3 A at 125 VAC; 1 A at 30 VDC Rated carry current:1A Max.switching voltage:125 VAC,60VDC Max.switching current:1A |
| Network | 10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better |
| IP Protocols | IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP |
| LAN Protocols | Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004) |
| Programming | Non-volatile flash memory programming and configuration through Web GUI |
| Management and Operation | DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED |
| Echo cancellation code | G.167/G.168 |
