Weatherproof Telephone Alarm Sounder
Weatherproof Telephone Alarm Sounder
Product model:D13

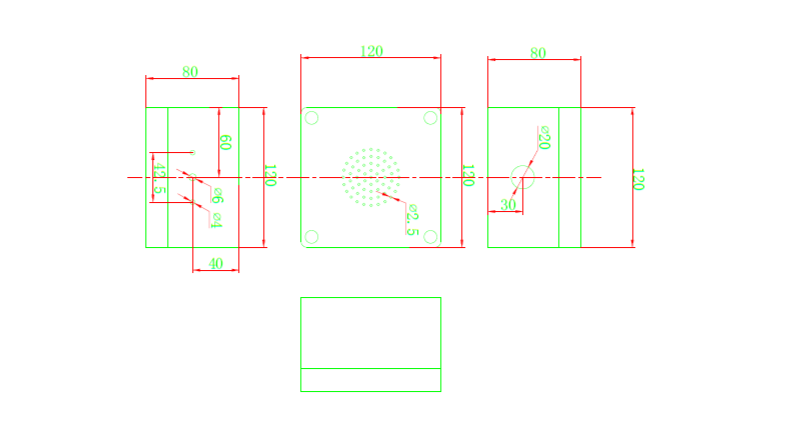

size:120*120*80 mm
material:cold-roll steel sheets

D13-DC12V_2018-08-20_
D13-LP_2018-08-20_
Content
  • Features
  • Specification
  • Accessories
  • Application
  • Detailed picture
  • video

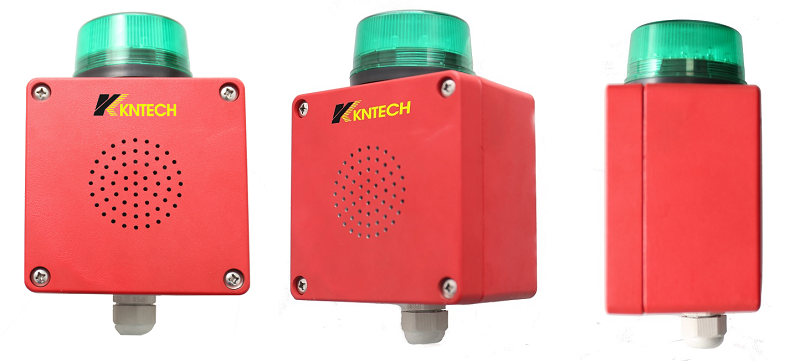

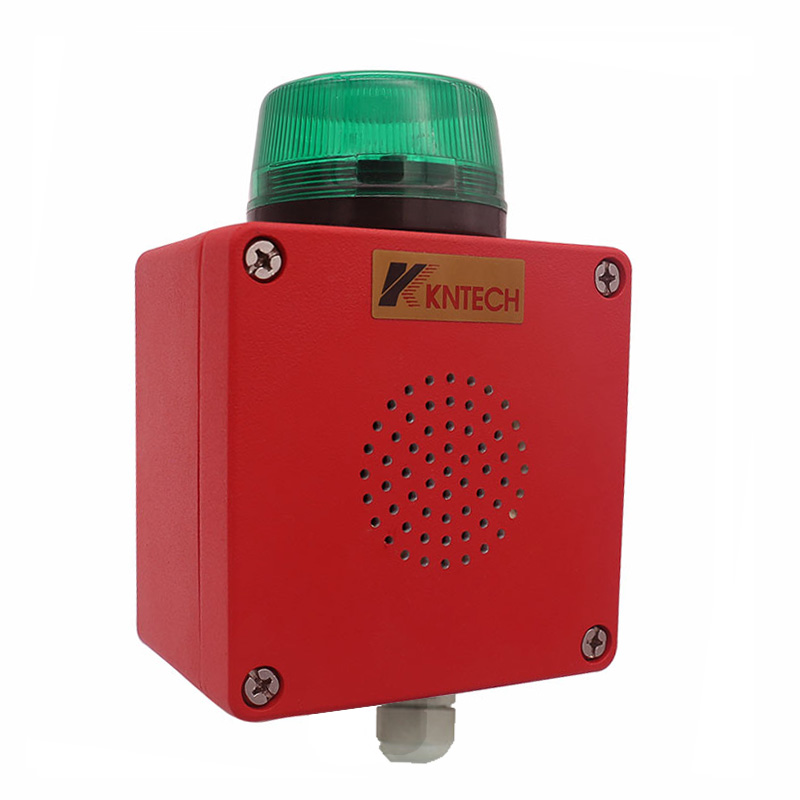

Sounder D13



Housing

industrial standard coated steel body

Colour

Red box + blue beacon

Protection degree

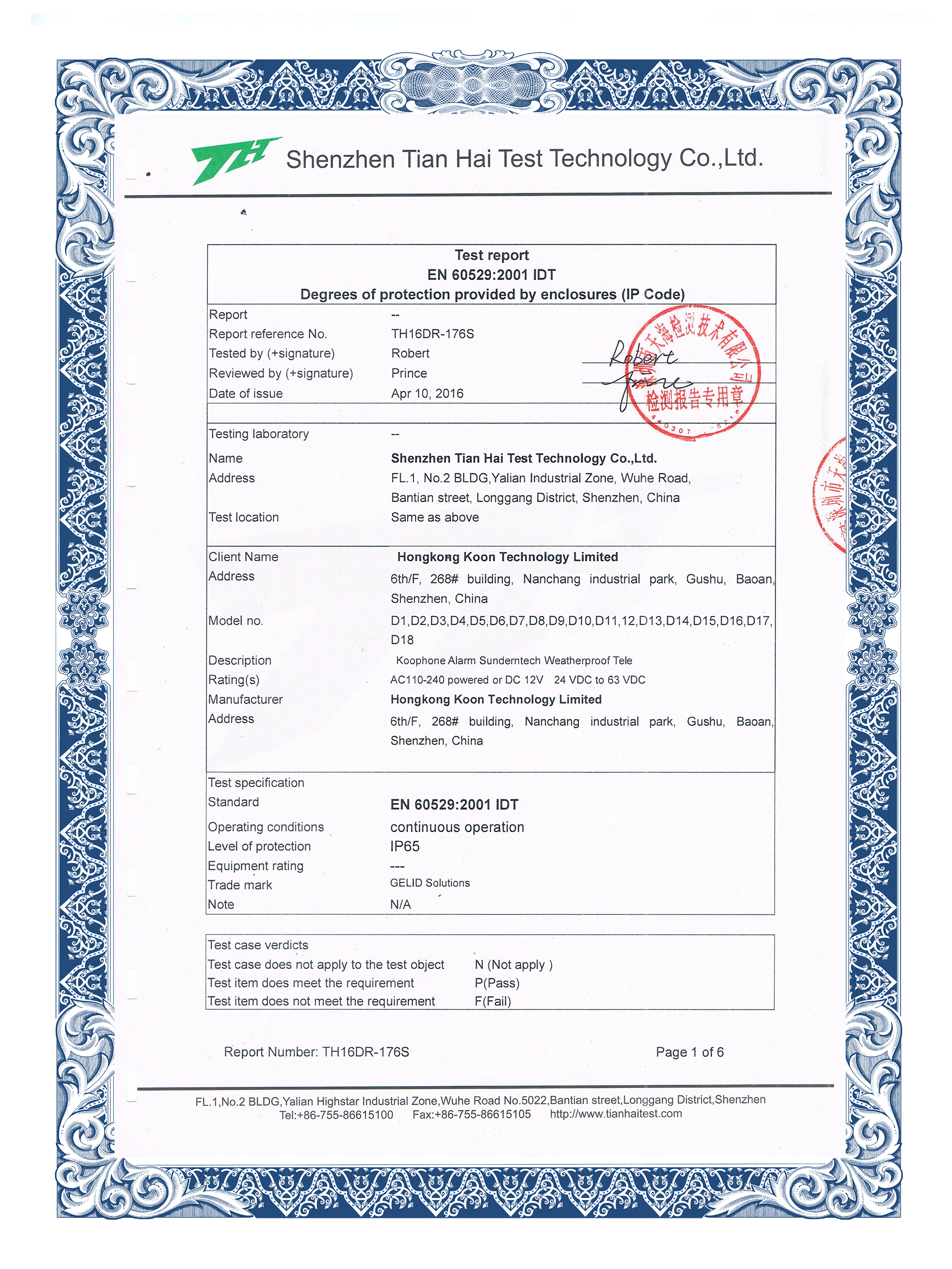

IP 66 (IEC 529)

Operating position

Wall or ceiling mounting

Temperature range

Operation-20 to +70°„C       Storage-40 to +85°„C

Weight

0.5 kg

Signalling device

The signalling device is actuated with a mains voltage of 110 to 230 VAC

Power supply and Volume

AC110-240 powered  or DC 12V Approx. 110 dB(A) at 1m distance

Telephone line and Volume

Telephone line powered Approx. 90 dB(A) at 1m distance

Beacon

Beacon flashing when telephone ringing

Call voltage

24 VAC to 75 VAC

exchange voltage

24 VDC to 63 VDC

Mounting:

Wall mounting
