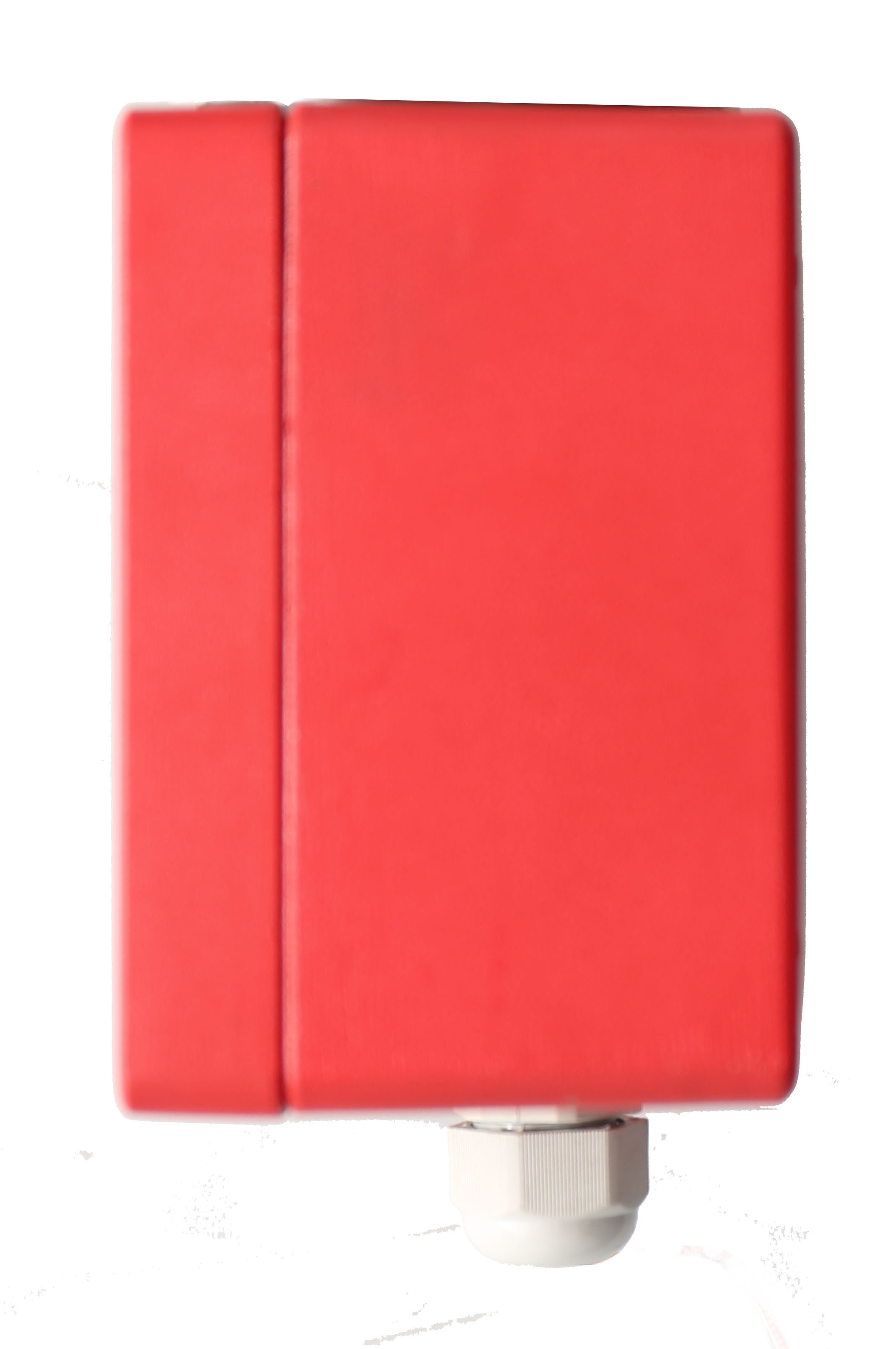

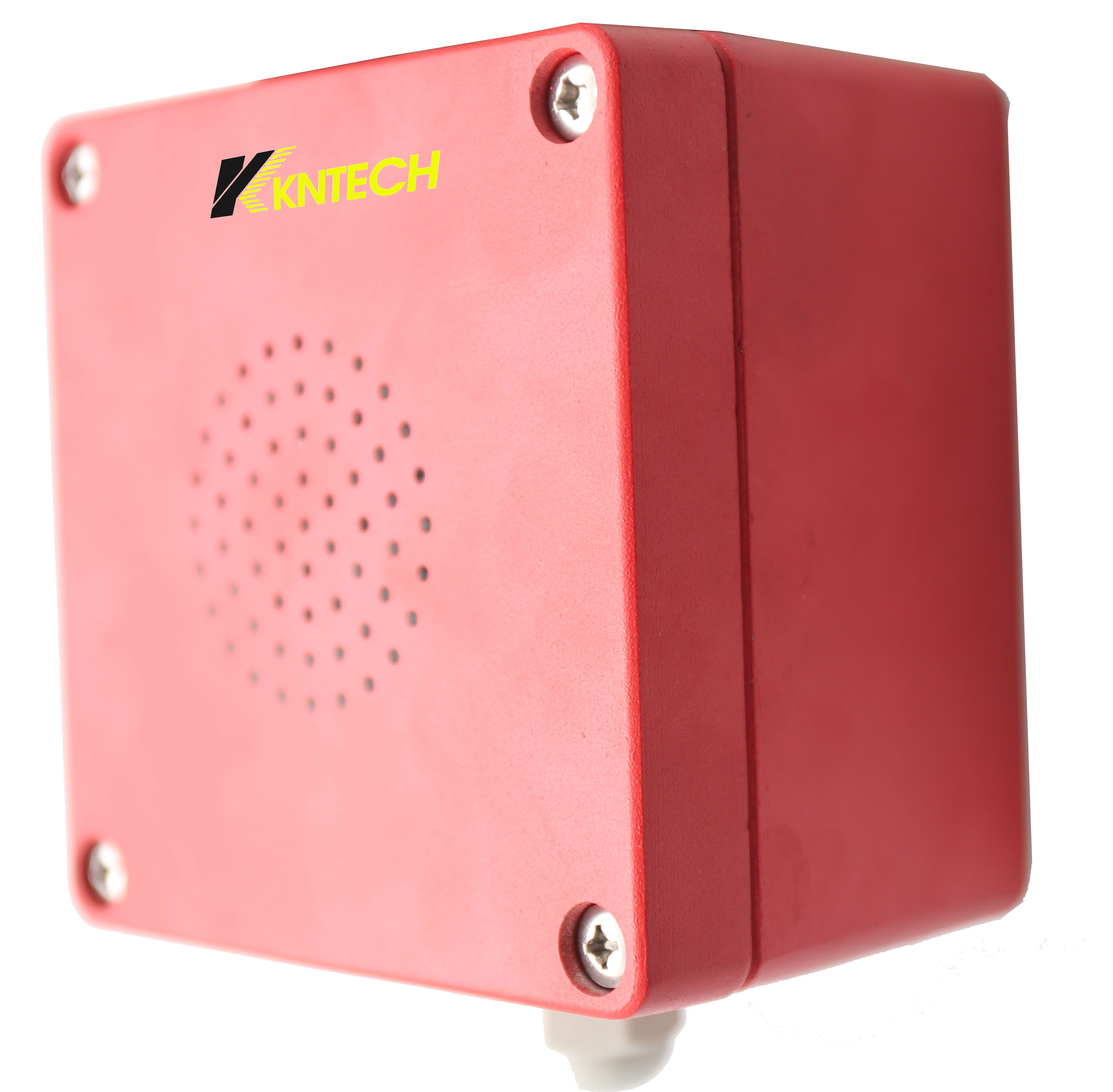

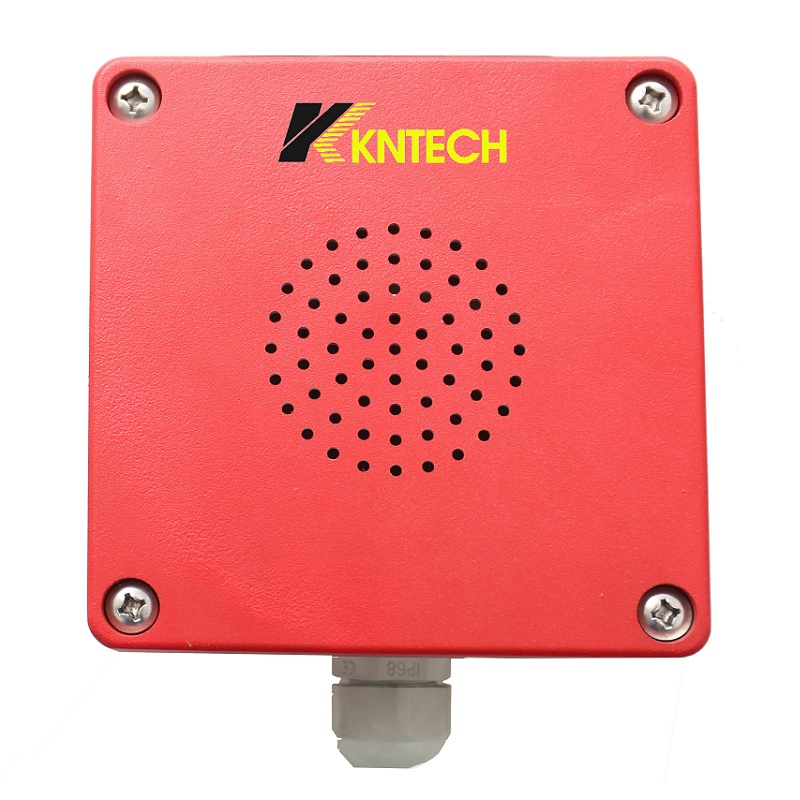

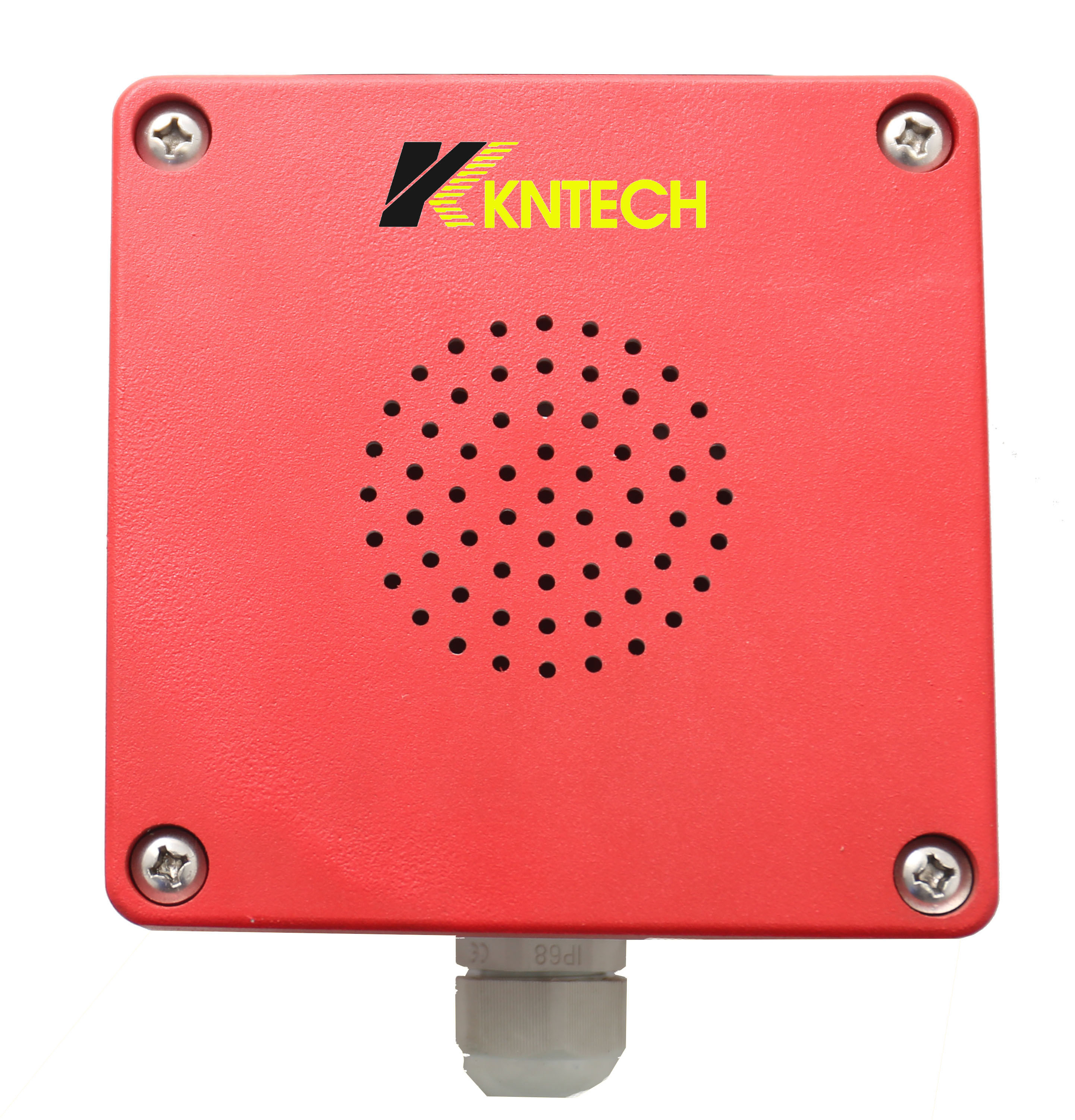

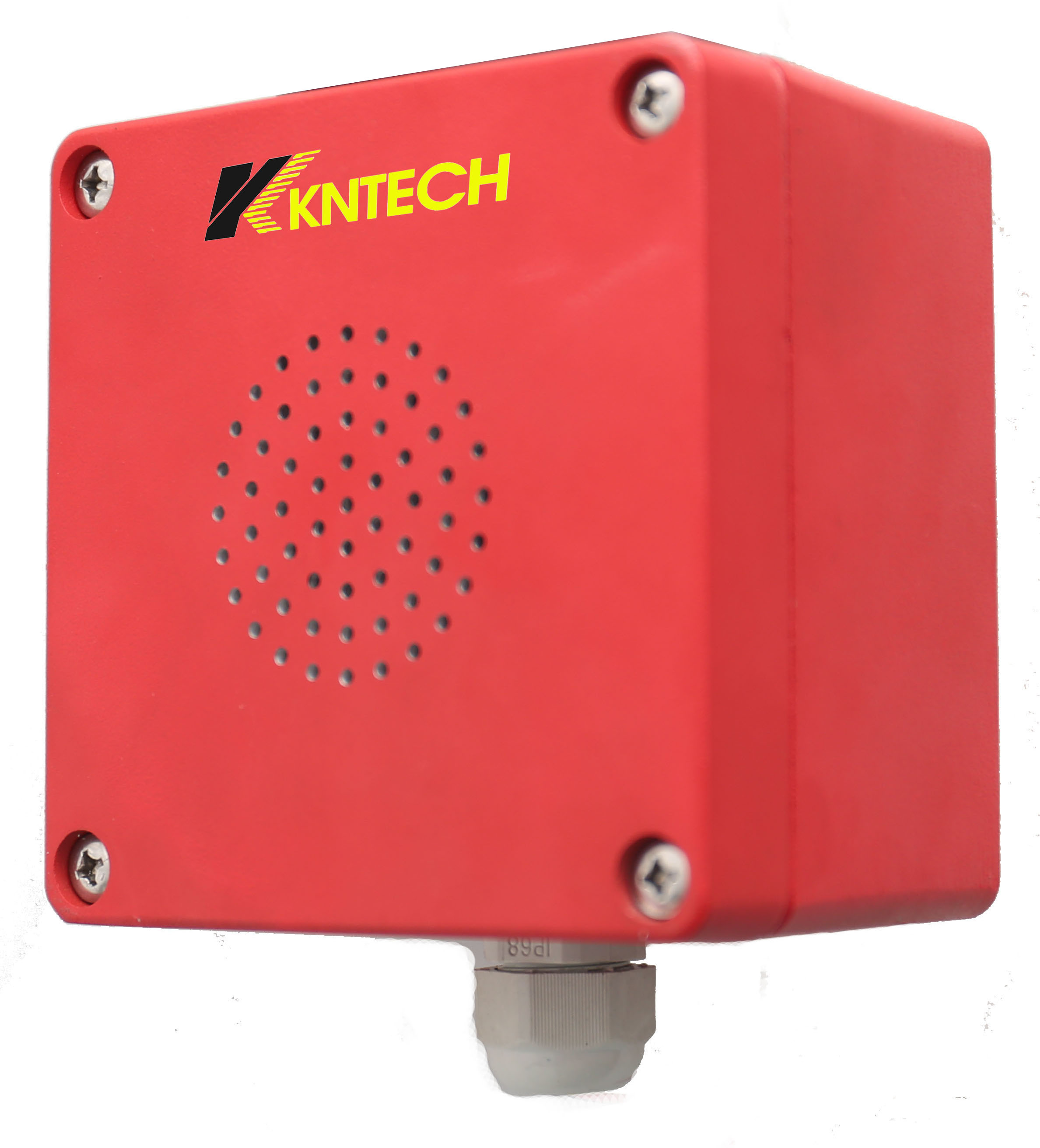

Speaker D15
Speaker D15
Product model:D15

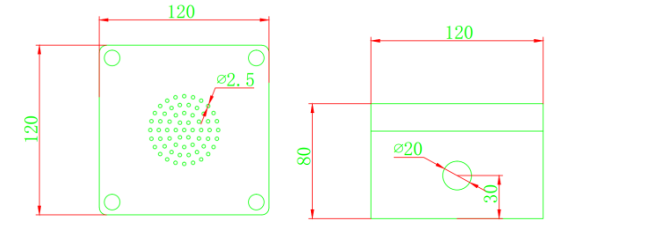

size:120*120*80 mm
material:cold-roll steel sheets

D15-DC12V_2018-08-20_
D15-LP_2018-08-20_
Content
  • Features
  • Specification
  • Accessories
  • Application
  • Detailed picture
  • video




 Housing  Industrial standard coated steel body
 Colour  Red

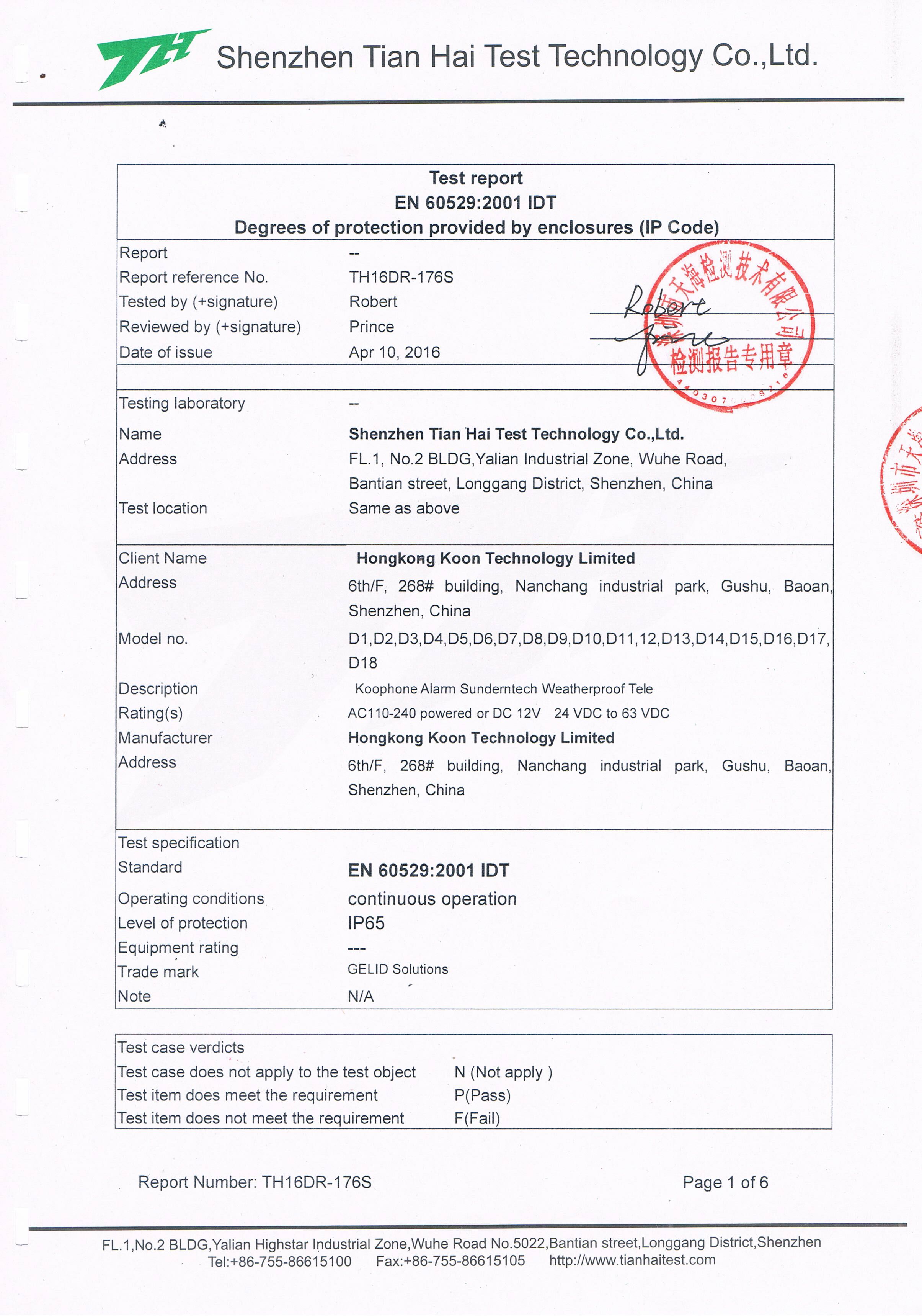

 Protection degree  IP 66 (IEC 529)
 Operating position  Wall or ceiling mounting
 Temperature range  Operation-20 to +70°„C Storage-40 to +85°„C
 Weight  0.5 kg
 Signalling device  The signalling device is actuated with a mains voltage
of  110 to 230 VAC

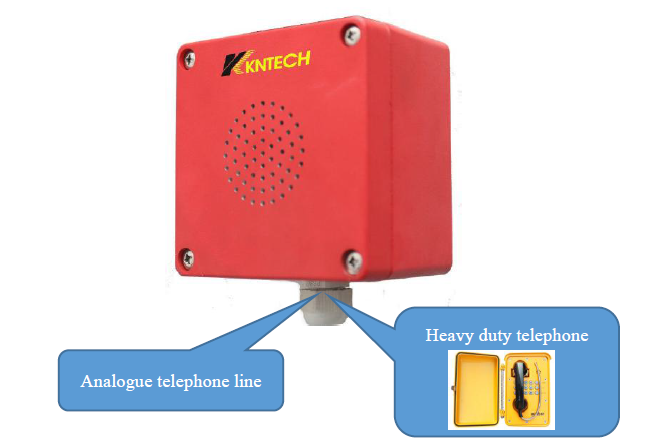

 Power supply:  Par cable / Telephone line powered
 Volume  Approx. 90 dB(A), 1 m; 8Ohm 3Watts
 Call voltage  24 VAC to 75 VAC
 Exchange voltage  0 VDC to 63 VDC
 Mounting:  Wall mounting
