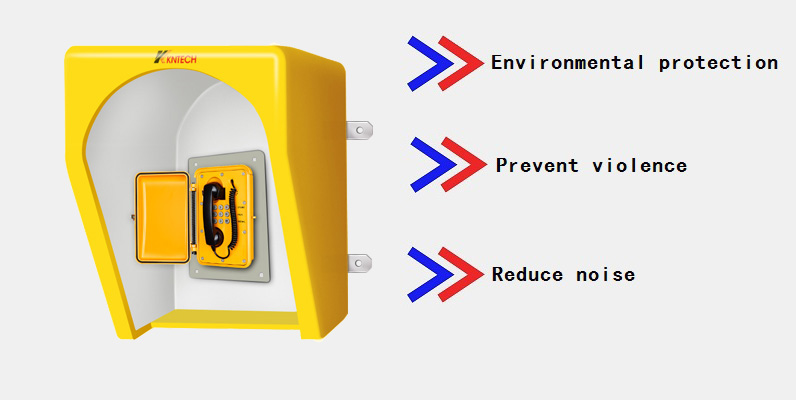

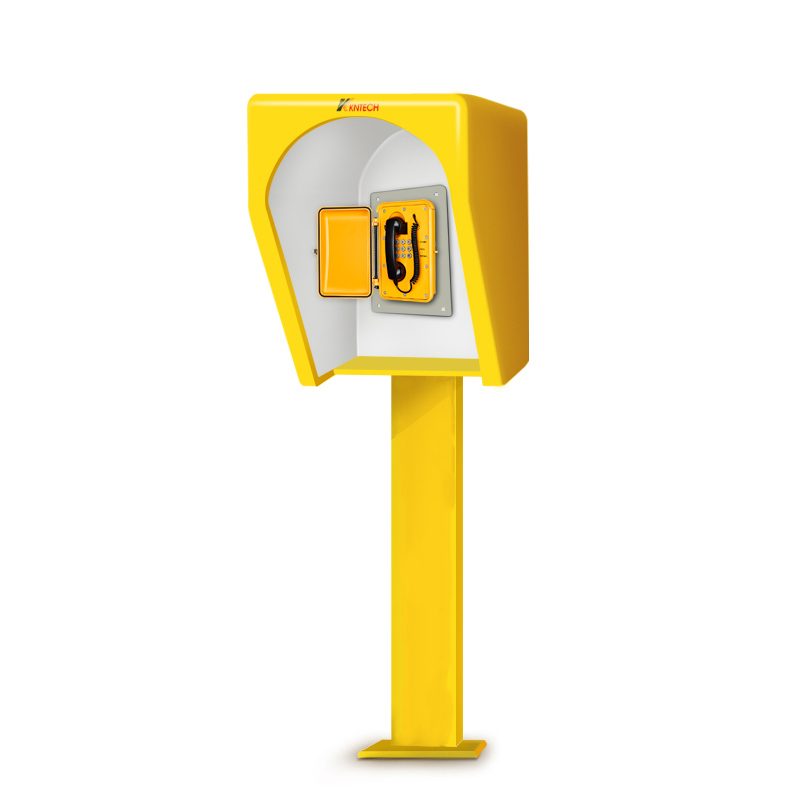

Telephone Roof RF-13
Pavilion, telephone hood, anti-noise gloriette, public phone booth, public telephone pavilion, anti-voice phone pavilion, telephone booth.
Main features:
Designed for use in noisy areas and harsh environments
Extremely robust
Good acoustic qualities and highly visible
High visibility yellow paint finish
23dB noise reduction
Telephone mounting panel 200mm deep shelf
Popular in noisy factories such as newspaper print rooms.
Noise Reduction:
For external or internal use, the RF-13 is designed to attain a high level of noise reduction up to 23dB. Manufactured using general-purpose resin material to BS476 Class 1 fire regulation, the RF-13 is extremely robust and weatherproof. Inside the hood's outer shell is a perforated polypropylene lining that houses 50mm non-hygroscopic acoustic insulation.Fitted to the inner back wall is a stainless steel apparatus plate; beneath this plate is a detachable GRP shelf with easy cable entry.
Telephone layout:
EMC:EN50121(Railway application-Electromafnetic Compatibility)
EN55022:emissions
En55024:immunity
FCC
ITU-T Recommendations
Product Specification
Specifications:
Color: Yellow Body material in GRP(Glass reinforced plastic)
Dimensions: H940mm W700mm D620mm
Weight -Approx 23Kg
Outer Shell & Shelf -General Purpose Resin continuous filament mat -Fire Resistance to BS476 Part 7 Class 1 Surface Spread of Flame
Acoustic Insulation -50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
Insulation Liner -White Perforated Polypropylene 3mm thickness
Boxed Dimensions -980 x 800 x 680mm
Boxed Weight -Approx 26kg
Telephone System
Acoustic phone booth hood in Paga system

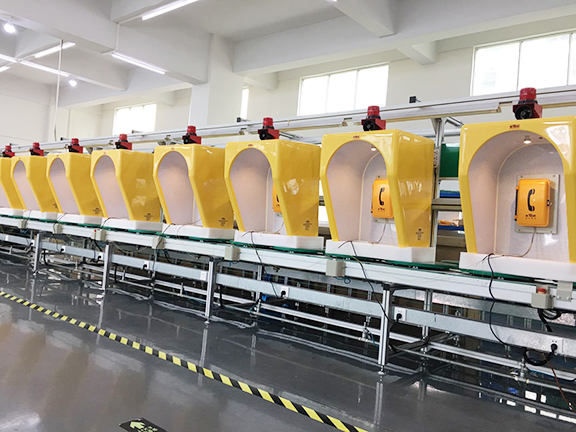

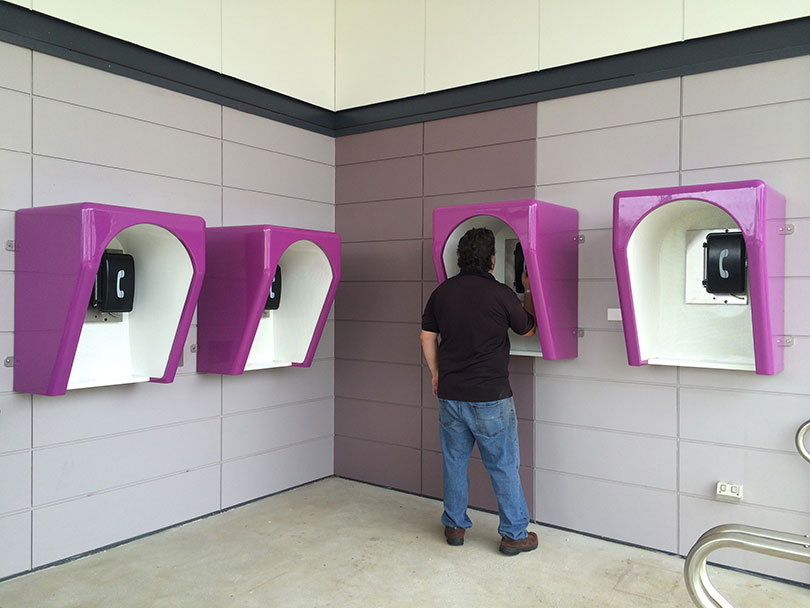

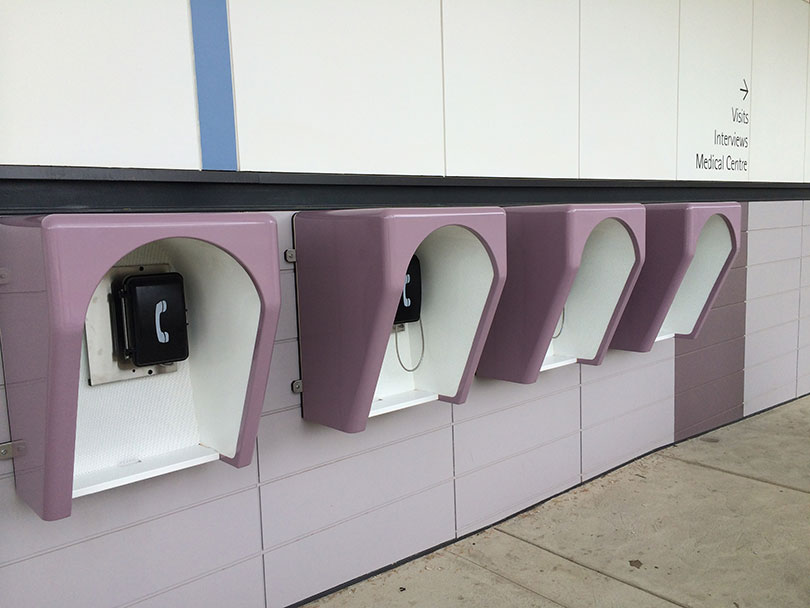

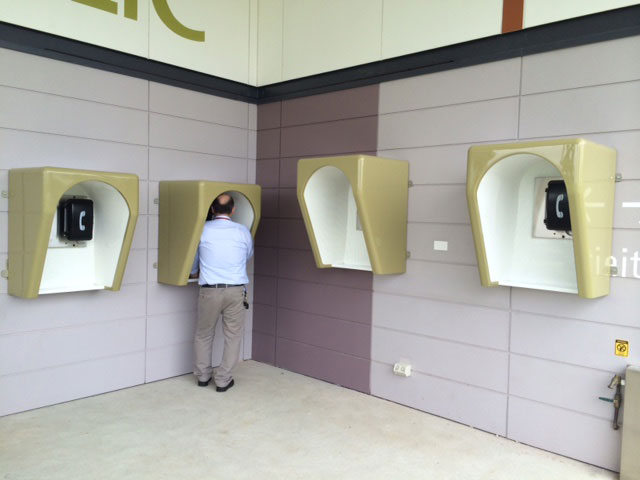

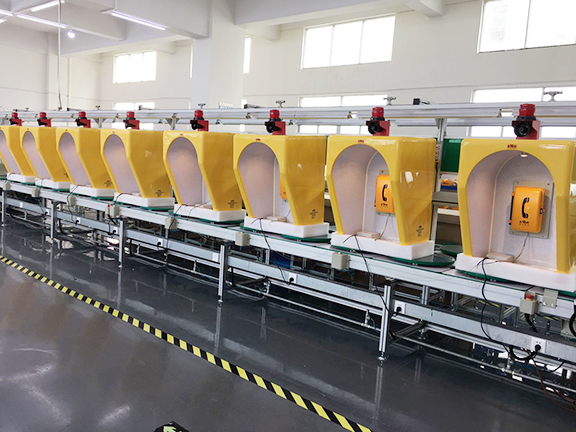

Product Detailed Pictures
.jpg)
.jpg)
