KNPB Series 16 ports PoE Switch

KNPB Series 16 ports PoE Switch

Product model:KNPB-16
size:
material:

Datasheet of KNPB-16
Content
  • Features
  • Specification
  • Accessories
  • Application
  • Detailed picture
  • video

Features
●Fully IEEE802.3af/at standard compliant
●Support PoE power Max.25.5W
●Auto detect powered device(PD)
●Safe and reliable power to most of PoE end device
●Plug & Play. No configuration required
●Reliable and great value
Overview
This 16 ports PoE switch provides power and data from a single point, using Power over Ethernet(PoE) over a single Cat-5 cable. KNPB series can be used for any 10/100Mbps link and supply industry -standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af end devices,In addition,the PoE switch automatically determines PoE requirements, speed, duplex,.Easy to operate and reliable.Its coming with Gigabit Uplink with easy installtion.
This PoE switch is ideal for powering PoE devices such as IP cameras,WLAN access points, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.
Specification:

 Technology
 Network Standards IEEE802.3i 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3x Flow Control
 PoE power 15.4W per port(IEEE802.3af)
25.5W per port(IEEE802.3at)
Wiring:Data & power provided over pairs1/2and 3/6 or 4/5(+)and 7/8(-)
Cable:UPT cat.5 or higher
 Processing types Store-and-forward Half-duplex back pressure and IEEE802.3x full- duplex flow control
 Buffer memory 128Kb embedded memory per unit
 Network latency  Less than 20us for 64-byte frames inStore-and- forward mode
 Network Port 16 ports 10/100M Auto-sensing Ethernet Port
4 10/100/1000M Auto-sensing Gigabit Uplnk port
 Power Input  44-57VDC input
 PoE power consumption  15.4W
 Mechanical
 Casing  Metal case
 Dimension  440x285x44mm(LxWxH)
 Weight  4KG
 Installation  Rack mount
 Interface
 LED Indicators  System:Power,PoE Maximum power
Per port:Link.Activity,.Speed PoE active,PoE error
 Environment specification
 Operating temperature  0-55℃(32-104℃)
 Storage temperature  -10-70℃(14-158)
 Operating humidity  90% max relative humidity,non-condensing
 Storage humidity  90% max relative humidity,non-condensing
 Regulatory Approval
 Safety  CE/ROHs/FCC
 Warranty  1 year

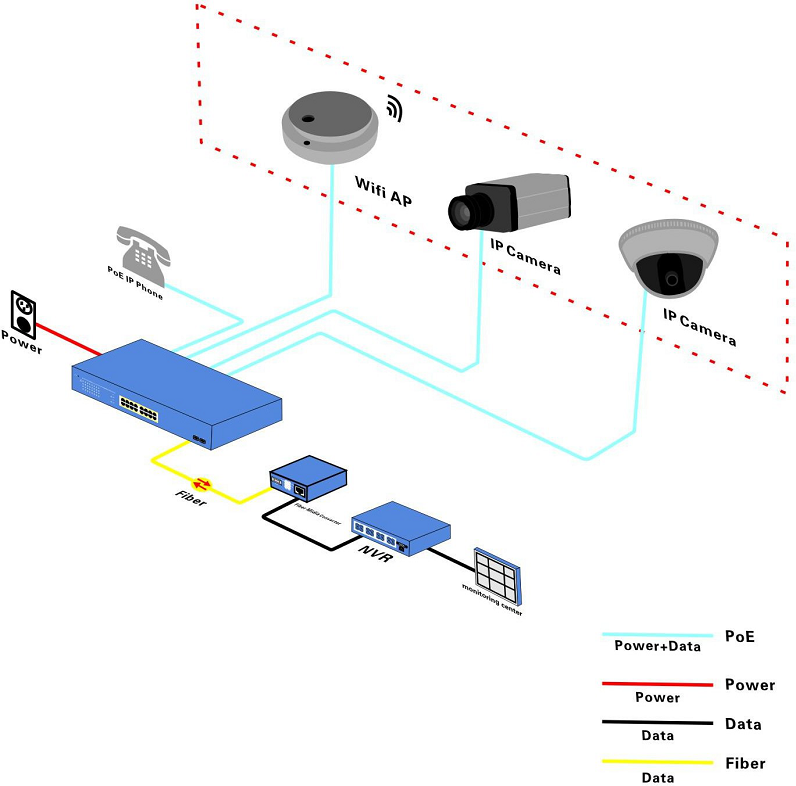

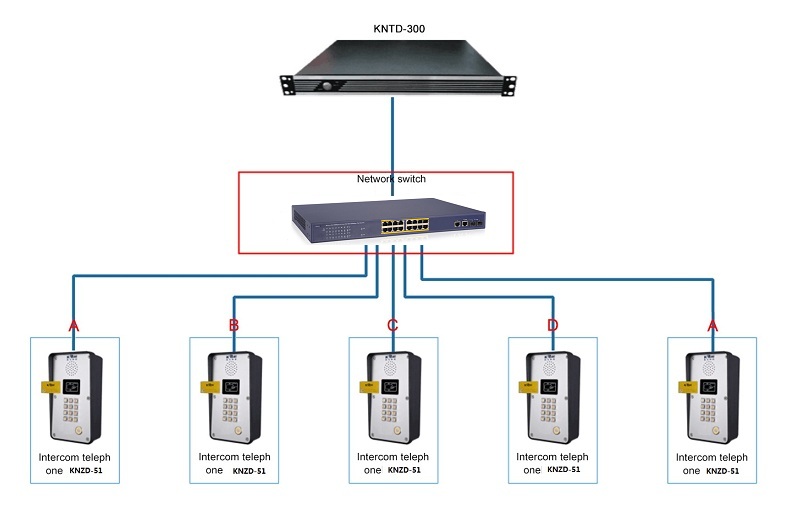

Application Diagram
