Gate Access Control

Gate Access Control

model:KNZD-43A
size:230X126X76.5mm
material:

Gate-Access-Control-VoIP

Gate Access Control KNZD-43A

Product Description

1. Robust aluminium alloy die-cast body stainless steel face plate
2. Waterproof rating IP55 dust proof.
3. LED indicator for incoming call optional.
4. One button for emergency call, 3W loudspeaker with full metal keypad.
5. Lightening protection to ITU-T recommendation K.21.
6. POE power supply or DC12V powered.
7. Temperature range from -40 degree to +70 degree.
8. Support standard Session Initiation Protocol(SIP), RFC 3261.
9. Calling indoor extension for two-way conversation.
10. Support echo cancellation.
11. Remote software upgrade, configuration and monitoring.
12. Optional 7 minute time out to release the line if the other side hang up.This function upon buyer’s requirement).
13. Application: Vila, bank, hotel, school, parking lot, door gate, metro, railway, LRT, speedway, power plant, bridge etc.

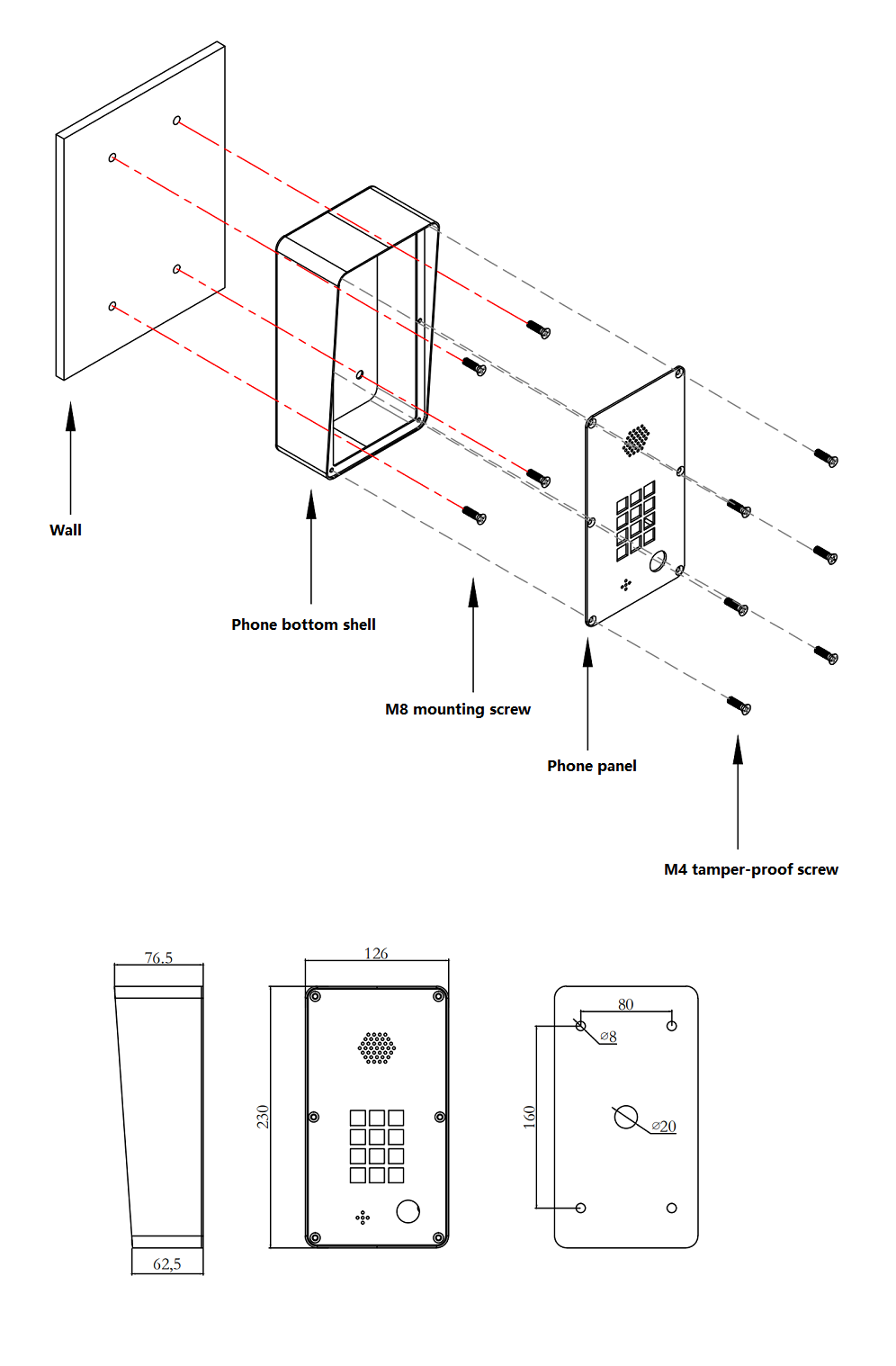

Gate Access Control Installtion

accesss control

Product Certification

RCM:AS/NZS CISPR 32
Australian communications:AS/CAS004
Australian Equipment-safety: AS/NZS 60950.1:2015
EMC: EN50121(Railway application-Electromagnetic Compatibility)


PACKING

product box

Unit size:235*131*78.7mm
Unit: N.W:1.7KG
1pcs packing box size: 330*180*110mm
Unit N.W:1.7KG Unit G.W:2.6KG
2pcs in 1 outer Carton box: size: 350*240*190mM
N.W:5.2KG G.W:4.72KG




==>>>> Product Specification
specital

==>>>>Telephone System

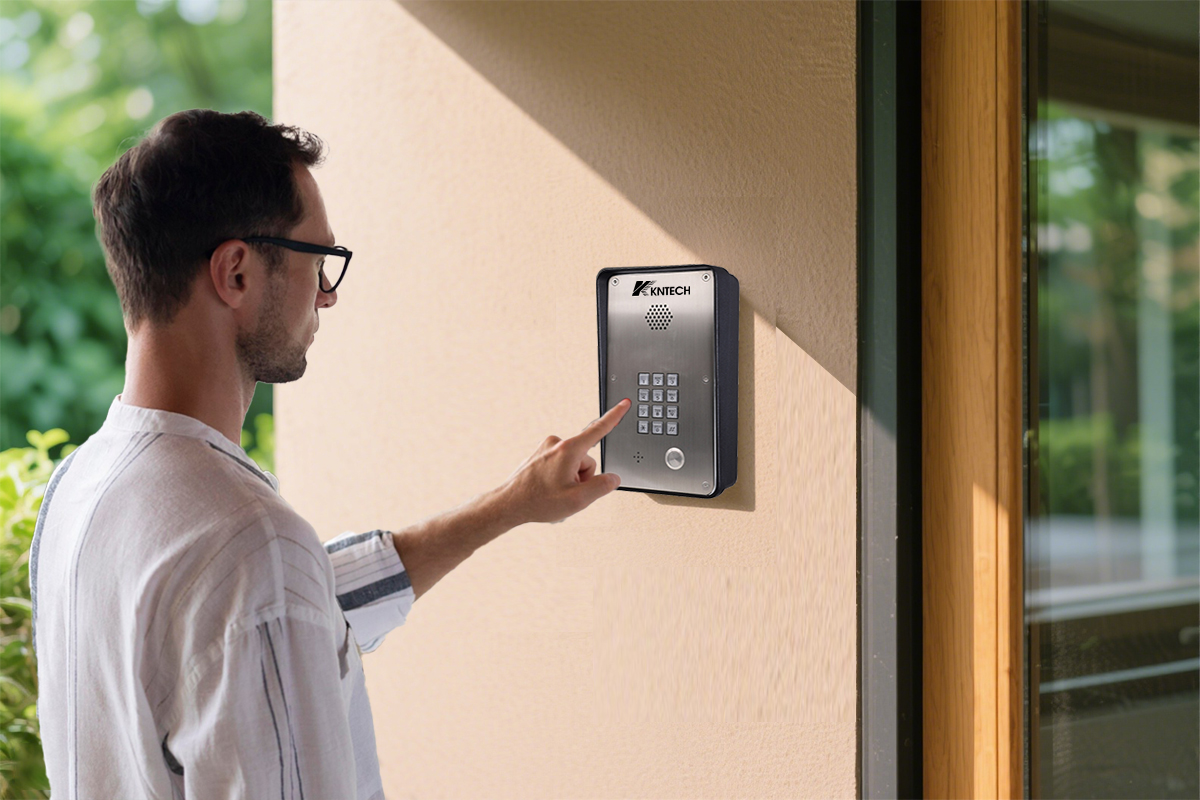

==>>>>Product Application

==>>>>Product Detailed Pictures

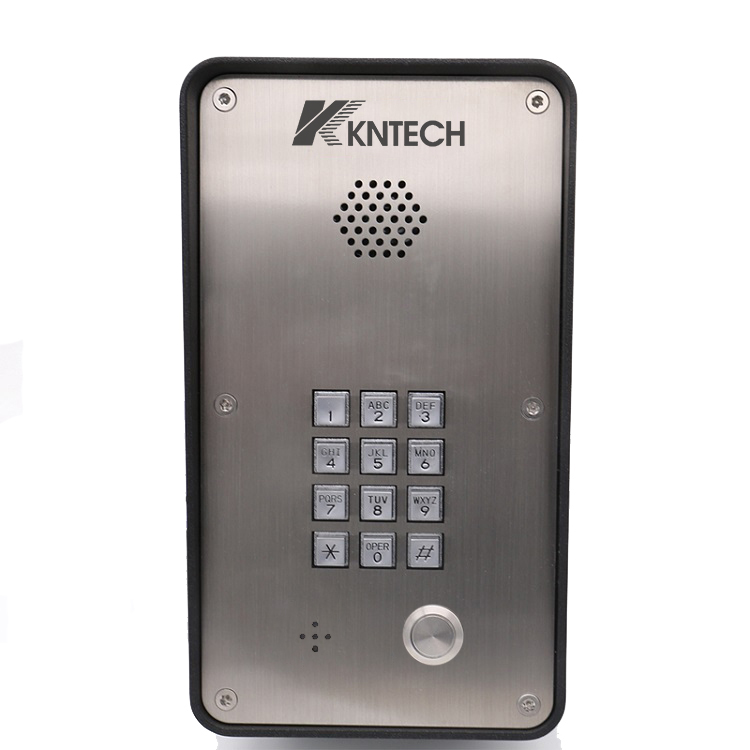

gate access contorl main view gate access contorl left view gate access contorl right view gate access contorl rear view


==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNZD-43A

*
*
*
*
