G1 Server/Networking Cabinet

G1 Server/Networking Cabinet

Product model:G1 Server/Networking Cabinet
size:
material:

Standard:
● Comply withANSI/EIA、RS-310-D、IEC297-2、DIN41494;PART1、DIN41494;PART7, GB/T3047.2-92、ETSI standard.
Content
  • Features
  • Specification
  • Accessories
  • Application
  • Detailed picture
  • video


G1 Server/Networking Cabinet

Standard:

    ● Comply withANSI/EIA、RS-310-D、IEC297-2、DIN41494;PART1、DIN41494;PART7, GB/T3047.2-92、ETSI standard.

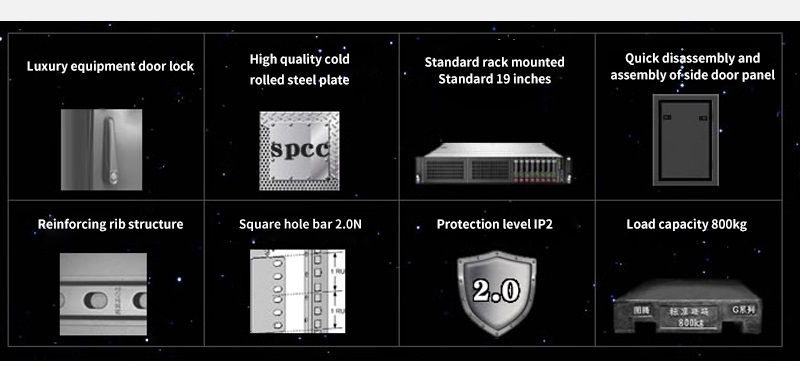

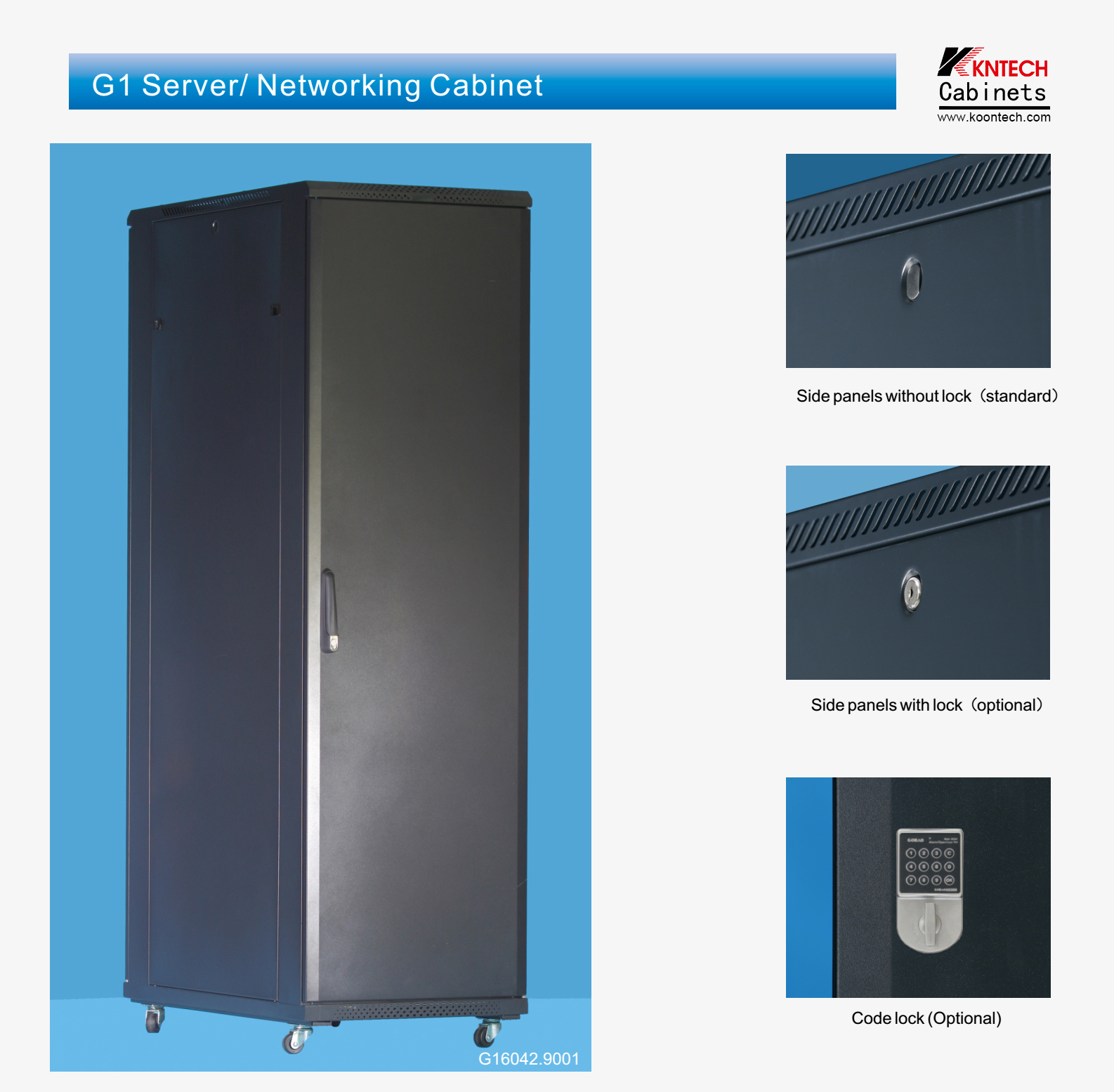

Front&rear door feature:
    ● Steel front door without vented hole;
    ● Steel rear door without vented hole;
    ● Front & rear door with elegant lock;
    ● The lock can be equipped according to the customer's needs;
    ● Front & rear doors are free solder reinforcement structure,
    ● Front&rear doors can be designed to open in left or right;
    ● Front &rear doors can be changed to double-door.

Material:
    ● Mounting profile&Mounting angle:
        The rest: SPCC cold rolled steel;


        Thickness: mounting profile 2.0mm,



        Surface finish:


    ● Degreasing, Vitrification, power coated;


        Degree of protection:


    ● IP20

        Loading capacity:

    ● Static loading: 800KG (with adjustable feet)
