Explosion proof telephones

Explosion proof telephones

model:KNEX-1

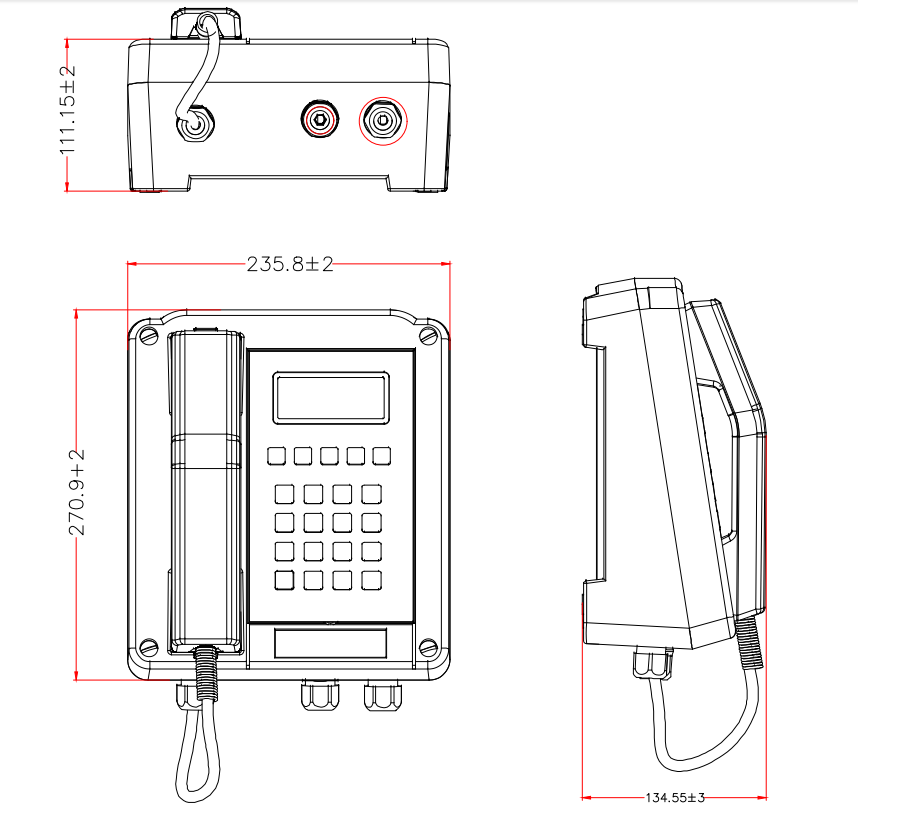

size:227 x 293 x 135mm
material:SMC(Sheet Molding Compound)

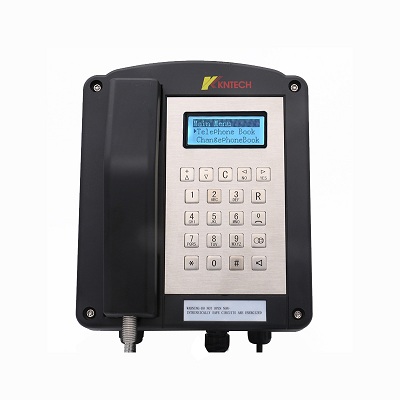

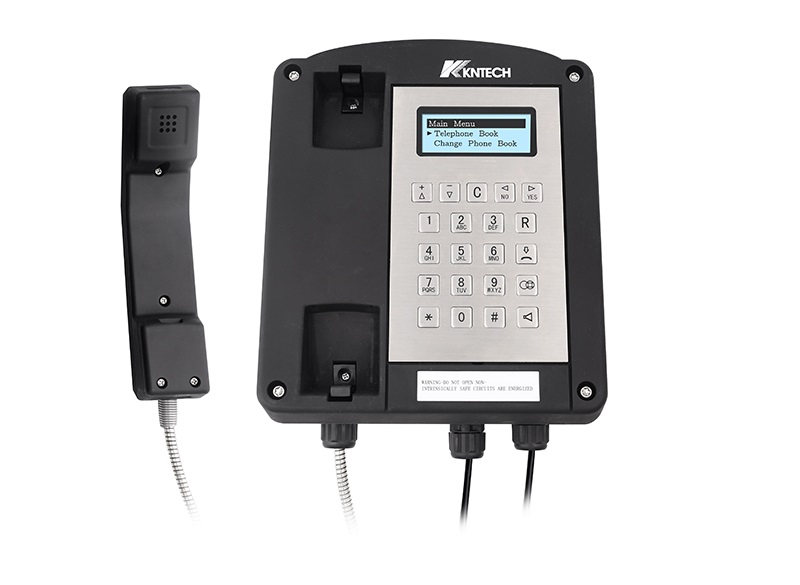

KNEX1 analog explosion phone
Explosion proof telephones work as atex equipment made of GRP by die casting. The IECEx explosion proof telephone is rugged and durable. KNTECH design and manufacture the telephone with IECEX tertification and export to 50 countries. This Explosion proof telephone works in Hazardous Area. The explosion proof telephone use in zone 1 and zone 2. It can also use in Division 2.Ex II 2 GD & Ex ii 2G IECEx Certified explosion proof telephone
Content
  • Features
  • Specification
  • System
  • Application

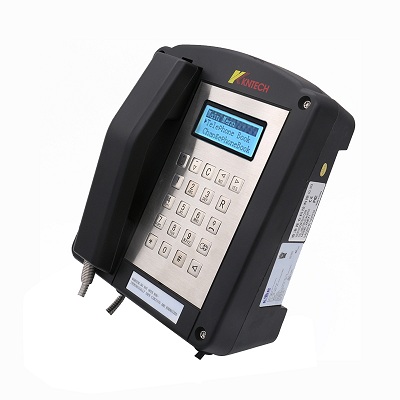

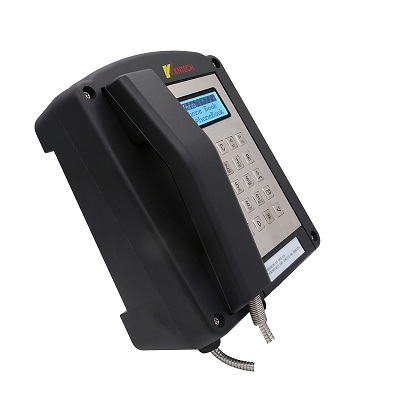

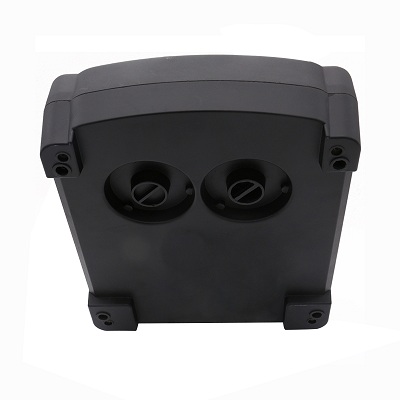

  • Detailed picture
  • video

Explosion proof telephone

KNEX1  Explosion proof telephones

      Explosion proof telephones work as atex equipment  made of GRP by die casting. The IECEx explosion proof telephone is rugged and durable. KNTECH design and manufacture the telephone with IECEX tertification and export to 50 countries.  This Explosion proof telephone works in Hazardous Area. The explosion proof telephone use in zone 1 and zone 2. It can also use in Division 2.Ex II 2 GD & Ex ii 2G IECEx Certified explosion proof telephone

Features:
       IECEx certified
       Zone 2, type Ex e ib mb I IC T6 Gb.
       Analogue telephone matching with most PABX, PBX and PAX system
       Telephone line powered. No external power or battery required
       Robust SMC 2600 glassfibre reinforced polyester die-cast body
       LCD display, SUS Metal keypad 24digit, Magnetic reed hook-switch
       Busy tone detection for auto release the line if line busy
       High temperature approval, Auto answer auto release line.
       Full Soft lock: only dial out from phone book 50 memory address number
       Half soft lock: limit to dial out starting number, e.g. “00852” area code
       Ring sound 95 dB dfd in 1 m and 10 ringing tone melodies selectable
       Listening by loudspeaker: 70dB in 1m
       Phone book memory: 50 address ( name & number) programmable
       Dry contact for external control automation (Option)

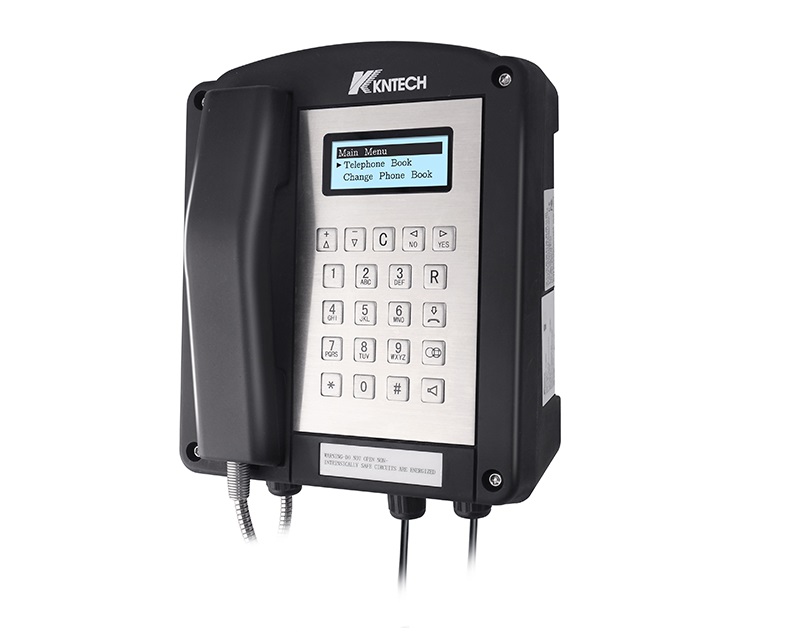

LCD display include
       Manu setting
       Welcome text programmable e.g: welcome to koontech telephone
       Full soft lock or half soft lock
       Phone book up to 50 address number selectable
       Ring speaker up to 4 level selectable
       Hands free talking sound up to 4 level selectable
       Handset receiver sound up to 4 level
selectable
       Up to 9 Ring tone melodies selectable
       Back light up to 4 level selectable
       The dialing number
       Calling time counting

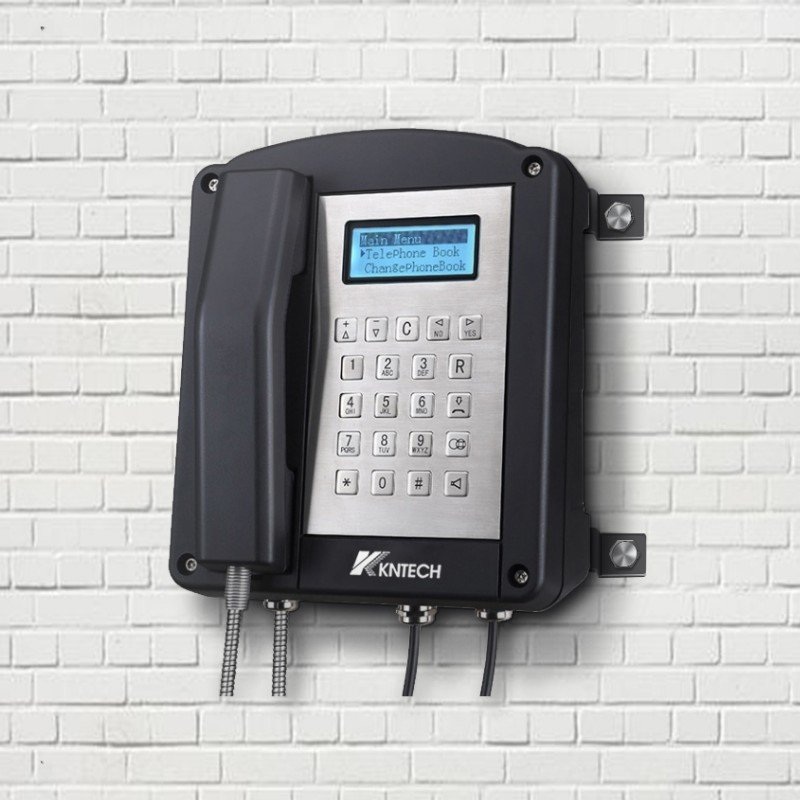

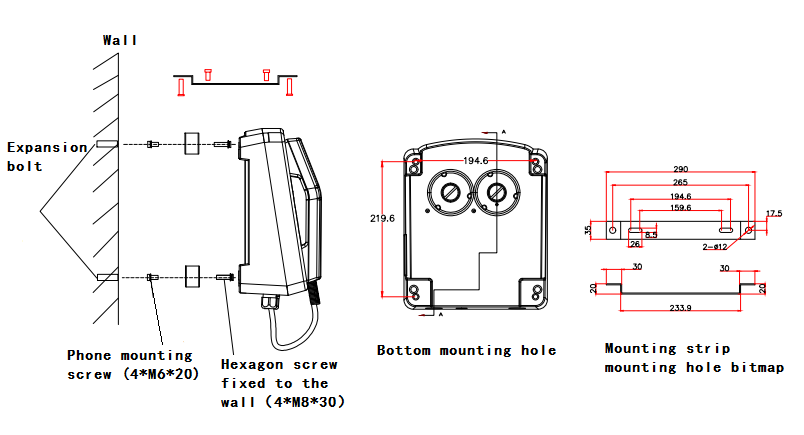

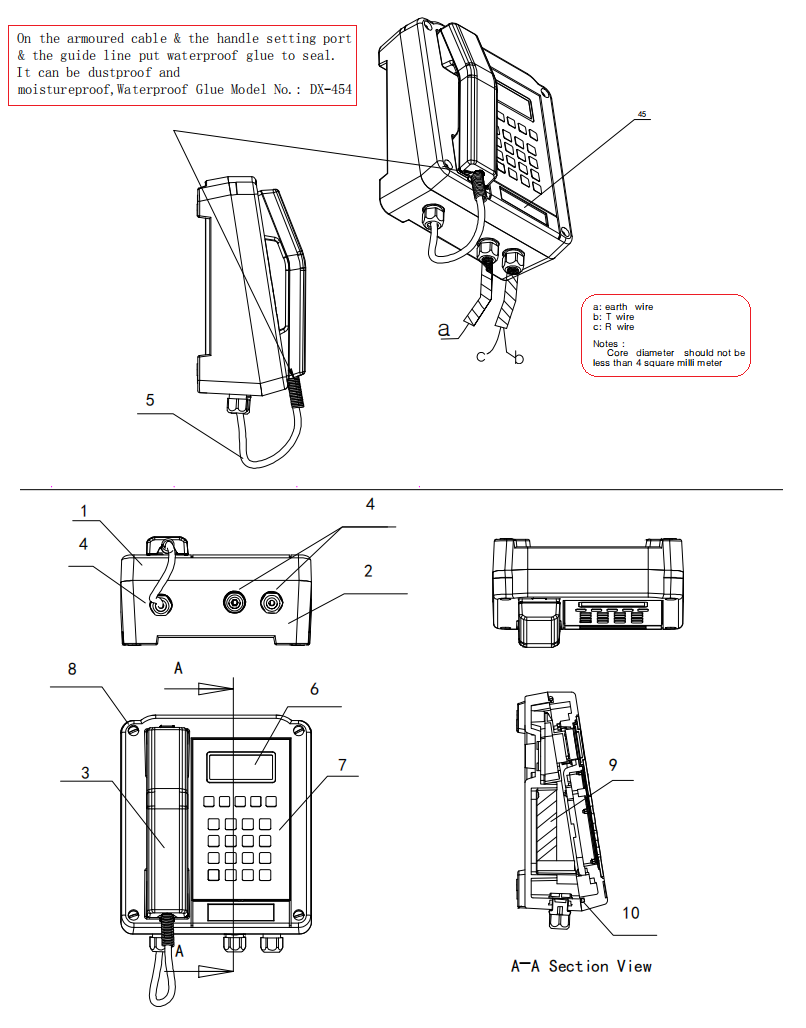

INSTALLATION

Explosion proof telephoneExplosion proof telephone
