Wireless telephone tower outdoor

Wireless telephone tower outdoor

model:KNEM-26
size:310*255*2200mm
material:Matel body

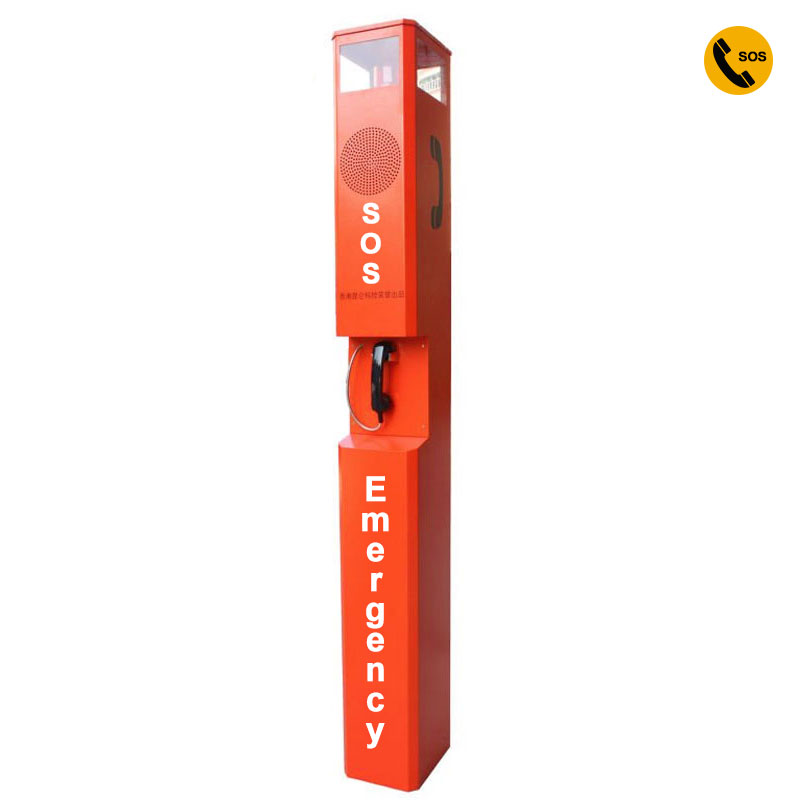

KNEM-26 GSM SOLAR POWERED
GSM Wireless telephone tower is specially used for outdoor emergency telephone, pick the machine can automatically call the emergency phone line. Commonly used in mines, tunnels, scenic spots, and other unexpected events may occur.
Content
  • Features
  • Specification
  • System
  • Application
  • Detailed picture
  • video
GSM Wireless telephone tower
GSM Wireless telephone tower
        Emergency calling device with built-in louder speaker alarm security system with handset for Ocean Park  or Large shopping center 。GSM Wireless telephone tower  be used according to different environment can be divided into high protection grade GSM Wireless telephone tower  and ordinary GSM Wireless telephone tower , such as in mine is waterproof and moistureproof, fight violent percussion, nuclear radiation protection, chemical corrosion resistance, tourist attractions is weathered, resistance to cold frost prevention, etc
 Features:
     1.  Matell body, solid and temperature bearable
     2.  With handset or Handset free, loudspeaker,
     3.  Heavy duty Vandal resistant buttons.
     4.  With or without keypad optional
     5.  Lightning protection standard to ITU-T K21
     6.  Waterproof grade about IP65
     7.  Body with grounding connection protection
     8.  Support hotline call, self stop if the other side hang up.
     9.  Built-in loud speaker, noise canceling microphone
     10    Lighting will flash when there is a incoming call
     11. AC 110v/220v powered or built-in rechargeable battery with solar powered panel optional
     12. The design is super thin and smart. Embed style and hanging style can be chosen.
     13. Time out function optional
     14. Colours: RED + Stainless steel , If the qty over 100pcs can be To customer specification

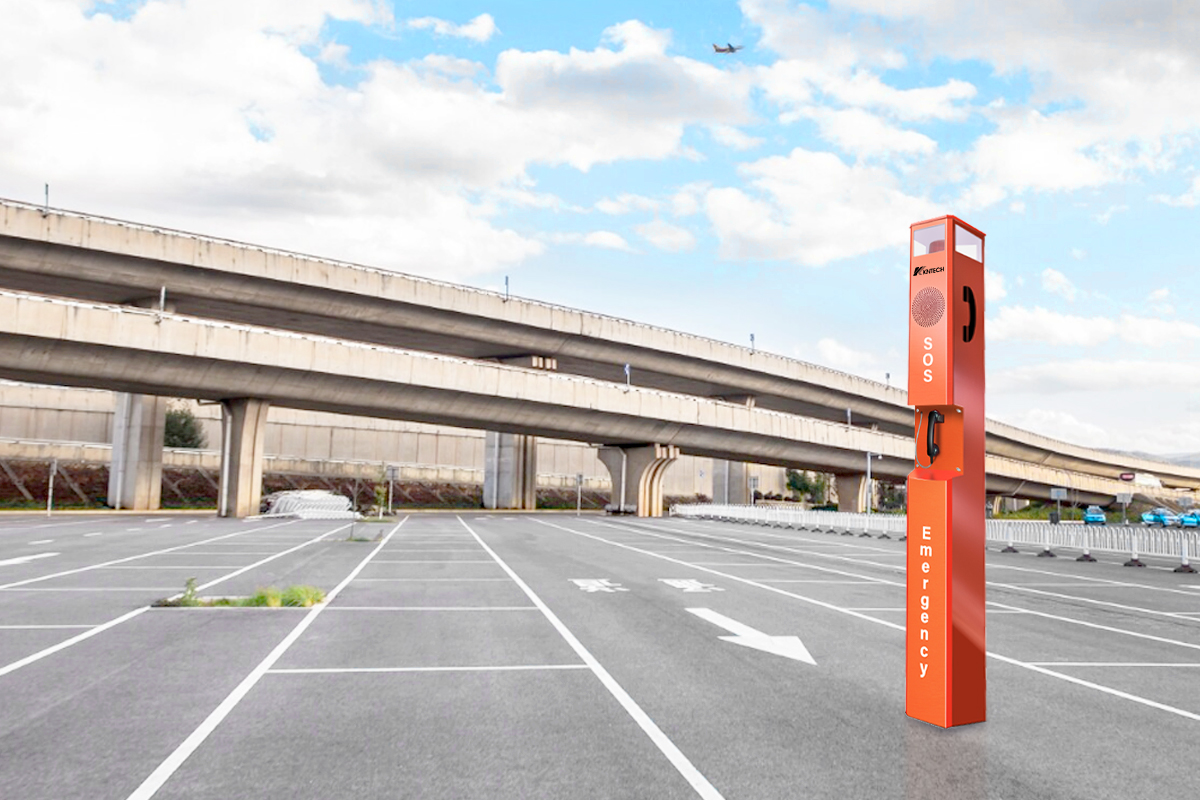

Applications:
      As Public telephone for outdoor, Taxi or bus stands or station, Highway call box. Railway, Port, Dock, Generation facilities….A good ideal telephone for use in wet or corrosive atmospheres.
Telephone layout

GSM Wireless telephone tower
Certification:

      EMC: EN50121 (Railway application- Electromagnetic Compatibility)
               EN55022: emissions   EN55024: immunity
     Ingress Protection: GB4208-93 IP66
     FCC
     ITU-T Recommendations K21
PACKAGING

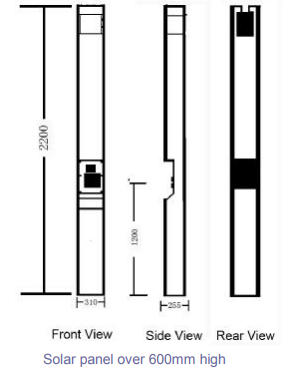

     Telephone Unit size: 2200*310*255mm Unit Net weight: 90kg
     2pcs in a wooden box CTN box, size: 35X80X255   G.W: 186kg
     20GP: 88PCS  40GP: 176PCS  40HQ: 205PCS


You May Like:

G3000

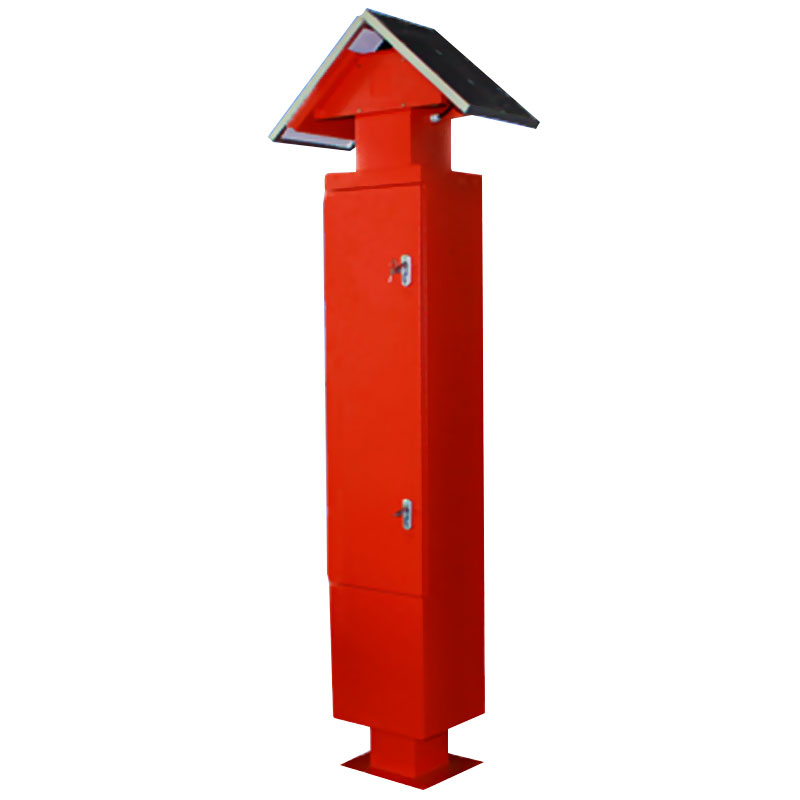

Solar telephone
