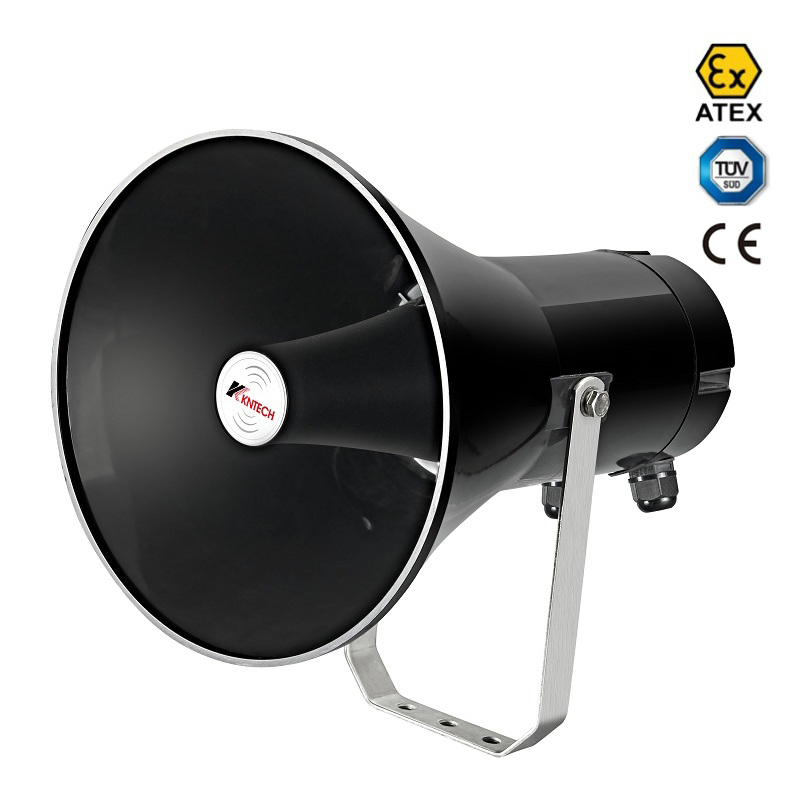

ATEX Explosion proof speaker

ATEX Explosion proof speaker

model:KNLB-EX8(8W)
size:413*254*277MM
material:

ATEX Explosion proof speaker
Atex explosion-proof speaker is a qualified explosion-proof device. Atex's explosion-proof horn is used in mines, combustible steam, dust, and other potentially explosive environments. This is an intrinsically safe horn.

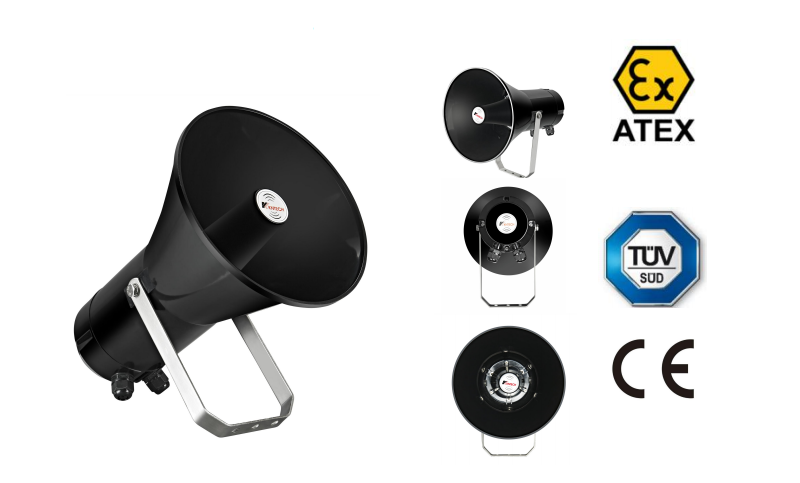

atex explosion proof speaker detail

ATEX Explosion proof speaker 8w

We are an industrial communication solution provider and communication equipment manufacturer. Our paga system and pa system atex use explosion-proof speakers developed and produced by ourselves, which are safe and reliable. If you have a need, we can customize atex explosion-proof speakers of different powers for you.

The horn feature


1.Explosion proof speaker design and certified by TUK ATEX standard.

2. Robust aluminium alloy die-cast body, Vandal & tamper-resistant easy Installation.
3. Waterproof rating IP66 dust proof.
4. service temperature range from -50 degree to +60 degree.
5. The speaker wiring connections are enclosed in a dust-moisture-proof design.
6. 360° lossless broadcast
7. Transformer coupled
8. For use public address and paging application
9. Powder coated in UV stabilized polyester finish.
10. Application: marine, ship,offshore, mine, Tunnel, metro, speedway, , power plant, bridge etc.

The explosion proof speaker atex type and marking

the atex for explosion proof horn loudspeaker

Frequency Response @ /1W/1m

the freq for explosion proof horn loudspeaker

The size ahout it

the explosion proof horn loudspeaker size

Packing

Unit size: 260(Ø)*412(L)mm
Unit G W: 5.7kg
1 pcs in a inside box. Box size: 470x310x310 cm G.W: 9KG
4 pcs in a CTN box. CTN box size: 480x 630x630 cm G.W:38.1KG




==>>>> Product Specification

Type Description

The appearance of the speakers mold is the same, the difference built-in transformer or not


Model Resistance horn AC Impedance 8Ω Constant pressure Horn 70V/100V AC Impedance 8Ω + transformer Power Handling SOUND PRESSURE LEVEL Iw/m at 1000Hz (dB) Power TAPS
1 KNLB-EX8 YES

8W
105

2
KNLB-EX15 YES

15W
105

3
KNLB-EX30 YES

30W
108

4
KNLB-EX50 YES

50W
110

5
KNLB-EX50Y YES
YES
8-50W adjustable
110
8w/15w/30w/50w

Specification for all the speakers

1 DIMENSION 260(Ø)*412(L)mm
2 Material Aluminum
3 RATED FREQUENCY RANGE 300Hz ~ 8000Hz
4 TOTAL HARMONIC DISTORTION 5% Max at lKHz 1W
5 AC IMPEDANCEB
IMPEDANCEB
8 ±15% ohm
6.4 ±7% ohm
6 SPEAKER WEIGHT 4.9kg ± 10%
7 MATERIAL&FINISH Hom: ivory, others dark brown ;Bracket: Zinc plated steel t3.0
8 WORKING ENVIRONMENT Temp -50°C~ +60°C, Humidity 45% 〜85%,
atex explosion proof speaker atex

==>>>>Telephone System
explosion proof horn loudspeaker telephone system

==>>>>Product Application

atex explosion proof speaker outdoor atex explosion proof speaker oil


==>>>>Product Detailed Pictures

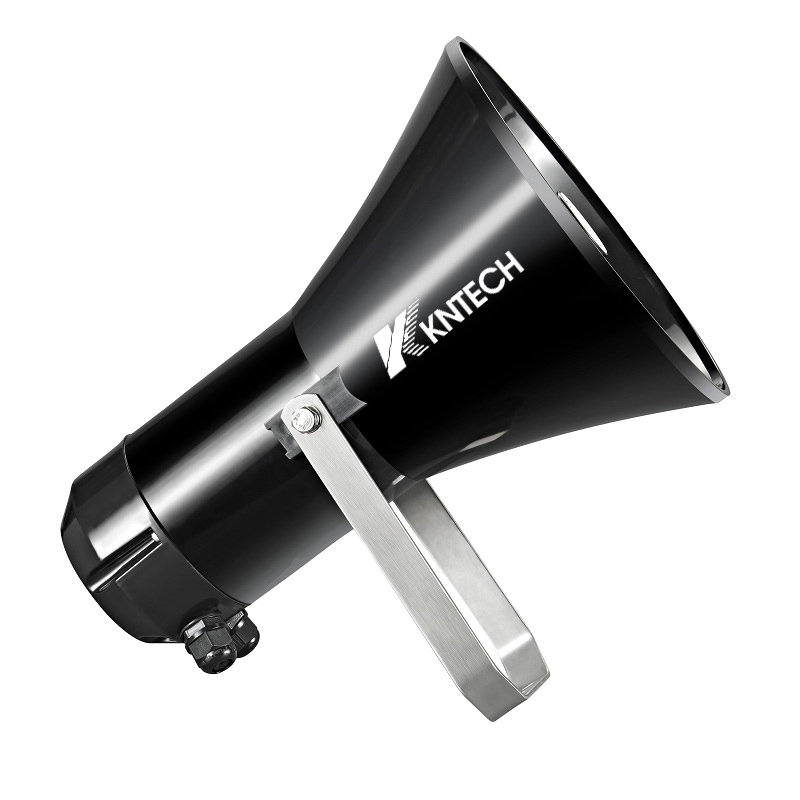

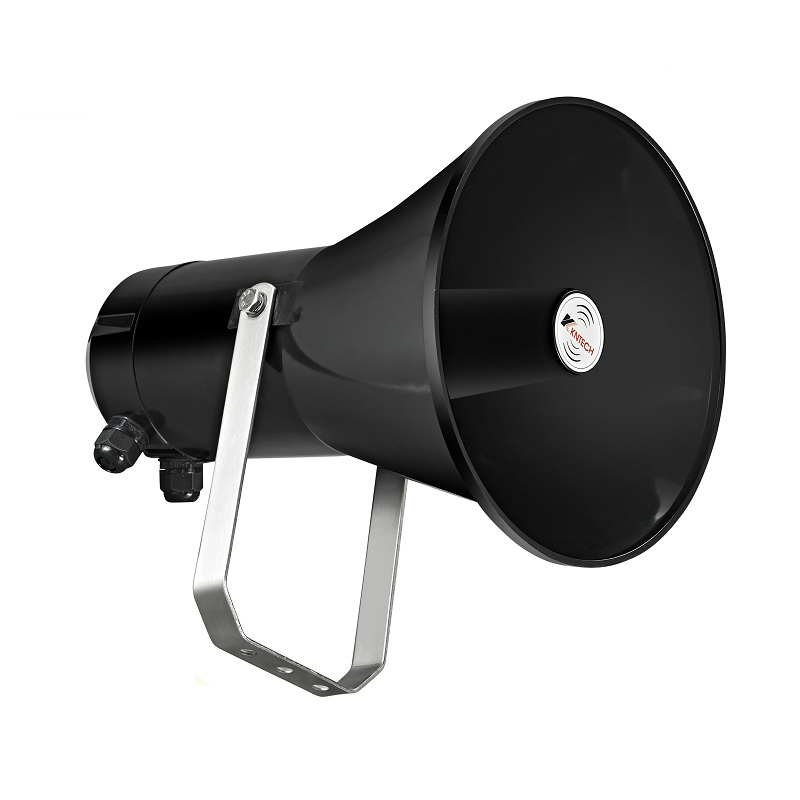

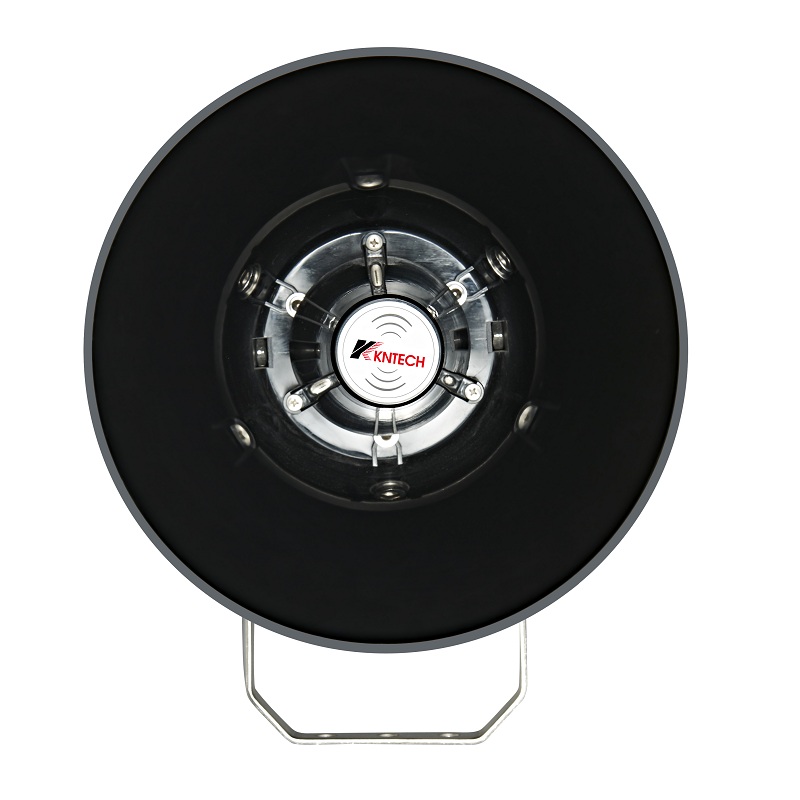

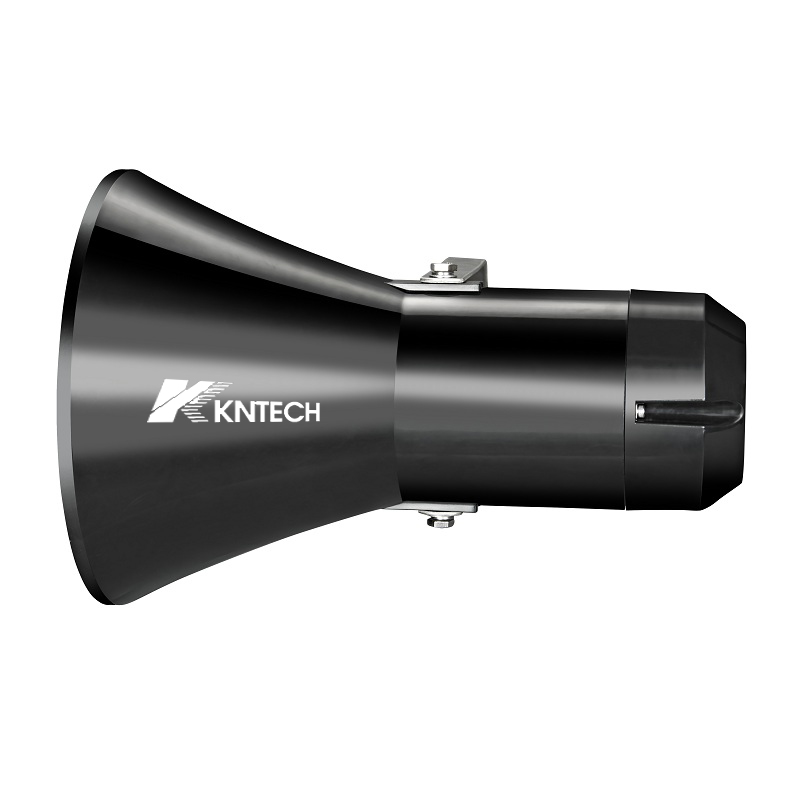

atex explosion proof speaker view atex explosion proof speaker side view atex explosion proof speaker front view

==>>>>Product Video
