Elevator phone analogue

Elevator phone analogue

model:KNZD-36
size:200*130*50mm
material:SUS304

elevator-phone-analogue
elevator-phone-voip

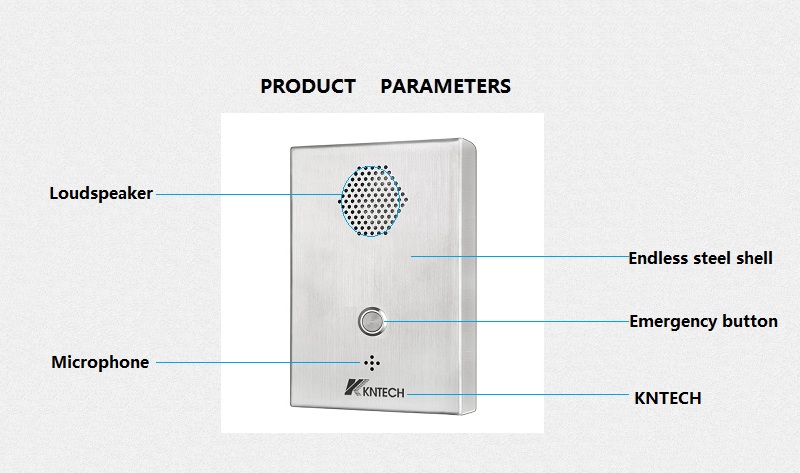

elevator phone anlogue description

Elevator phone analogue

Elevator phone analogue is specially designed for help in case of elevator failure. The one-touch dial function installed on the wall of the elevator with one touch of a button will automatically connect to the monitoring room to ask for help to reduce the loss and safety of the accident.

Do phones works in elevators?

Under normal circumstances, the elevator is a closed metal space during normal working hours. When dialing a mobile phone in an elevator, wireless signals and mobile signals may be blocked or cause poor signal conditions. All elevators will be equipped with wired analog elevator telephones, which is convenient for users to communicate with the outside world in an emergency.

DESCRIPTION ITEM

1. Stainless steel 304 body for easy Installation.
2. Waterproof rating IP55 dust proof.
3. Full keypad with memory, 10 button programmable telephone.
4. Weather resistant to IP55 standard, service temperature range from -30 degree to +75 degree.
5. Lightening protection to ITU-T recommendation K.21.
6. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
7. Handset with industrial strong armored cord .
8. Metal keypad keep waterproof and dusty proof.
9.Phone integrity wiring to enable the telephone system to check if the telephone unit is still Operational.(If PABX have this available we can provide this function).
10. Optional 7 minute time out to release the line if the handset is left off hook. This function upon buyer’s requirement).
11. The housing covered with a layer of reflective label for easy identification at night.Optional
12. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.

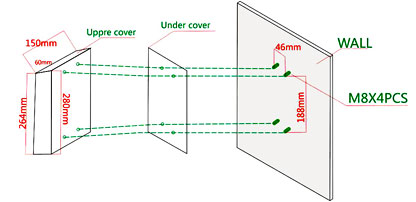

INSTALLATION

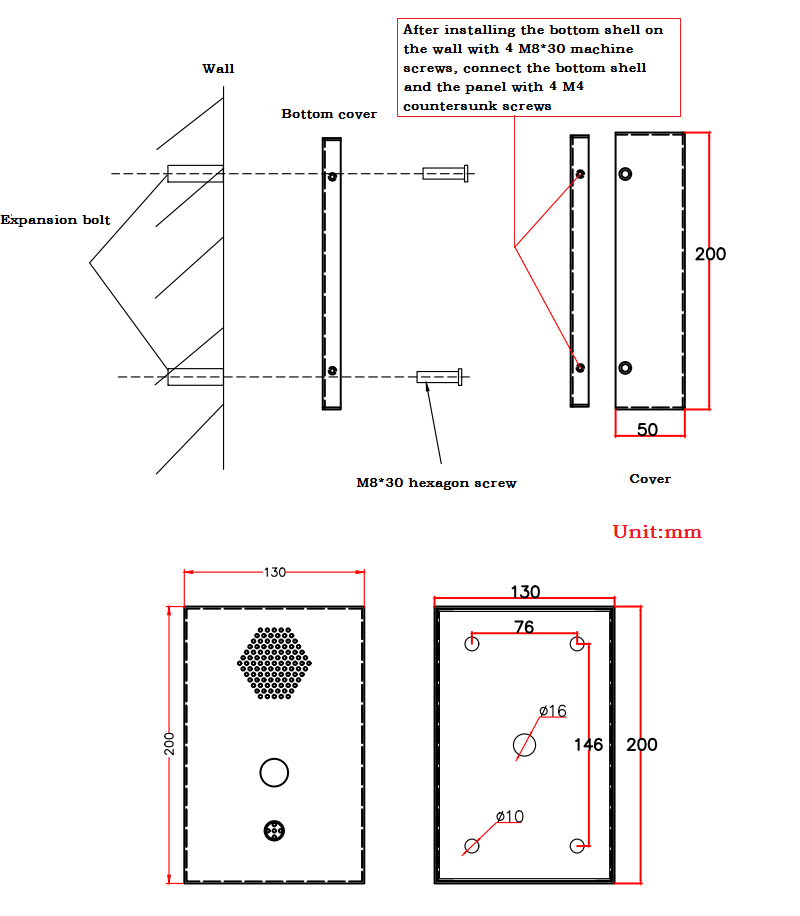

elevator intercom size
CERTIFICATION

EN55022: emissions                                         EN55024immunity

Ingress Protection: GB4208-93 IP66 FCC        ITU-T Recommendations K21

EMCEN50121(Railway application-Electromagnetic Compatibility)

elevator intercom certificate

 PACKAGING

elevator intercom packing


Unit size:130*200*50mm   Unit: N.W:1.3KG

1pcs packing box size: 230*170*80mm Unit: N.W:1.3KG    Unit G.W:1.5KG




==>>>> Product Specification

SPECIFICATION - Analogue(Model NO.ZD0360012)

1. PSTN analogue telephone                                          2. DTMF dialing

3. MTBF:100000hours                                                    4. MTTR: 2 hours

5. Connection: RJ11 screw terminal pair cable               6. Sound level of ringing:over 70dB(A).

7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM

8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.

9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected

10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)

11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%

12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

 SPECIFICATION - VoIP(Model NO.ZD0360022)

1. VoIP SIP2.0 telephone                                              2. DTMF dialing

3. MTBF100000hours                                                   4. MTTR: 2 hours

5. Auxiliary Contacts:1 Aux Output, dry contact            6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC

7. Contact Ratings. Load: Resistive load                      8. Echo cancellation code:G.167/G.168

9. Rated carry current:1A                                             10. Max.switching current:1A

11. Max.switching voltage:125 VAC,60VDC                 12. Audio Codes:G.711, G.722, G.729

13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP

14. Free dial (maximum length of each number is 16 digits)

15. Communication: Full duplex 2-way hands-free communication

16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)

17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better

18. Power:Power over Ethernet, IEEE802.3af, Class 0  Local power, 12VDc,Idle 2W, Max 10W

19. Programming:Non-volatile flash memory programming and configuration through Web GUI

20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED

21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)


You May Like:

KNZD-09

Emergency Voice Intercom

KNZD-20W

Video Intercom System

KNZD-15

clean room phone

KNZD-03 LCD

Handsfree Telephone


==>>>>Telephone System

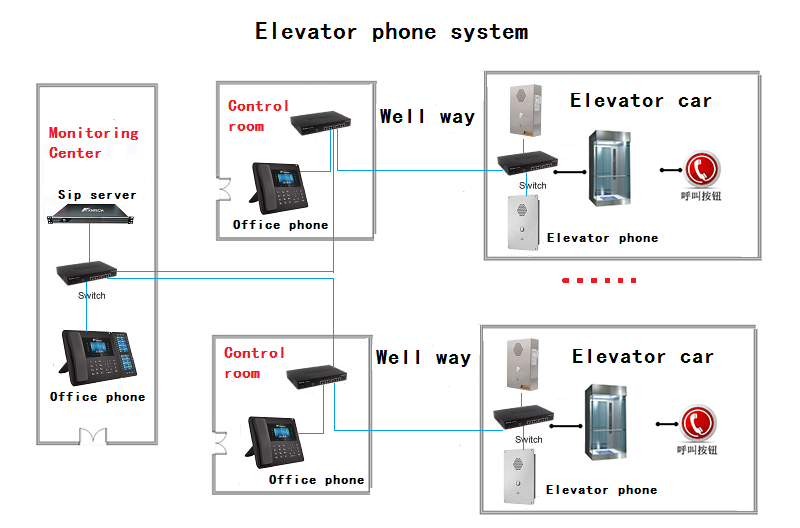

elevator phone system analogue

==>>>>Product Application

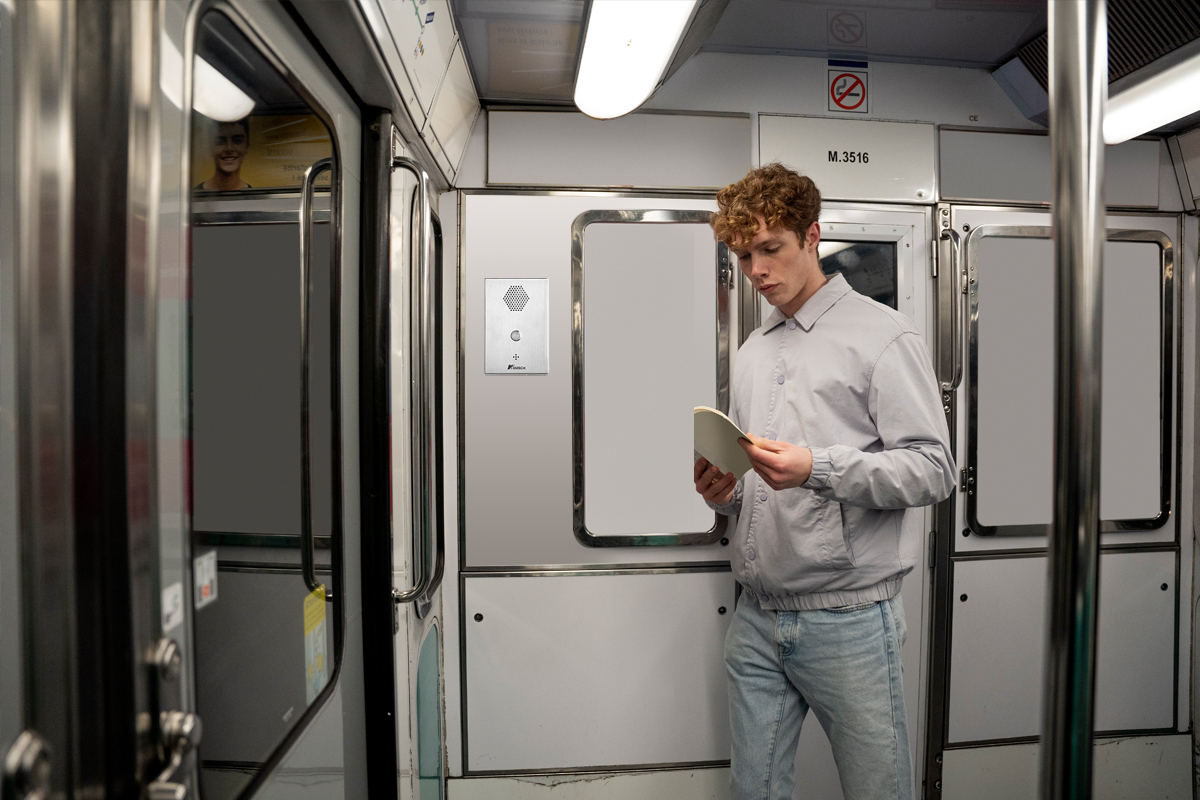

Elevator intercom application

intercom in elevator
call stations intercoms for bank
elevator intercom application place

==>>>>Product Detailed Pictures

Elevator intercom more detailed

intercom elevator front view intercom elevator back view
intercom elevator top view intercom elevator left view

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNZD-36

*
*
*
*
