Audible and visual alarm

Audible and visual alarm

model:D7
size:
material:

D7-Alarm-Beacon

Features

      Aluminum die-cast shell, surface electrostatic spray.

      Glass shade, with a strong impact resistance.

      High corrosion resistance of stainless steel exposed fasteners;

      LED light source, high brightness, long service life.

      Pipe or cable wiring.

power rating: 15W
sound intensity :≥120DB
Type of Lamp-house:LED light resource
Protection grade:IP65
guide number:150 times/min
 Product Weight:2.56KG
Installation way: wall type
voltage rating:AC220V 50HZ

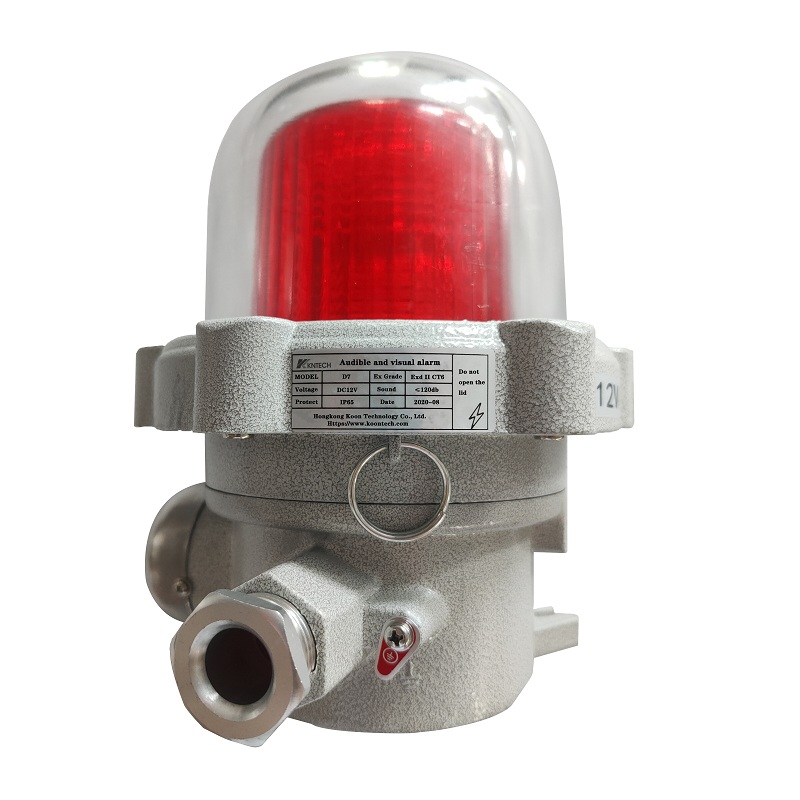

audible and visual alarm detail



==>>>> Product Specification

Technical Specification

     Model: Beacon-7
     Rated voltage: AC220V 50Hz (if any special requirements please specify)
     Protection class: IP66
     Corrosion grade: WF1 * WF2
     Flash Views: 150 times / min
     Sound intensity: ≥ 120dB
     Intakes specifications: G3 / 4 ", suitable for Φ10mm ~ Φ14mm cable
     Terminals: ≤ 2.5mm ²
     Installation: pedestal (z),
     Product Weight: 2.56kg
Dimension (mm)


==>>>>Telephone System

==>>>>Product Application

Application

       Widely used in oil exploration, refining, chemical, military, and other hazardous environments and offshore oil platforms, oil tankers and other places for general lighting and task lighting purposes; Suitable for energy-saving projects and repair and replacement places; Suitable for higher protection requirements, moist places; Suitable for explosive gas atmospheres of Zone 1, Zone 2 locations; Applicable Ⅱ A, Ⅱ B, Ⅱ Class C explosive gas atmospheres; Suitable for temperature class T1-T6 group

==>>>>Product Detailed Pictures

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:D7

*
*
*
*
