Features
●Fully IEEE802.3af/at standard compliant
●Support PoE power Max.25.5W
●Auto detect powered device(PD)
●Safe and reliable power to most of PoE end device
●Plug & Play. No configuration required
●Reliable and great value
Overview

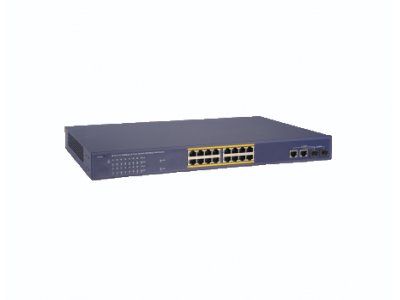

This 16 ports PoE switch provides power and data from a single point, using Power over Ethernet(PoE) over a single Cat-5 cable. KNPB series can be used for any 10/100Mbps link and supply industry -standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af end devices,In addition,the PoE switch automatically determines PoE requirements, speed, duplex,.Easy to operate and reliable.Its coming with Gigabit Uplink with easy installtion.
This PoE switch is ideal for powering PoE devices such as IP cameras,WLAN access points, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.
Specification:
| Technology | |
| Network Standards | IEEE802.3i 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3x Flow Control |
| PoE power | 15.4W per port(IEEE802.3af) 25.5W per port(IEEE802.3at) Wiring:Data & power provided over pairs1/2and 3/6 or 4/5(+)and 7/8(-) Cable:UPT cat.5 or higher |
| Processing types | Store-and-forward Half-duplex back pressure and IEEE802.3x full- duplex flow control |
| Buffer memory | 128Kb embedded memory per unit |
| Network latency | Less than 20us for 64-byte frames inStore-and- forward mode |
| Network Port | 16 ports 10/100M Auto-sensing Ethernet Port 4 10/100/1000M Auto-sensing Gigabit Uplnk port |
| Power Input | 44-57VDC input |
| PoE power consumption | 15.4W |
| Mechanical | |
| Casing | Metal case |
| Dimension | 440x285x44mm(LxWxH) |
| Weight | 4KG |
| Installation | Rack mount |
| Interface | |
| LED Indicators | System:Power,PoE Maximum power Per port:Link.Activity,.Speed PoE active,PoE error |
| Environment specification | |
| Operating temperature | 0-55℃(32-104℃) |
| Storage temperature | -10-70℃(14-158) |
| Operating humidity | 90% max relative humidity,non-condensing |
| Storage humidity | 90% max relative humidity,non-condensing |
| Regulatory Approval | |
| Safety | CE/ROHs/FCC |
| Warranty | 1 year |

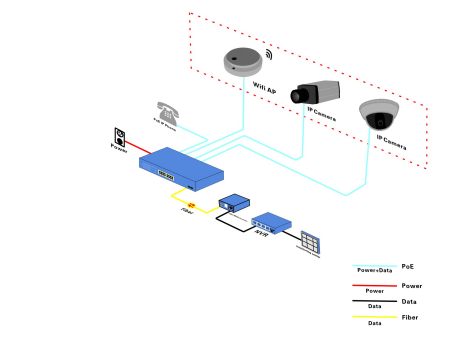

Application Diagram
