DESCRIPTION ITEM
1.Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware
2. Waterproof rating IP66 dust proof. 3. Full keypad with memory,
3 button programmable telephone.
4. Magnetic reed hook-switch.
5. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
6. Handset with industrial strong curly cord .
7. Stainless Steel keypad keep waterproof and dusty proof.
8. The loudspeaker and flash light
9. Door cover: orient automatically and good self - closing, convenient for use.
10. Temperature range from -40 degree to +70 degree.
11. Support echo cancellation.
12. Powder coated in UV stabilized polyester finish.

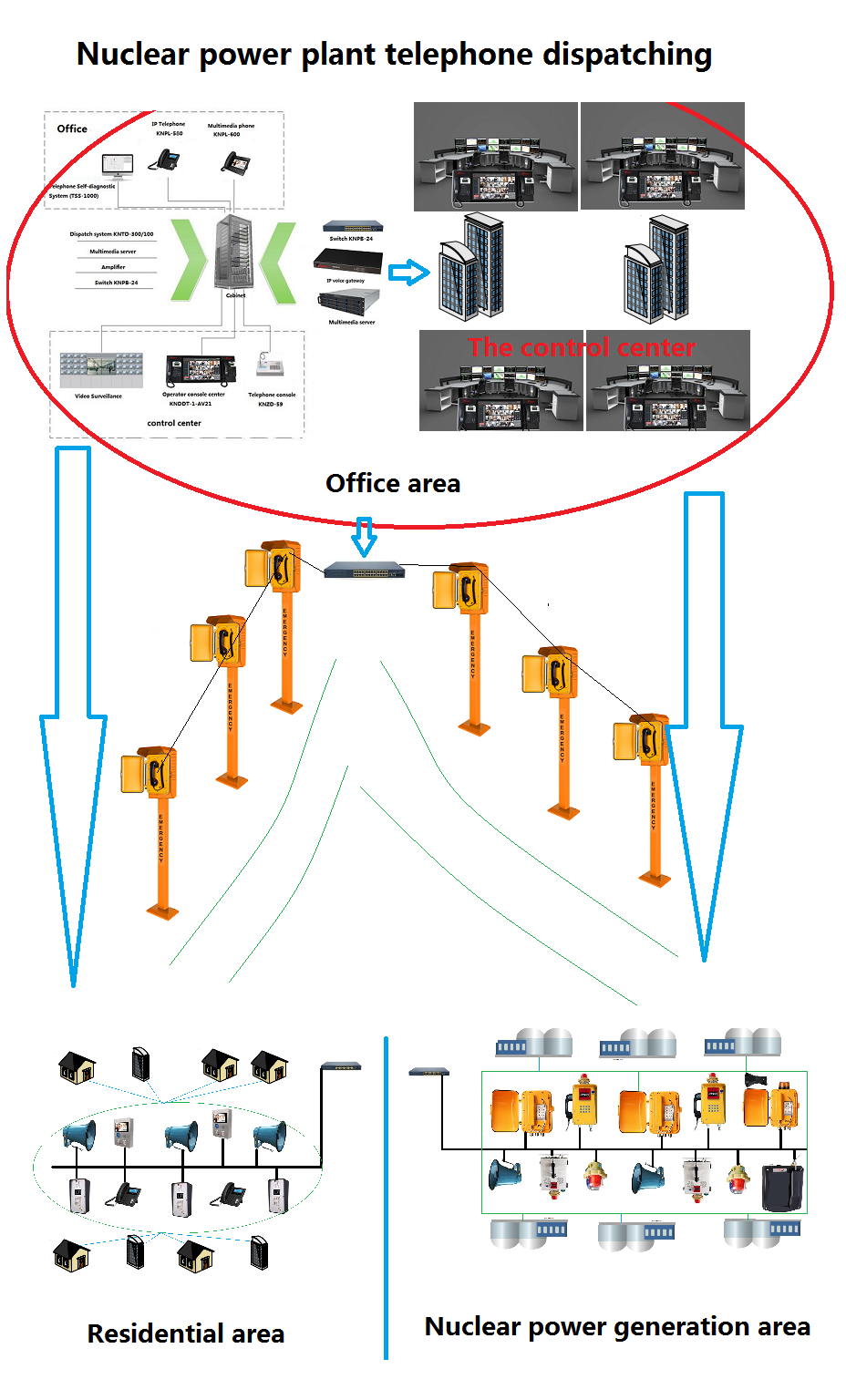

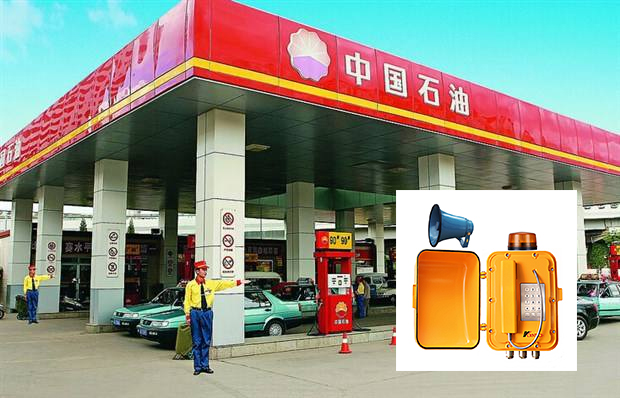

13. Application: Hazardous dust and gas atmospheres, petrochemical industry,Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.
INSTALLATION
Autodial telephone, handset emergency telephone, handfree emergency telephone, handset free emergency telephone, Auto dial emergency phone, Metal emergncy telephone, sos telephone, help telephone, GSM telephone, help point, help phone, outdoor emergency telephone, Gaitronics, emergency call point, metal help telephone, camera phone, public telephone, loud speaking phone, bank service telephone, elevator phone, window intercome, LCD telephone, hotline phone, talk a phone, cleanroom telephone, weatherproof phone, SIP phone, voip phone, call point outdoor weatherproof phone, solar energy help phone, tunnel telephone, 2G, 3G telephone, trackside telephone, Vandal Resistant Telephone, sip phone, tunnel phone, metro phone, highway phone, sos phones, sip phones, weather proof telephones, emergency telephones, industrial telephones, VoIP phones, bank telephones, sip telephones,intercom.mines telephone
KNTD-800
نظام الهاتف
NMS-X1 SNMP
نظام إدارة شبكة موحدة
KNEX-1
الهواتف واقية من الانفجار
KNSP-01
الهاتف مانعة لتسرب الماء
Types of protection: II 2G Ex db ib IIB T4 Gb -40℃ to 60℃
VoIP SIP2.0 telephone DTMF dialing MTBF:100000hours
Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)

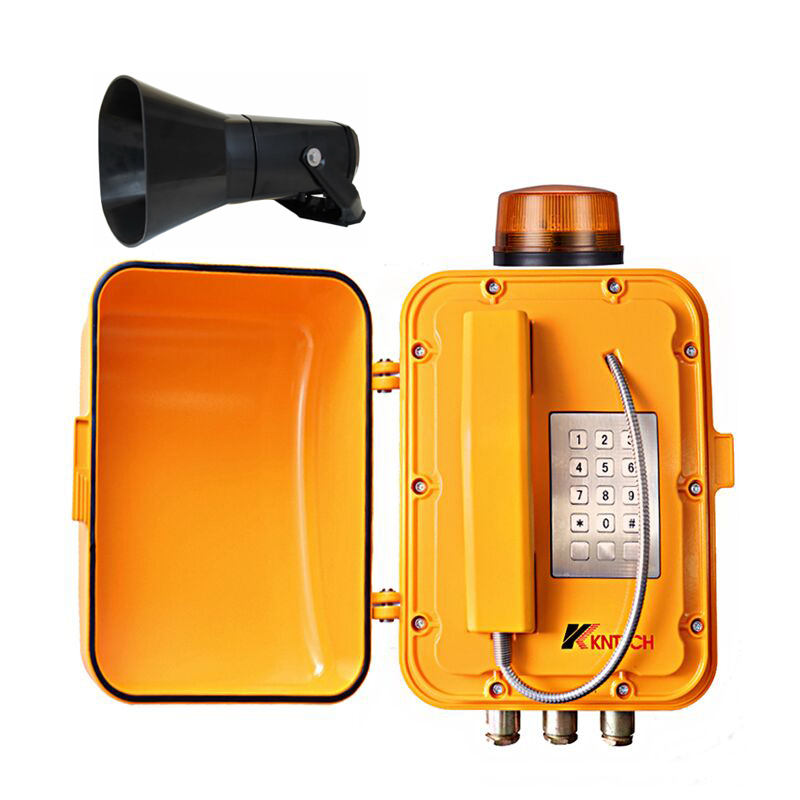

With built-in amplifier and with external speaker 15-30W
With flash light
Power supply: AC220V Power supply
Auxiliary Contacts:1 Aux Output, dry contact
Contact Ratings. Load: Resistive load
Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
Rated carry current:1A
Max.switching voltage:125 VAC,30VDC
Max.switching current:1A
Sound level of ringing:over 120dB(A). speed dialing keypad:Super strong function is available for dialing 3 groups of numbers
stored in the memory
Audio Codes:G.711, G.722, G.729
Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
IP Protocols:IPv4, TCP, UDP, DHCP, SIP
LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access
Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)
Programming:Non-volatile flash memory programming and configuration through Web
GUI
Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring. Echo cancellation code:G.167/G.168
Housing: construction robust aluminium alley die-cast body

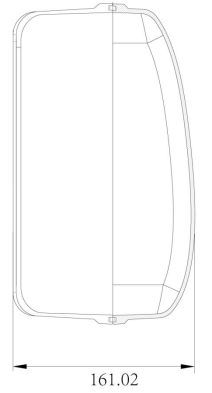

Unit size: 278X349X161MM
Weight: 8kg
Environment conditions:
Ambient temperature: -40℃ to 70℃. Relative humidity:10%~95%
Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)
Degree of protection: IP66 according to EN60529
Impact protection: IK 09 according to EN50102
