telephone waterproof

telephone waterproof

model:KNSP-01T2S
size:320*205*120mm
material:Robust aluminium alloy die-cast body

Analogue-Waterproof-Telephone-KNSP-01T2S(2)
Waterproof-telephones-KNSP-01T2S-VoIP(2)
telephone waterproof description

Telephone waterproof KNSP-01T2S

Telephone waterproof for tunnel purpose made of aluminium alloy material by die casting. The  telephone waterproof is rugged and durable. Special sealing design can ensure complete waterproof grade up to IP66. Waterproof, dustproof and moisture-resistant. The  telephone waterproof widely used in tunnel and outdoor. Most metro and high-speed rail project need install IP66 telephone for emergency communication.
Waterproof telephone for tunnel purpose made of aluminium alloy material by die casting. The waterproof telephone is rugged and durable. Special sealing design can ensure complete waterproof grade up to IP66. Waterproof, dustproof and moisture-resistant. The waterproof telephone widely used in tunnel and outdoor. Most metro and high-speed rail project need install IP66 telephone for emergency communication.  Also expressway and power plant need waterproof phones. marine need moisture-resistant telephones. we also can provide the emergency roadside telephone for outdoor roadside.

 DESCRIPTION ITEM

1. Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware, easy Installation.

2. Waterproof rating IP66 dust proof.

3. Full keypad with memory, 10 button programmable speed-dial telephone.

4. Door cover: orient automatically and good self - closing, convenient for use.

5. Weather resistant to IP66 standard, service temperature range from -30 degree to +75 degree.

6. Magnetic reed hook-switch.

7. Lightening protection to ITU-T recommendation K.21.

8. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.

9. Handset with industrial strong curly cord .

10. Silicon keypad keep waterproof and dusty proof.

11. Phone integrity wiring to enable the telephone system to check if the telephone unit is still

Operational.(if PABX have this available we can provide this function).

12. Optional 7 minute time out to release the line if the handset is left off hook. This function

upon buyer’s requirement).

13. Powder coated in UV stabilized polyester finish.

14. The housing covered with a layer of reflective label for easy identification at night.Optional

15. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc. 、


 INSTALLATION

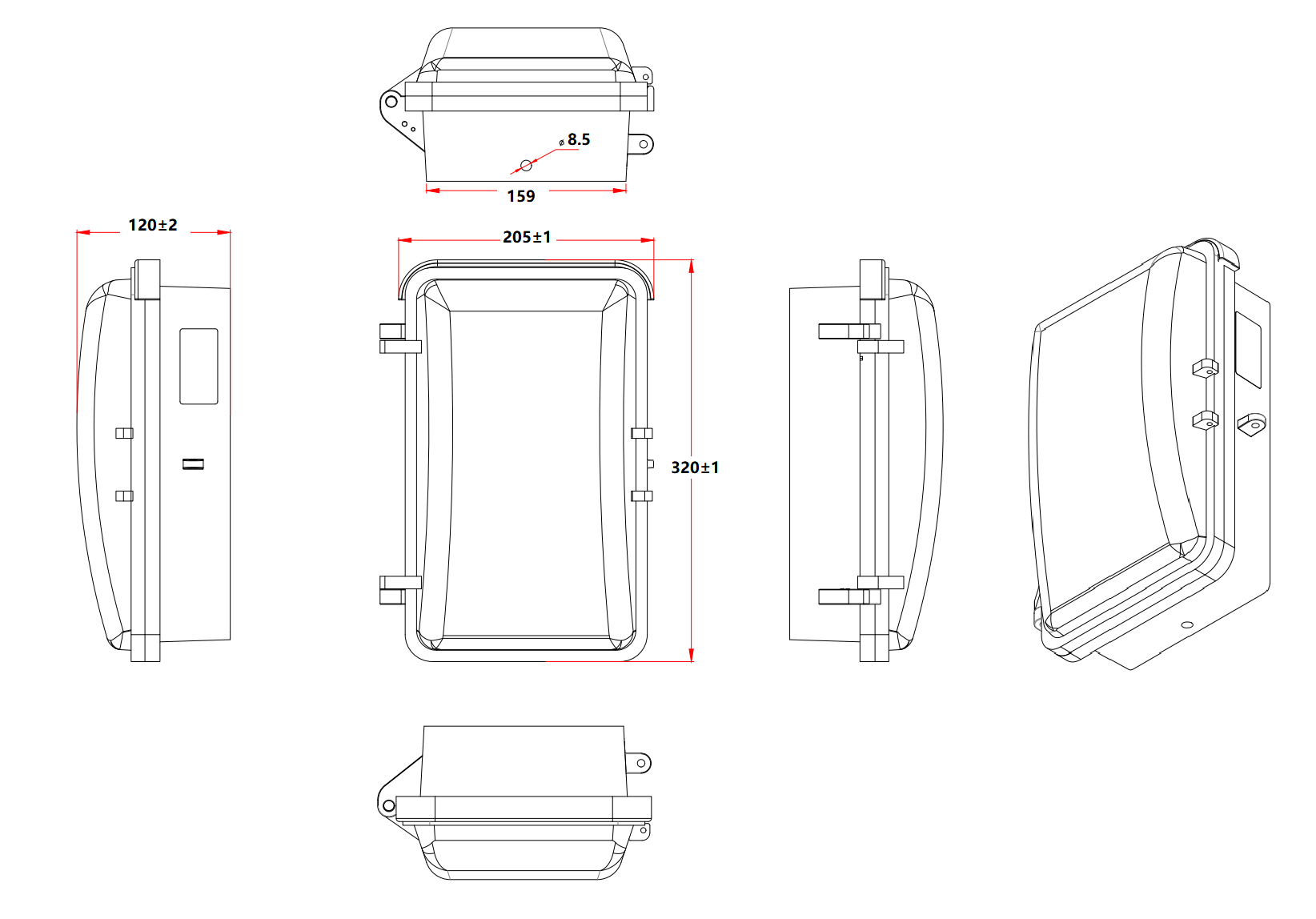

telephone waterproof how to installtelephone waterproof size
Rigorous Testing Quality Assurance
waterproof telephone test

 CERTIFICATION

RCM: AS/NZS CISPR 32       Australian communications:AS/CA S004

Australian Equipment-safety: AS/NZS 60950.1:2015

EMC: EN50121(Railway application-Electromagnetic Compatibility)

weatherproof telephone certificate


 PACKAGING


telephone waterproof box and accessories

Unit size:320 *205*120mm   Unit: N.W:5.3KG

1pcs packing box size: 439 *277 *191mm Unit: N.W:5.3KG    Unit G.W:7KG

6pcs in 1 outer Carton box: size: 730*390*340mm  N.W:31.8KG  G.W:34KG





==>>>> Product Specification

 SPECIFICATION - Analogue(Model NO.SP0010012)

1. PSTN analogue telephone                                          2. DTMF dialing

3. MTBF:100000hours                                                    4. MTTR: 2 hours

5. Connection: RJ11 screw terminal pair cable               6. Sound level of ringing:over 70dB(A).

7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM

8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.

9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected

10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)

11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%

12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

how to connect the analogue telephone

 SPECIFICATION - VoIP(Model NO.SP0010032)

1. VoIP SIP2.0 telephone                                              2. DTMF dialing

3. MTBF100000hours                                                   4. MTTR: 2 hours

5. Auxiliary Contacts:1 Aux Output, dry contact            6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC

7. Contact Ratings. Load: Resistive load                      8. Echo cancellation code:G.167/G.168

9. Rated carry current:1A                                             10. Max.switching current:1A

11. Max.switching voltage:125 VAC,60VDC                 12. Audio Codes:G.711, G.722, G.729

13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP

14. Free dial (maximum length of each number is 16 digits)

15. Communication: Full duplex 2-way hands-free communication

16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)

17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better

18. Power:Power over Ethernet, IEEE802.3af, Class 0  Local power, 12VDc,Idle 2W, Max 10W

19. Programming:Non-volatile flash memory programming and configuration through Web GUI

20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED

21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)

how to connect the voip telephone


==>>>>Telephone System

Telephone telephone for high speed railway tunnel

In the waterproof communication telephone using the tunnel communication dispatching system, the telephone waterproof is used to solve the problem that the telephone cannot communicate due to humidity, the telephone signal is poor, and it is easy to be broken.

waterproof outdoor telephone system

==>>>>Product Application

Telephone waterproof application

Telephone waterproof pipe gallery

telephone waterproof pipe gallery

telephone waterproof actual installation diagram

telephone waterproof actual installation diagram

telephone waterproof by the railway

telephone waterproof by the railway telephone waterproof by the railway weatherproof telephone in the production line weatherproof telephone in the production line
weatherproof telephone in the production line weatherproof telephone in the production line

==>>>>Product Detailed Pictures

Telephone waterproof multi angle schematic (Front view, side view, open cover, close cover)

telephone waterproof multi angle schematic

==>>>>Product Video

Telephone waterproof is undergoing industrial waterproof test

The telephone waterproof is shocked 360 degrees under the high pressure water gun and soaked in water for 30 minutes.


==>>>>Please Email US marketing@koontech.com

This product model:KNSP-01T2S

*
*
*
*


kuqi-marchr 21, 2019-India

I purchased some industrial waterproof telephones and installed them in the tunnel for emergency communication, which fully meet the use requirements.
