Emergency Call Box

Emergency Call Box

model:G2000
size:
material:

emergency-call-box
Emergency call box are often used at outdoor emergency points. This is an energy-saving and convenient emergency call. The emergency call box is out of doors|an outside|an out of doors column that's specially designed to address outdoor weather and supply protection for installation.
emergency call box

Emergency Call Box G2000

       emergency call box , fully meet the needs of today's society on the phone market fast, convenient, intuitive, multi-functional needs. The emergency telephone box is suitable for the emergency assistance system based on IP technology.Using solar energy as energy, the battery can ensure emergency long-term stable power supply.The Most Professional Solar Powered Telephone Manufacture in Asia! The emergency call box can use as the emergency roadside telephone.

The emergency call box can do?

This emergency call box is an emergency telephone for outdoor use. The outdoor emergency phone is powered by solar energy. With the one-touch speed dial function, the speed dial button can be connected to the alarm phone 911 or the duty room. Column-style exterior production, can be placed in the highway, near the apartment, university campus and other places as an emergency call.

Emergency call Box and telephone

The call Box options a durable stainless-steel housing with a elastic device front panel guarding the controls.Quick to put in, straight forward to take care of and area unit designed to without delay adapt to ever-changing technology advancements, that extends their life and enhances their capabilities.
We offer a large vary of information processing, analog and wireless emergency call boxes which will be placed publicly to supply secure instant electronic messaging. Designed for each out of doors and Indoor use these rugged designed call boxes will mechanically dial 911 , Police, department of local government, Security or facilitate with the push of one button. options embrace ADA Compliant with Braille Label and “Call Connected” LED These safety precautions decision boxes will facilitate forestall dangerous or emergency encounters.
Our emergency phones and call boxes area unit designed to supply 2 means communications and increase safety publicly areas, each within and outdoors. they're sturdy and designed for simple, fast hands-free communication. Ideal for Campuses, Parking heaps, space of Refuge, gas stations yet as police and hearth departments.


What is a call box number?

The emergency call box is a communication tool specially installed outdoors or in public. In the event of an emergency, you can use the emergency call box for help.

What is police call box?

The guard post is a police column specially set up by the police. When an accident occurs, the visitor asks the police for help.

What are blue light emergency phones?

An emergency phone box with a blue warning light, installed outdoors, blue light has a deterrent effect on criminals, and a blue emergency phone can quickly seek help from the police.

Primary advantages of Emergency call Box:

Safety – Emergency decision Boxes promote safety by visual prevention: if you ever feel vulnerable, you proceed to the closest Emergency decision Box station for immediate facilitate.
Easy –to-use Hassle-free operations with hands-free career.

VOIP platform renders a decent quality of service.

Video pictures and live website map facilitate in pinpointing actual location and downside

Calls will be routed on to a hospital, fire-brigade or police for help.

Ethernet and fiber optic property choices enhance the lustiness of the system

Box Features:

One button triggers a direct response from the 24/7/365 Public Safety command center
A scientific light flashes once emergency button is pushed
A blue light-weight at the highest of the box illuminates the encircling space
Two-way communication permits our public safety officer to talk directly with you
Hard-wiring to the communications system ensures a secure link to our command center

You should push the emergency button:

If you are feeling unsafe on field.
If you are feeling your safety is being vulnerable.
If you are feeling as if you are being followed.
If you are experiencing Associate in Nursing emergency.
If your phone has died Associate in Nursingd you have got an emergency.

What will happen after you use it:

The emergency decision box scientific instrument can flash, additional illuminating the world.
Automatic dialing to the duty space or 911, utterly set by yourself.

Why use a KNTECH Emergency decision Box?

Often, Emergency decision Box stations area unit neglected and not tested frequently. we will install our self-developed self-test system for the phone and mechanically alarm the phone.

Emergency phone boxes area unit typically employed in blue light systems

End-to-end Solution:
All the emergency call boxes area unit connected to a central server through  underground network of Ethernet/fibre cables. Operators can manage and control all call boxes through an operator console with ip pbx software based on the ip pbx server.Emergency call Box System is Associate in Nursing end-to-end answer for road-side help just in case of emergency events. it's a strong communication system that contains of phonephone boxes put in at the road and connected to an emergency centre for swift emergency response.The blue light system and installation offer reliable communications and improve public safety on freeways, bridges, tunnels, parking heaps, campuses, industrial complexes, and on remote roadways, parks and recreational areas. A reliable emergency phone box is important to stay your personal safety outdoors.
 Features:
    1.  Matell body, solid and temperature bearable
    2.  Handset free, loudspeaker,
    3.  Heavy duty Vandal resistant buttons.
    4.  With or without keypad optional
    5.  Lightning protection standard to ITU-T K21
    6.  Waterproof grade about IP66
    7.  Body with grounding connection protection
    8.  Support hotline call, self stop if the other side hang up.
    9.  Built-in loud speaker, noise canceling microphone
    10. AC 110v/220v powered or built-in rechargeable battery with solar powered panel optional
    11. The design is super thin and smart. Embed style and hanging style can be chosen.
    12. Time out function optional
    13. Colours: RED + Stainless steel , If the qty over 100pcs can be To customer specification
Applications:
     As Public telephone for outdoor, Taxi or bus stands or station, Highway call box. Railway, Port, Dock, Generation facilities….A good ideal telephone for use in wet or corrosive atmospheres


Telephone layout
Sos telephone  with the solar panels
Solar panel over 600mm high
Certification:

EMC: EN50121 (Railway application- Electromagnetic Compatibility)
      EN55022: emissions
      EN55024: immunity
Ingress Protection: GB4208-93 IP66
FCC
ITU-T Recommendations K21


PACKAGING


Telephone Unit size: 2200*310*255mm Unit Net weight: 90kg
2pcs in a wooden box CTN box, size: 35X80X255   G.W: 186kg
20GP: 88PCS  40GP: 176PCS  40HQ: 205PCS

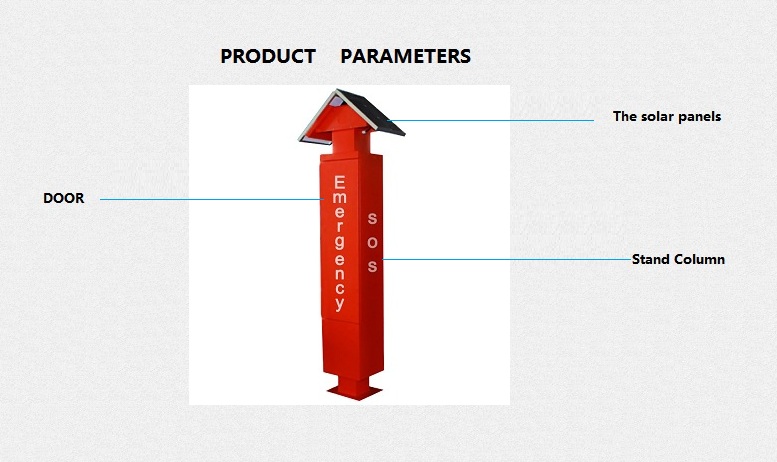

==>>>> Product Specification
Specification:
Ringing: Through internal Speaker/ringer
Power Supply: Re-chargeable Battery powered: 11.1V/14Ah, Solar back-up: 12V/30W
Time out: selectable 0-20 minutes
Temperature: -20℃~ +60℃emp
Relative Humidity: up to 90%
Built-in battery Standby: 3 days
Built-in battery talking time: 18 hours
Auxiliary Contacts:1 Aux Output, dry contact
Contact Ratings. Load:
Resistive load
Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
Rated carry current:1A Audio Codes:G.711, G.722, G.729 Network:10/100 BaseTX
Ethernet, RJ45 connectors, Cat5e or better
IP Protocols:IPv4, TCP, UDP, DHCP, SIP
LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access
Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)
Programming:Non-volatile flash memory programming and configuration through Web GUI
Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring.
Echo cancellation code:G.167/G.168
Environment conditions:
Ambient temperature: -40℃ to 70℃. Relative humidity:10%~95%
Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)
Impact protection: IK 09 according to EN50102
IP emergency assistance system is applied to safe city construction
Application description: the active function of the existing video monitoring network in the city is video record. As the basis of post-investigation, this system can be integrated with 110 as a supplement to the video monitoring system in the city to realize real-time image tracking and combined transport alarm function, which makes up for the deficiency of the post-query of the pure monitoring system. To provide convenient assistance and advisory services to the public
Location of installation: parks, communities, key units, enterprises and institutions, schools, roads, bus stations, subways, public security areas, traffic checkpoints, etc
Emergency assistance: when the masses encounter an emergency, the emergency assistance signal can be sent out timely through the help button, and the alarm center can be contacted through visual intercom
Alarm linkage: video monitoring network linkage can be started by the monitoring center to monitor and track the vicinity of the accident site and a wider range
Advisory services: provide road guidance and information advisory services
IP emergency assistance system is used in prison intercom
Application instructions:
Video monitoring system in the prison and detention room is unable to actively send information to the discipline personnel when prisoners encounter sudden diseases, fights and other situations. As a supplementary equipment for video monitoring, this system can better protect the legitimate rights and interests of prisoners and provide convenience for prisoners to request reports.
Location of installation: warehouse, brig, corridor, etc
Emergency assistance: when prisoners or patrol personnel find an emergency, press the help button to directly contact the alarm center
Monitoring function: it is used to monitor the dynamics of the warehouse and provide active alarm function under abnormal circumstances such as excessive noise
Abnormal report: an alarm button is installed at the head of each prisoner's bed, which can send a hidden alarm to the alarm center in case of emergency
Main functions:
Warning lights display for public identification; One key for help, simple operation; Consultation button, close police and civilian relations; Visual intercom communication, smooth communication; High output power, suitable for outdoor complex acoustic environment; Broadcasting notification and propaganda functions; Explosion-proof design, in case of malicious damage, automatic alarm.

==>>>>Telephone System

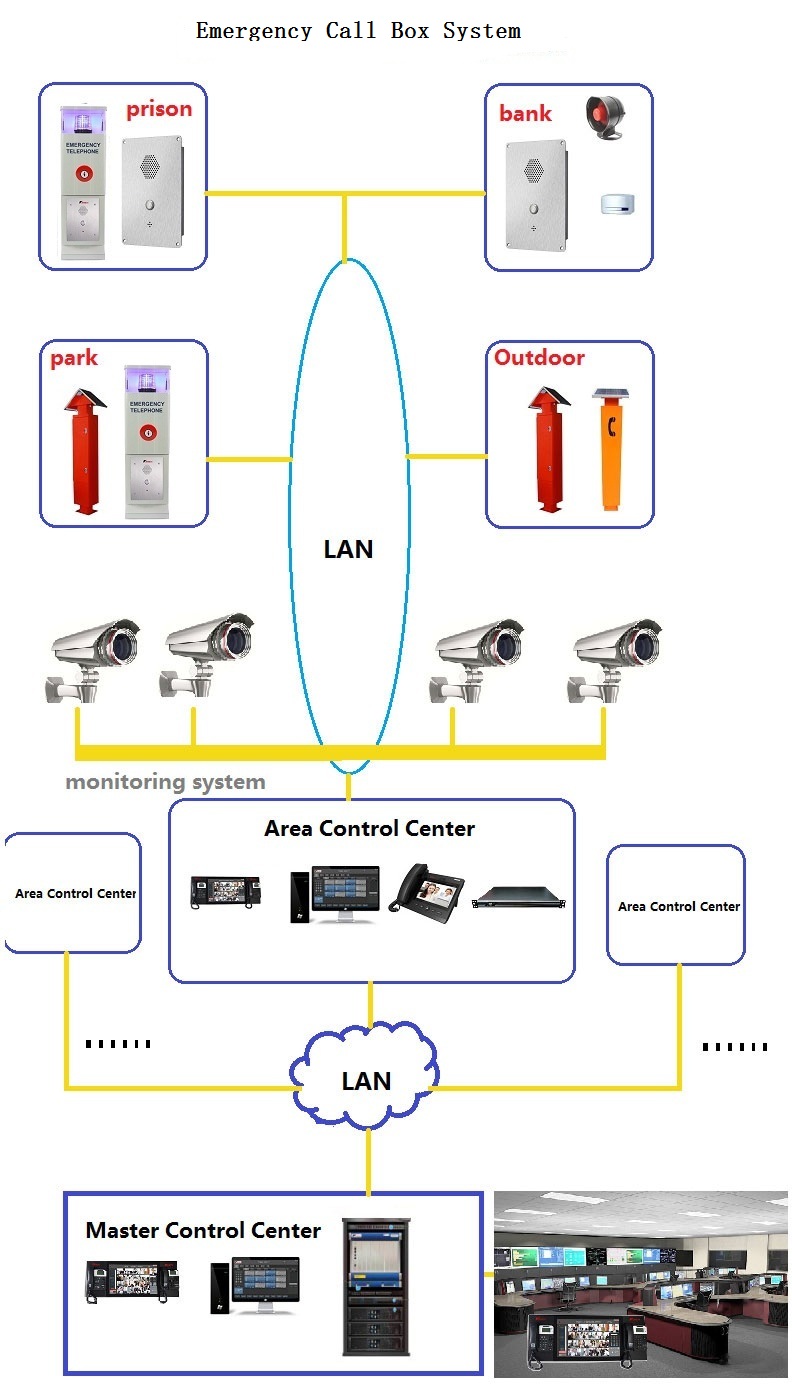

Emergency call box system

The emergency call box is used outdoors, in parks, etc. The main role is to help outdoor rescue.

Emergency call box system

==>>>>Product Application

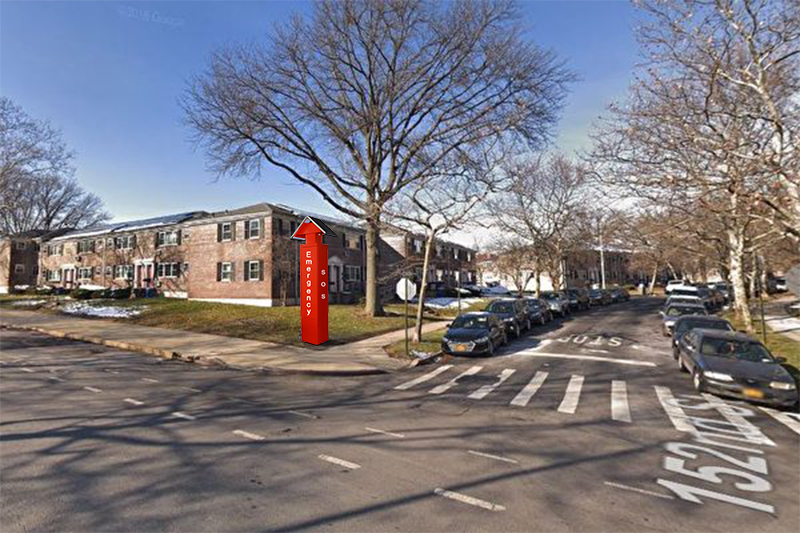

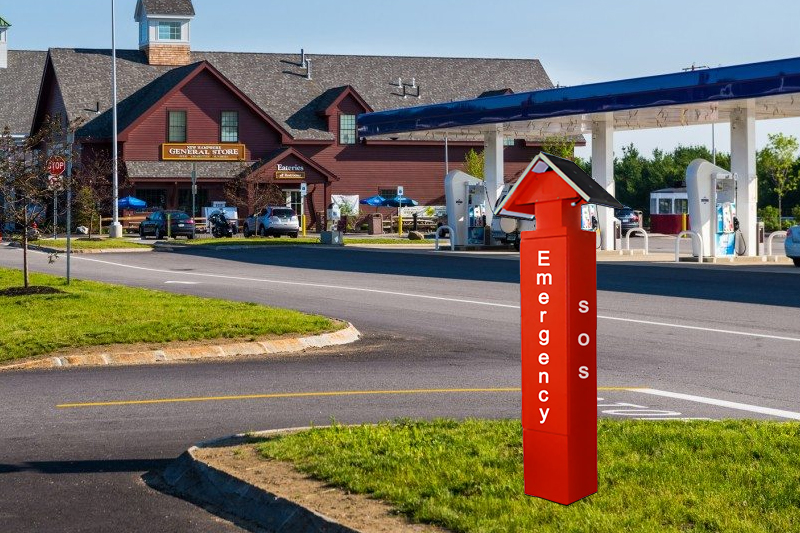

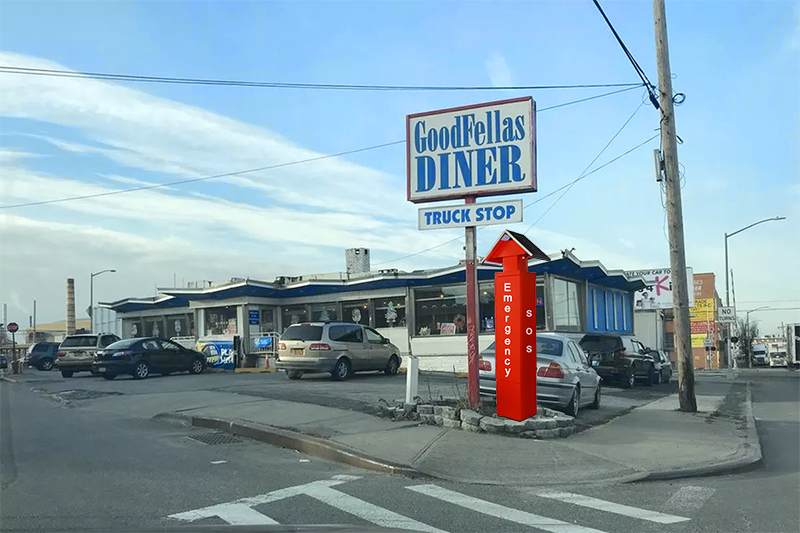

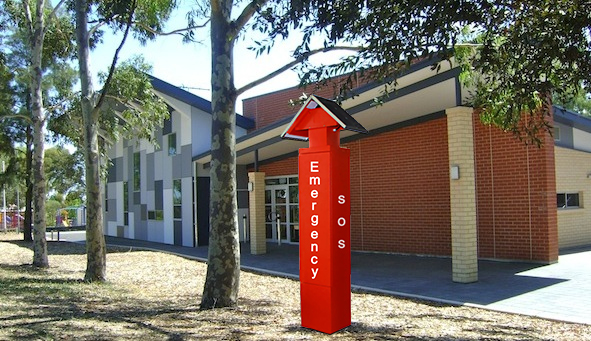

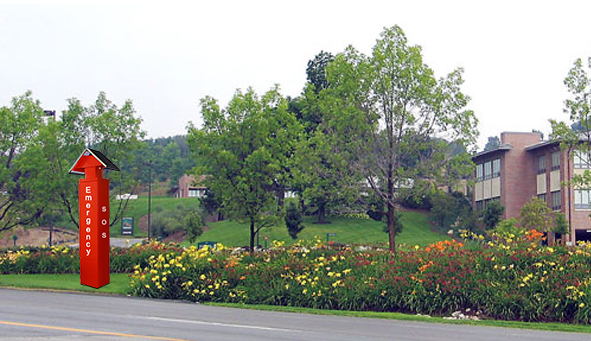

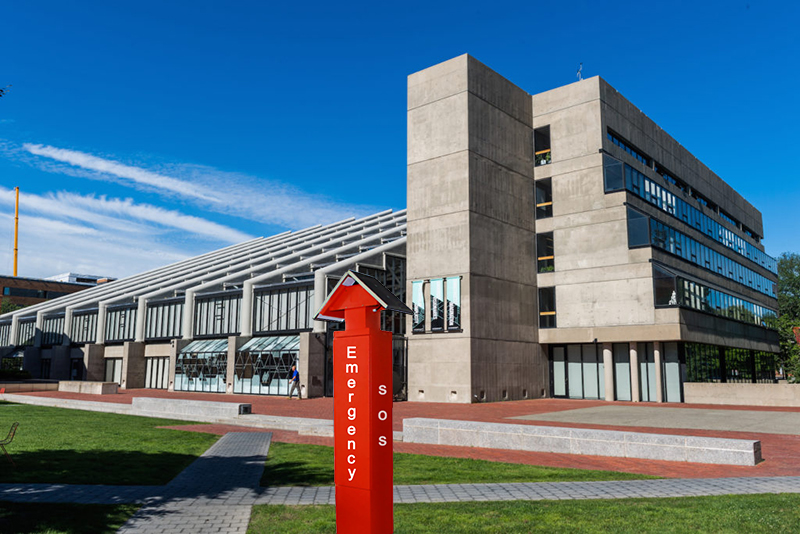

Emergency Call Box Application

Emergency call boxes are used in communities, parks, roadsides, parking lots, etc.

emergency call boxemergency call box

emergency call boxemergency call box

emergency call boxemergency call box


==>>>>Product Detailed Pictures

emergency call box


==>>>>Product Video
