Lift car intercom system

Lift car intercom system

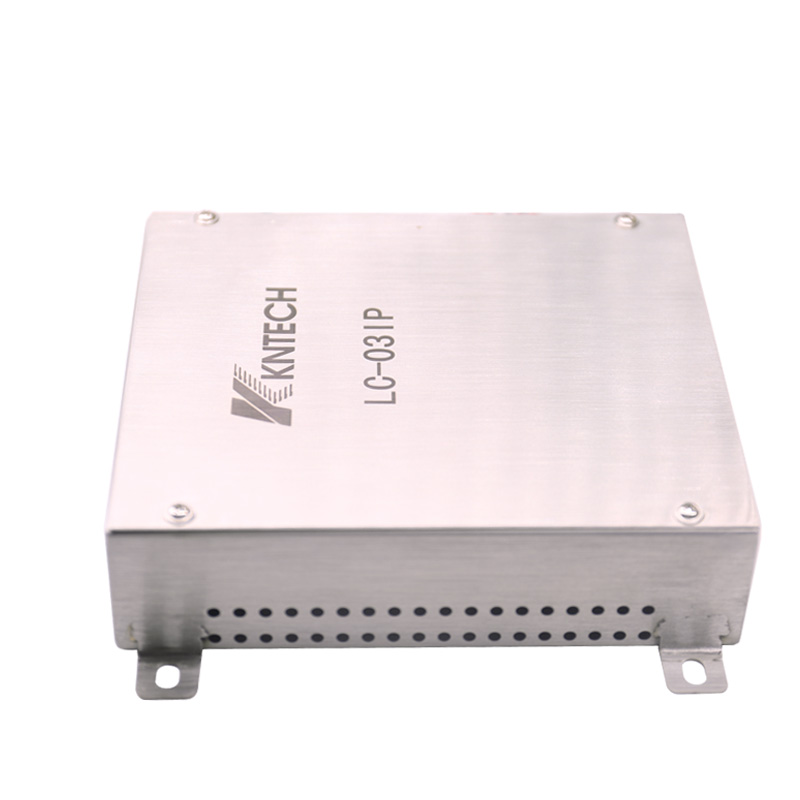

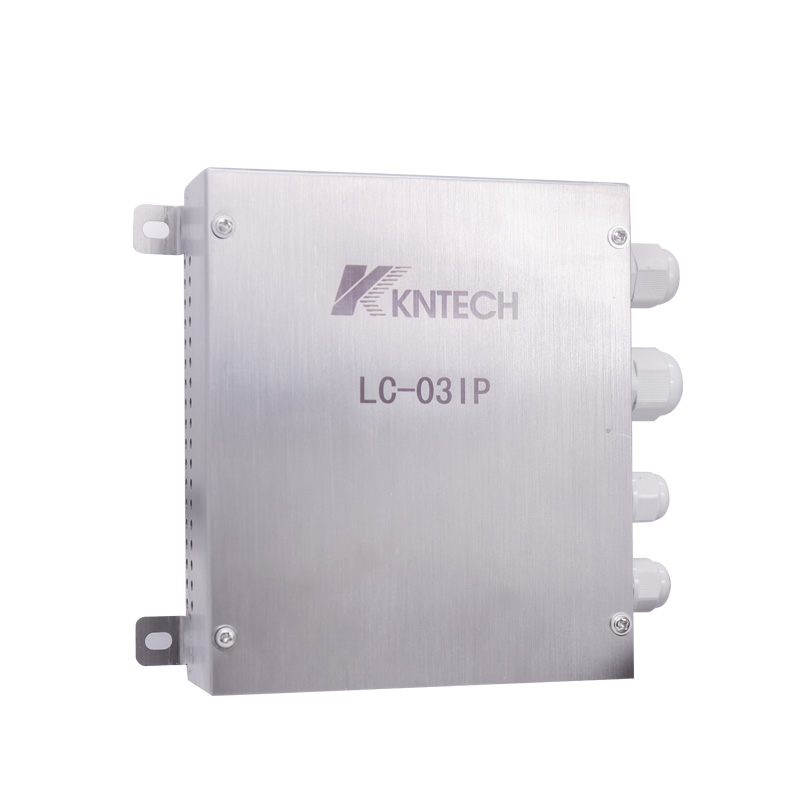

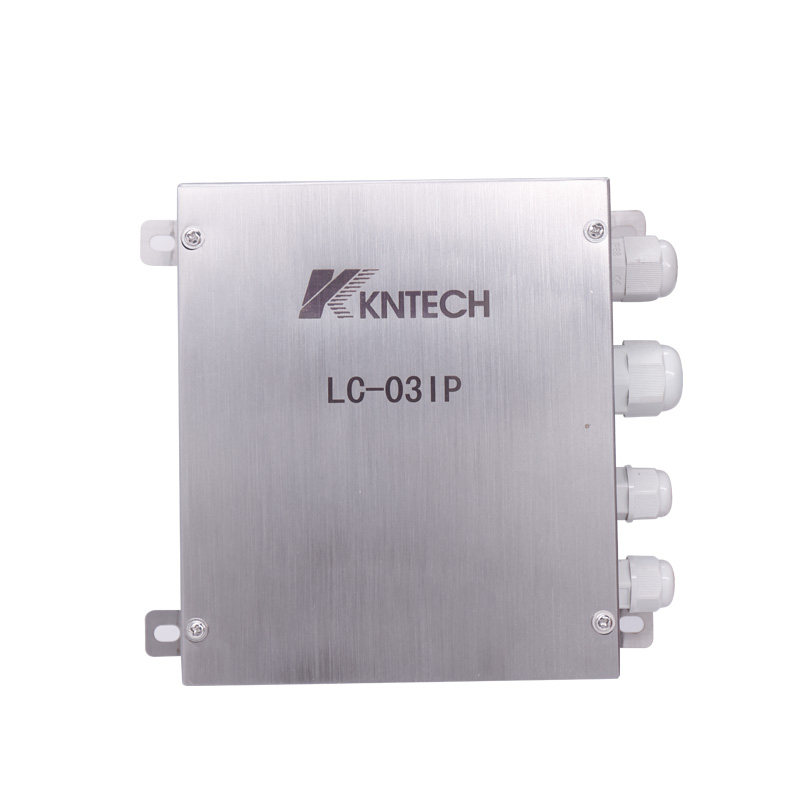

LC-03 Intercom lift car
  • Features
  • Specification
  • System
  • Application
  • Detailed picture
  • video

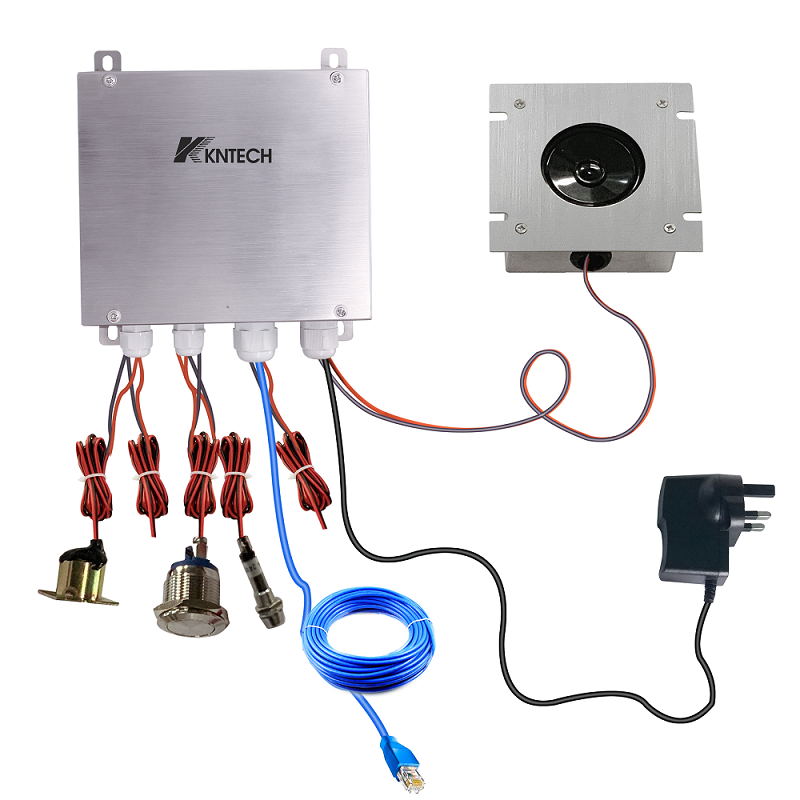

Lift car intercom system
Lift car intercom system
        This intercom system for lift car is designed to provide a direct communication between passengers seeking help and the station controller.  Its hands-free intercom system. The lift unit is connected to a PABX analogue interface and is powered by the PABX.
Main Product features
     1.  With 2 call buttons with memory.  One for master button and the other one for slave button
     2.  with built-in 12 buttons keypad for store preset numbers.
     3.  with 1 call status LED,waiting to answer: light on, conversation: flashing. Finish conversation: dark
     4.  Hands-free communication
     5.  Auto-answer
     6.  the phone will release the line when other side hang up.
     7.  Lightening protection to ITU-T recommendation K.21
     8.  Analogue interface to PABX using 2 wire operation
     9.  Adjustable ringer and volume control.
     10.  Dry contact.During Conversation: dry contact close.  Finish conversation: dry contact open.
     11.  12V DC power supply

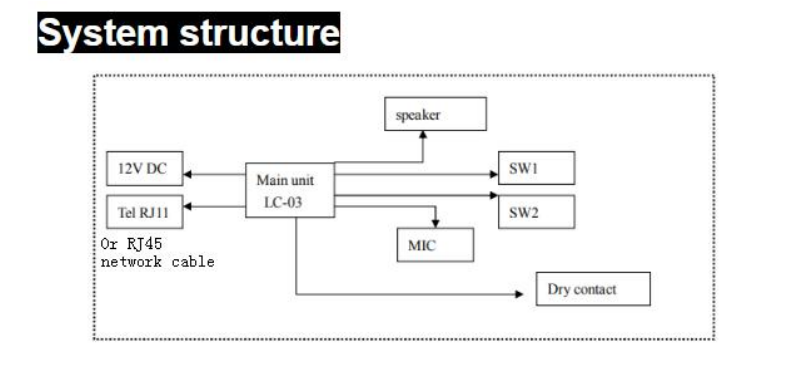

System structure
Lift car intercom system
     EMC: EN50121 (Railway application- Electromagnetic Compatibility)
          EN55022: emissions
          EN55024: immunity
     Ingress Protection: GB4208-93 IP66
     ITU-T Recommendations K21
Packaging specifications

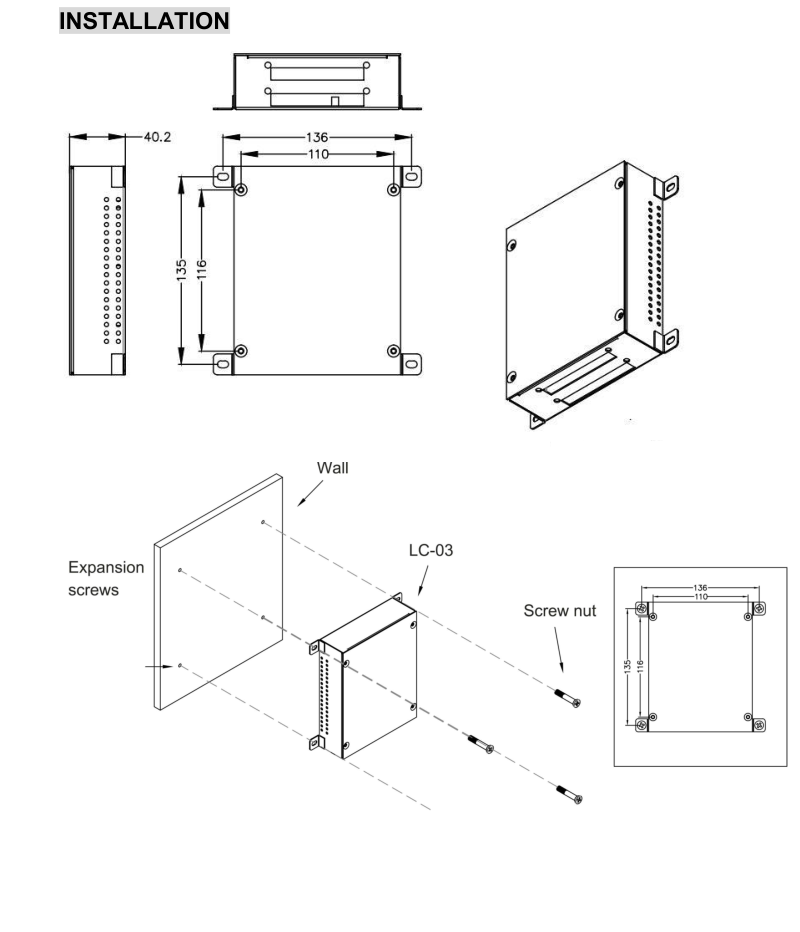

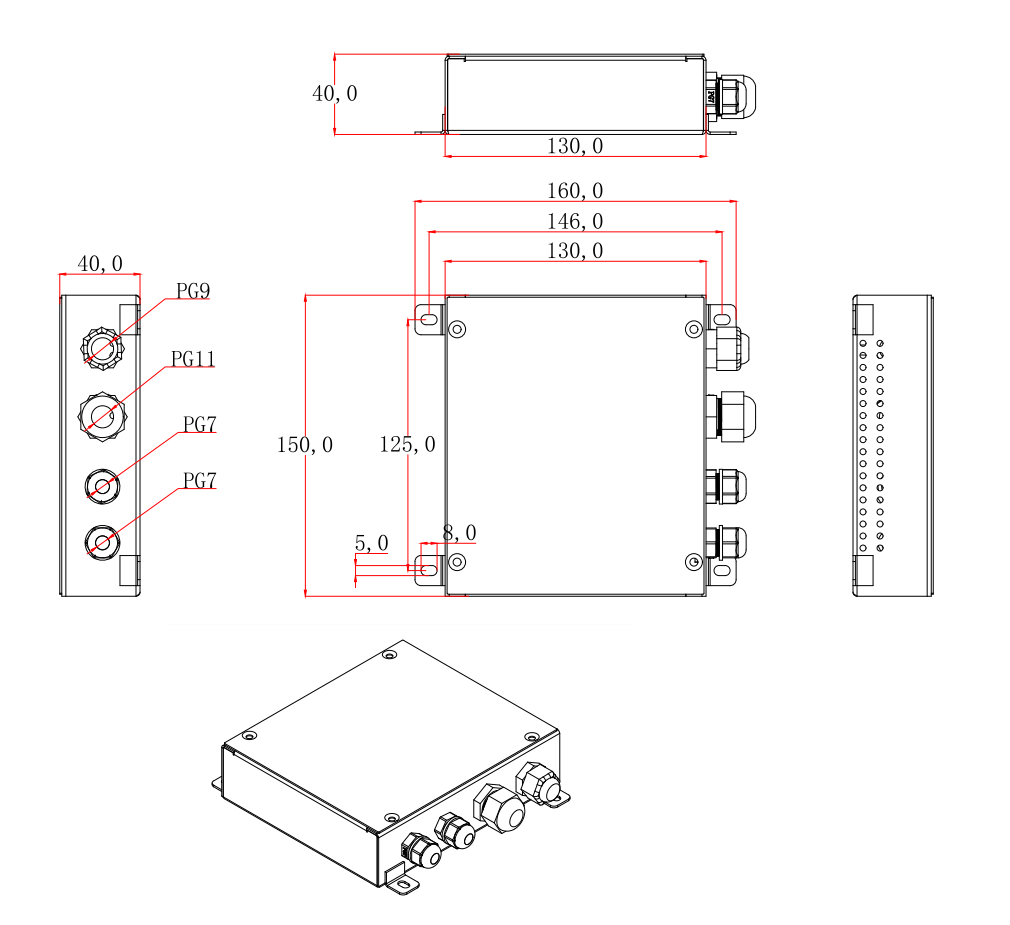

    Unit size: main unit: 186x160x200mm , speaker: 120x110x45mm, microphone: 50x50x50
    1pcs in each inner CTN box, size: 43.3 x 27.6 x 19.1 G.W: 5kg
    4pcs in outer CTN box, size: 56.6 x 44.5 x42 G.W: 17kg
