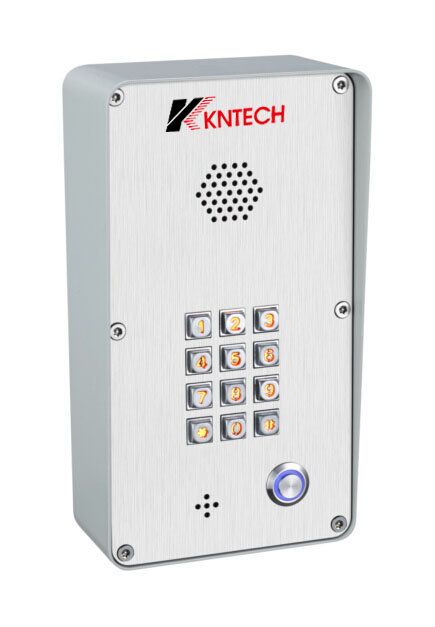

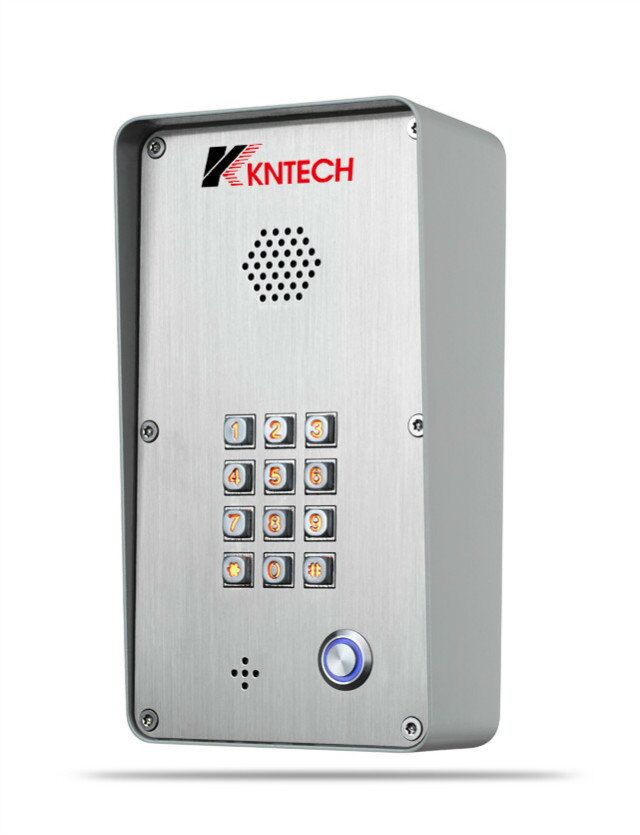

KNZD-43 SIP door phone
We are the manufacturer of Smart sip door phone video intercom system waterproof telephone emergency telephone with illuminated button for villa and apartment,most details can be customized.
The IP Intercom/door phone will be designed to work on apartment, hospital, school, metro…Housed in robust metal body, vandal resistant and tamper-resistant. FDSP ensure voice loud and clear. Good looking, durable, easy to install, comfortable buttons, and low power consumption.
Support G.711,G.729, etc.
Support SIP 2.0(RFC3261) and related RFC protocolCodec
Unlock function (swipe or communication)
Visitor leave message
Calling indoor extension for two-way conversation
Software upgrading on line
WEB remote management of Terminal malfunction or status
|Communication protocol||SIP 2.0(RFC-3261)|
|Master Chip||Broadcom 1190|
|Voice stream||Supportable Protocol||RTP/RTSP|
|Port||Power Supply||12V+-15%/1A DC or PoE|
|PoE||PoE 802.3af (Class 0 - 12.95W) 48V/380mA|
|LAN||10/100BASE-TX s Auto-MDIX, RJ-45）|
|Cables||HSYV or better|
|Passive Switch||Normally Open and Normally Closed highest at 30V/1A AC/DC|
|Active Switched Output||12V/500mA DC|
|Interface||Power supply||12V+-15%/1A DC or PoE|
|PoE||PoE 802.3af(Class 0-12.95W)|
|LAN||10/100BASE-TX s Auto-MDIX,RJ-45|
|Recommended cabling||Cat-5e or higher|
|Passiveswetch||NO and NC contacts,up to 30V/1A AC/DC|
|Actice switch output||12V/700mA DC|
|Structure||Shell Material||Cold Rolled Steel|
|Operating Temperature||-40 C to55 C|
| Working Condition
|Storage Temperature||-40 C to70 C|
|Installation||Embedded installation (pre-burying)|
Web Business Management
IP door phone
intercoms for every situation-whether in security, business,emergency,or any other special area.From providing simple applications requiring a clear and easy connection to a single IP telephone, to comprehensive communication arrangemens integrated into security and signalling system and IP PBXs.Having the highest quality and certification, ensures compatibility with industry-standard-based IP network solutions such Avaya,Cisco,and others.
