Ip intercom

Ip intercom

model:KNZD-60-2IPIL
size:430*260*70
material:Stainless steel


ip-intercom
User-Manual-ZD-Series-IP
This is an ip-based ip intercom for emergency help in public places.The ip intercom is an uninterrupted steel casing that is tamper-resistant and durable, and is often used outdoors.We are a manufacturer that provides an IP phone with a camera that complies with the international standard ip protocol and provides an intercom system solution.
the ip intercom describe

ip Intercom KNZD-60-2IPIL

        IP Intercom is strong and durable, with aluminum alloy wire-drawing technology, delicate and beautiful.Emergency intercom of video is installed with hexagon screws to prevent severe damage and easy installation and maintenance. After installation, all cables can be hidden in the enclosure. Ip intercom  adopts digital audio processing technology to achieve the real full-duplex intercom function with smooth voice and no interruption.Intercom for public is equipped with 3W speaker and microphone, providing hands-free call function, with clear and bright sound; Single key call, easy to operate; In high noise environment, dynamic noise reduction algorithm is used to extract noise clearly.

About video ip Intercoms

Intercom over voip network has become a cheap choice to access video and speech in nearly anyplace round the world. KNTECH leverages advanced voip technologies and sensible product style to optimize signal transmissions over voip networks for delivering the simplest attainable communication expertise on our ip solutions.The ip intercom uses a metal enclosure which will stand up to extreme conditions as well as temperature, vandalism, noisy, dirty and dirty
environments.When it involves home security or work safety,  ip intercom may be a must-buy. Install the voip intercom of your selection outside the door and connect it to the VoIP telephone system. once somebody involves the door, the traveller will push the decision button that notifies an individual at a pc. The management person will talk over with the traveller and build a choice to grant entry or not.

Popular features:

Powerful 1080p video resolution
SIP termination with auto-provisioning capability
Initiates or accepts calls
Intercoms for ip Camera Systems and Door Access management
Camera Integration Image
The intercoms embody decision button and door unleash
Select a model that connects on to associate degree voip camera, to your network, or perhaps your smartphone
Easily integrate with ip door access management systems to supply an entire security system
Integrate with Video Management software system for simple door management and multiplied safety
Select the intercom system which will be used together with your mobile device
straightforward coming up with and installation secure communications
sanctionative parallel conversations
video telephone straightforward to regulate and maintain via net server


we additionally offer the intercom systems

These new intercom systems connect on to the network or integrate with ip cameras. high-powered by Poe, they're terribly straightforward to put in. They additionally open an electrical lock (with extra relay) or the most recent ip door access management readers making an entire door system. The video enabled door access system provides complete management of your atmosphere. whereas guests will be monitored for controlled entry. KNTECH provides a selection of intercom systems, from easy audio units to advanced systems that embody video and advanced Video Management software system.

Intercom Connected to Network

The ip intercom Includes a decision button and a door unleash and attaches on to the network. Includes Poe interface box and ip software system that gives door bell notification, two-way audio and door unleash. The relay is enclosed therefore it will be connected on to the electrical lock. Indoor and outside versions out there. intercom will be answered on your Windows pc victimisation software system application.

Intercom Connected to voip Camera

Intercom with decision button attaches on to a separate voip Camera that supports two-way audio. permits you to look at individuals at the door. Includes interface box for camera and intercom; all high-powered by Poe.

Video intercom Designed to be used with Mobile Devices

Select one or multi-call intercom station that communicates together with your mobile device or VoIP phonephone. The KNTECH makes it terribly straightforward to open a distant door from anyplace. you'll be able to even use your phone device to look at alternative ip cameras.The app on your mobile device will use wireless fidelity network or 3G/4G telephone system to speak with the intercoms.

Unit main features
      1.VOIP Telephone BI-Directional Video telephone Scratch resistant, HD Screen
      2.SIP supports 5 SIP servers SIP 2.0 Support TR069
      3.7" digital TFT-LCD of 1024 x 600 pixels with Visual angle adjustable display screen
      4.sensor camera with 5Mega pixels 2xLAN, PoE, USB
      5.TWO group of speed dial for emergency call. Protection: About IP65
      6.Speaker: 8 ohm 1.5W, loudness 85dB(A) to 65dB(A) MIC’s working distance 80cm
      7.Ring: >95dB. Coverage 1.5m radius
      8.The call button is flash when ring, lighting during a call, off when standby.
      9.With induction loop coverage 1M radius. Metal body
      10Braille words for disable.
      11.HD voice with high quality headset/HD voice in speakerphone mode
Camera Specification
      1.Array size::2592 x 1944                                2.Lens size: 1/4”
      3.Lens chief ray angle: 24                               4.Input clock frequency: 6~27 MHz
      5.Maximum Image transfer rate:                     6.QSXGA (2592 X 1944): 15fps
      7.720P                                                             8.Sensitivity: 600 mV/lux-sec
      9.Shutter: rolling shutter/frame exposure       10.Maximum exposure interval: 1964 xTROW
      11.Pixel size: 1.4 um X 1.4 um                       12.Dark Current: 8 mV/s @ 60℃ junction temperature
      13.Image area:3673.6 um X 2738.4 um         14.viewing angle: 187°
 INSTALLATION

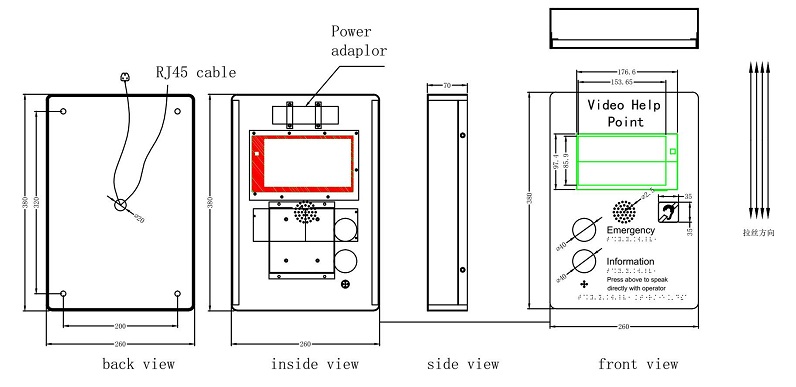

ip intercom design
 CERTIFICATION
      EN55022: emissions   EN55024: immunity
      Ingress Protection: GB4208-93 IP66 FCC
      ITU-T Recommendations K21
      EMC: EN50121(Railway application-Electromagnetic Compatibility)
ip intercom certificate

PACKAGING

ip intercom packing

Unit size:430*260*70mm   Unit: N.W:4.25kg



You May Like:

ip intercom Related Products

KNZD-37

SIP video telephone

ip intercom Related Products

NMS-X1 SNMP

Unified network management system

ip intercom Related Products

KNZD-60M

Video Intercom System

ip intercom Related Products

KNZD-10

Jail telephone




==>>>> Product Specification

 SPECIFICATION
      VoIP SIP2.0 telephone        DTMF dialing
      MTBF:100000hours             MTTR: 2 hours
      Hotline (maximum length of each number is 16 digits)
      Communication: Full duplex 2-way hands-free communication
      Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
      Power:Power over Ethernet, IEEE802.3af, Class 0  Local power, 12VDC,Idle 2W, Max 10W
      Auxiliary Contacts:1 Aux Output, dry contact
      Contact Ratings. Load: Resistive load
      Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
      Rated carry current:1A
      Max.switching voltage:125 VAC,60VDC
      Max.switching current:1A
      Audio Codes:G.711, G.722, G.729
      Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
      IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
      LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)
      Programming:Non-volatile flash memory programming and configuration through Web GUI
      Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
      Echo cancellation code:G.167/G.168


==>>>>Telephone System

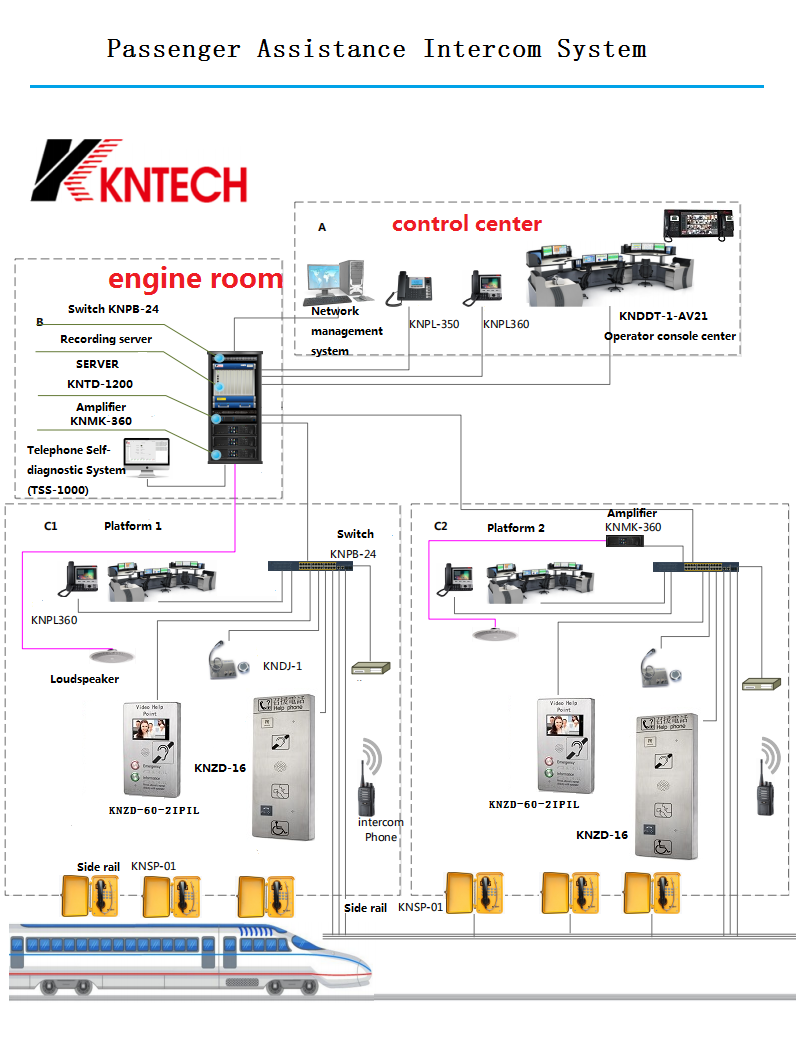

IP Intercom use in metro emergency communication system

The ip intercom uses the ip pbx server to form the entire metro emergency communication system. The entire intercom system uses a 300-door ip pbx server, which uses a operator console and some desktop ip phones to form the entire dispatch system. The entire system uses an ip network and uses a network switch for signal transmission. The terminal adopts ip intercom and sip intercom. The whole system uses self-developed self-test system, and the dispatching software manages the entire dispatching software. How to use it, you can also use the unified network management system to connect with other systems, and the network management system dispatches all the systems of the subway.

The Systems Diagram

These intercoms connect with the network. They interface with ip cameras and VOIP phonephone. Most intercoms square measure high-powered over LAN (PoE), and square measure managementled with intercom software system or Video Management software system that offer straightforward door control similarly as recording.

How do ip intercom systems work?

The entire ip intercom system is running and uses the voip network for transmission. The ip two-way video intercom is used in the terminal to perform two-way video full-duplex communication. The video stream can be simultaneously transmitted to the storage server while the video communication is in progress. In the control center of the intercom system, you can control the outgoing and incoming control of the ip intercom.

 DESCRIPTION ITEM
ip intercom use in subway ip pbx intercom system

==>>>>Product Application

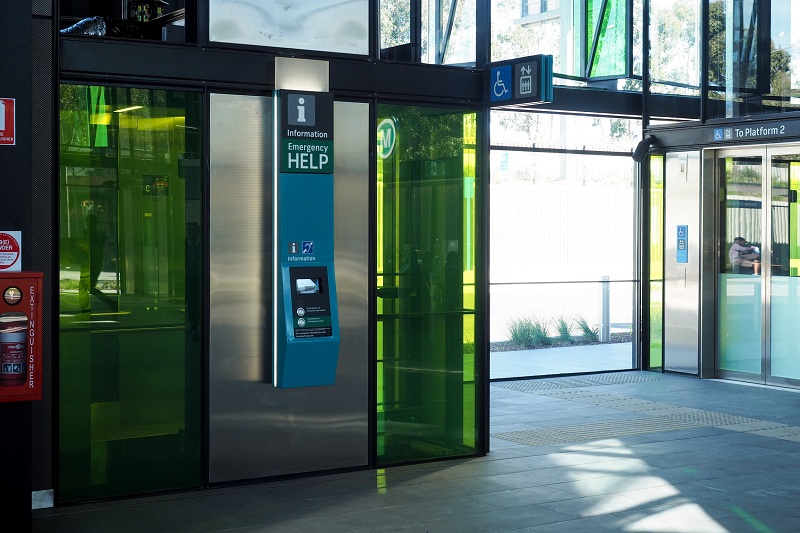

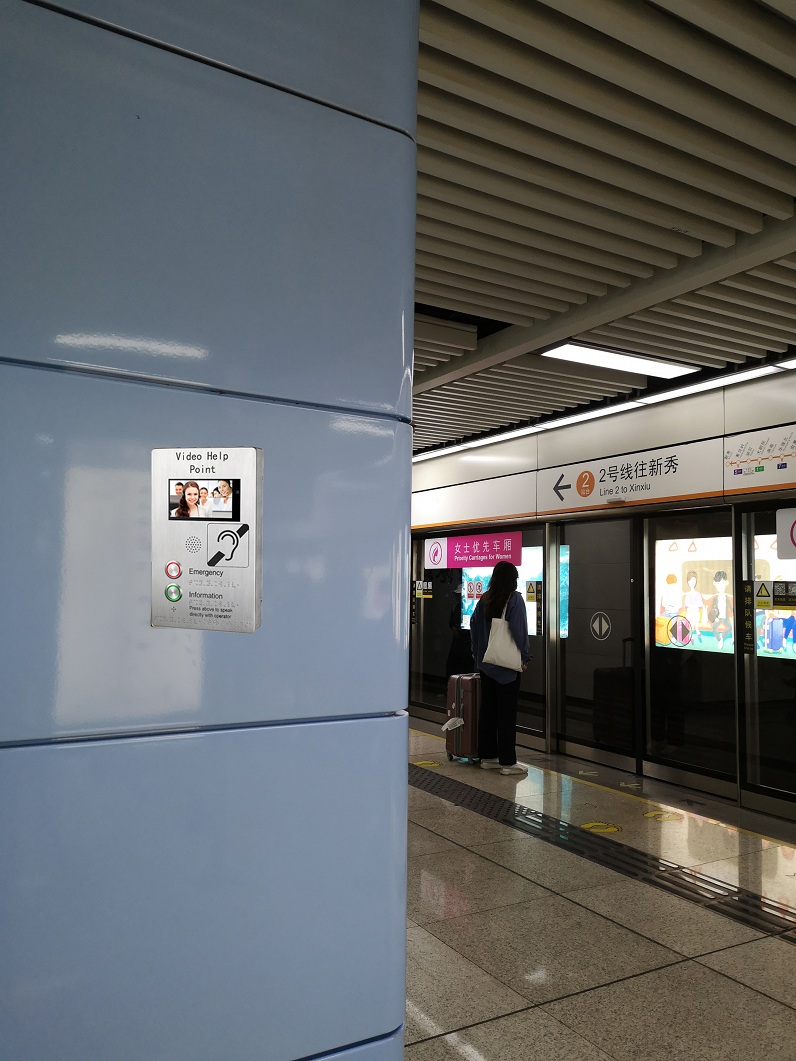

Ip intercom as a emergency intercom uses in subway


ip intercom application subway ip intercom application subway ip intercom application subway ip intercom application subway ip intercom application subway

==>>>>Product Detailed Pictures

IP intercom front view

the ip intercom front view

==>>>>Product Video
