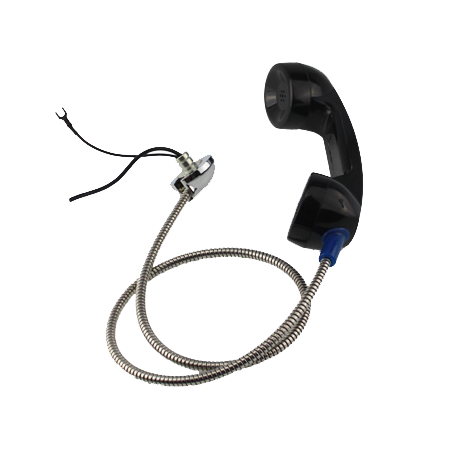

Armoured Squared Handset T1

Armoured Squared Handset T1

Product model:T1
size:230*55*55mm
material:PC/ABS

T1 handset specification
Content
  • Features
  • Specification
  • Accessories
  • Application
  • Detailed picture
  • video

1. Material: PC/ABS  Size: 230*55*55mm  Armoured cable: 70cm
2. With good anti-strike and anti-climate character
3. Outstanding brand Transmitter and Receiver used (can be designated )
4. The sprial hose is made of SUS 302, it has strong flexibility,good softness and anti-pull characters
5. Steel cable: two ends are specially welded; can hold a heavy over 170Kg
6. Conducting wire is made fo Teflon which can endure high temperature and also with good fireproof and abrasion resisting performance
7. Insulation: DC >500V

8. Waterproof membrane attached to the microphone and receiver

Remark: when the order over 5000 pcs. Parts(sprial hose, cord, handset, conducting line) can be customized, and charge no handset model fees if the order need to change the handset model

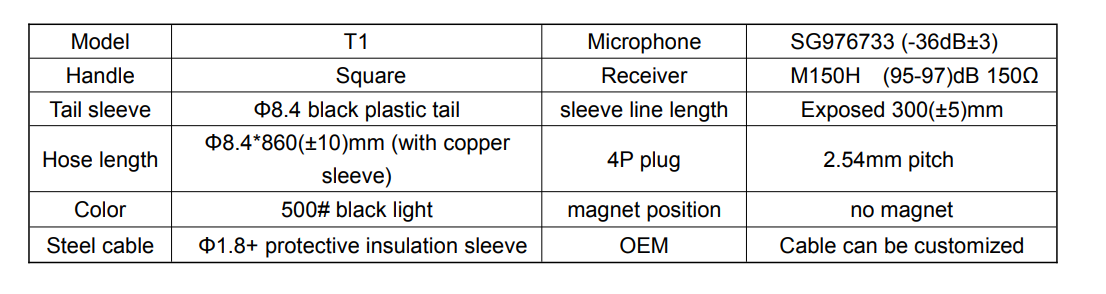

Model

T1

Microphone

   SG976733 (-36dB±3)

Handle

              Square

Receiver

   M150H  (95-97)dB 150Ω

Tail sleeve

Φ8.4 black plastic tail

sleeve line length

Exposed 300(±5)mm

Hose length

Φ8.4*860(±10)mm (with copper sleeve)

4P plug

      2.54mm pitch

Color

500# black light

magnet position

no magnet

Steel cable

 Φ1.8+ protective insulation sleeve

OEM

Cable can be customized
